ZN72 Series Digital Time Relay Counter – Multifunction Timer & Revolution Counter

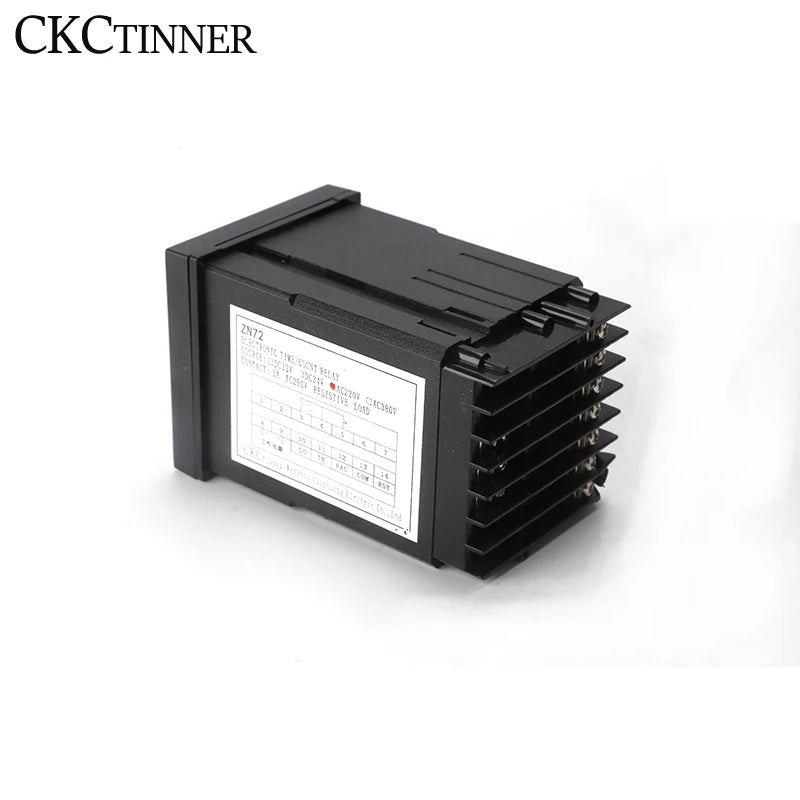

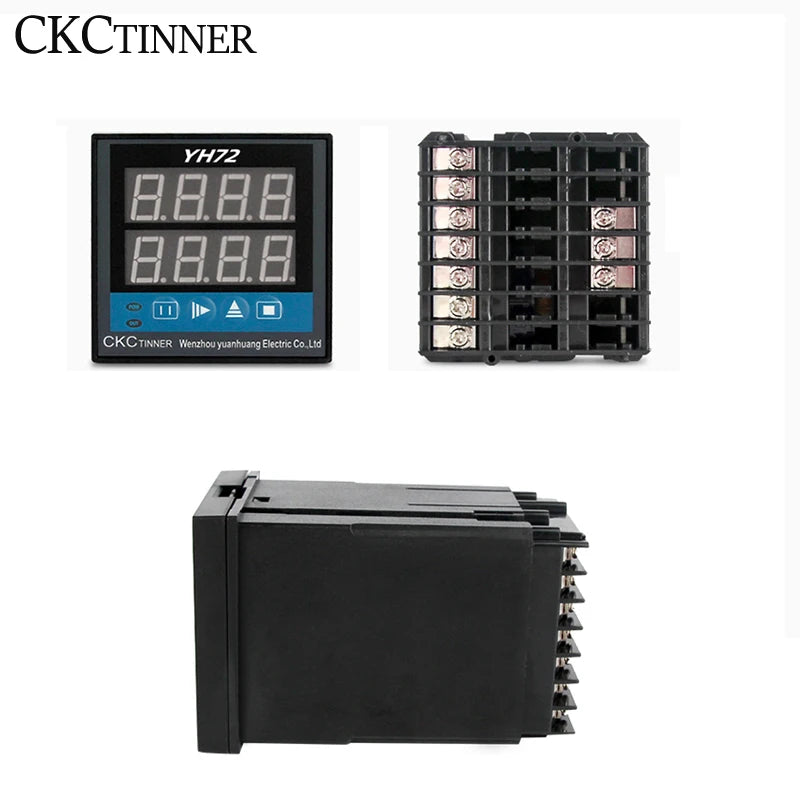

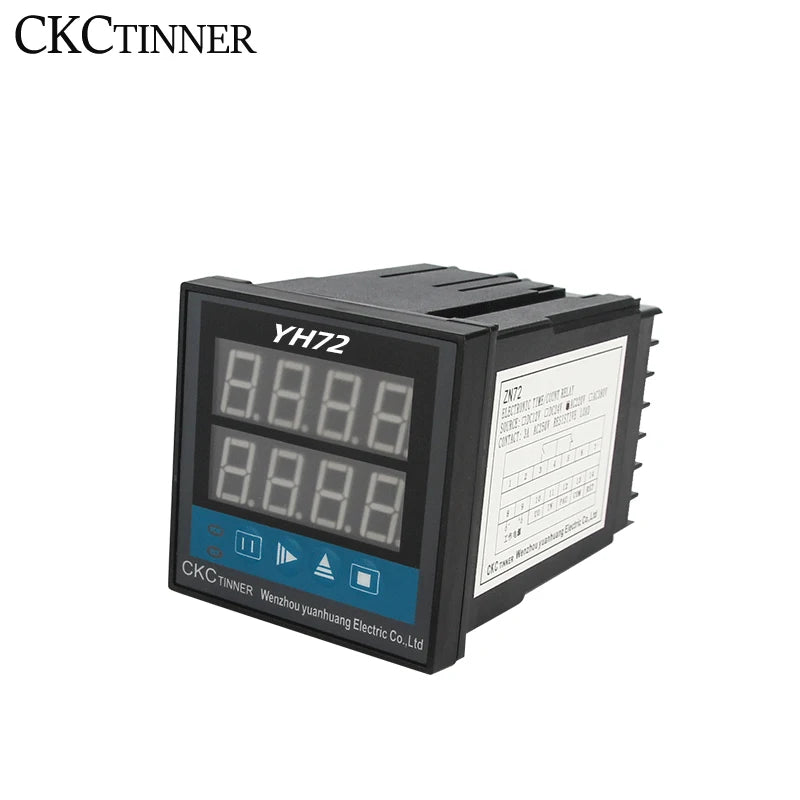

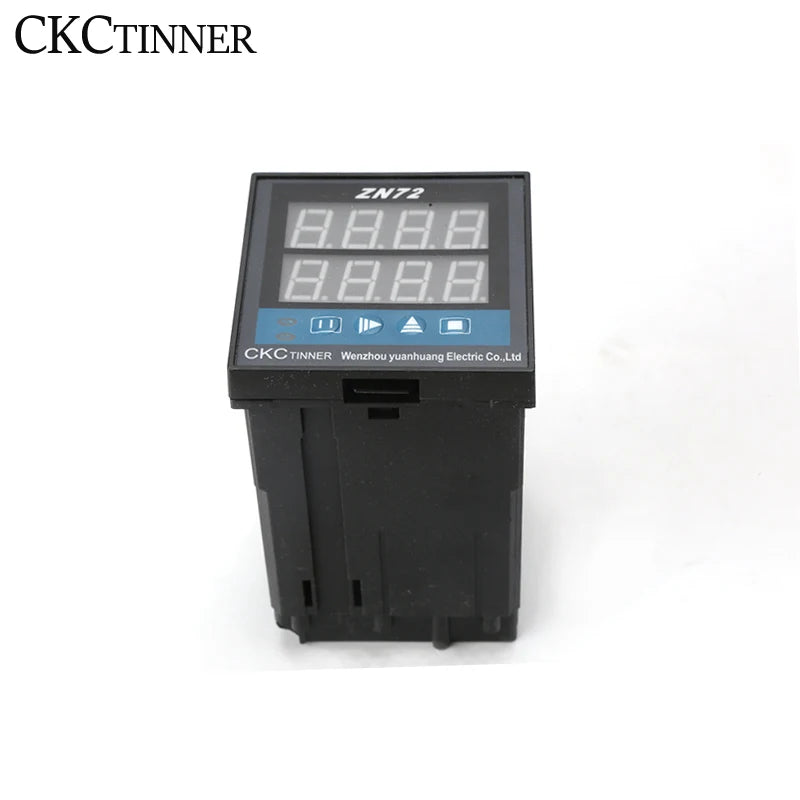

The CKCTINNER ZN72 Digital Time Relay Counter is a versatile, panel-mount multifunction timer and revolution counter designed for industrial and DIY electrical applications. Supporting a wide voltage range — 12V DC, 24V DC, 36V AC, 220V AC, and 380V AC — this compact unit fits seamlessly into control panels, automation systems, and electrical enclosures worldwide.
Whether you need precise cycle timing, event counting, or rotation monitoring, the ZN72 delivers reliable digital accuracy in a rugged 72×72×115 mm housing that conforms to standard panel cut-outs.
Key Features
- Multi-Voltage Compatibility: Works with 12V DC, 24V DC, 36V AC, 220V AC, and 380V AC — one model covers a wide range of electrical systems.
- Multifunction Operation: Functions as a digital time relay, event counter, and revolution (rotation) counter in one unit.
- Clear Digital Display: Large, easy-to-read digital readout for instant status monitoring at a glance.
- Standard Panel-Mount Size: 72×72×115 mm body fits standard DIN panel cut-outs for straightforward installation.
- No Battery Required: Powered directly from your electrical supply — no batteries needed.
- DIY & Industrial Ready: Suitable for electrical DIY projects, machinery control, conveyor systems, production line counting, and more.
- Model Number: ZN72 | Brand: CKCTINNER

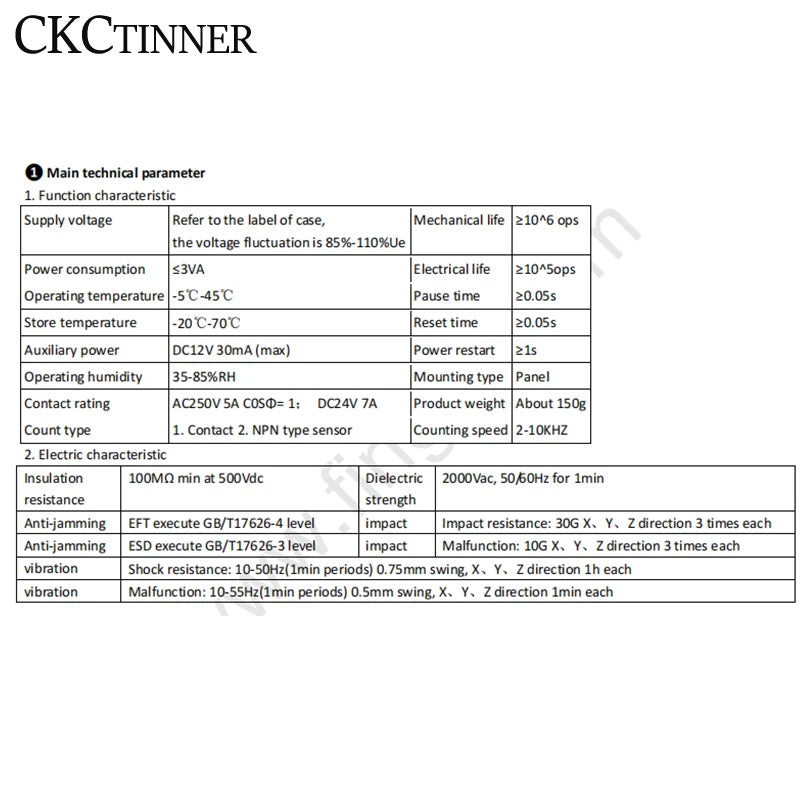

Specifications
| Model | ZN72 |
| Type | Digital Time Relay / Counter |
| Voltage | 12V DC, 24V DC, 36V AC, 220V AC, 380V AC |

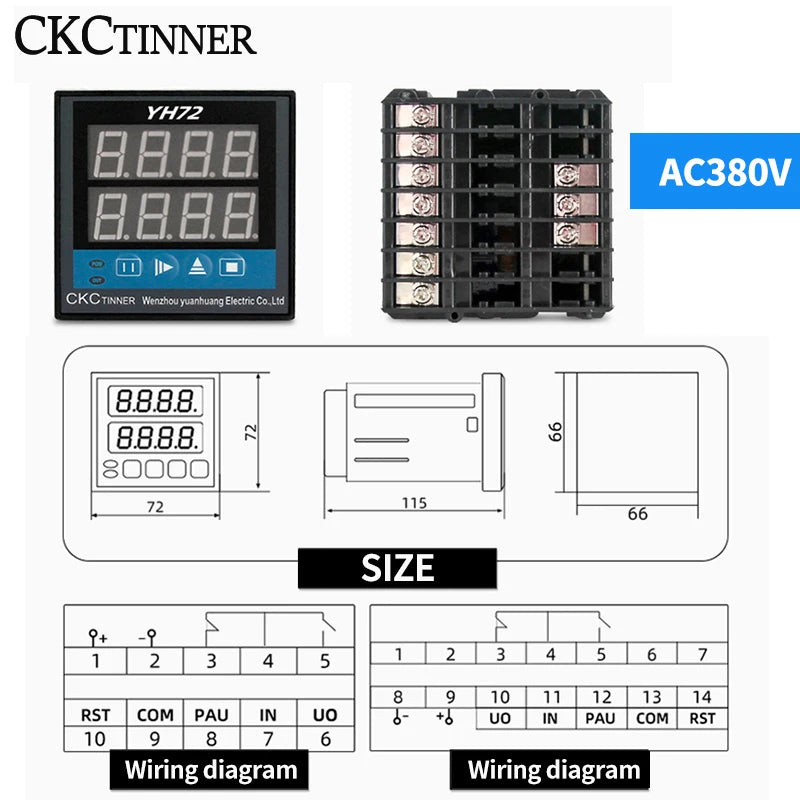

| Dimensions | 72 × 72 × 115 mm |
| Battery | Not required |
| Application | Electrical / Industrial / DIY |
| Country of Origin | Made in Mainland China |
What's in the Box?
- 1 × ZN72 Digital Time Relay Counter Unit
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What voltages does the ZN72 Digital Time Relay Counter support?
A: The ZN72 supports a wide range of voltages including 12V DC, 24V DC, 36V AC, 220V AC, and 380V AC, making it compatible with most standard industrial and DIY electrical systems around the world.
Q: What functions does the ZN72 multifunction timer perform?
A: The ZN72 serves as a digital time relay, an event counter, and a revolution (rotation) counter all in one unit. This makes it ideal for timing control cycles, counting production events, and monitoring rotating machinery in industrial or electrical DIY applications.
Q: What are the dimensions and mounting requirements of the ZN72?
A: The ZN72 measures 72 × 72 × 115 mm and is designed to fit standard panel cut-outs, making installation straightforward in most electrical control panels and enclosures.
