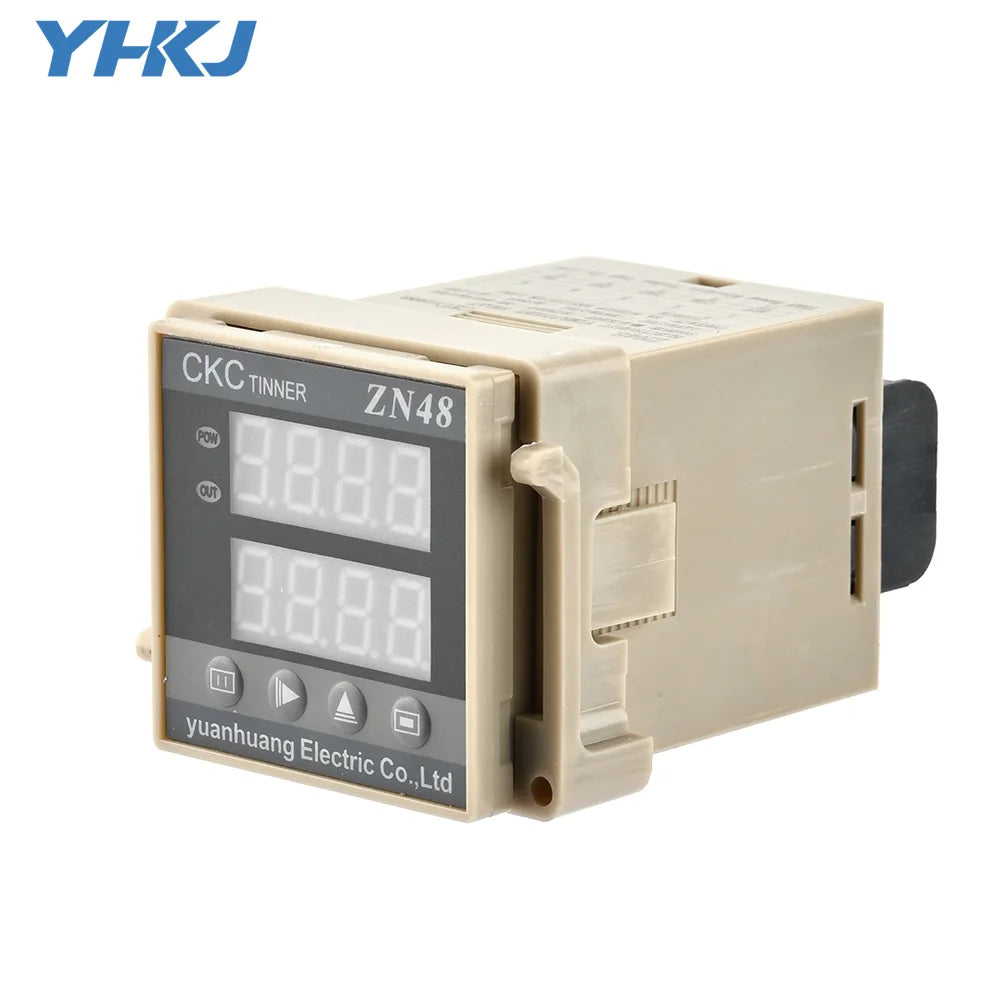

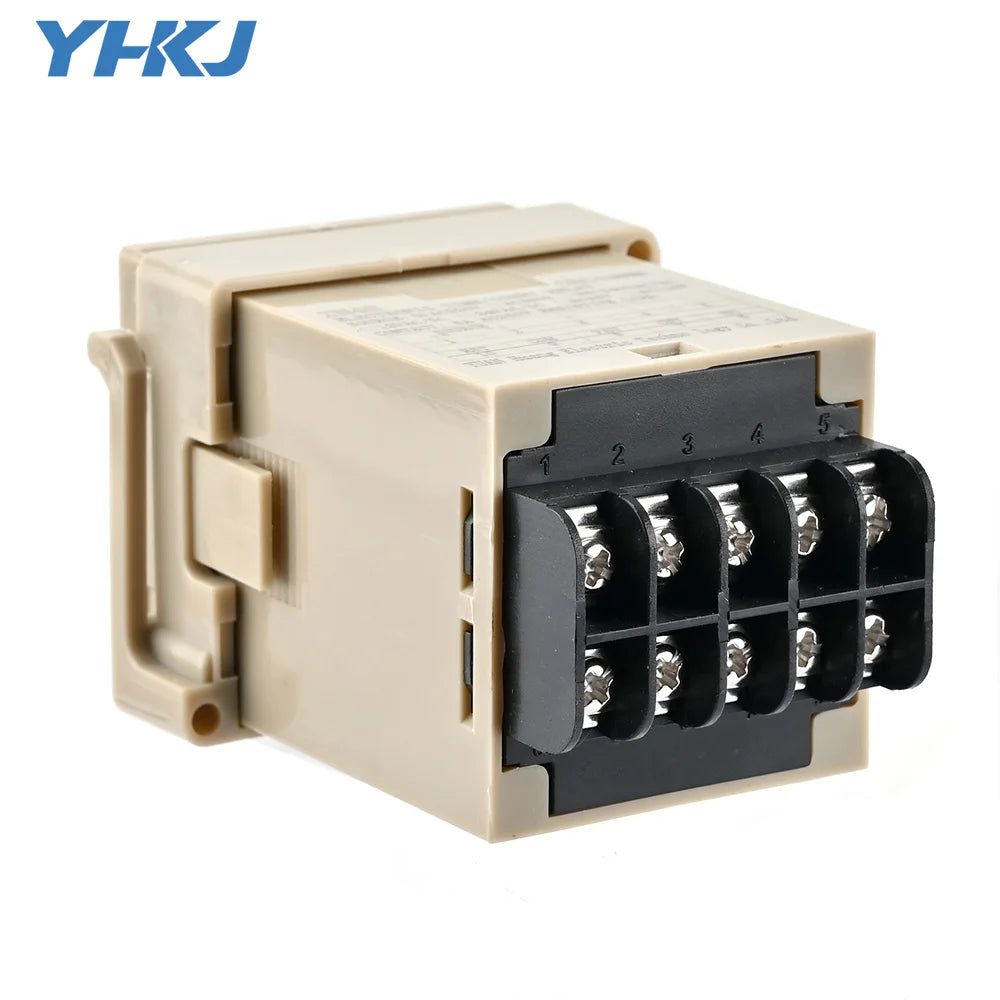

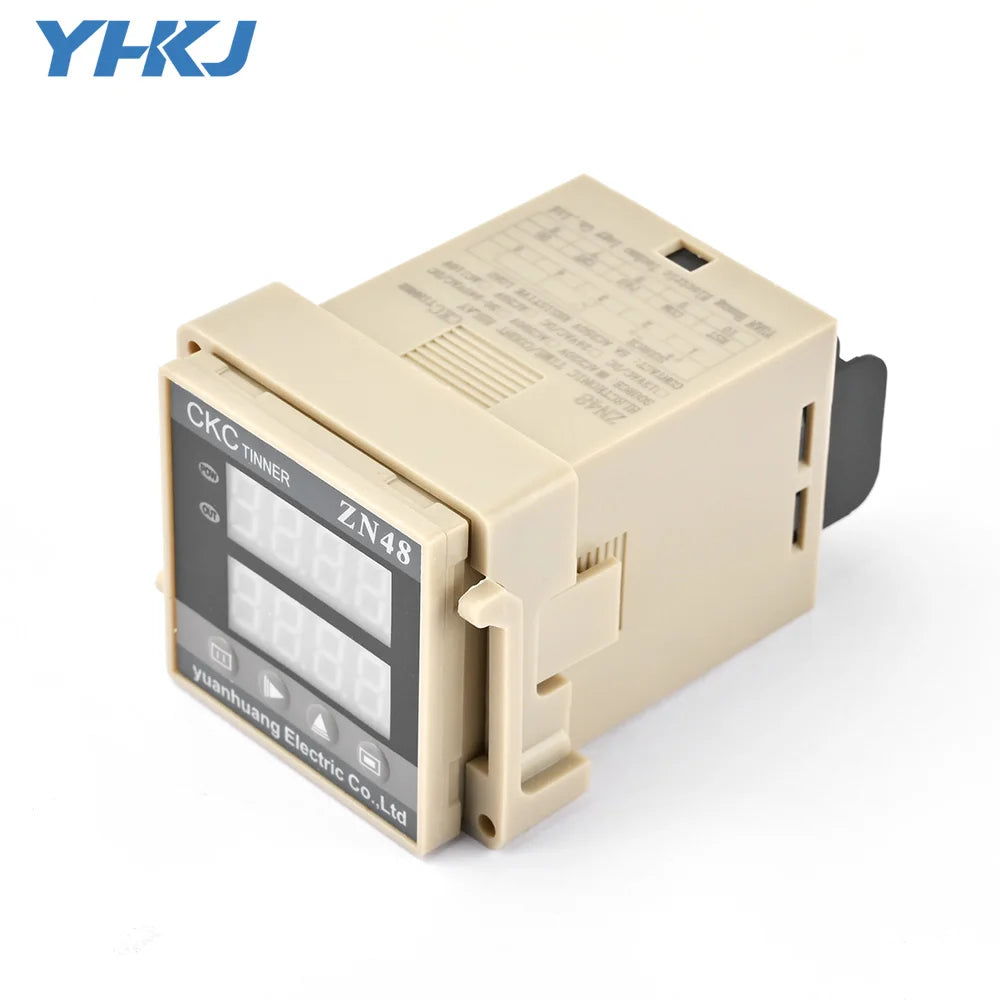

CKCTINNER ZN48 Series Digital Time Relay Counter
The CKCTINNER ZN48 Digital Time Relay Counter is a CE-certified, multifunction panel-mount device that combines a precision timer, event counter, frequency meter, and tachometer in a compact 48×48mm DIN-format housing. Whether you're automating industrial sequences, monitoring rotation speed, or counting production cycles, the ZN48 delivers reliable, programmable control across a wide range of supply voltages — 12V, 24V, 110VAC, 220VAC, and 380VAC.
Made in Mainland China.
Key Features
- Multifunction operation: Single delay (up/down), double delay, accumulation timing, frequency measurement, rotation speed (RPM), and reversible counting — all in one unit.
- Wide voltage compatibility: Supports 12VAC/DC, 24VAC/DC, 36VAC, 110VAC, 220VAC, and 380VAC at 50/60 Hz.
- High-speed counting: Maximum counting speed of 10 KHz for demanding industrial applications.
- Clear digital display: 8-segment, 4-digit LED display for easy at-a-glance reading.
- Dial switch setting: Simple, tool-free dial switch for fast preset value configuration.
- SPDT relay output: Rated 5A @ 250VAC / 7A @ 24VDC for direct load switching.
- Flexible input: Accepts contact or NPN-type sensor signals (compatible with M8, M12, M18, M30 proximity sensors).
- Durable build: Mechanical life of 1×10⁶ operations; electrical life of 1×10⁵ operations.
- CE certified for reliability and safety compliance.

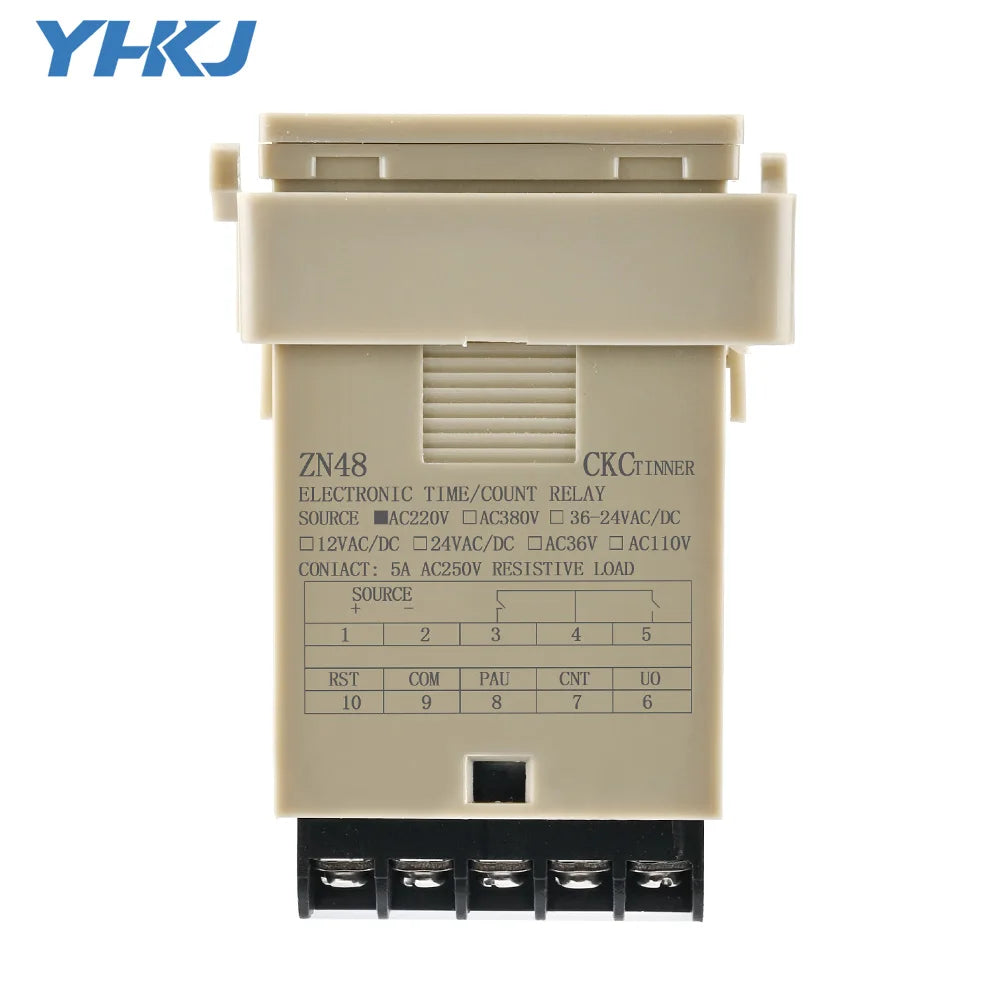

Full Specifications
| Model | ZN48 (ZN Series) |
| Supply Voltage | 12VAC/DC, 24VAC/DC, 36VAC, 110VAC, 220VAC, 380VAC — 50/60 Hz |

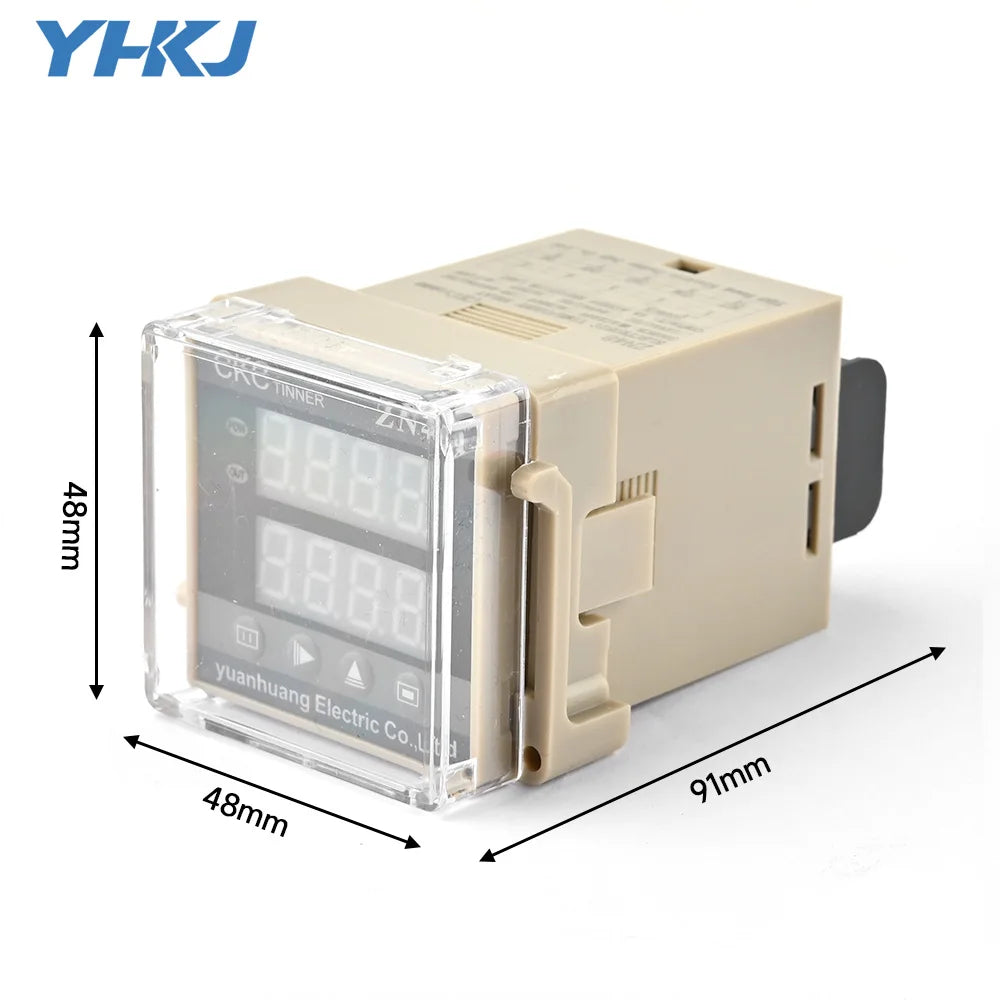

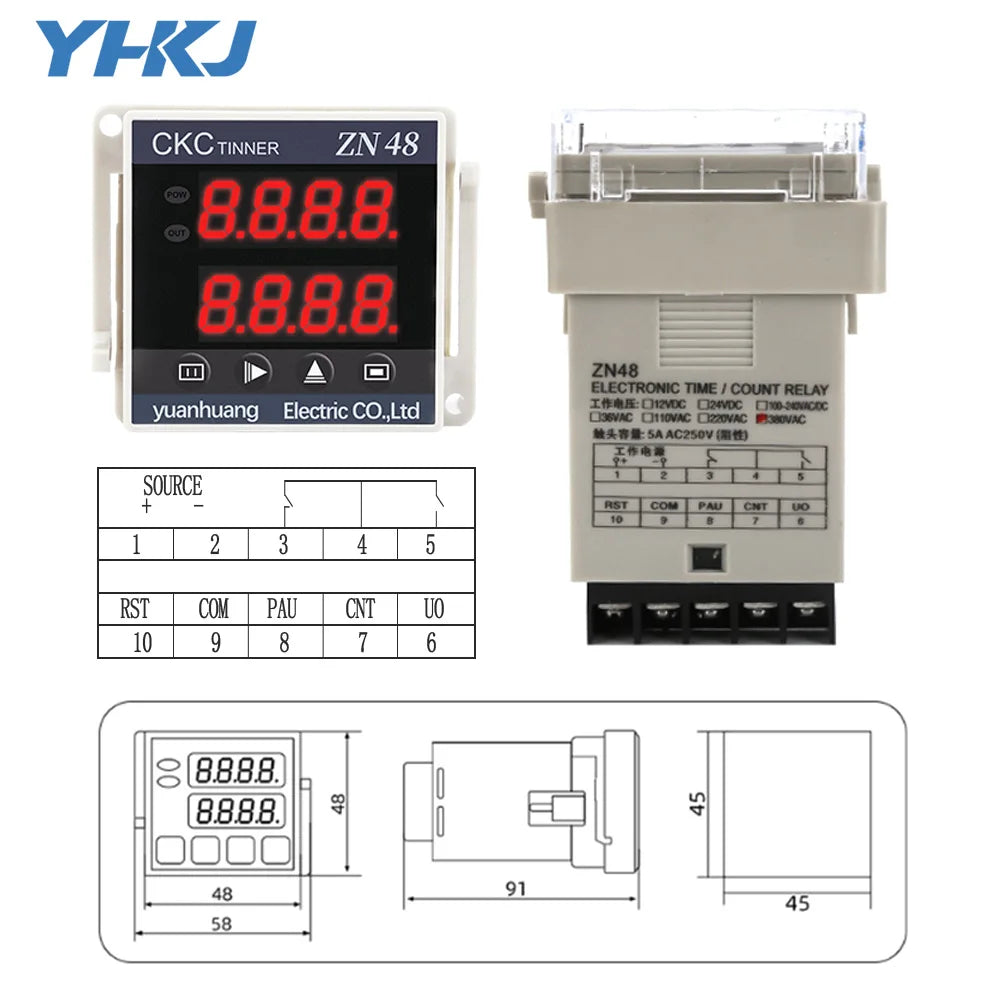

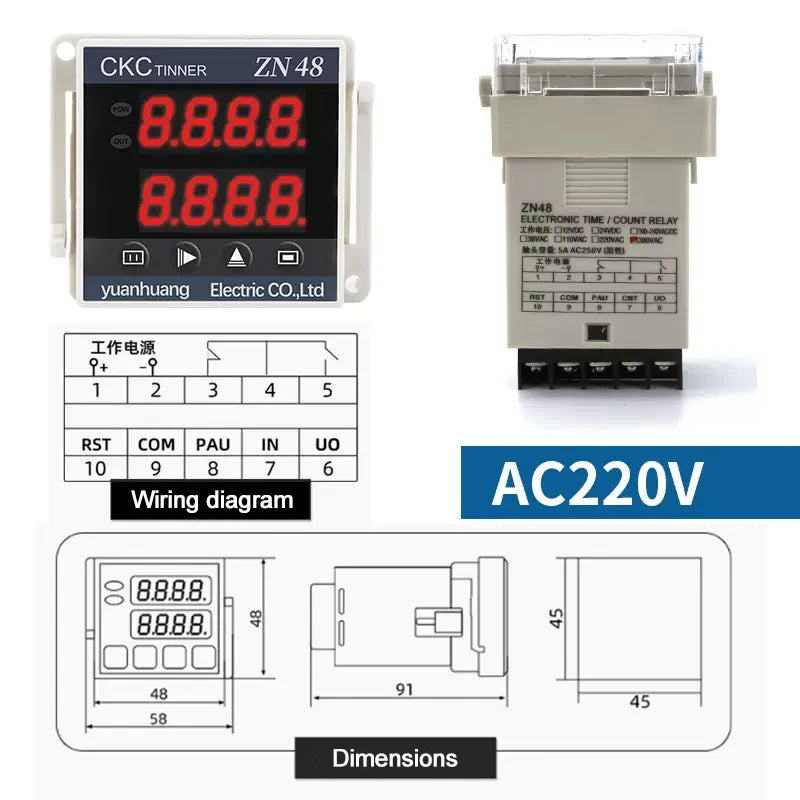

| External Dimensions | 48 × 48 × 91 mm |
| Panel Cutout | 46 × 46 mm |
| Input Signal | Contact, NPN sensor |
| Max Counting Speed | 10 KHz |
| Control Form | SPDT |
| Contact Rating | 5A @ 250VAC; 7A @ 24VDC |
| Display | 8-segment 4-digit LED |
| Setting Method | Dial switch |
| Power Consumption | 3W max |
| Mechanical Life | 1×10⁶ operations |
| Electrical Life | 1×10⁵ operations |
| Dielectric Strength | 2000VAC, 50/60Hz for 1 min |
| Insulation Resistance | 100MΩ min. at 500VDC |
| Counting Error | ≤1 |
| Reset Time | ≥0.05s |
| Power Reset | ≥1s |
| Operating Temperature | -10 to 50°C |
| Operating Humidity | 30–85% RH, non-condensing |
| Certification | CE |
Operating Modes
- Single/Double Delay (Up & Down): Configurable timing ranges from 99.99s up to 99h 59min.
- Accumulation Timer: Tracks cumulative run time up to 9999 days — with instant or 8-second reset.
- Frequency Meter: Measures up to 9999Hz or 999.9Hz.
- Tachometer / Rotation Counter: Measures 60–9999 RPM.
- Reversible Counter: Count up or down from 0–9999 or 0–99,999,999.
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What voltage options are available for the ZN48 Digital Time Relay Counter?
A: The ZN48 supports multiple supply voltages including 12VAC/DC, 24VAC/DC, 36VAC, 110VAC, 220VAC, and 380VAC at 50/60Hz, making it compatible with a broad range of industrial and commercial control panel installations worldwide.
Q: Can the ZN48 be used as both a timer and a counter?
A: Yes. The ZN48 is a true multifunction device — it can operate as a time relay (single or double delay, accumulation), an event counter (reversible, up/down), a frequency meter, and a tachometer/rotation counter, all selectable via the onboard dial switch settings.
Q: What type of sensors are compatible with the ZN48 counter input?
A: The ZN48 accepts contact-type and NPN-type sensor inputs. Compatible proximity sensors include M8 (2mm sensing distance), M12 (4mm), M18 (8mm and 2m), and M30 (4m) NPN models.
Q: How is the ZN48 mounted and what are the panel cutout dimensions?
A: The ZN48 is designed for panel-mount installation. The overall unit dimensions are 48×48×91mm and requires a panel cutout of approximately 46×46mm for a secure, flush-mount fit in a standard DIN-compatible control enclosure.
