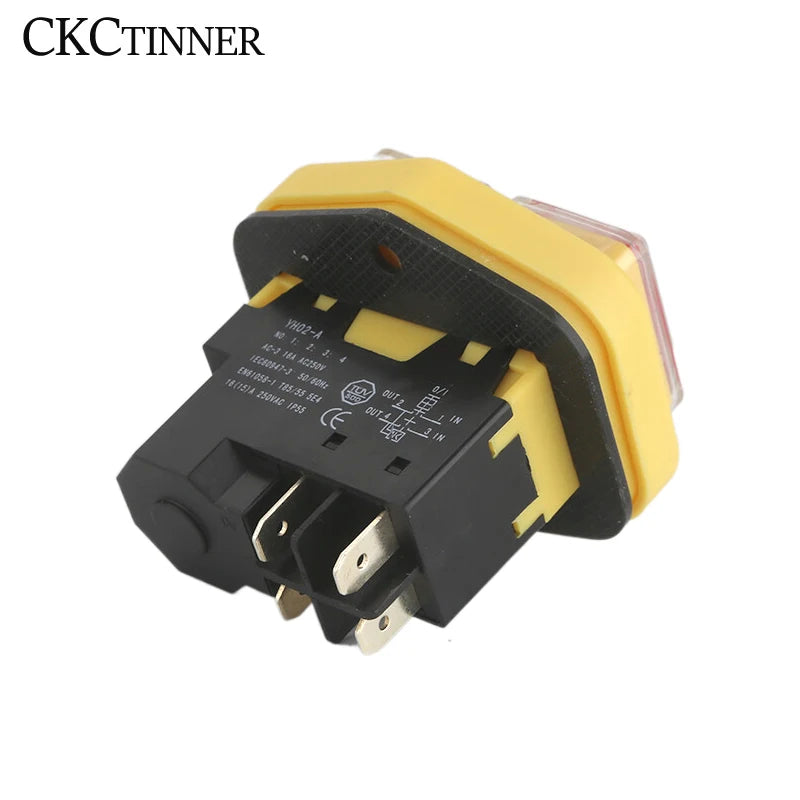

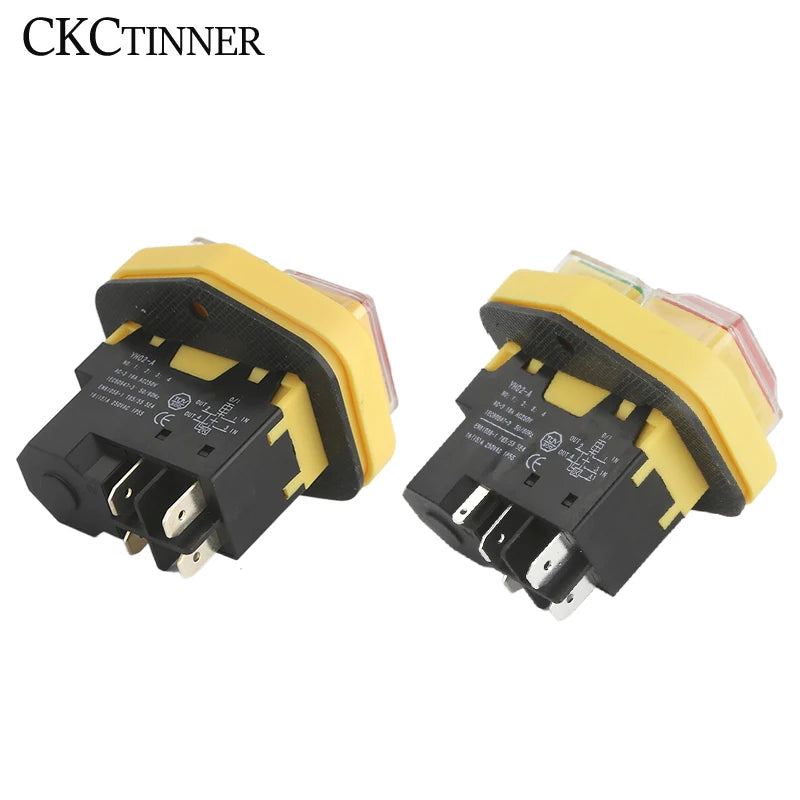

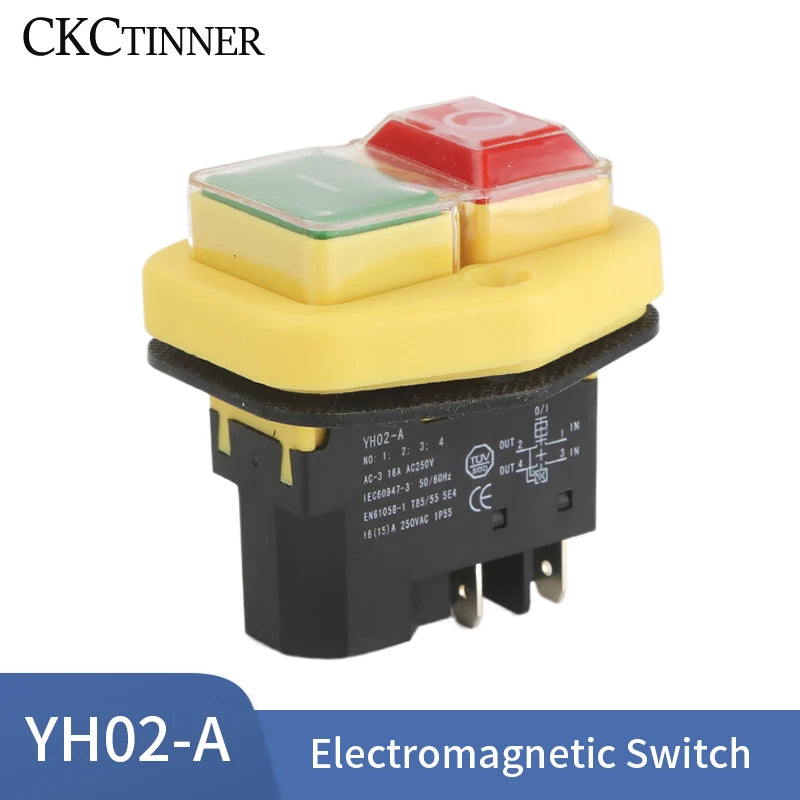

CKCTINNER YH02-A Electromagnetic Push Button Switch – IP55 Waterproof, 15A, 220V
The CKCTINNER YH02-A Electromagnetic Push Button Switch is a heavy-duty, CE-certified safety switch designed for machine tools, garden machinery, and large-scale power equipment. Built with a copper construction and an IP55 waterproof rating, this switch is engineered to perform reliably in demanding indoor and outdoor environments.
A standout safety feature is its power-off and under-voltage protection: if power is unexpectedly cut, the machine will not automatically restart. The operator must press the green start button to resume operation — a critical safeguard for any workshop or garden setting.
Key Features
- Model: YH02-A
- Rated Voltage: AC 250V
- Rated Current: 15A (AC-3)
- Coil Voltage: 220–240V
- Rated Frequency: 50/60Hz

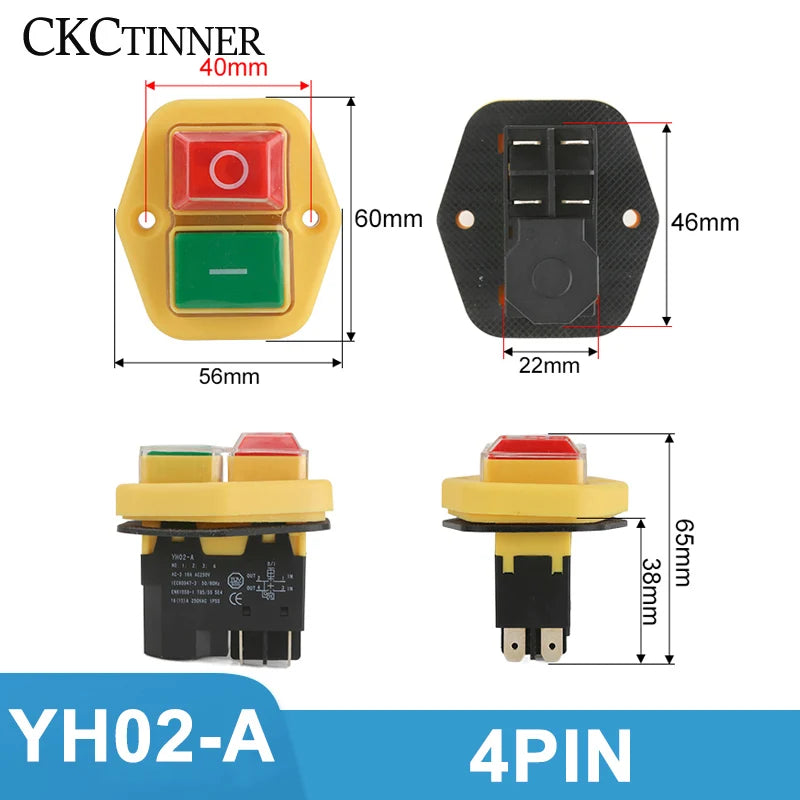

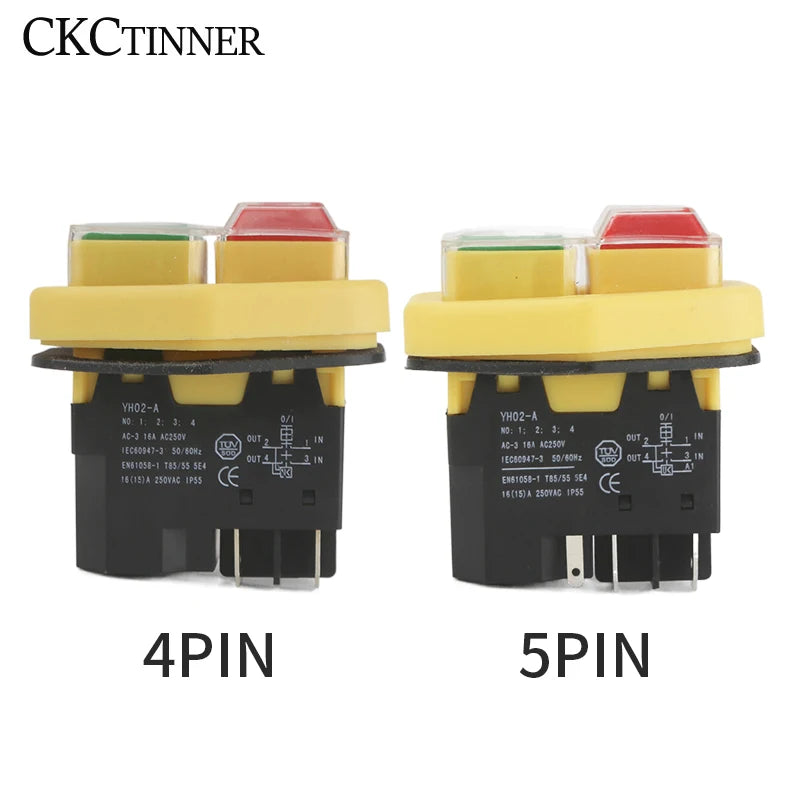

- Pin Configuration: 4-Pin / 5-Pin
- Protection Rating: IP55 (dust and water resistant)
- Operating Cycles: Up to 5×10⁴ cycles
- Ambient Temperature Range: T85/55
- Material: Copper contacts for durability and conductivity
- Certification: CE Certified
- Warranty: 1 Year
Safety Functions
- Double Pole Cut-Off – Fully disconnects the circuit for maximum safety during shutdown.
- Brake Function with Single Pole Cut-Off – Enables a controlled stop while maintaining partial circuit control.
- Combined Overload Protection – Compatible with overload protection switches to deliver both under-voltage and overload protection simultaneously.
Ideal Applications
This electromagnetic starter switch is widely used in:
- Machine tools and industrial equipment
- Garden machinery (lawnmowers, tillers, chippers)
- Large power tools and workshop equipment
- Any motor-driven device requiring a safe start/stop mechanism
Made in Mainland China.
You Might Also Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Garden Pruner Shears – Secateurs for Bonsai & Fruit Trees
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What voltage is the CKCTINNER YH02-A push button switch compatible with?
A: The YH02-A electromagnetic push button switch is rated for AC 250V with a coil voltage of 220–240V, making it suitable for standard 220V single-phase applications across 50/60Hz systems.
Q: What does the IP55 protection rating mean for this switch?
A: IP55 means the switch is protected against dust ingress and low-pressure water jets from any direction, making it suitable for use in outdoor garden environments and dusty workshop conditions.
Q: Will the machine restart automatically after a power outage?
A: No. The YH02-A features built-in under-voltage protection. If power is unexpectedly cut, the switch will not allow the machine to restart automatically. The operator must press the green start button to resume — a key safety feature for machine tools and garden equipment.
Q: Is this switch compatible with an overload protection device?
A: Yes. The YH02-A is designed to be combined with an overload protection switch, enabling comprehensive under-voltage and overload protection for your equipment.
