XMTD-2001 PID Digital Temperature Controller – Precise Industrial Thermostat
Take full control of your industrial heating processes with the XMTD-2001 PID Digital Temperature Controller by CKCTINNER. Engineered for accuracy and reliability, this embedded thermostat delivers stable automatic temperature regulation across a wide range — from 0–399°C (standard mode) up to 0–999°C — making it ideal for demanding industrial environments.
Made in Mainland China.
Key Features
- Clear LCD Digital Display – Easy-to-read analog-style readout lets you monitor temperatures at a glance
- High Accuracy & Stability – PID control logic ensures consistent, reliable temperature regulation with minimal deviation
- Wide Sensor Compatibility – Supports K-type, E-type, and PT100 thermocouple/RTD inputs for flexible installation
- Flame-Retardant PV Shell – Built from fire-resistant materials for safe use in high-temperature industrial settings
- Dual Voltage Support – Works on both 110V and 220V AC (50/60 Hz) for worldwide compatibility
- Visual Status Indicators – Green light indicates active heating; red light signals the set temperature has been reached and heating has stopped
- CE Certified – Meets international safety and performance standards

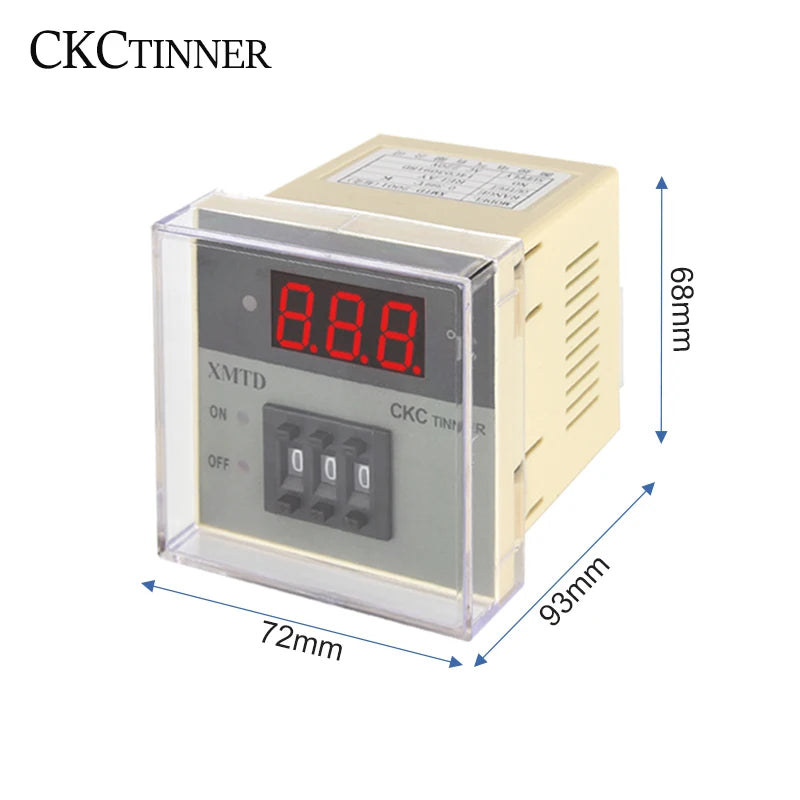

- Compact Panel-Mount Design – 75×75 mm embedded form factor fits standard industrial enclosure cutouts
Specifications
| Model | XMTD-2001 |
| Input Types | K-type, E-type, PT100 |
| Temperature Range | 0–399°C / 0–999°C |
| Supply Voltage | 110V / 220V AC, 50/60 Hz |
| Display Type | LCD Digital |
| Mounting Style | Embedded / Panel Mount (75×75 mm) |
| Weight | Approx. 313 g / 11 oz |
| Certification | CE |
| Battery Required | No |
Typical Applications
- Plastics & rubber processing machinery
- Packaging equipment
- Food processing machinery
- Metallurgy & chemical industry equipment
- Agricultural/breeding environment control
- Industrial ovens, kilns, and furnaces
What's in the Box
- 1× XMTD-2001 Temperature Controller
- 2× Accessories
Installation Notes

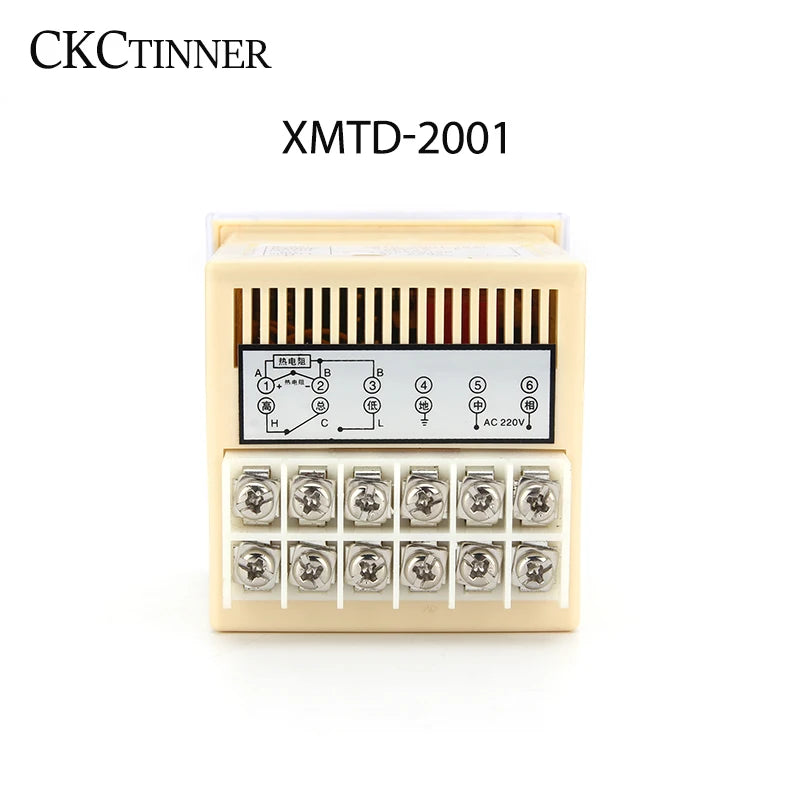

- Follow the wiring diagram included with the unit
- Keep the temperature sensor clear of power cords and relays
- After powering on, set to approximately 90% of your target value first; adjust to the precise value after a few operating cycles
- For silicon-controlled (SCR) instrument compatibility, the pulse output terminals can be switched between two lines if voltage jitter is observed across the load
Related Products You May Find Useful
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What sensor types are compatible with the XMTD-2001 temperature controller?
A: The XMTD-2001 PID temperature controller supports three input types: K-type thermocouple, E-type thermocouple, and PT100 RTD sensors. This broad compatibility makes it easy to integrate into existing industrial setups using your preferred sensor type.
Q: What voltage does the XMTD-2001 thermostat require?
A: The XMTD-2001 supports both 110V and 220V AC at 50/60 Hz, making it suitable for use in North America, Europe, and most other regions worldwide without the need for a voltage converter.
Q: What does the 75×75 mm dimension refer to?
A: The 75×75 mm measurement refers to the panel cutout size required for flush/embedded mounting. This is a standard industrial panel format, allowing the controller to be neatly installed into control boxes, machinery panels, and industrial enclosures.
Q: Can this temperature controller be used with silicon-controlled rectifier (SCR) instruments?
A: Yes. The XMTD-2001 is compatible with SCR instruments. If voltage jitter is detected across the load, simply switch the pulse output between the two available terminals to stabilize operation.
