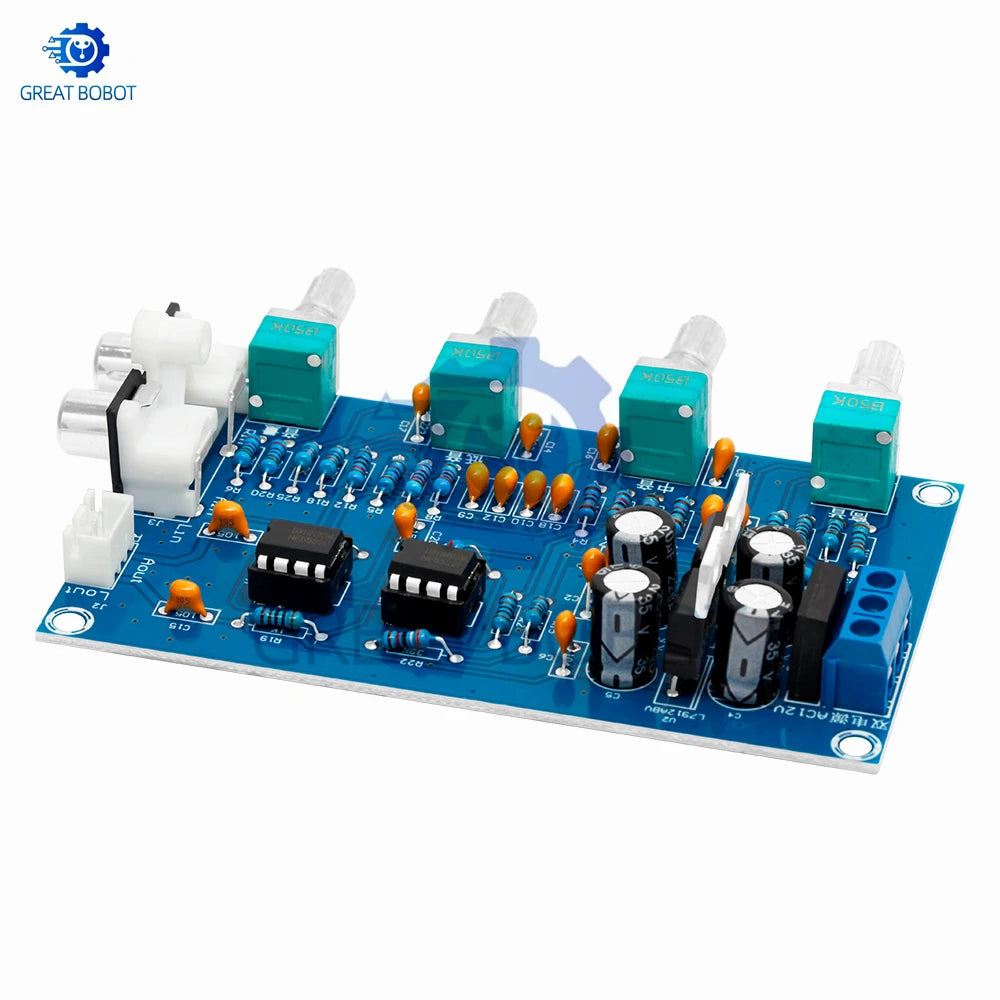

XH-M164 NE5532 Stereo Preamplifier Module – Precision Audio Control
Upgrade your audio setup with the XH-M164 NE5532 Stereo Preamplifier Module. Built around the legendary NE5532 op-amp chipset, this compact SMD module delivers clean, low-noise signal amplification with full tone control — making it an ideal choice for DIY audio enthusiasts, electronics hobbyists, and home audio builders alike.
Whether you're building a custom amplifier system, enhancing a computer audio setup, or adding a telephone preamp stage to your project, this versatile module handles it all with ease.
Key Features
- NE5532 Op-Amp Core: Industry-standard dual op-amp chip known for low noise and wide frequency response — delivers clear, accurate audio reproduction.
- 4-Channel Audio Amplification: Supports four independent audio channels for flexible stereo or multi-source configurations.

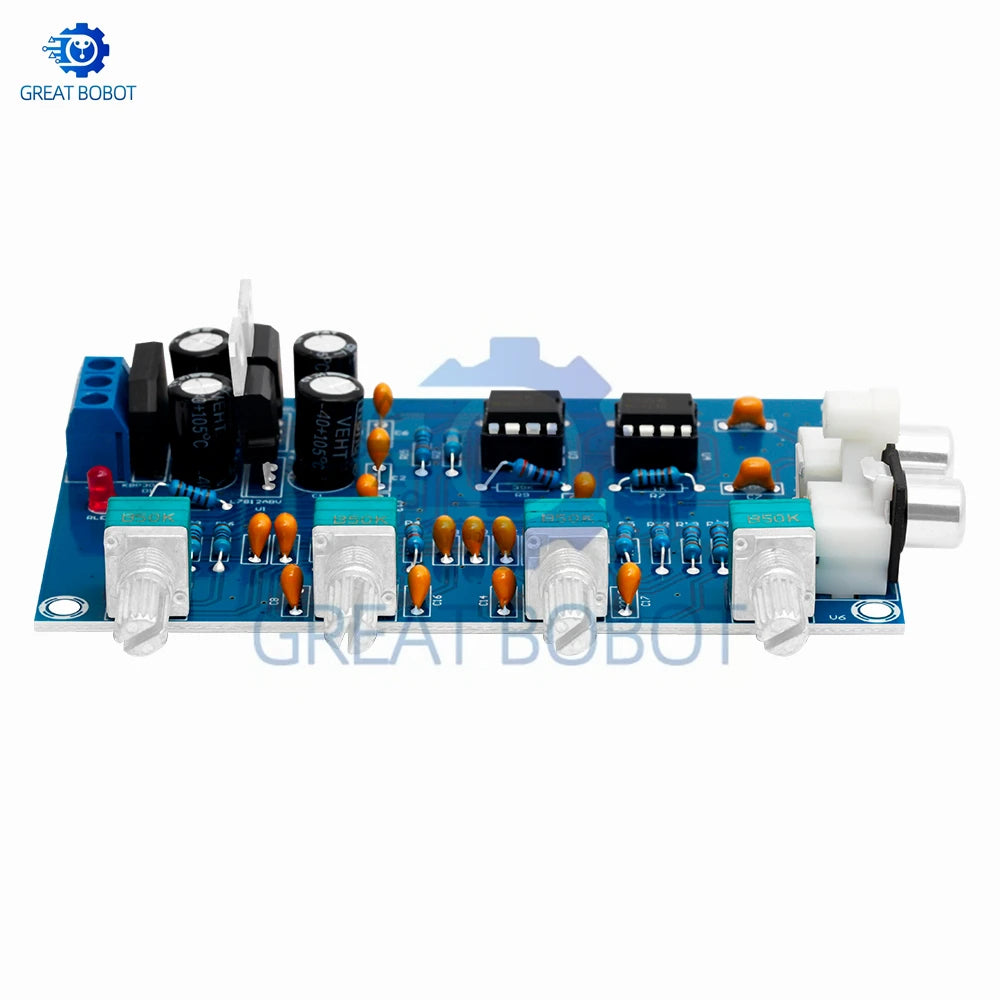

- Tone Control: Onboard bass, midrange, and treble adjustment controls let you fine-tune your sound output to your preference.
- Telephone Preamp Functionality: Built-in telephone preamp stage enables integration with telephone-level audio sources.
- Wide Supply Voltage Range: Operates on 12V–24V DC, compatible with most standard power supplies used in audio and electronics projects.
- SMD Package: Surface-mount design keeps the module compact and suitable for integration into tight enclosures or PCB assemblies.
- Operating Temperature: Rated for use between 0–100°C, suitable for a wide range of environments.
- Condition: Brand new — ready to integrate into your build right out of the box.
Specifications
| Model | XH-M164 |
| Op-Amp IC | NE5532 |
| Supply Voltage | 12V – 24V DC |
| Channels | 4-Channel |
| Package Type | SMD |
| Operating Temperature | 0 – 100°C |
| Quantity | 1 Module |
| Application | Computer / Home Audio / DIY |
| Country of Origin | Made in Mainland China |
Who Is This For?
This module is perfect for electronics hobbyists, audio engineers, and DIY makers who want a reliable, ready-to-use preamplifier board. Whether you're building a hi-fi audio system from scratch, prototyping a custom mixer, or experimenting with signal processing, the XH-M164 is a solid, affordable foundation.
Related Products You May Like
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- 360° Bicycle Chain Cleaner Tool | Bike Gear Cleaning Kit
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: What op-amp chip does the XH-M164 preamplifier module use?
A: The XH-M164 uses the NE5532 dual op-amp IC, a widely respected component in audio electronics known for its low noise floor, high gain bandwidth, and excellent audio signal fidelity. It is well-suited for both low-level signal preamplification and tone shaping applications.
Q: What power supply voltage does this preamplifier module require?
A: The XH-M164 module operates on a supply voltage range of 12V to 24V DC. Most standard electronics bench power supplies or dedicated audio power adapters within this range will work perfectly with this module.
Q: Can this module be used with a computer audio system?
A: Yes. The XH-M164 is specifically listed as compatible with computer audio applications. Its tone control and 4-channel amplification make it a great addition for enhancing computer speaker setups, custom PC audio builds, or desktop hi-fi systems.
Q: Does this module come fully assembled?
A: Yes. The XH-M164 is supplied as a fully assembled SMD (surface-mount device) module, brand new and ready to connect to your audio circuit or project enclosure without additional soldering of components.
