9-Piece Xbox 360 BGA Reballing Stencil Set – CPU, GPU & CSP HANA
Tackle Xbox 360 motherboard rework with precision using this comprehensive 9-piece BGA reballing stencil set. Designed specifically for the Xbox 360 game console, this kit covers the most commonly serviced chips — including GPU-B and CPU-A01 — giving technicians and hobbyist repair enthusiasts everything they need in one package. Each stencil measures a generous 90×90mm for stable placement on your reballing station.
Made in Mainland China.
Key Features
- Complete 9-Stencil Kit: Covers Xbox 360 CPU, GPU, CSP, HANA, GPU-B, CPU-A01, and more — one kit for the full console chipset.
- 90×90mm Size: Generous stencil dimensions ensure secure, warp-free positioning on standard BGA reballing stations.
- High-Precision Laser-Cut Apertures: Precisely formed holes deliver consistent, accurate solder ball placement for reliable reballing results.
- Durable Stainless Steel Construction: Rigid and reusable stencils hold their shape through repeated use and cleaning.
- Universal Station Compatibility: Works with most standard BGA reballing stations and jig fixtures.
- Condition: Brand new — ready to use straight out of the package.
What's Included

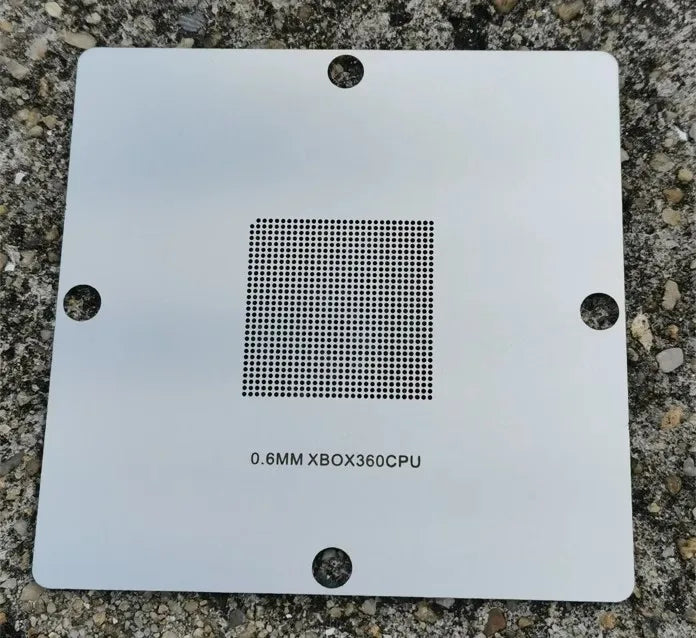

- 9 × BGA Reballing Stencils (90×90mm) for Xbox 360 — including GPU-B, CPU-A01, CSP HANA, and related chip variants
Ideal For
- Professional electronics repair technicians
- Console repair shops servicing Xbox 360 units
- DIY hobbyists performing BGA rework at home
Related Products You May Like
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What chips does this Xbox 360 BGA reballing stencil kit cover?
A: This 9-piece kit includes stencils for the Xbox 360 GPU-B, CPU-A01, CSP HANA, and other key console chipset variants, making it a comprehensive solution for most Xbox 360 BGA rework and reballing tasks.
Q: Are these stencils compatible with standard BGA reballing stations?
A: Yes. Each stencil measures 90×90mm and is designed to fit most standard BGA reballing stations and jig fixtures available on the market. Always verify your station's stencil size requirements before ordering.
Q: Can these stencils be reused multiple times?
A: Absolutely. The stencils are constructed from durable stainless steel and can be cleaned and reused across multiple reballing jobs, making them a cost-effective addition to any repair toolkit.
Q: Are these stencils suitable for beginner repair technicians?
A: While BGA reballing requires some soldering skill and the right equipment, the precision laser-cut apertures in these stencils make solder ball placement much more consistent — helping both beginners and experienced technicians achieve reliable results.
