WS2812B 64 RGB LED Matrix Module – 8×8, 24-Bit Color, Single Data Pin

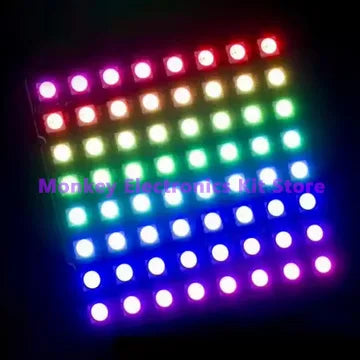

Light up your next electronics project with this compact WS2812B 64 RGB LED Matrix Module. Featuring an 8×8 grid of individually addressable full-color LEDs packed into a slim 8cm × 8cm panel, this module delivers vibrant 24-bit color in a tidy, single-data-pin design — making it incredibly easy to wire up and drive from any microcontroller.
Whether you're building a custom LED display, an ambient light panel, a game animation matrix, or a wearable light project, this module is a plug-and-play foundation that saves hours of soldering and layout work.
Key Features
- 64 WS2812B LEDs arranged in an 8×8 grid for a clean, uniform display
- 24-bit full color (8 bits per R/G/B channel) — over 16 million color combinations
- Single data pin control — simple to connect to Arduino, ESP32, Raspberry Pi, and more
- Compact 8cm × 8cm form factor — easy to integrate into enclosures and builds
- SMD package — professional PCB-mounted LEDs for reliable, stable performance
- Compatible with popular LED libraries such as FastLED and Adafruit NeoPixel
- Individually addressable LEDs — animate each pixel independently
- New condition; no high-concern chemicals
Specifications
| LED Type | WS2812B (NeoPixel-compatible) |
| LED Count | 64 (8×8 matrix) |
| Color Depth | 24-bit (16.7 million colors) |

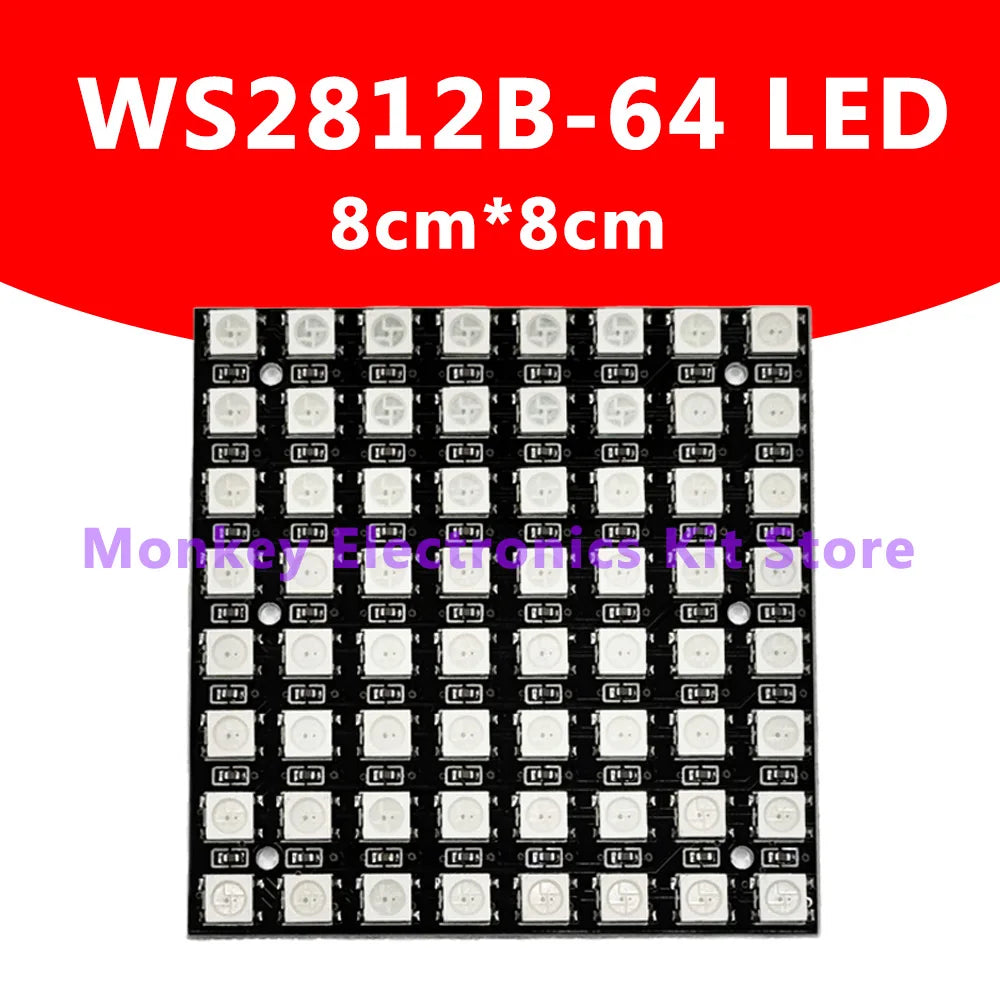

| Board Size | 8cm × 8cm |

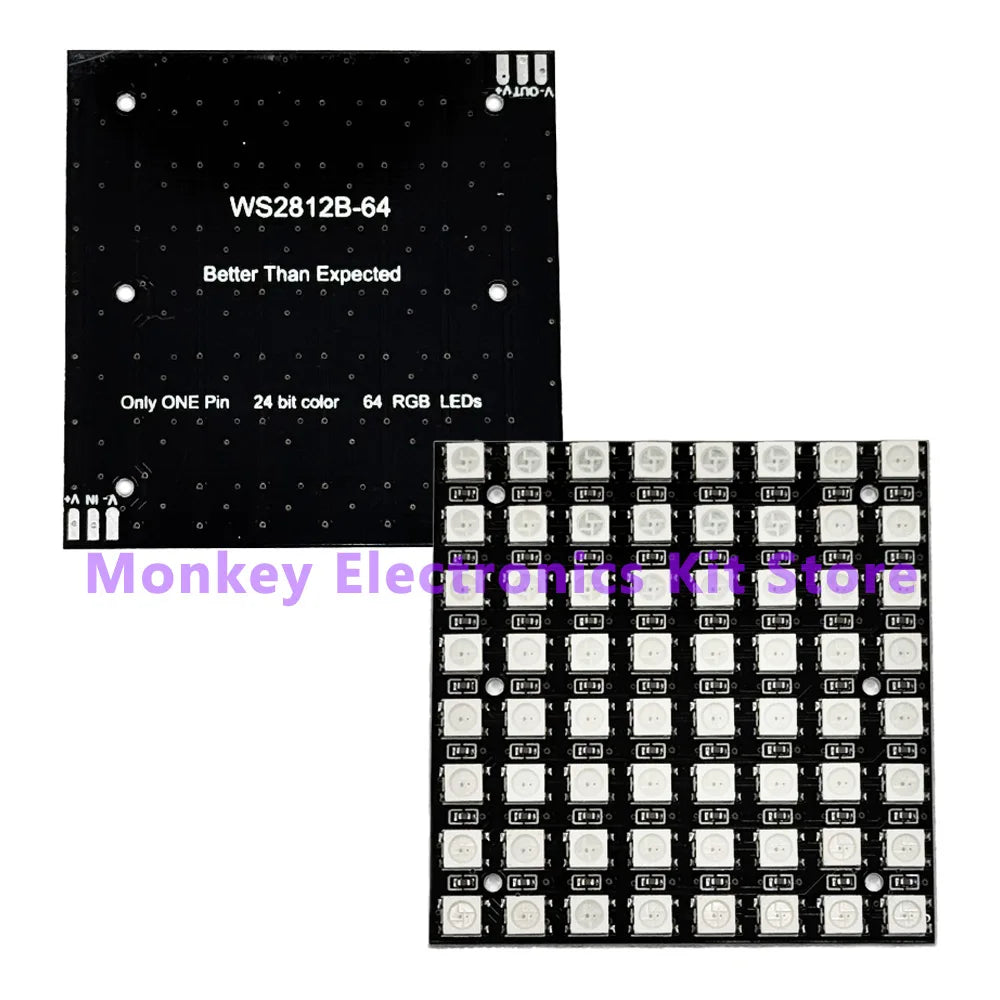

| Control Pins | 1 data pin (+ power & ground) |
| Package Type | SMD Module |
| Quantity | 1 piece |
| Country of Origin | Made in China |
What Can You Build?
This versatile LED matrix module is perfect for a wide range of DIY and maker projects:
- Scrolling text and icon displays
- Ambient RGB room lighting panels
- Visual audio spectrum analyzers
- Game controllers with LED feedback
- Wearable costume lighting
- Custom clocks and weather stations
Related Products You May Like
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Clip-On Car Fan LED Display 199 Speeds | USB & Type-C
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: Is this WS2812B LED matrix module compatible with Arduino and ESP32?
A: Yes! The WS2812B 64 LED matrix module works seamlessly with Arduino, ESP32, ESP8266, Raspberry Pi, and most other microcontrollers. It uses a single data pin protocol and is fully compatible with the popular FastLED and Adafruit NeoPixel libraries, so you can get your display running with just a few lines of code.
Q: How much power does the 64 RGB LED matrix module require?
A: Each WS2812B LED can draw up to 60mA at full white brightness. With 64 LEDs, the theoretical maximum draw is around 3.84A at 5V. In typical use with animations and mixed colors, actual consumption is significantly lower — but we recommend a dedicated 5V power supply of at least 2–4A for stable operation, rather than drawing power directly from a microcontroller's USB port.
Q: Can I chain multiple WS2812B LED matrix modules together?
A: Absolutely. The WS2812B protocol supports daisy-chaining — connect the data output (DOUT) of this module to the data input (DIN) of the next module. You can control hundreds of LEDs on a single data line, making it easy to scale up your project to larger displays or more complex layouts.

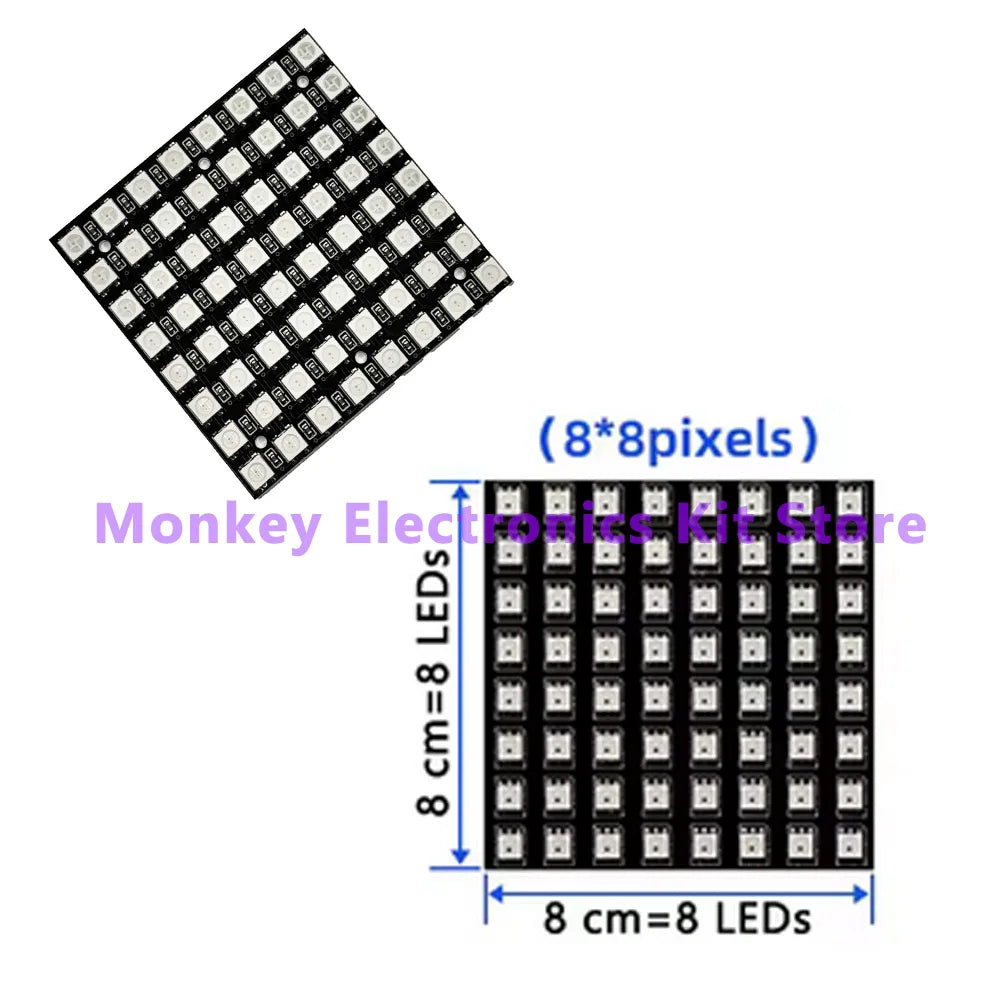

Q: What is the size of this LED matrix module?
A: The board measures 8cm × 8cm and features an 8×8 grid of 64 individually addressable RGB LEDs. Its compact square form factor makes it easy to mount in enclosures, display frames, or costumes.
