Woodworking Height Marking Gauge – Precision Line Drawing Tool

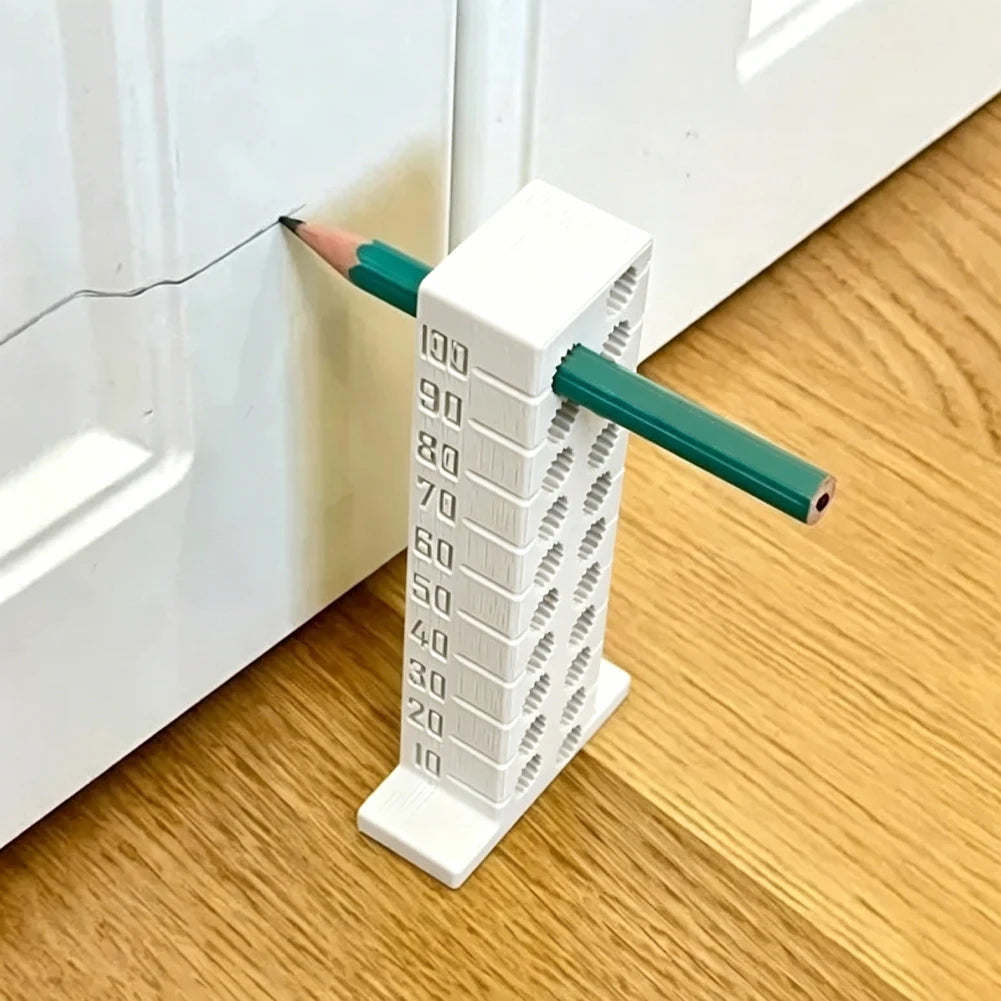

Take the guesswork out of your woodworking projects with this versatile Height Marking Gauge. Designed for both hobbyists and seasoned woodworkers, this compact tool delivers consistent, accurate scribe lines every time — from fine furniture work to rough carpentry and DIY builds. Made in Mainland China.
Key Features

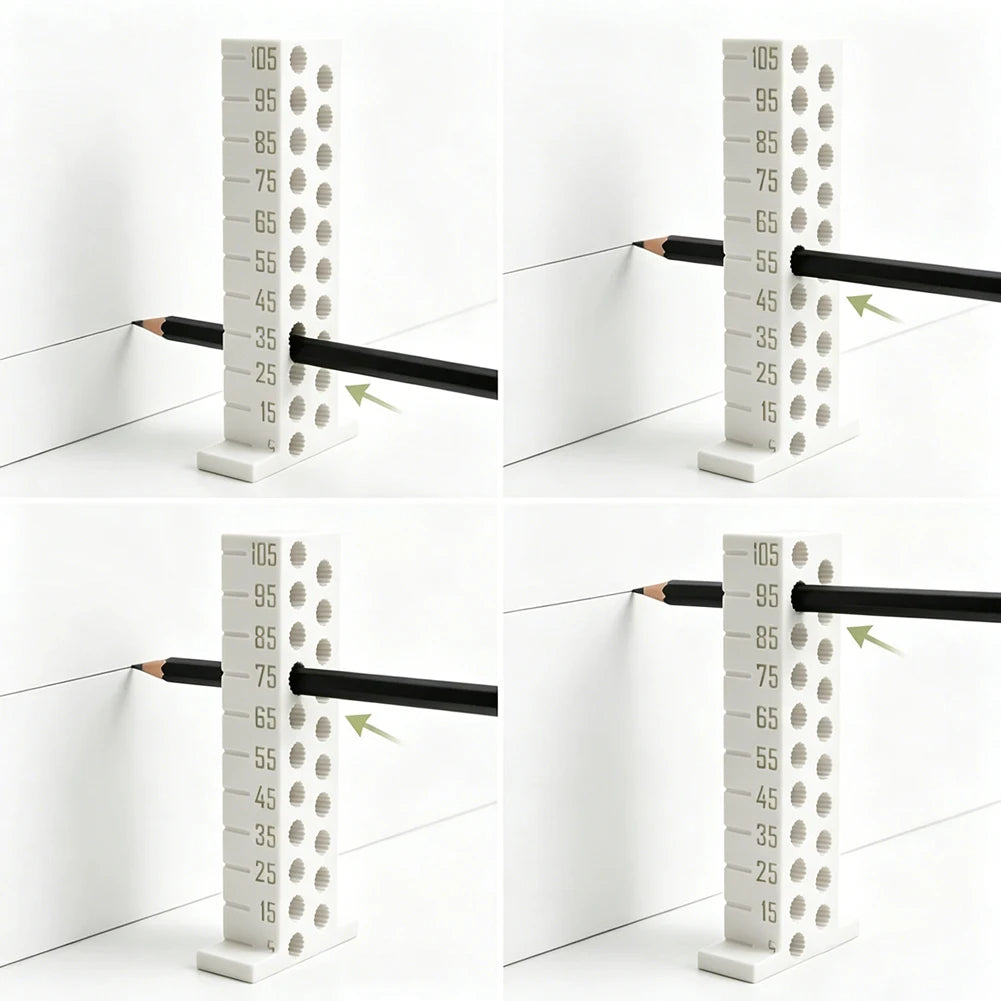

- Wide Measuring Range: Covers 5 to 105 mm (¼ to 4¼ inches), making it suitable for a broad range of woodworking and DIY tasks.

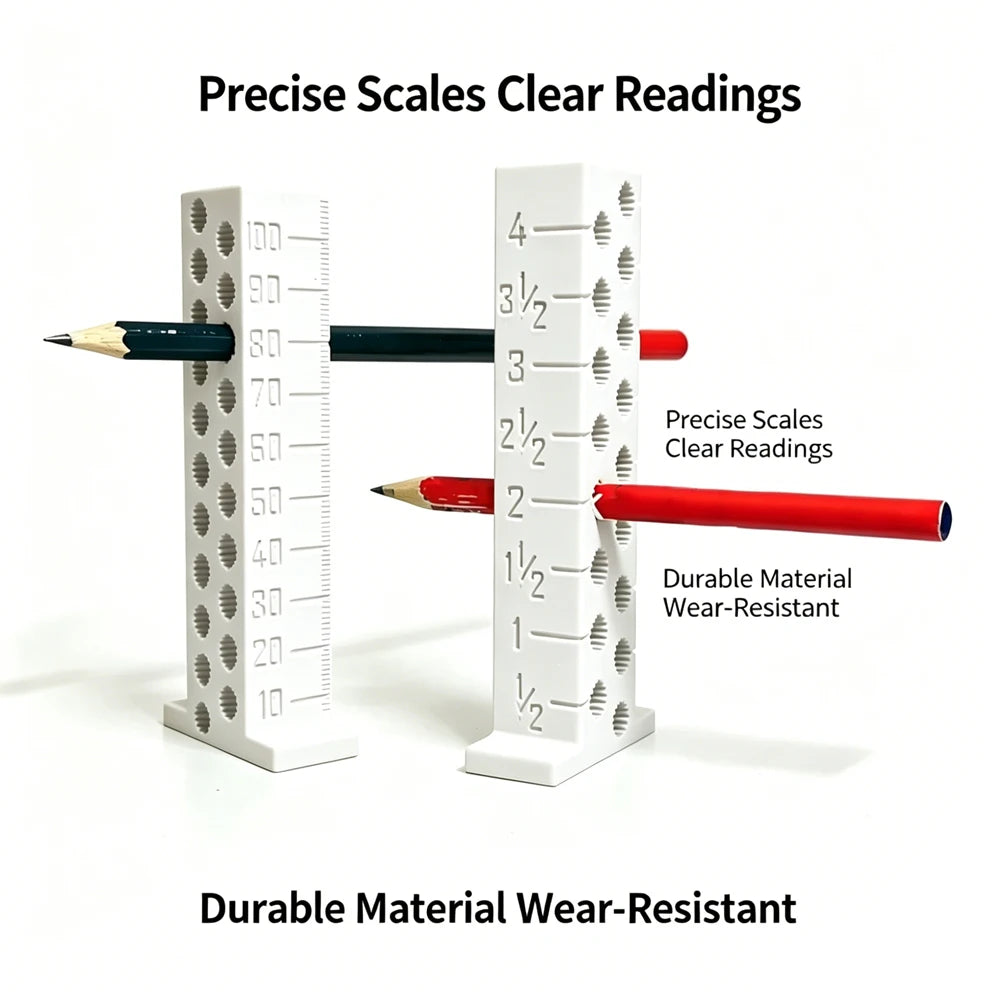

- Works with Round & Hexagonal Pencils: The slot accommodates both pencil shapes, so you can mark measurements cleanly and accurately without switching tools.
- Durable PLA or Resin Construction: Built from high-quality PLA or resin material to handle the demands of regular workshop use, providing lasting reliability session after session.
- 3D-Printed Craftsmanship: Each gauge is produced using 3D printing technology, giving it a handcrafted character with subtle layer lines that reflect its artisanal quality.

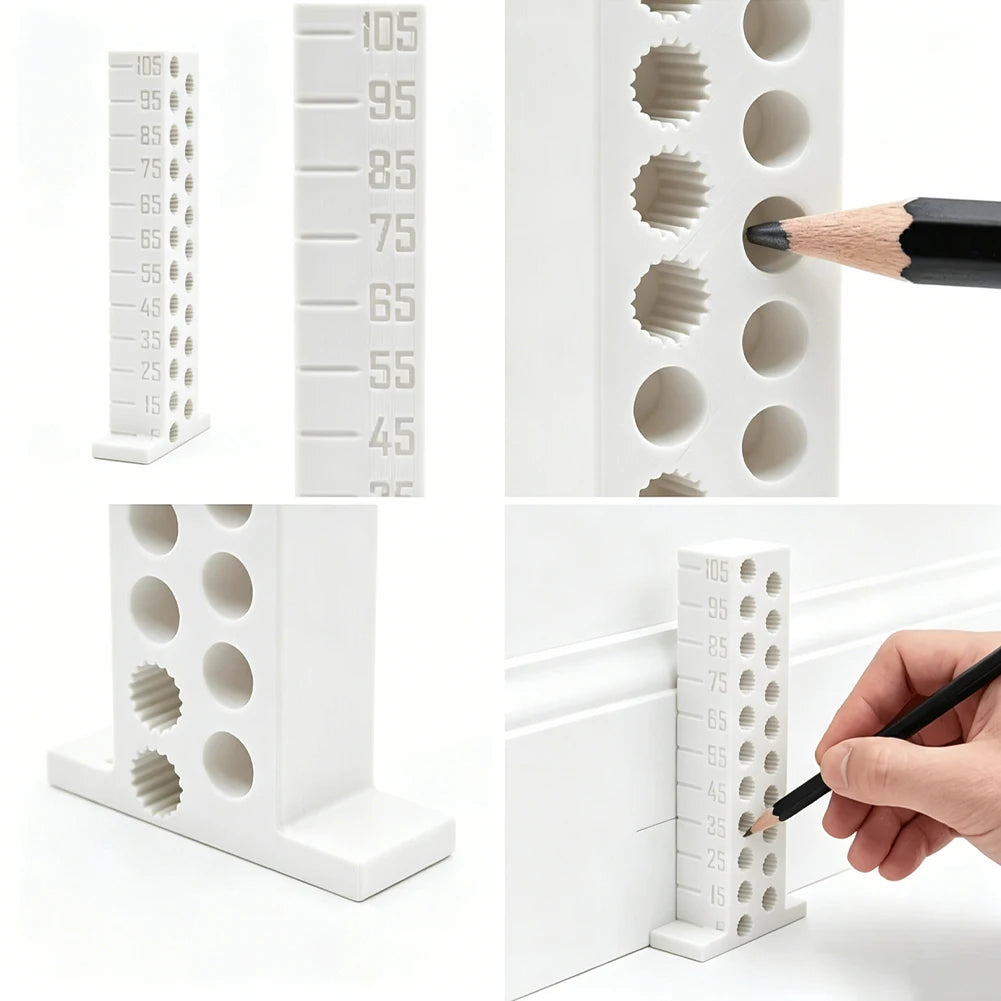

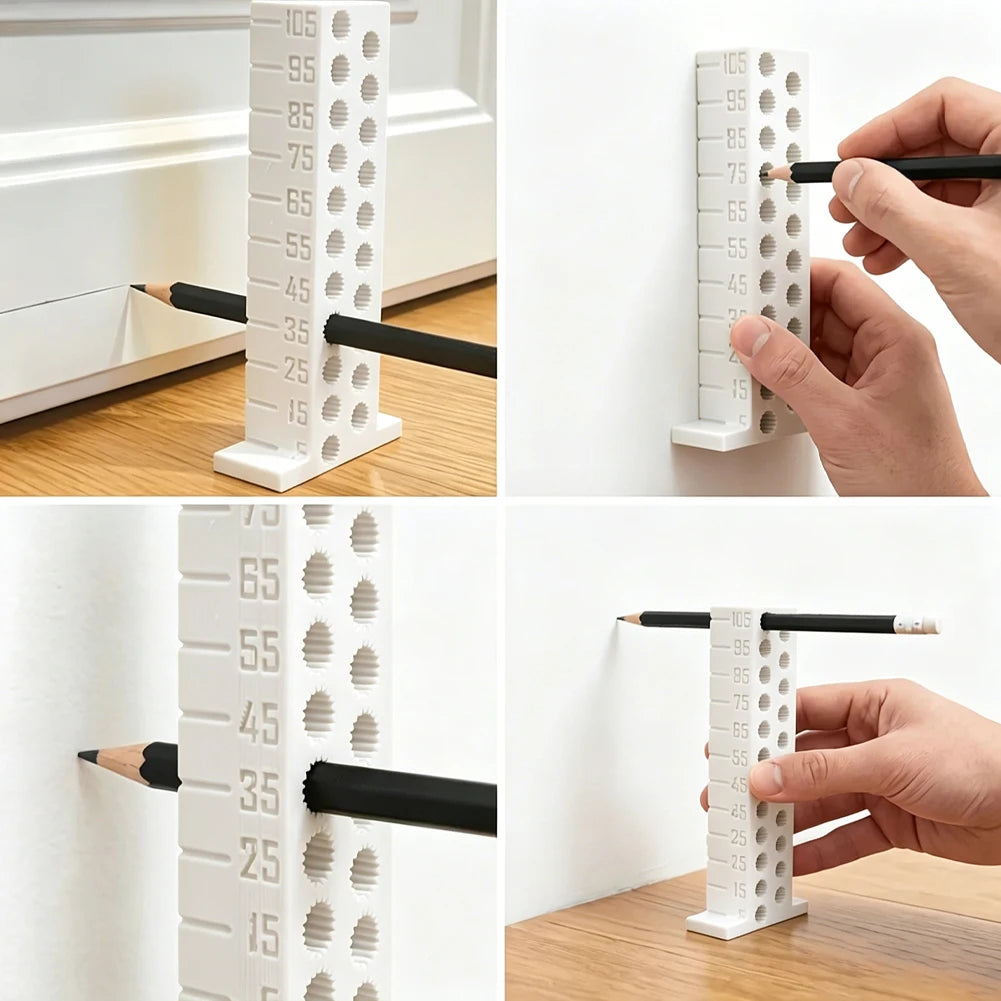

- Intuitive Height Adjustment: Simple, quick-to-set design means you can dial in the exact height you need and get straight to marking — no complicated setup required.

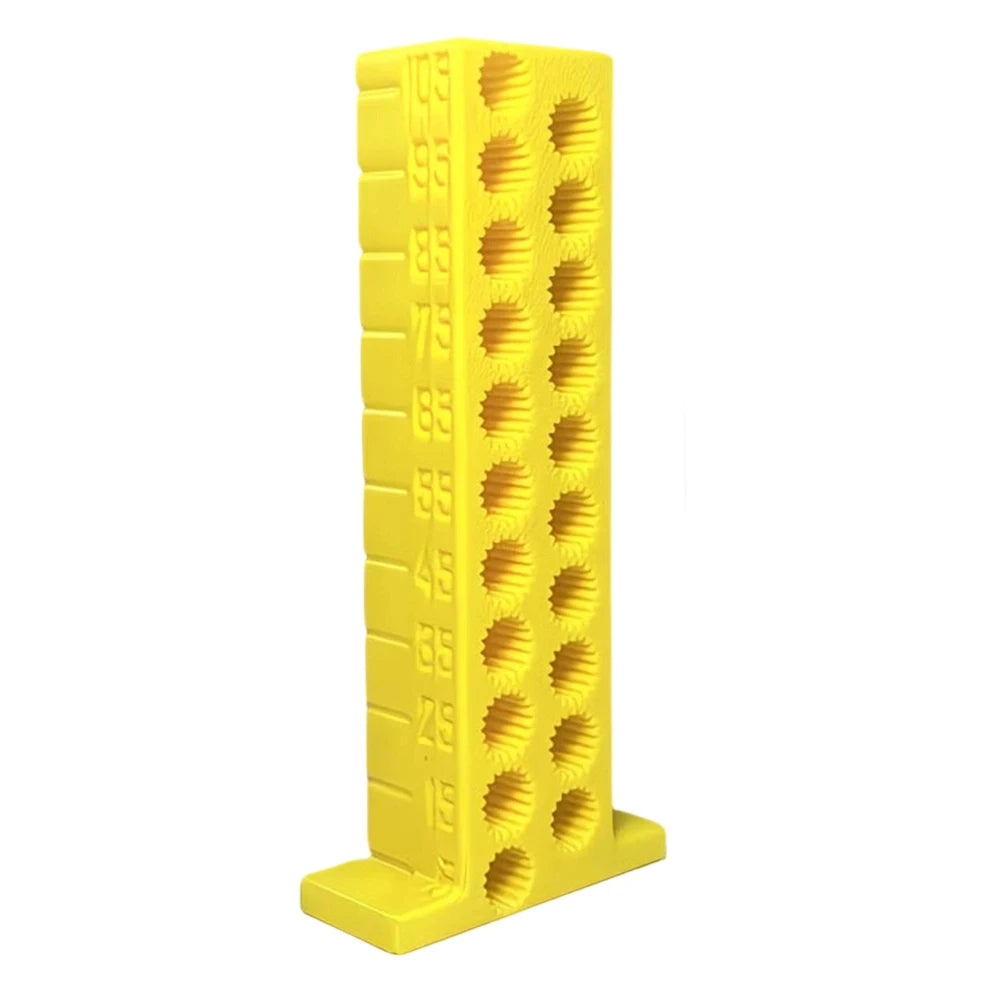

- Available in Multiple Colors: Choose from red, orange, white, or yellow to suit your workshop style or easily identify your tools.
Specifications
| Measuring Range | 5–105 mm (¼–4¼ in) |
| Material | PLA or Resin |
| Compatible Pencils | Round & Hexagonal |
| Available Colors | Red, Orange, White, Yellow |
| Manufacturing Method | 3D Printed |
| Origin | Made in China |
What's in the Box
- 1 × Height Marking Gauge
Important Notes
Colors may appear slightly different on screen due to monitor brightness and lighting conditions. Please allow for minor measurement tolerances as with all hand-crafted tools.
You May Also Like
- Garden Pruner Shears – Secateurs for Bonsai & Fruit Trees
- 18 Pc Basswood Carving Blocks – Whittling Wood Kit for Carvers
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What pencil sizes does this height marking gauge work with?
A: The woodworking height marking gauge is designed to accommodate both standard round pencils and hexagonal pencils, so you can use whichever you have on hand without any adapters or modifications.
Q: Is the measuring range sufficient for most woodworking projects?
A: Yes — the gauge covers 5 to 105 mm (approximately ¼ to 4¼ inches), which covers the vast majority of cabinet making, furniture building, joinery, and general DIY marking tasks.
Q: Does the 3D-printed construction affect the tool's accuracy or durability?
A: The tool is crafted from high-quality PLA or resin using precision 3D printing technology, ensuring consistent accuracy and durability for regular workshop use. Subtle layer lines are a natural characteristic of the manufacturing process and do not impact performance.
