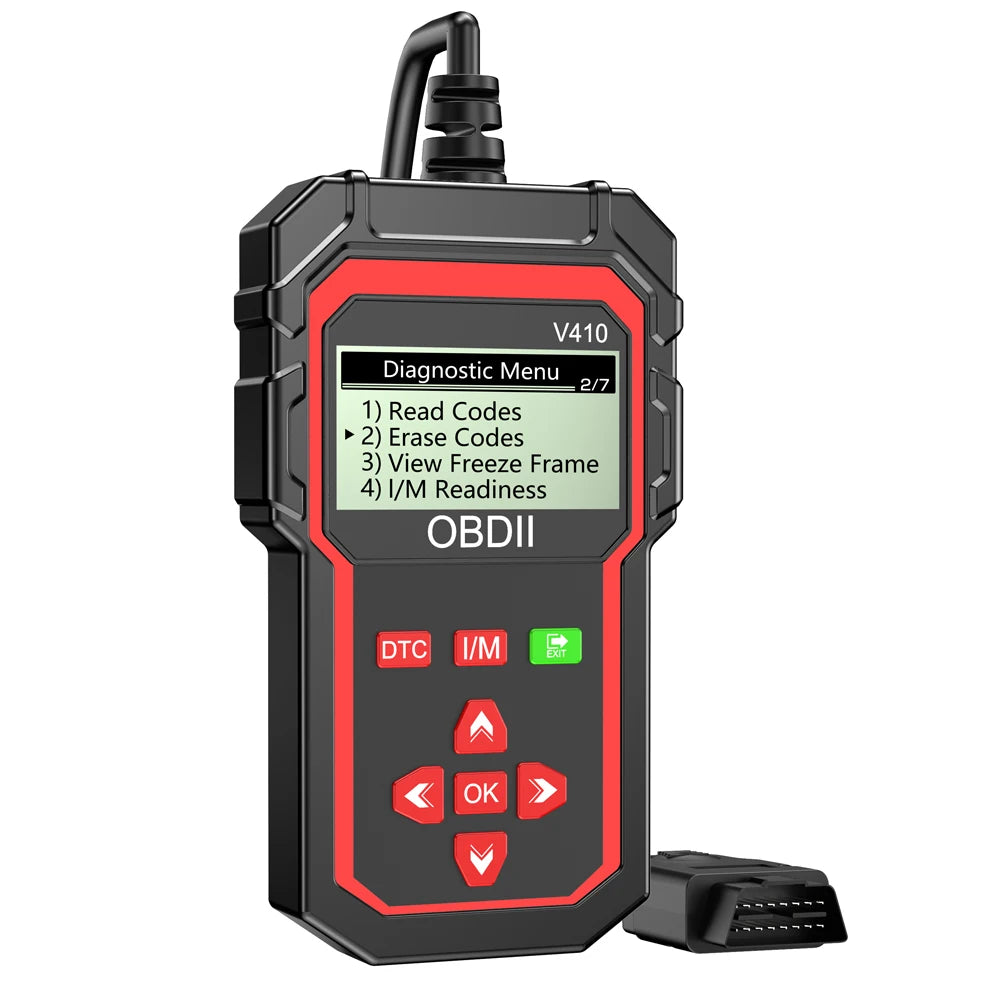

V410 OBD2 Scanner – Car Diagnostic Fault Code Reader
V410 OBD2 Scanner – Car Diagnostic Fault Code Reader
V410 OBD2 Scanner – Read & Clear Engine Fault Codes Instantly
Take control of your vehicle's health with the V410 OBD2 Diagnostic Scanner. Plug it directly into your car's OBD-II port and get instant access to engine fault codes, live sensor data, freeze frame snapshots, and more — no mechanic required. Compatible with all 1996 and later OBDII-compliant US, European, and Asian vehicles.

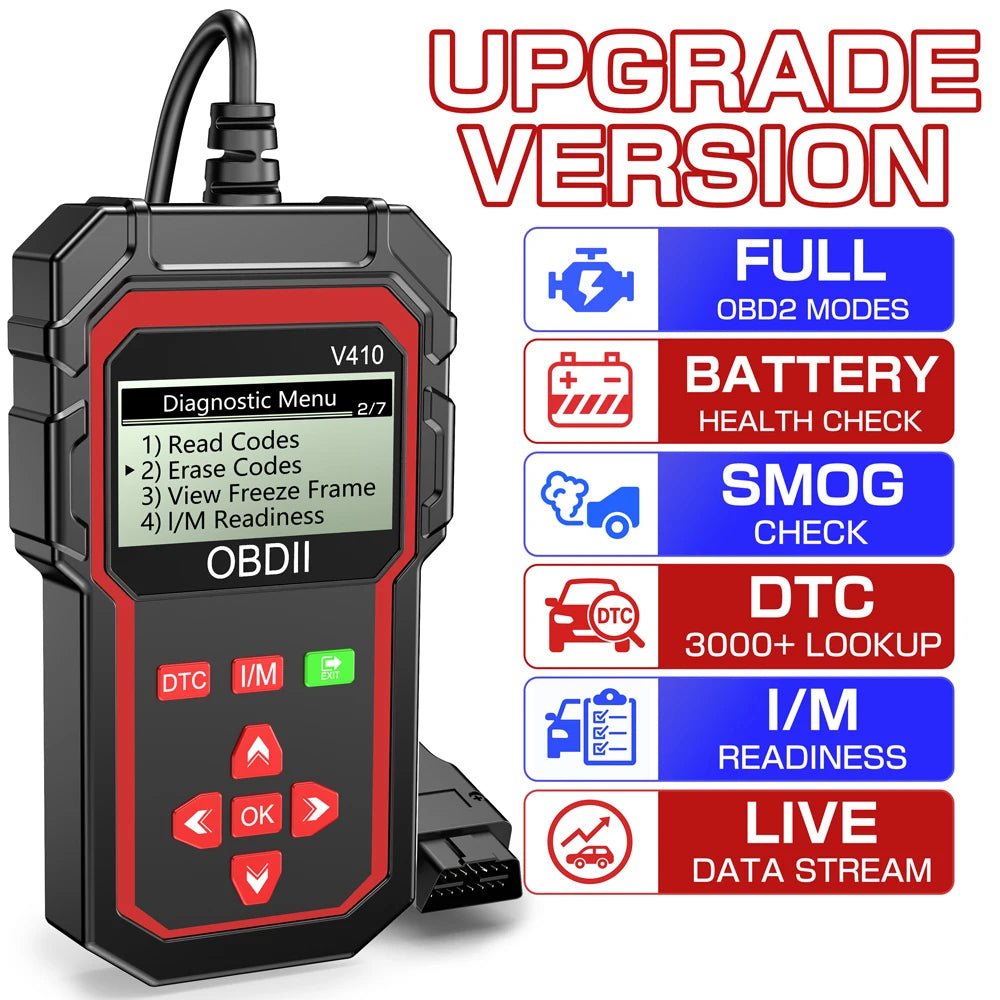

Key Features

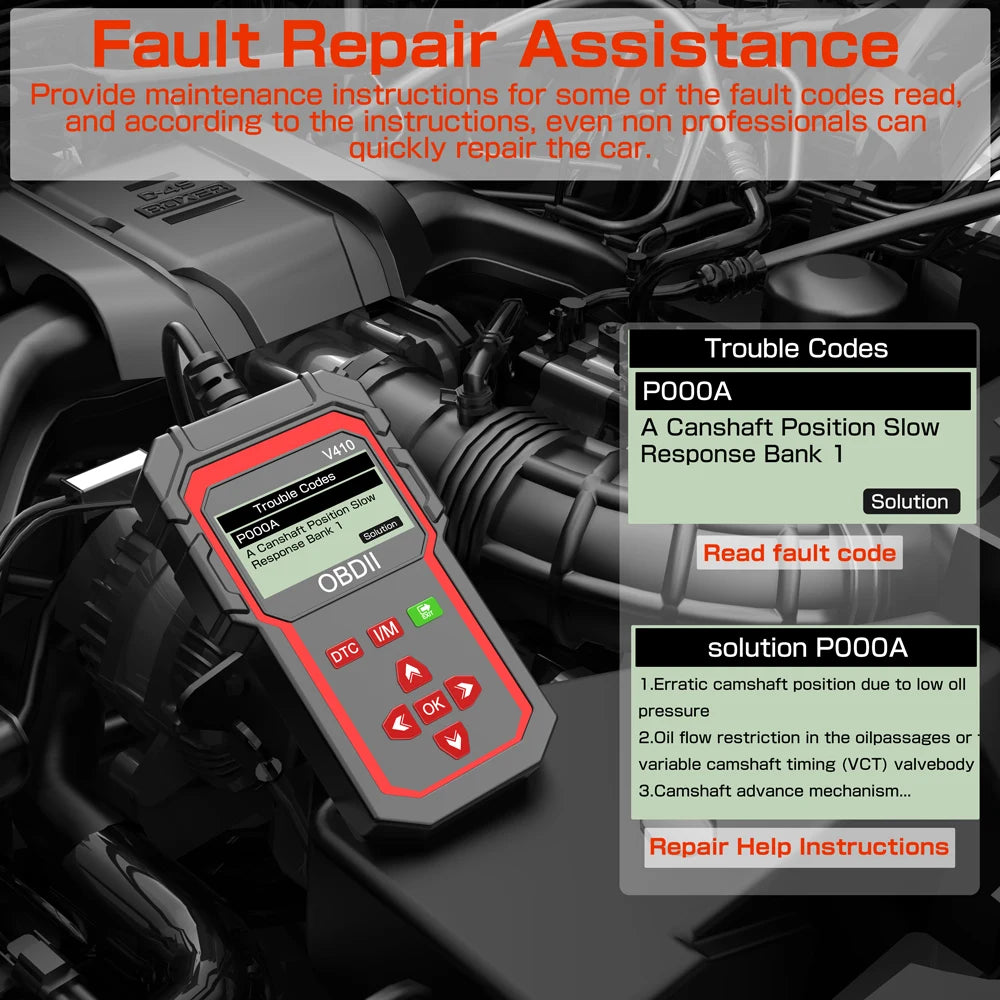

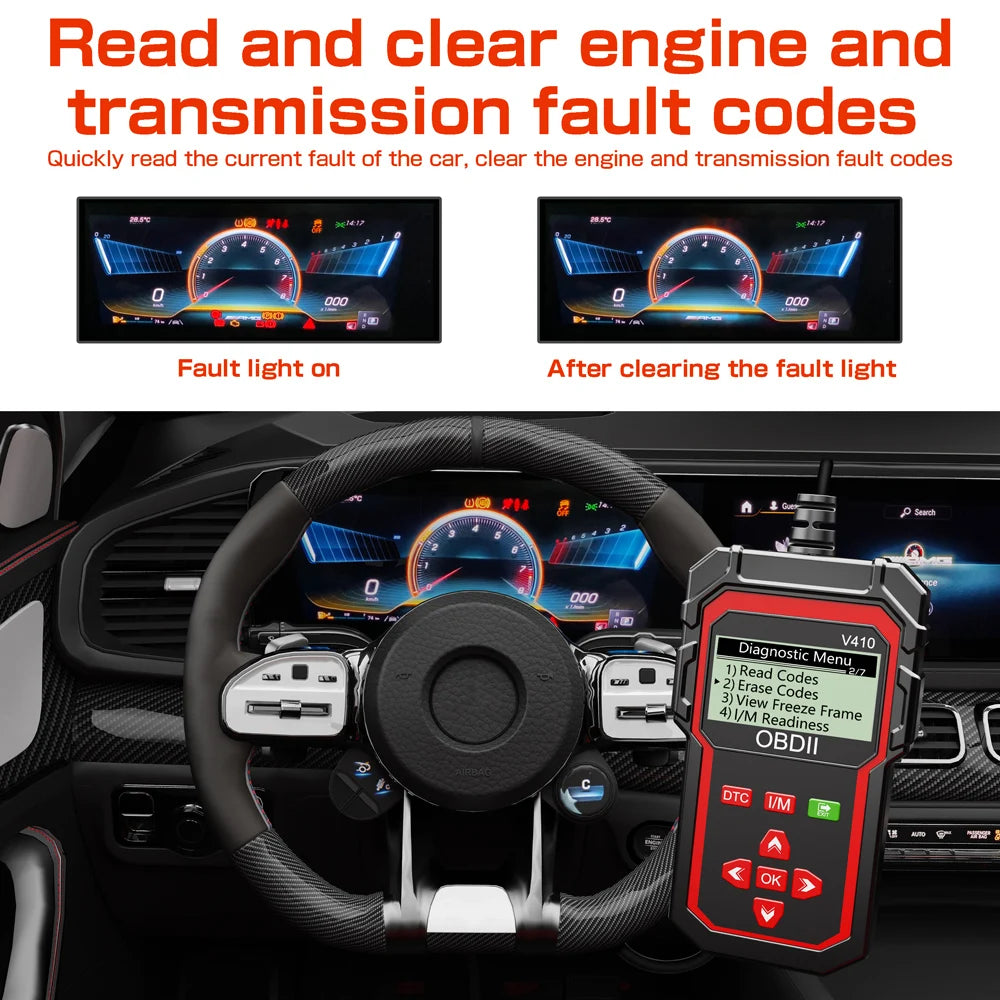

- Read & Clear Fault Codes: Quickly retrieve and erase Diagnostic Trouble Codes (DTCs) to turn off your Check Engine light.
- Live Data Stream: Monitor real-time sensor data from your vehicle's onboard systems.
- Freeze Frame Data: Capture a snapshot of vehicle conditions at the moment a fault was recorded.
- I/M Readiness Check: Confirm your vehicle is ready for emissions testing.

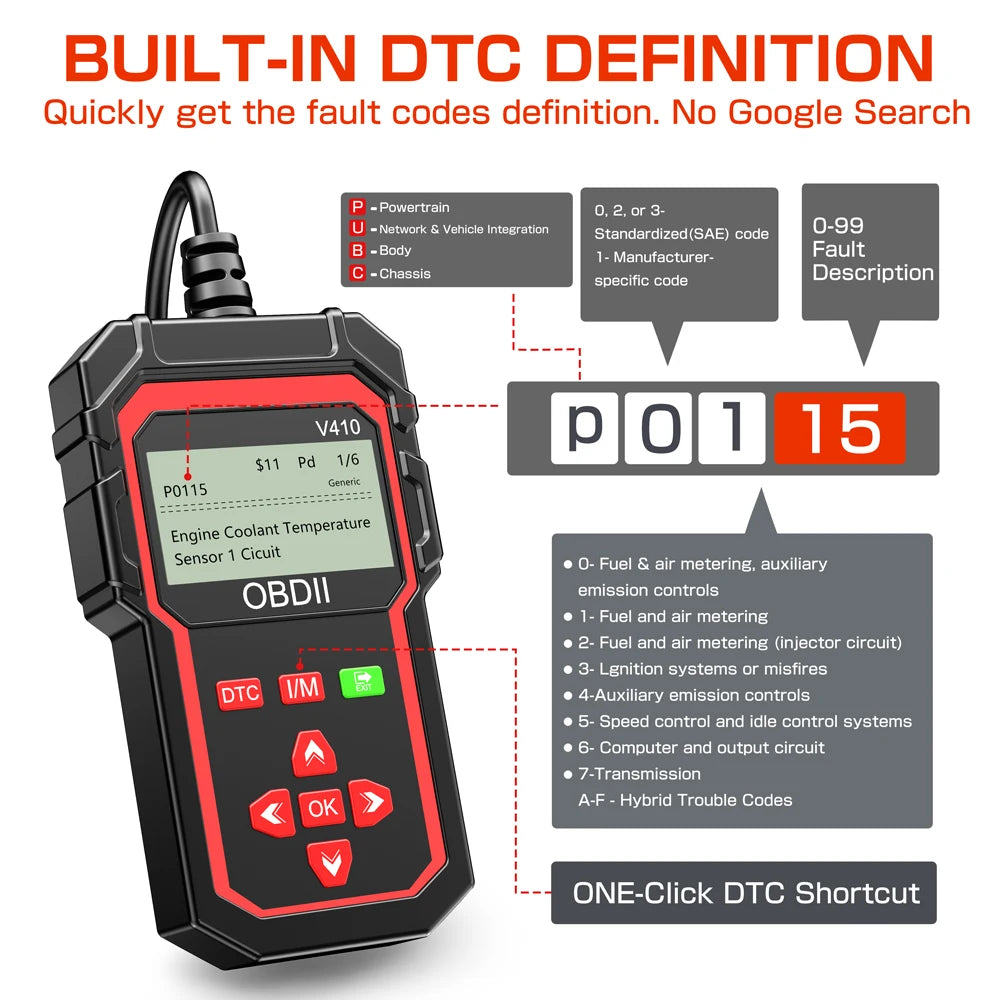

- VIN & DTC Shortcut Keys: Instantly access Vehicle Identification Number and trouble code lookups with dedicated shortcut buttons.
- Vehicle Information: Retrieve make, model, and calibration data directly from the ECU.
- 12-Language Support: Available in English, German, Italian, Polish, French, Spanish, Portuguese, Dutch, Finnish, Chinese, Russian, and Japanese.
- Wide Vehicle Compatibility: Works with all OBD-II compliant vehicles (1996 and newer) — US, European, and Asian models.
- CE Certified: Meets CE standards for quality and safety.
Specifications
- Model: V410
- Display: 2.8-inch, 128×64 pixel monochrome screen
- Operating Voltage: 9.0–18.0V
- Working Temperature: 0°C – 60°C
- Storage Temperature: -20°C – +70°C
- Color: Black & Red
- Made in Mainland China
Multi-Protocol Support
- SAE J1850 PWM (41.6 Kbaud)
- SAE J1850 VPW (10.4 Kbaud)
- ISO9141-2 (5 baud init, 10.4 Kbaud)
- ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
- ISO14230-4 KWP (fast init, 10.4 Kbaud)
- ISO15765-4 CAN (11-bit ID, 500 Kbaud)
- ISO15765-4 CAN (29-bit ID, 500 Kbaud)
- ISO15765-4 CAN (11-bit ID, 250 Kbaud)
- ISO15765-4 CAN (29-bit ID, 250 Kbaud)
What's in the Box
- 1× V410 OBD2 Diagnostic Scanner
- 1× User Manual
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- 60cm Motorcycle Luggage Strap – Elastic Helmet Bungee Net
- All-Season Cooling Car Seat Cushion – Breathable & Ergonomic
Learn more: FuelEconomy.gov driving efficiency guidance
Frequently Asked Questions
Q: Which vehicles are compatible with the V410 OBD2 Scanner?
A: The V410 OBD2 Scanner is compatible with all 1996 and newer OBDII-compliant vehicles, including US, European, and Asian makes and models. Simply plug it into the standard 16-pin OBD-II diagnostic port found on most modern vehicles.
Q: Can the V410 OBD2 Code Reader turn off the Check Engine light?
A: Yes! The V410 can read and clear Diagnostic Trouble Codes (DTCs), which resets the Malfunction Indicator Light (MIL), commonly known as the Check Engine light, once the underlying issue has been addressed.
Q: Does the V410 OBD2 Scanner require software or app installation?
A: No. The V410 is a standalone handheld device with its own 2.8-inch built-in display. No smartphone, tablet, or software installation is required — simply plug it into your vehicle's OBD-II port and it powers on automatically.
Q: What languages does the V410 diagnostic scanner support?
A: The V410 supports 12 languages: English, German, Italian, Polish, French, Spanish, Portuguese, Dutch, Finnish, Chinese, Russian, and Japanese, making it suitable for a wide range of users worldwide.
