V-15-1CQ Plug Panel Limit Micro Travel Switch – M10 Mount
V-15-1CQ Plug Panel Limit Micro Travel Switch – M10 Mount

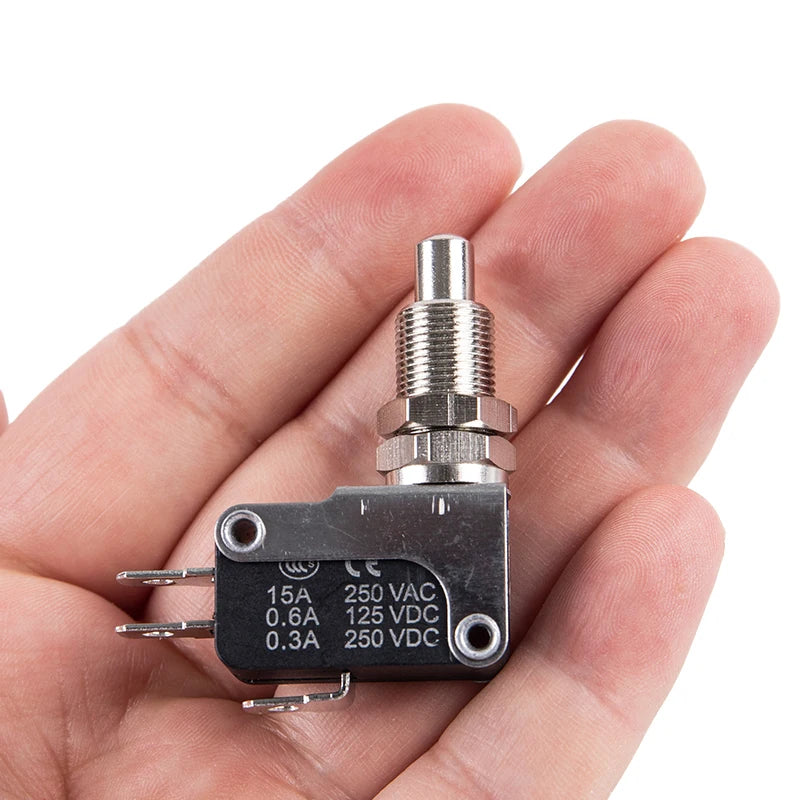

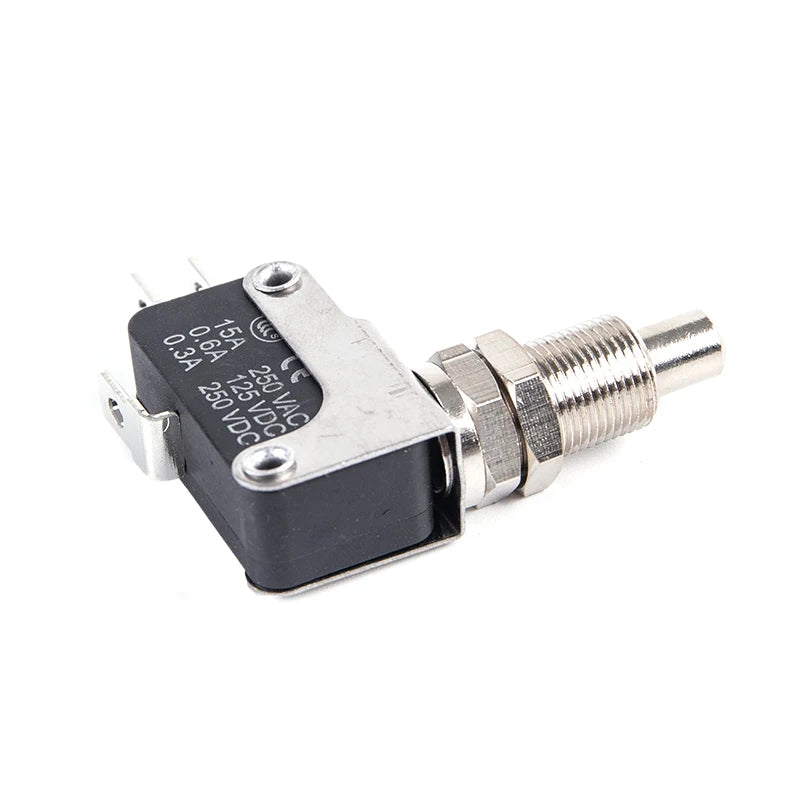

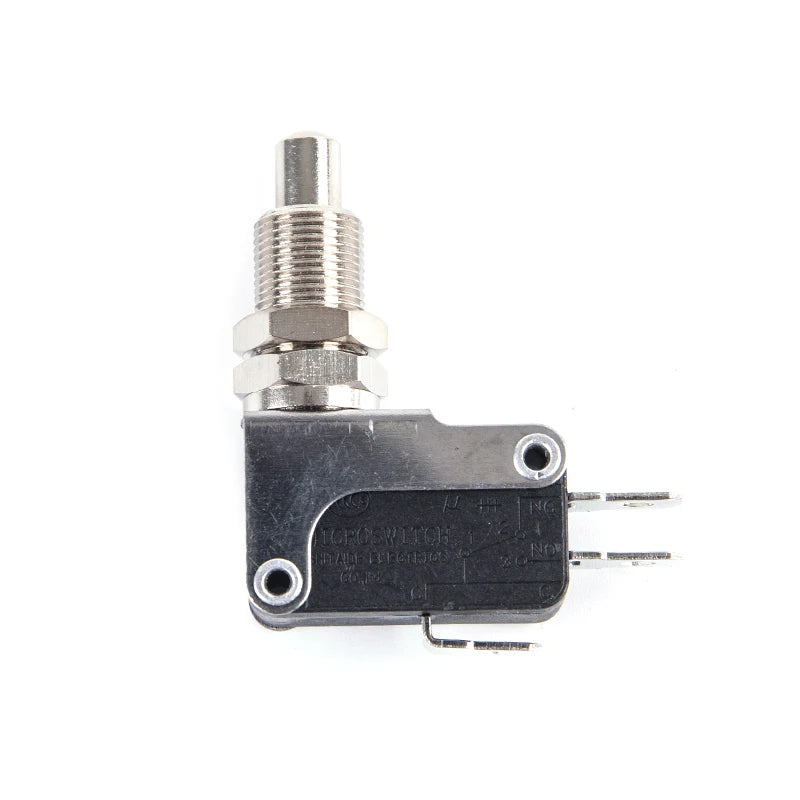

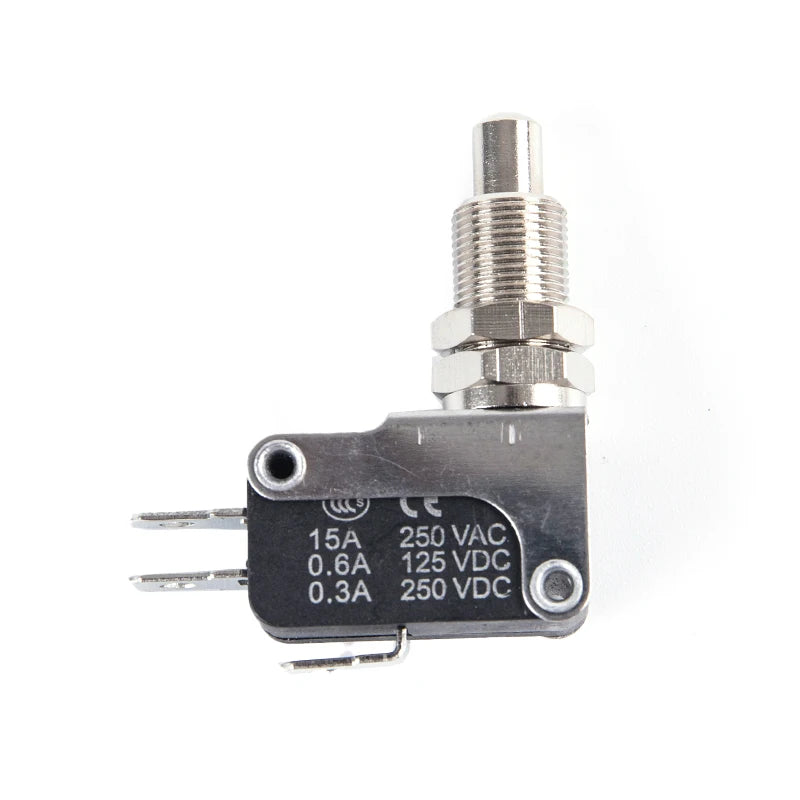

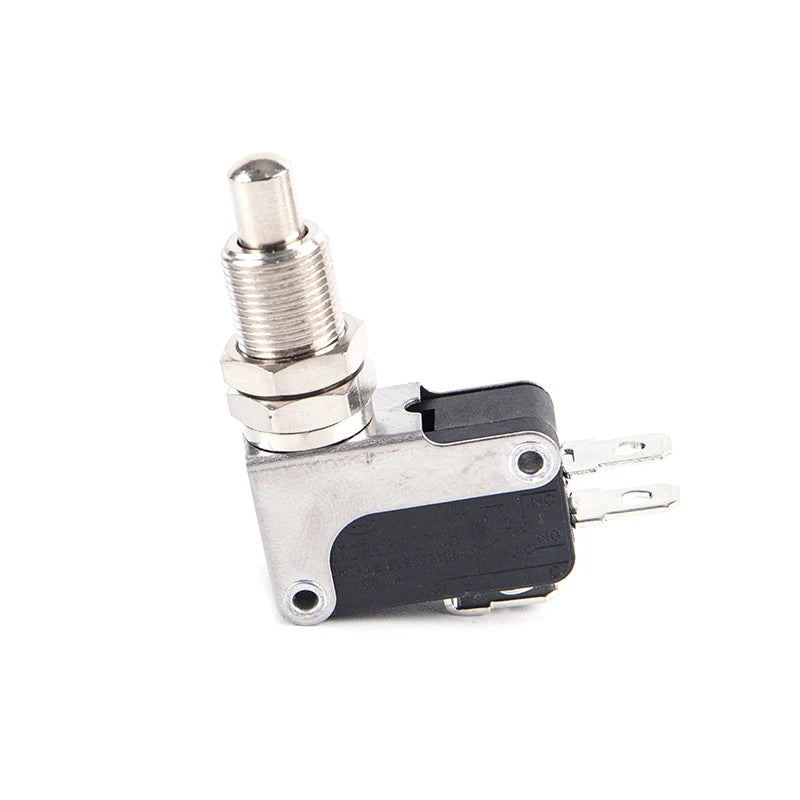

V-15-1CQ Plug Panel Type Limit Micro Travel Switch
The V-15-1CQ Micro Travel Switch is a reliable, compact plug panel-type limit switch designed for precise point-action triggering in a wide range of electrical and automation applications. With a short 2mm stroke and a robust plastic housing, this micro switch delivers consistent, repeatable performance in tight-space installations such as machinery, appliances, control panels, and DIY electronics projects.
Operating at low voltage (below 50V AC or 75V DC), it meets EU LVD safety standards — making it suitable for both hobbyist builds and light industrial use. The M10 mounting size ensures straightforward installation, while the 5mm overtravel (±0.2mm) adds a reliable safety margin for mechanical actuation.
Made in Mainland China.
Key Specifications
- Model: V-15-1CQ Plug Column Type Travel Switch
- Switch Type: Micro Switch (Limit / Travel)

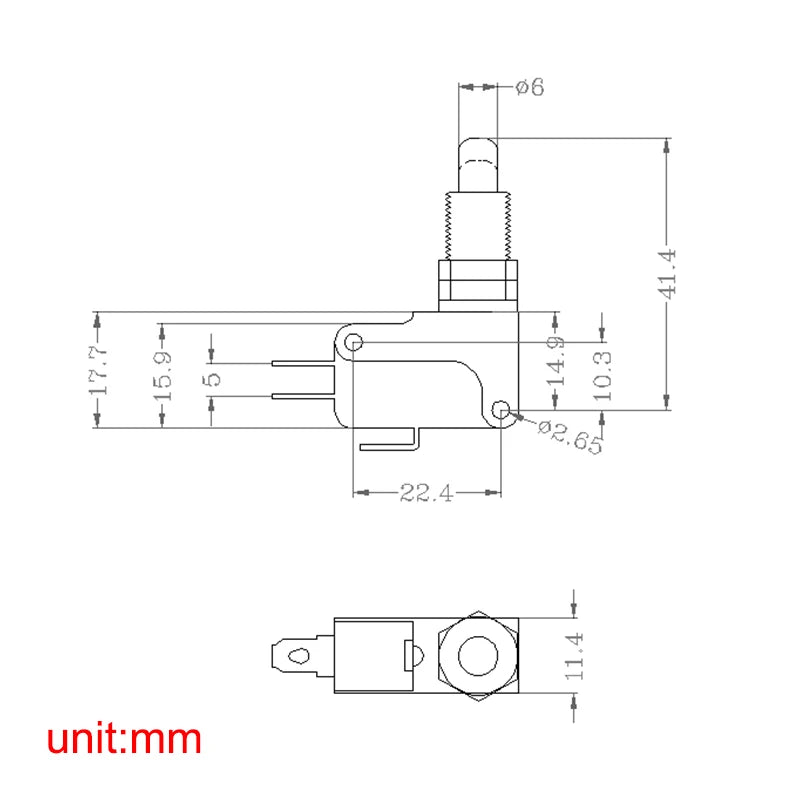

- Mounting Size: M10
- Stroke: 2mm
- Overtravel: 5mm ± 0.2mm
- Material: Plastic
- Operating Voltage: Low voltage — below 50V AC or 75V DC (EU LVD compliant)
- Package Includes: 1 × V-15-1CQ Micro Travel Switch
Why Choose This Micro Travel Switch?
- ✅ Precise Point Action — Short 2mm stroke for accurate, repeatable actuation
- ✅ Plug Panel Mount — Easy installation with M10 mounting format
- ✅ Low Voltage Safe — EU LVD compliant for safe integration in low-voltage circuits
- ✅ Compact & Versatile — Ideal for automation panels, appliances, and DIY electronics
- ✅ Durable Plastic Body — Lightweight yet sturdy construction
Common Applications
- CNC machines and automation equipment
- Home appliances and control panels
- 3D printers and robotics (end-stop detection)
- DIY electronics and prototyping projects
- Industrial machinery limit detection
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- 360° Bicycle Chain Cleaner Tool | Bike Gear Cleaning Kit
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What is the operating voltage for the V-15-1CQ micro travel switch?
A: The V-15-1CQ operates at low voltage — below 50V AC or 75V DC — and is EU LVD compliant, making it safe for use in a wide range of low-voltage electrical circuits and automation applications.
Q: What is the stroke and overtravel distance of this limit switch?
A: The V-15-1CQ micro travel switch has a stroke of 2mm and an overtravel of 5mm (±0.2mm), providing precise and repeatable point-action triggering for machinery, 3D printers, CNC equipment, and more.
Q: How is the V-15-1CQ micro switch mounted?
A: This travel switch features a plug panel (plug column) mounting type with an M10 mounting size, allowing for easy and secure installation in control panels, enclosures, and automation setups.
