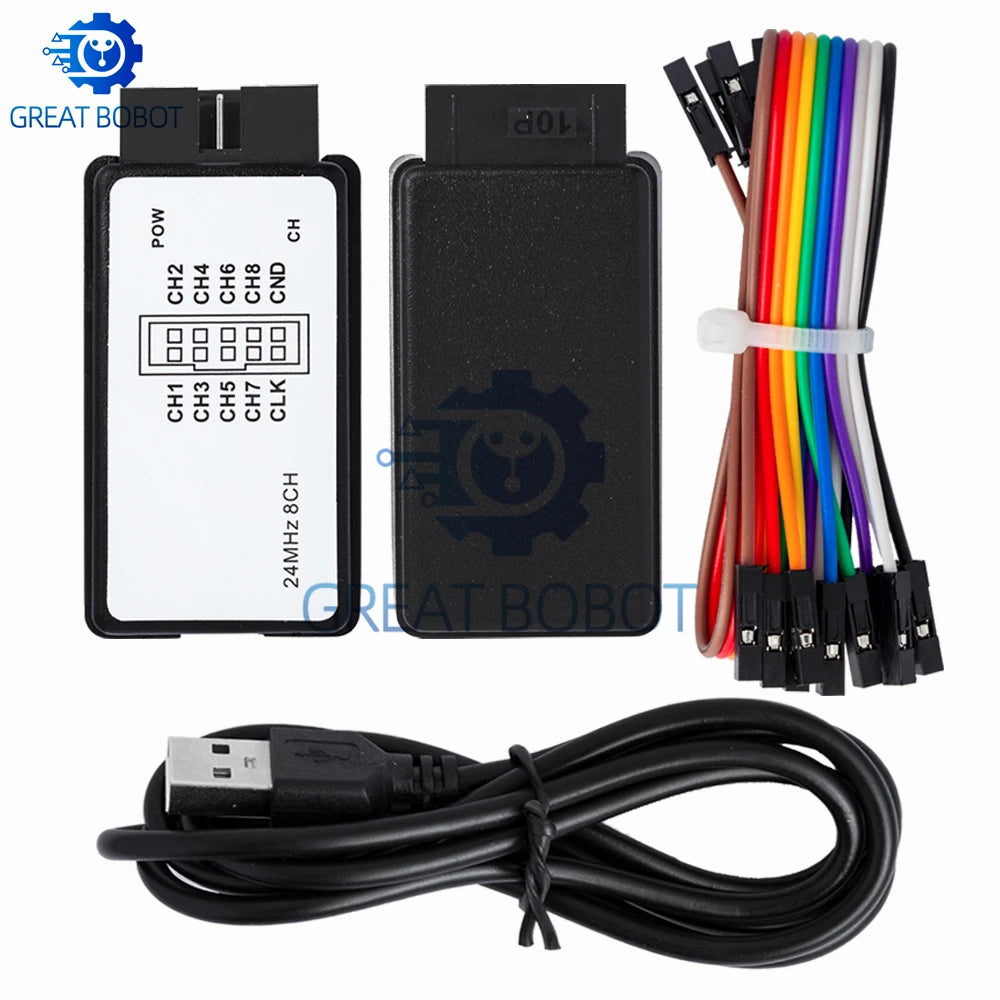

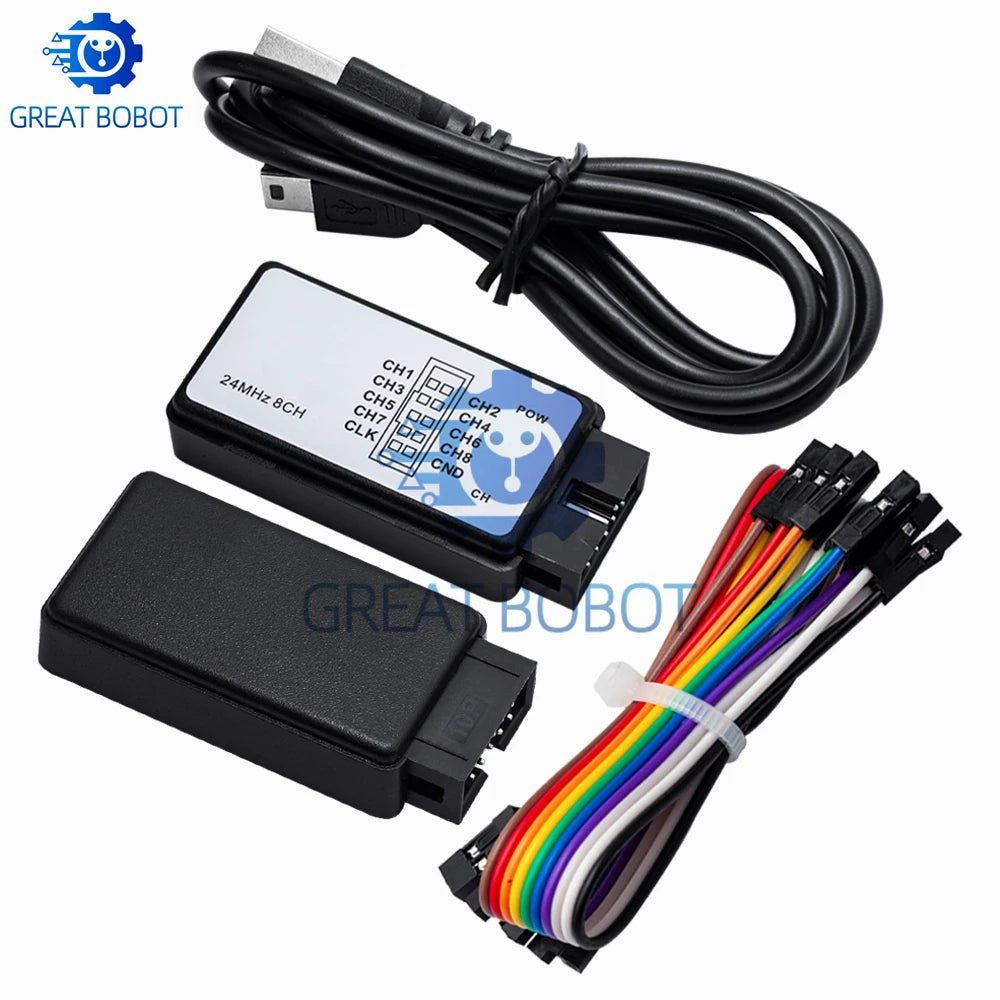

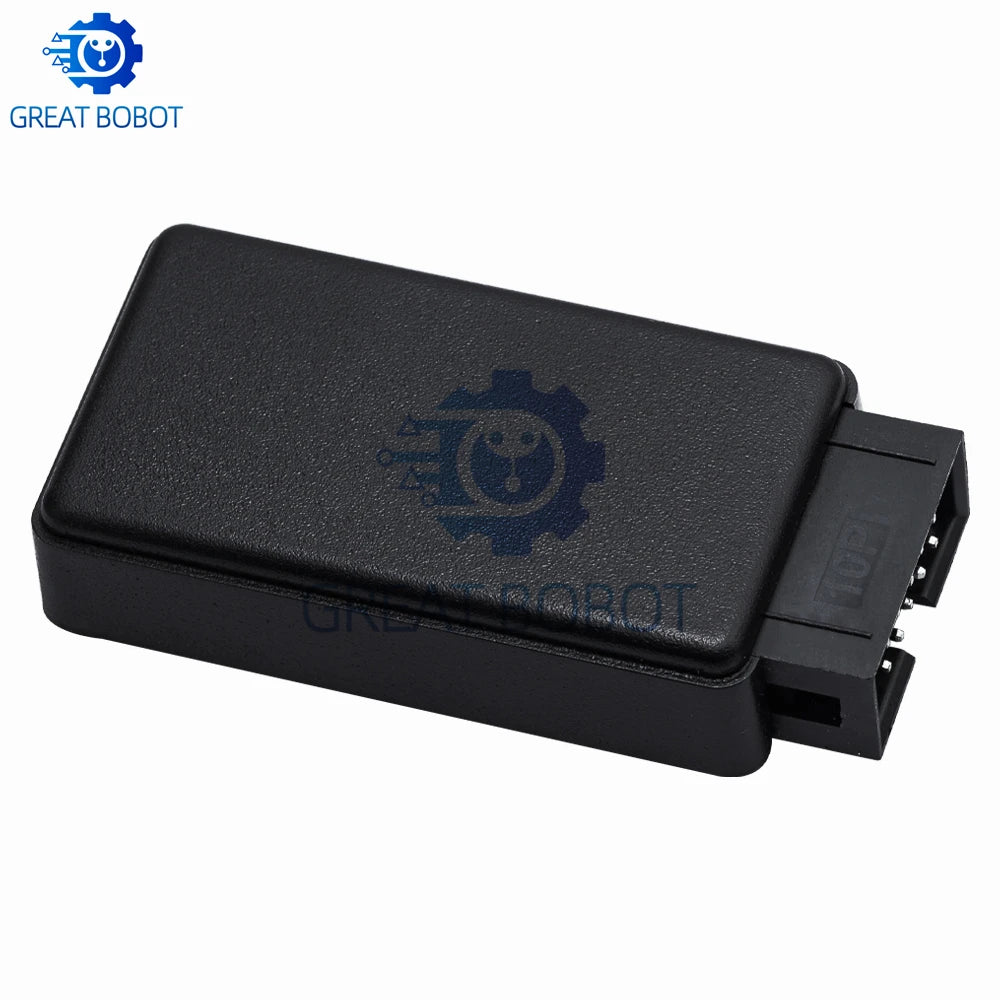

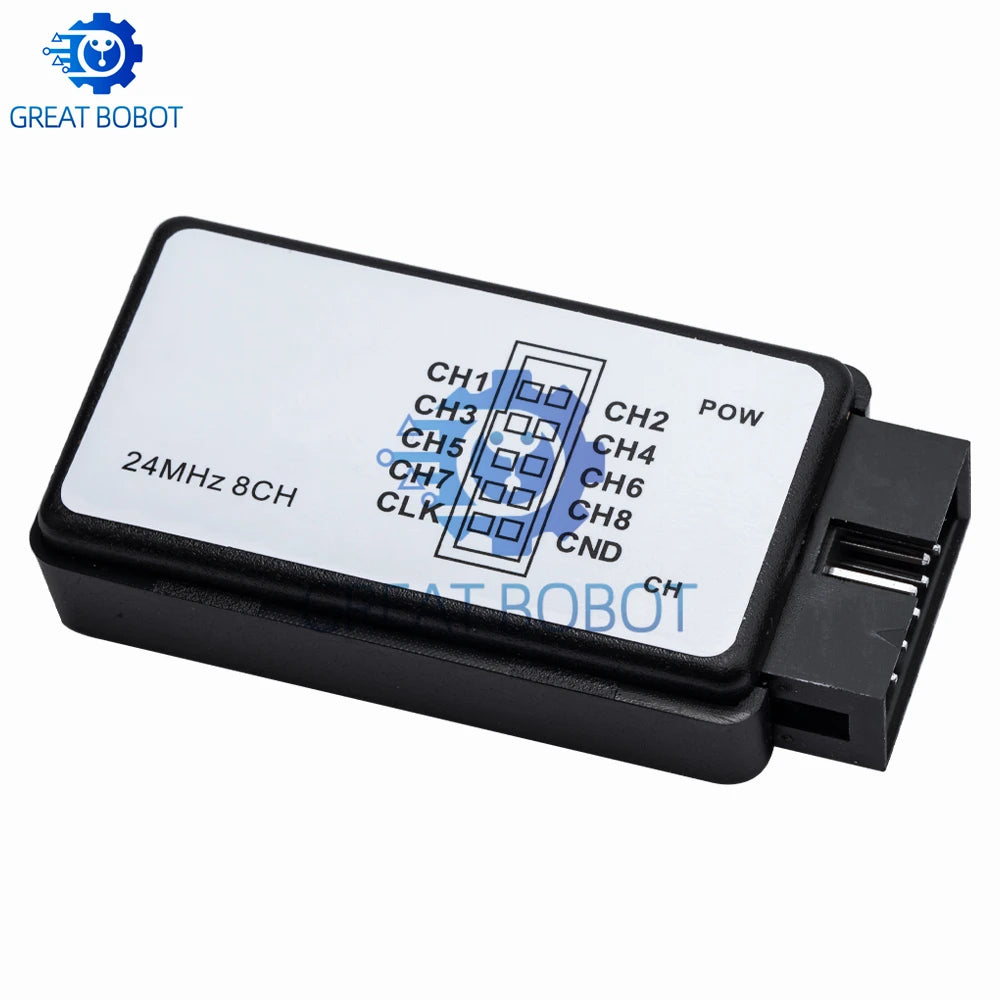

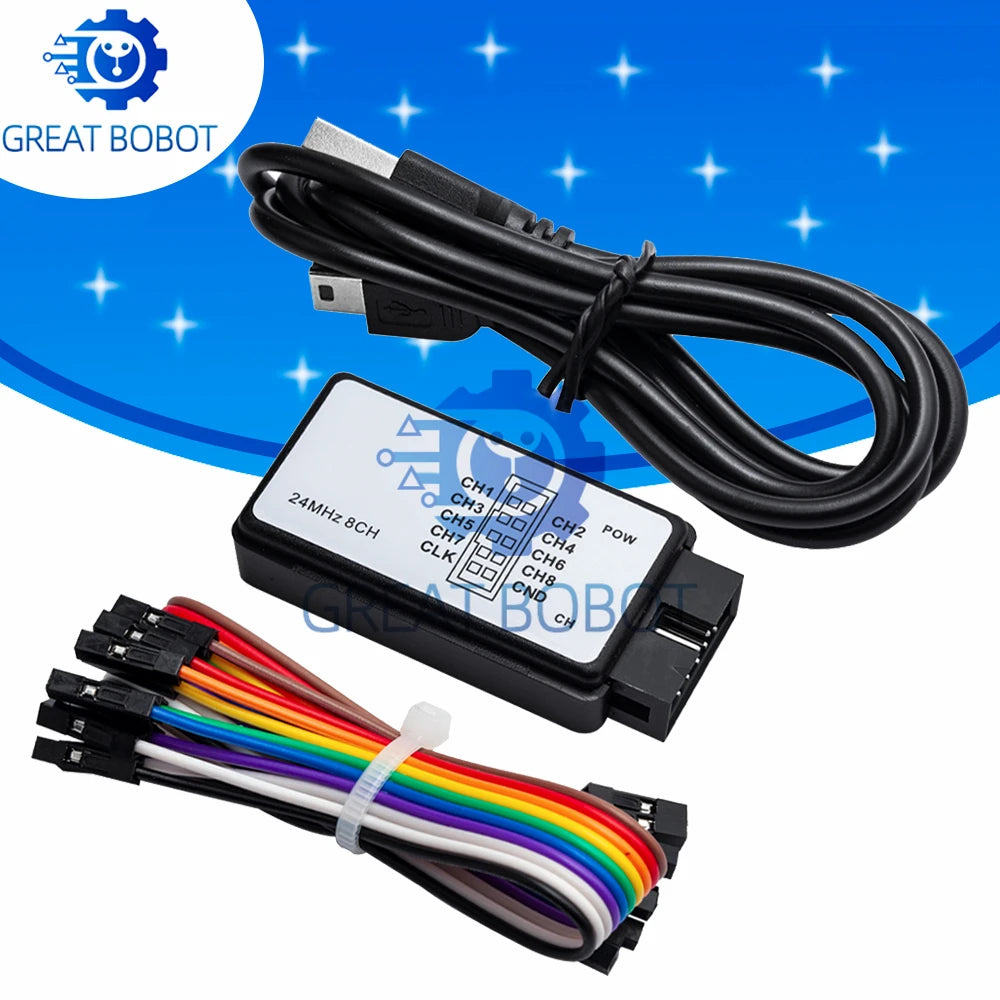

BS USB Logic Analyzer – 24MHz, 8-Channel for ARM & FPGA Development
Take your embedded development workflow to the next level with this professional-grade USB Logic Analyzer. Running at up to 24MHz sampling frequency with 8 independent channels, it captures and decodes digital signals with precision — making it an essential tool for engineers, hobbyists, and students working with ARM microcontrollers, FPGA boards, and a wide range of embedded systems.
Made in Mainland China.
Key Features
- 24MHz Sampling Rate – Captures up to 24 million samples per second for accurate, high-speed signal analysis
- 8 Independent Channels – Monitor multiple signal lines simultaneously for comprehensive debugging sessions
- Wide Voltage Input (0–5.5V) – Compatible with 3.3V and 5V logic systems without additional hardware
- Wide Operating Temperature (-40°C to +85°C) – Reliable performance in harsh or variable environments
- USB-Powered – No external power supply needed; just plug into any USB port on your computer
- ARM & FPGA Compatible – Ideal for debugging UART, SPI, I²C, CAN, 1-Wire, and other common protocols
- Compact & Portable – Lightweight form factor that fits easily in a tool bag or workstation drawer
- No High-Concern Chemicals – Clean construction with no hazardous materials
Technical Specifications
| Channels | 8 |
| Max Sampling Rate | 24 MHz (24M samples/sec) |
| Supply Voltage | 0 – 5.5V |
| Operating Temperature | -40°C to +85°C |
| Interface | USB |
| Condition | New |
| Origin | Mainland China |
Who Is This For?
Whether you're a firmware developer troubleshooting a stubborn communication bus, an electronics student learning signal timing, or a maker prototyping with Arduino and FPGA dev boards, this USB logic analyzer gives you the visibility you need to debug faster and build with confidence.
Related Tools You May Like
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What protocols can this USB logic analyzer decode?
A: The BS USB Logic Analyzer supports decoding of a wide range of common digital protocols including UART, SPI, I²C, 1-Wire, CAN, and more — making it versatile for ARM and FPGA embedded development projects.
Q: What software is compatible with this logic analyzer?
A: This USB logic analyzer is compatible with popular open-source software such as PulseView and sigrok, which run on Windows, Linux, and macOS. The USB interface ensures easy plug-and-play setup on most computer systems.
Q: Is this logic analyzer suitable for 3.3V systems?
A: Yes. The supply voltage input range is 0 to 5.5V, which means it is fully compatible with both 3.3V and 5V logic-level systems commonly used in ARM microcontrollers and FPGA development boards.
