5-Pack USB-C PD/QC Trigger Decoy Board Module
Unlock the full potential of your USB-C fast charger or power bank with this compact PD/QC Trigger Decoy Board. This 5-piece set lets you negotiate specific DC output voltages (9V, 12V, 15V, or 20V) from any compatible PD/QC fast-charge source — turning it into a versatile DC power supply for routers, optical modems, LED strips, and other DC-powered devices. Made in Mainland China.
Key Features
- Wide Protocol Support: Compatible with PD3.0/2.0, PPS/QC4+, QC3.0/2.0, FCP, and AFC fast-charge protocols.

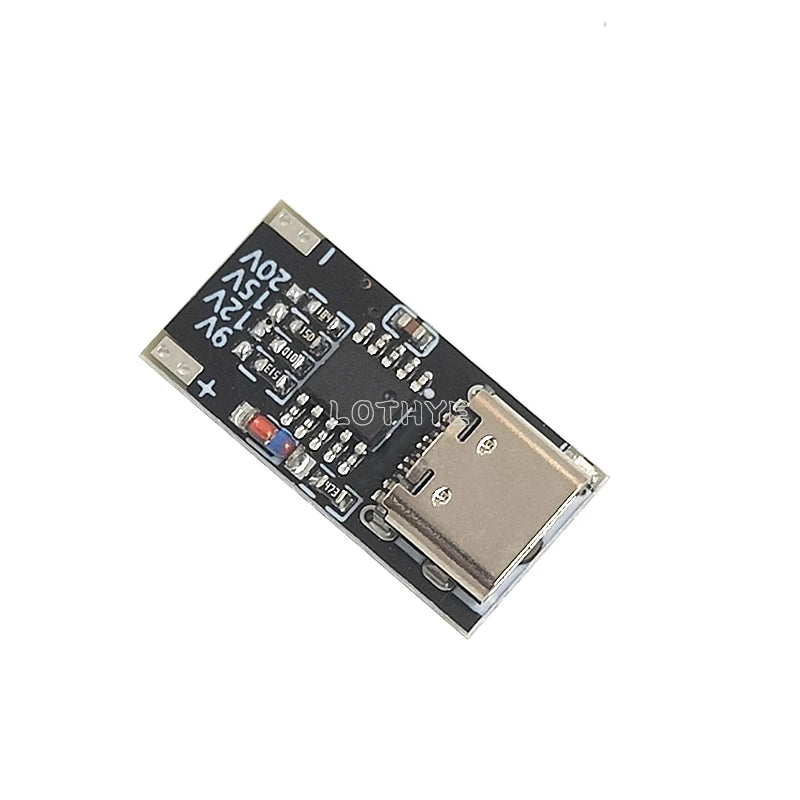

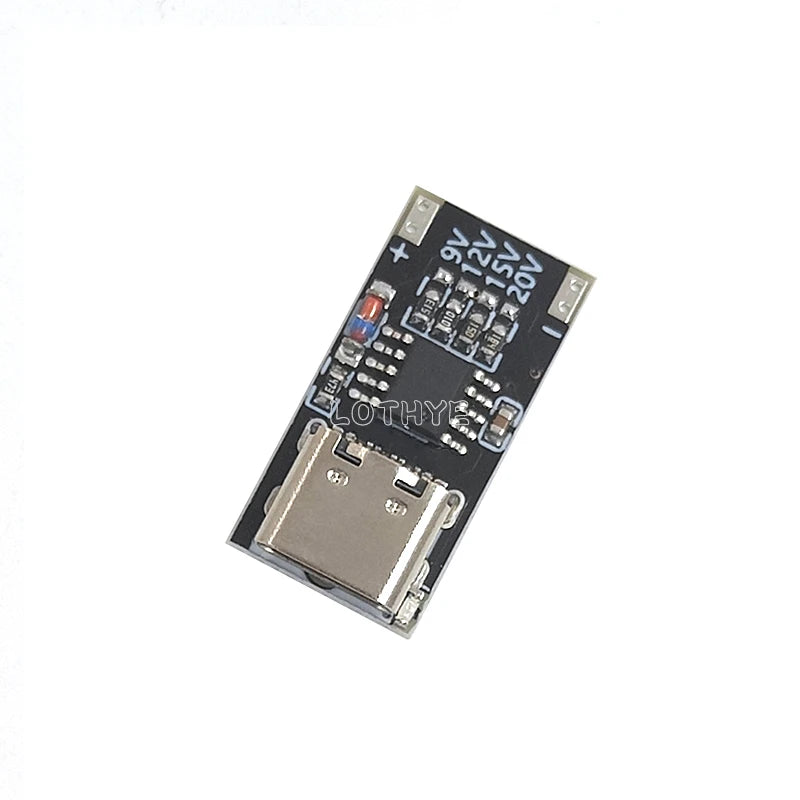

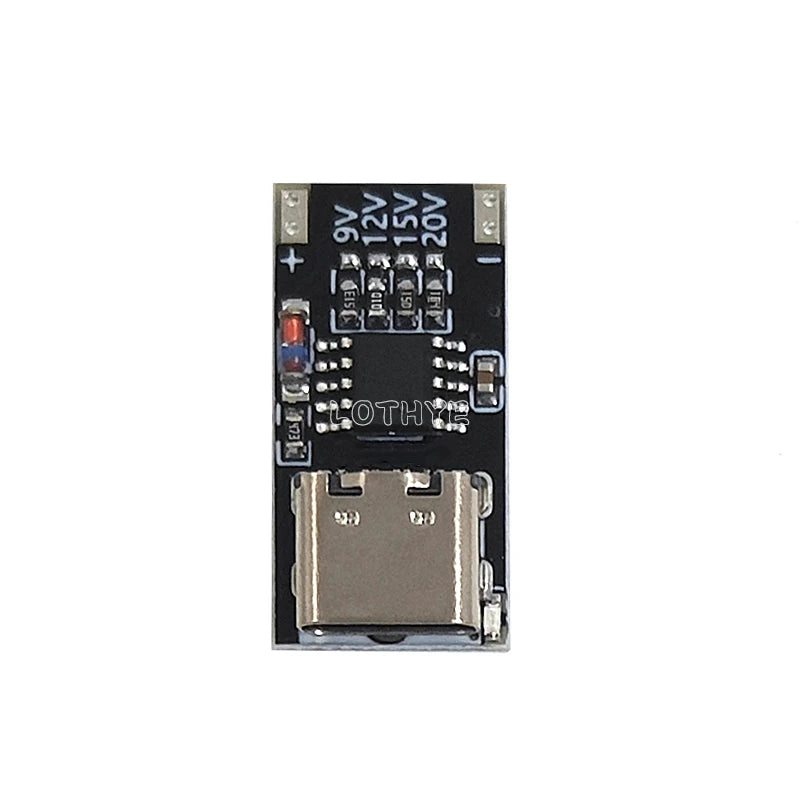

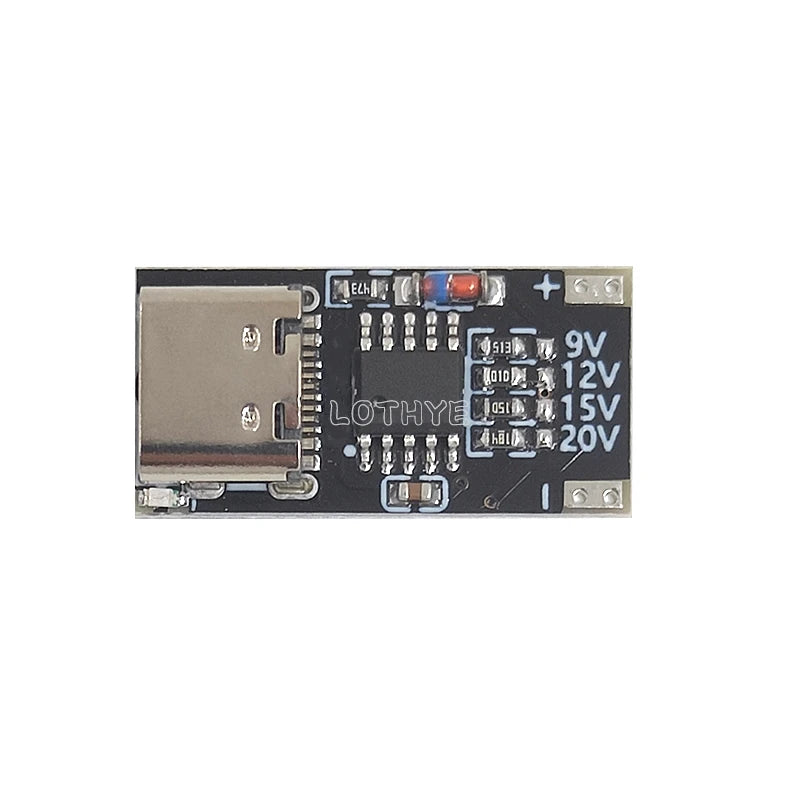

- Selectable Voltage Output: Choose from 4 fixed output tiers — 9V, 12V, 15V, or 20V — by shorting the corresponding pads on the board.
- Smart Auto-Downshift: If your charger's maximum voltage is lower than the configured target, the module automatically steps down to the highest voltage your charger supports.
- High Current Capacity: Supports up to 5A maximum; actual output is determined by your charger's and load's specifications.

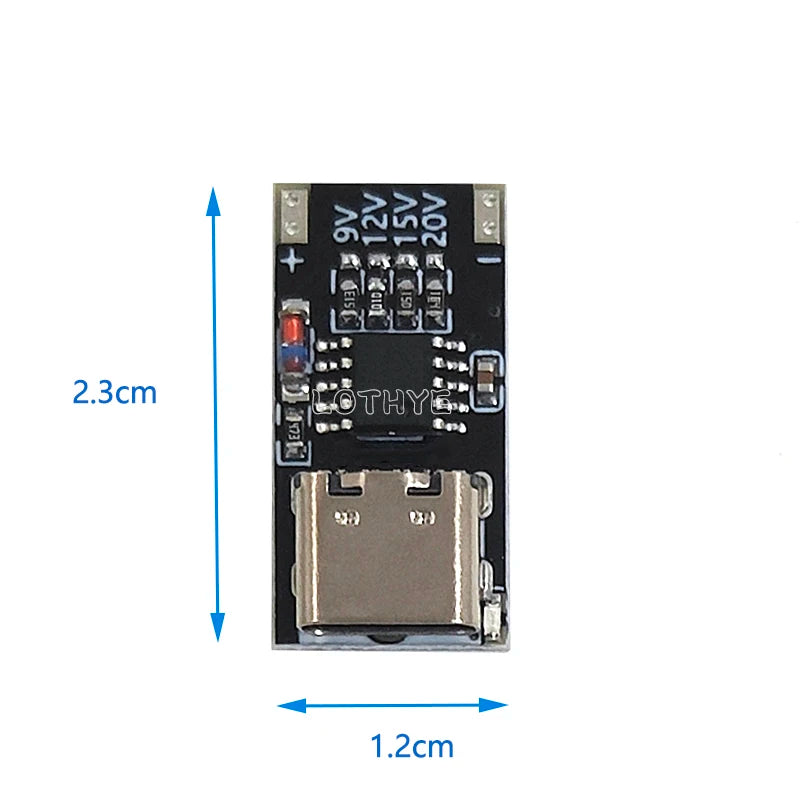

- Ultra-Compact Size: Tiny 23 × 11.5 × 4 mm footprint — easy to embed in DIY projects or custom enclosures.
- 5 Modules Included: Great value pack for prototyping, electronics projects, or keeping spares on hand.
- Convert Legacy Devices: Adapt traditional DC-powered equipment to be powered via a USB Type-C port and fast charger.
How It Works
The trigger board communicates with your fast charger using the PD/QC handshake protocol, requesting the voltage you've pre-configured by shorting the appropriate pad. The charger then outputs that DC voltage through the USB-C connection, which your module delivers to your device. No programming required — just solder the pad for your desired voltage and plug in.
Specifications
| Supported Protocols | PD3.0/2.0, PPS/QC4+, QC3.0/2.0, FCP, AFC |
| Output Voltage Options | 9V / 12V / 15V / 20V (pad-selectable) |
| Maximum Current | 5A |
| Board Dimensions | 23 × 11.5 × 4 mm |
| Connection Type | USB Type-C |
| Quantity | 5 pieces per pack |
| Condition | New |
| Origin | Made in Mainland China |
What's in the Box?

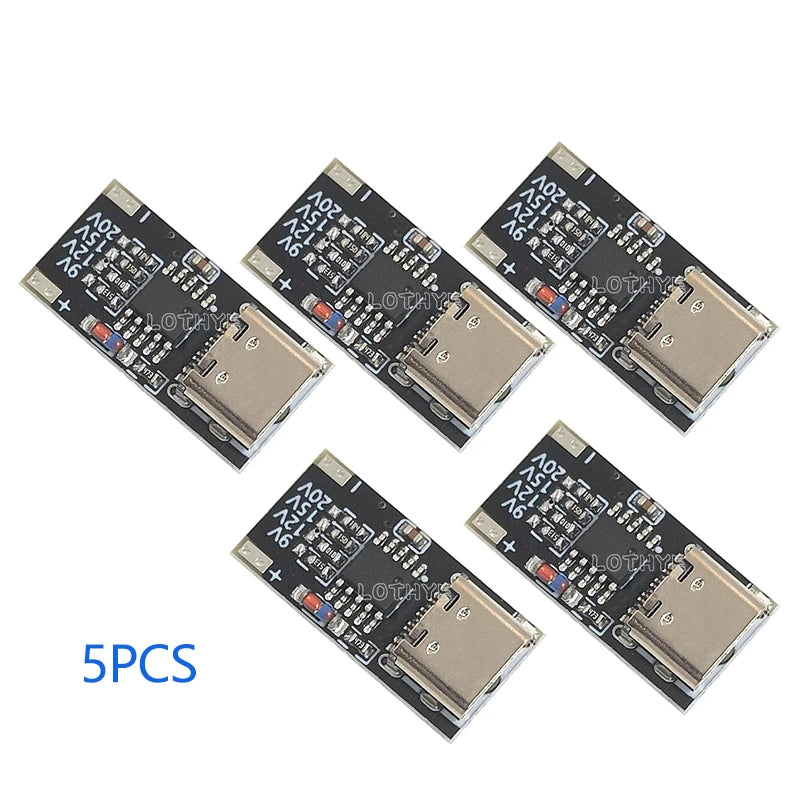

- 5 × PD/QC Trigger Decoy Board (USB Type-C Fast Charge Module)
Important Notes
- Your charger or power bank must support a fast-charge protocol (PD or QC) to activate voltage negotiation.
- If the requested voltage exceeds your charger's maximum, the board will automatically output the charger's highest supported voltage instead.
- Actual output power depends on the capability of your charger and the requirements of your connected load.
Related Products You May Like
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Clip-On Car Fan LED Display 199 Speeds | USB & Type-C
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: What fast-charge protocols does this USB-C PD/QC trigger board support?
A: This decoy board supports PD3.0/2.0, PPS/QC4+, QC3.0/2.0, FCP, and AFC protocols. As long as your charger or power bank supports one of these protocols, the module can negotiate the desired output voltage.
Q: How do I select the output voltage on the trigger board?
A: The board has four voltage tiers — 9V, 12V, 15V, and 20V. You select your desired output by soldering or shorting the corresponding pad on the PCB. No additional programming or software is required.
Q: Can I use this module with a standard USB charger that does not support fast charging?
A: No. The charger or power bank must support a compatible fast-charge protocol (PD or QC) for the voltage negotiation to work. A standard 5V-only USB charger will not trigger higher voltage output.
Q: What devices can I power using this USB-C PD trigger module?
A: Common applications include powering Wi-Fi routers, optical modems (light cats), LED lighting, and other DC-powered devices that normally require a 9V, 12V, 15V, or 20V power supply. It is also ideal for DIY electronics projects and prototyping.
