Type-C USB 2-3S BMS Lithium Battery Charging Module 15W Fast Charge

$21.24 $25.88

Meet the Type-C USB 2-3S BMS Lithium Battery Charging Module — a compact, reliable solution for charging and balancing 2S (8.4V) or 3S (12.6V) lithium battery packs. With 15W fast-charge capability, a built-in BMS balancing circuit, and a handy LED indicator, this module keeps your battery projects running safely and efficiently.

Made in Mainland China.

Key Features

Universal Type-C Input: Compatible with modern USB-C power adapters for convenient, fast charging at up to 15W.

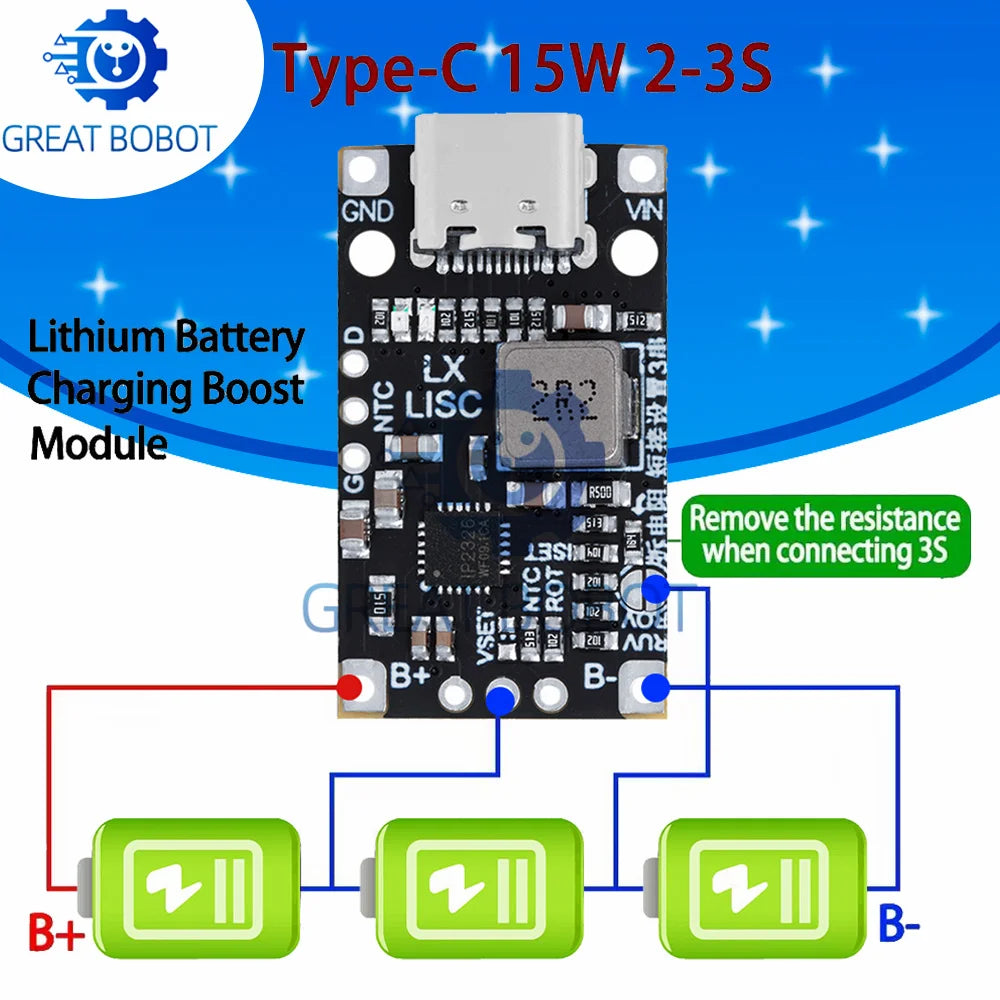

2S & 3S Support: Handles 2-cell (8.4V) and 3-cell (12.6V) lithium battery configurations — versatile for a wide range of DIY and electronics projects.
Built-In BMS Balancing: The integrated Battery Management System (BMS) actively balances individual cells during charging, promoting longer battery lifespan and consistent performance.
1.5A Charging Current: Delivers a steady 1.5A output for efficient, controlled charging without overloading your cells.
LED Charge Indicator: A clear status indicator lets you monitor charging progress at a glance — no guesswork required.
SMD Package Design: Compact surface-mount design makes it easy to integrate into custom enclosures or circuit boards.
No High-Concern Chemicals: Built without hazardous substances for safer handling and compliance.

Specifications

Input Interface: Type-C USB
Supported Cell Configurations: 2S (8.4V) / 3S (12.6V)
Dissipation Power: 15W
Charging Current: 1.5A
Supply Voltage: 8.4V / 12.6V
Package Type: SMD
Quantity: 1 module
Condition: New
Country of Origin: Mainland China

Who Is This For?

This charging module is ideal for electronics hobbyists, makers, and engineers working on DIY lithium battery packs, robotics, portable power stations, RC projects, or any custom device that uses a 2S or 3S lithium cell configuration. Its plug-and-play Type-C interface makes setup fast and straightforward.

Related Products You May Like

Learn more: ENERGY STAR product efficiency guidance

Frequently Asked Questions

Q: What battery configurations does this BMS charging module support?

A: This module supports both 2S lithium battery packs (8.4V, two cells in series) and 3S lithium battery packs (12.6V, three cells in series). Simply connect the appropriate cell configuration and the module handles balanced charging automatically.

Q: Does the Type-C USB BMS module include overcharge protection?

A: Yes. The integrated BMS (Battery Management System) monitors individual cell voltages and manages the charging process to help prevent overcharging, supporting safe and balanced operation across all connected cells.

Q: What power adapter do I need to use with this module?

A: The module uses a standard Type-C USB input. A USB-C power adapter capable of supplying at least 15W is recommended to take full advantage of the fast-charge capability and 1.5A output current.
