Trigger Cycle Timer Delay Switch – 12V/24V Dual MOS Module

Trigger Cycle Timer Delay Switch – 12V/24V Dual MOS Module

$10.09 $11.89
Default TitleDefault Title

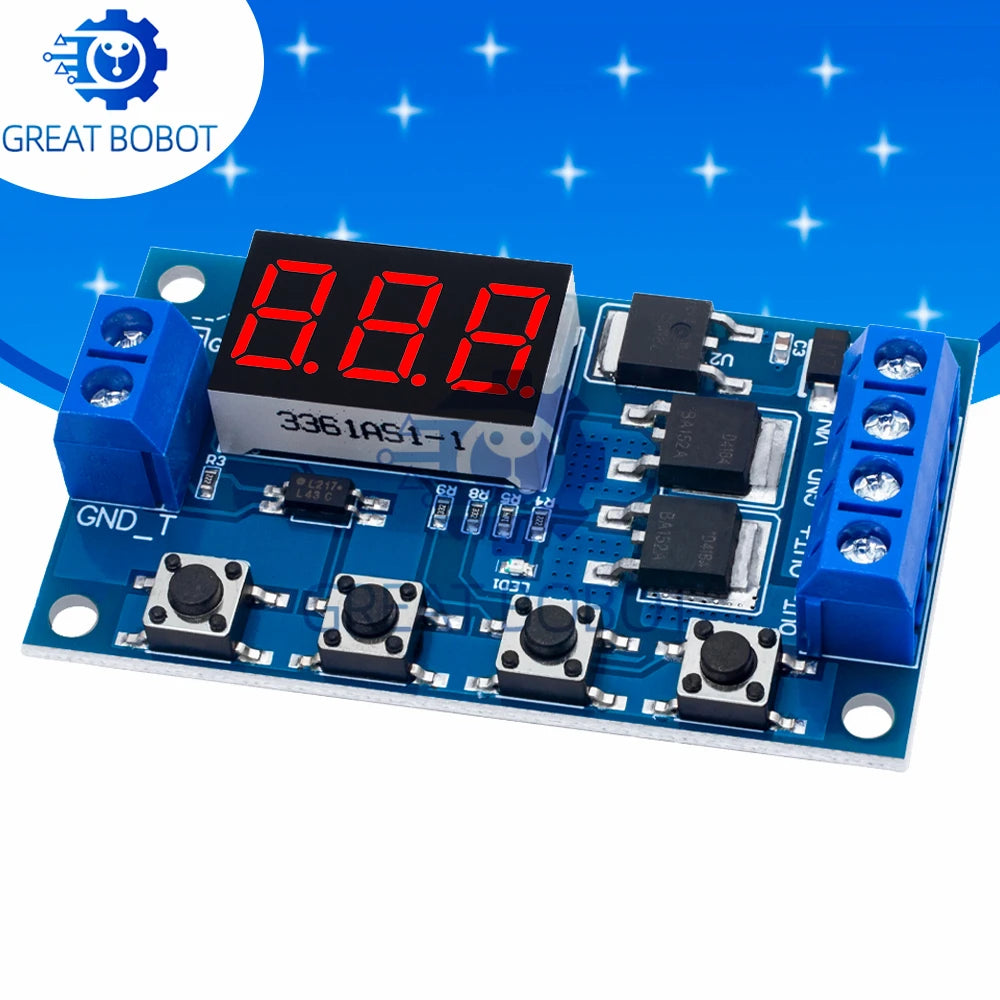

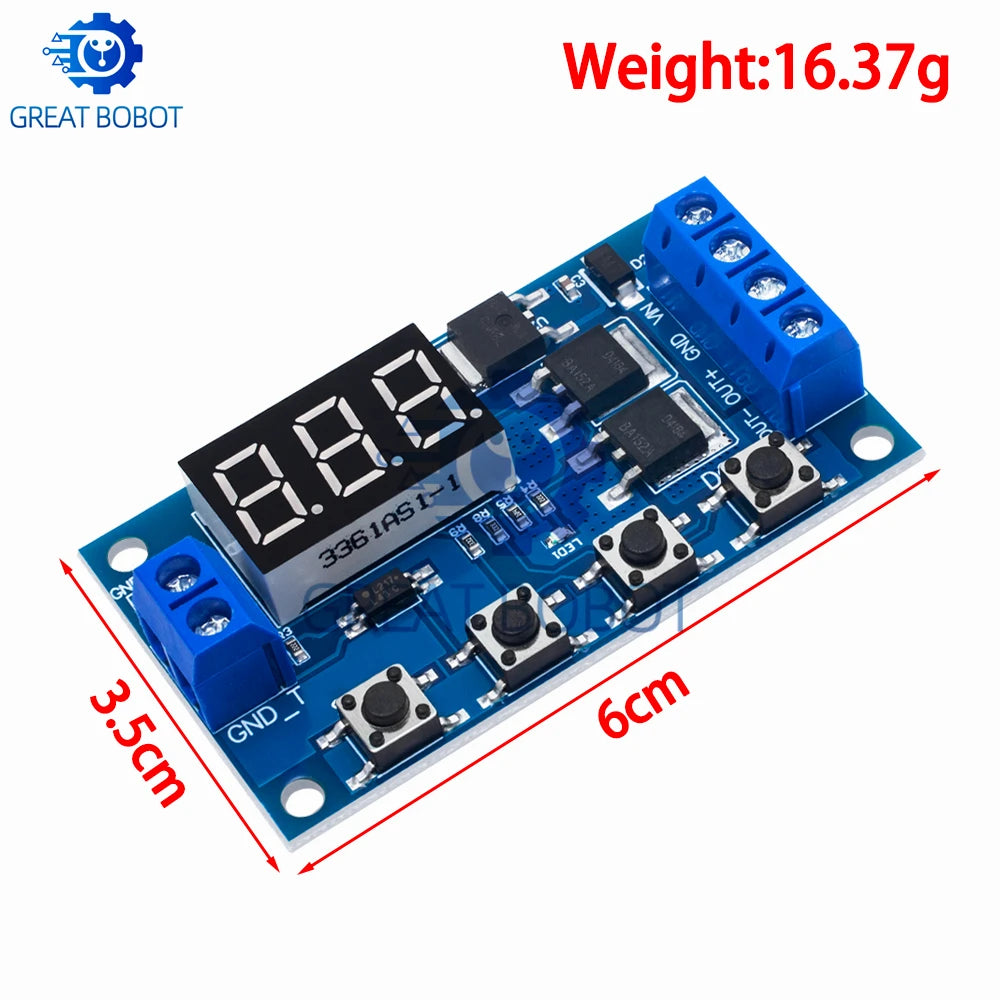

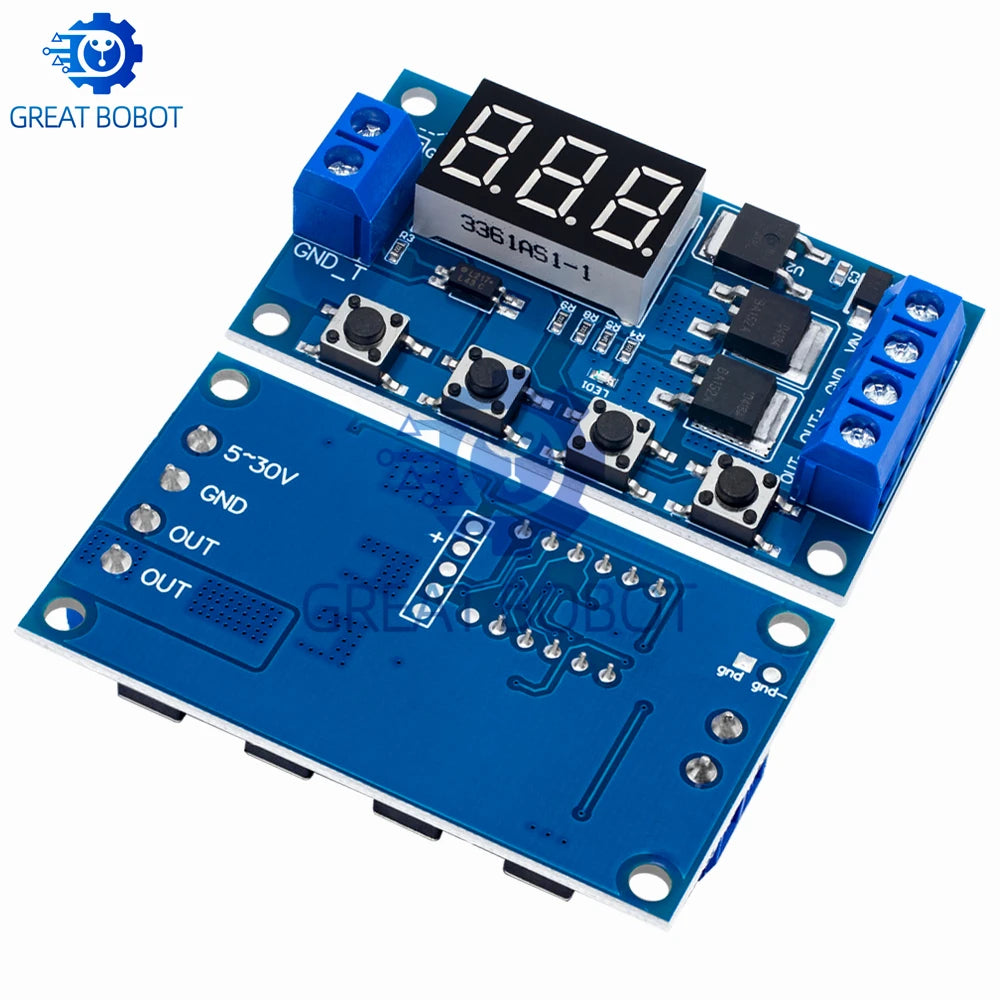

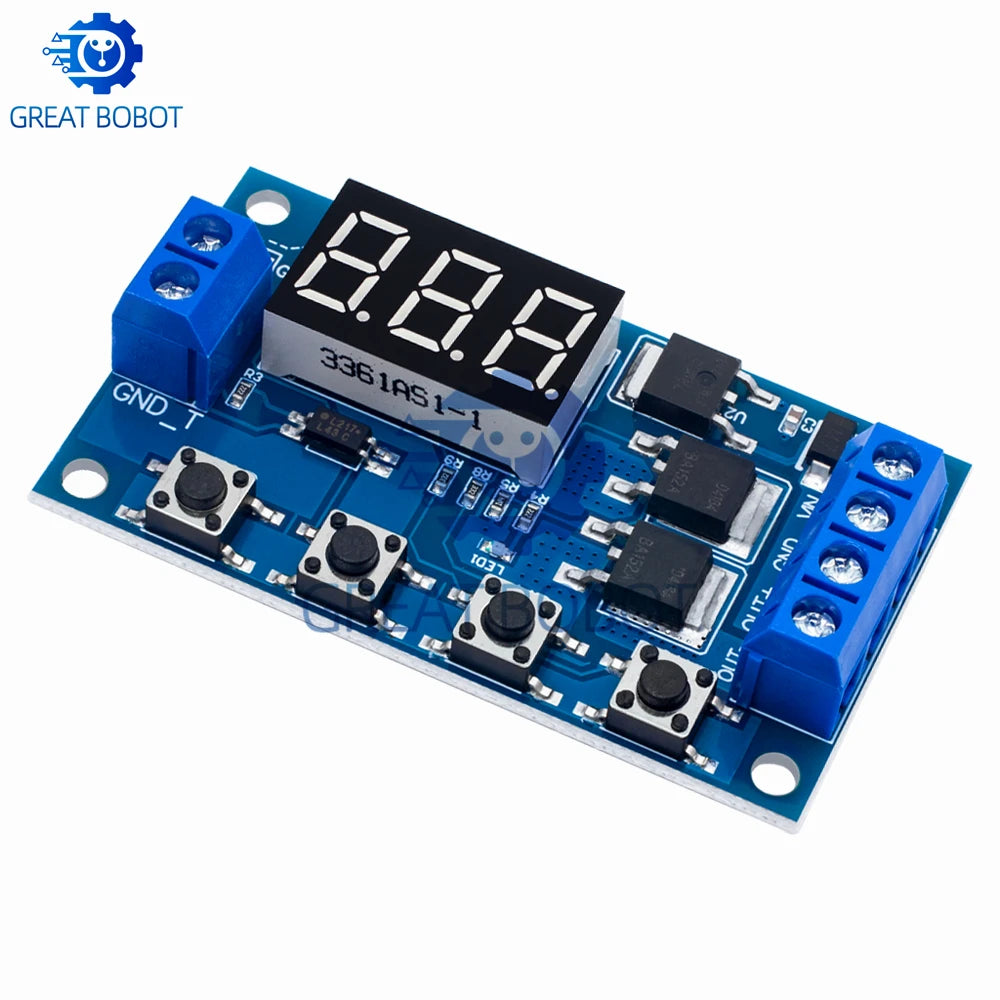

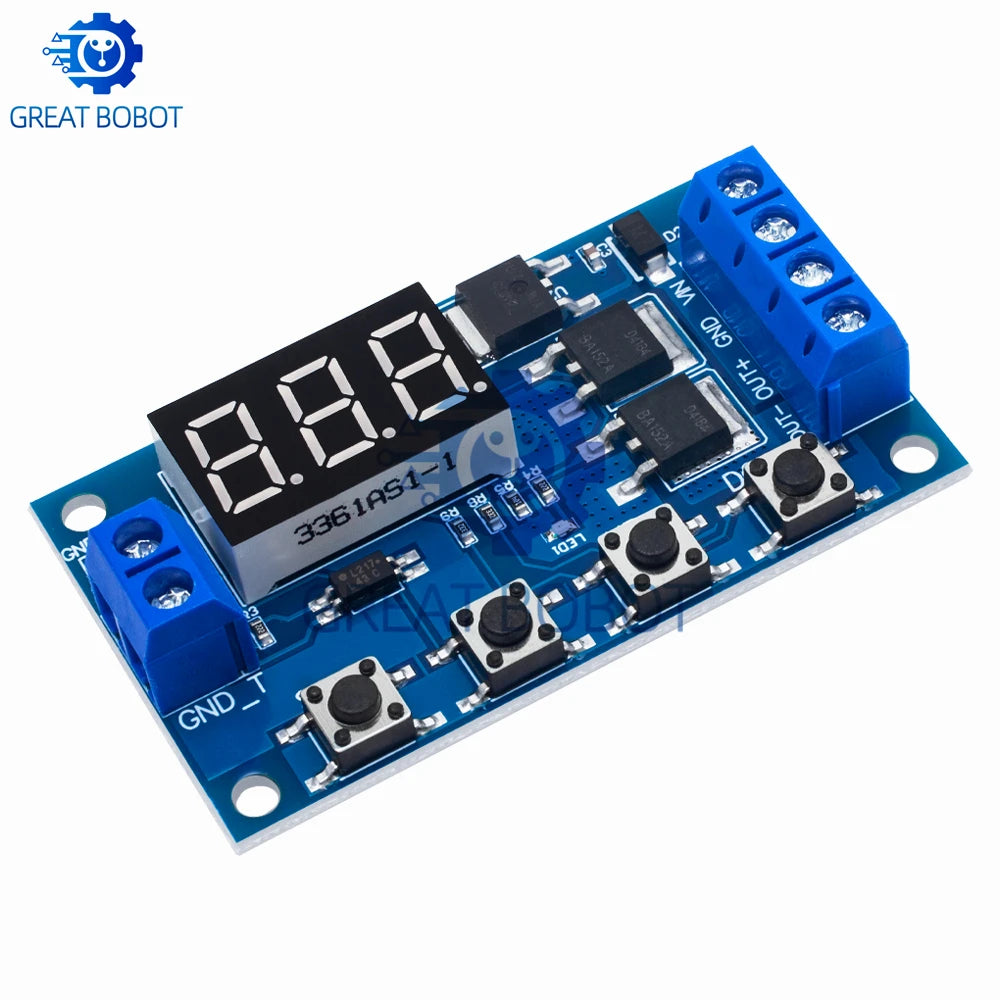

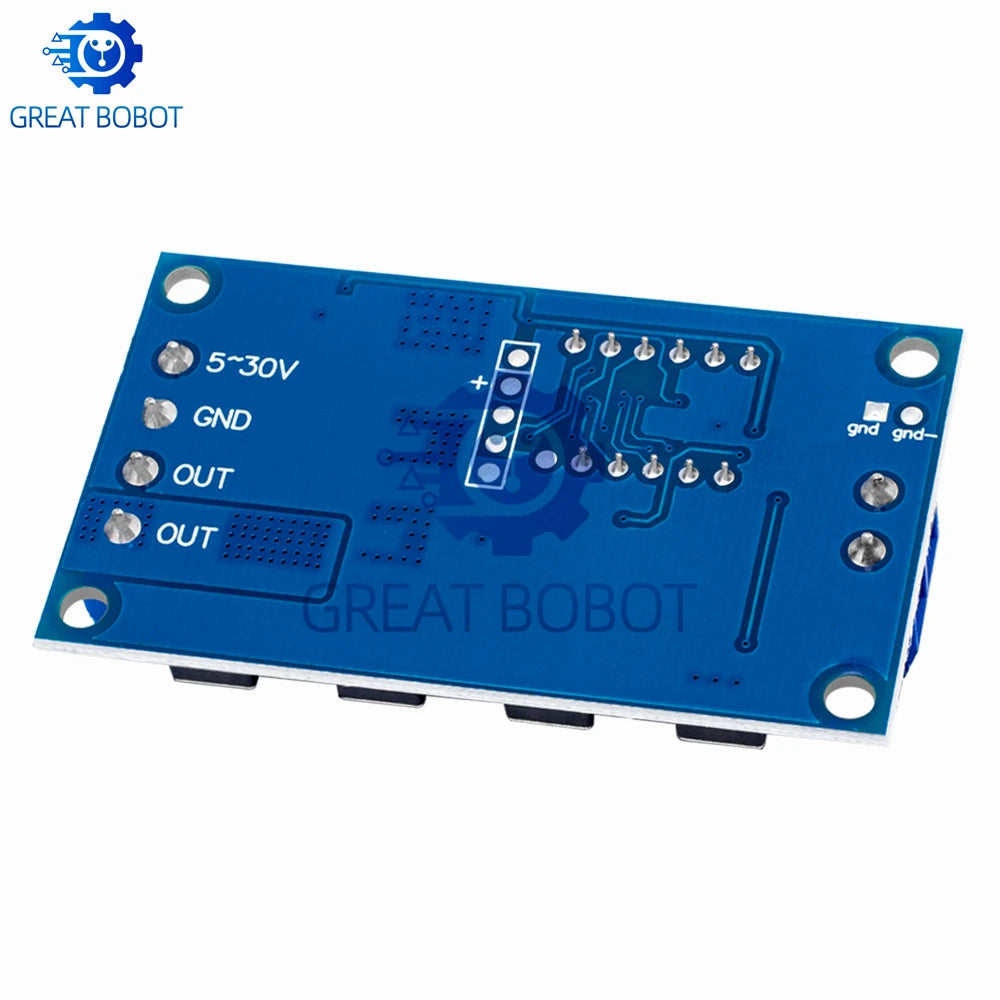

Trigger Cycle Timer Delay Switch – 12V & 24V Dual MOS Tube Control Module

Take precise control of your electronic circuits with this compact and versatile Trigger Cycle Timer Delay Switch Module. Designed for makers, hobbyists, and engineers alike, this circuit board features dual MOS tube output, allowing you to automate on/off cycles with adjustable delay timing across a wide voltage range of 5V to 36V DC — making it compatible with both 12V and 24V systems.

Whether you're automating equipment, building DIY control systems, or adding timed switching logic to your projects, this module delivers reliable, repeatable performance in a small SMD form factor.

Key Features

  • Wide Voltage Range: Compatible with 5V–36V DC input, ideal for 12V and 24V systems
  • Dual MOS Tube Output: Provides stable, high-efficiency switching control for your loads
  • Trigger Cycle & Delay Modes: Supports both cyclic timing and single delay trigger operation
  • Wide Operating Temperature: Functions reliably from -40°C to +85°C for demanding environments
  • Compact SMD Package: Space-saving design, easy to integrate into custom enclosures or PCB assemblies
  • No High-Concern Chemicals: Clean build with no hazardous substances declared
  • Customizable: Adjustable timing parameters to suit your specific project needs

Specifications

Supply Voltage 5V – 36V DC
Compatible Systems 12V, 24V (and more)
Output Type Dual MOS Tube
Package Type SMD
Operating Temperature -40°C to +85°C
Condition New
Quantity 1 Module
Country of Origin Made in Mainland China

Ideal Applications

  • DIY home automation and timed switching projects
  • Automotive relay control and timed circuit activation
  • Motor or pump automatic cycling systems
  • LED lighting timed control
  • Industrial and workshop automation setups

You Might Also Like

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What voltage range does this trigger cycle timer delay switch module support?

A: This module supports a wide input voltage range of 5V to 36V DC, making it fully compatible with common 12V and 24V systems used in automotive, DIY electronics, and industrial automation projects.

Q: What is the difference between the trigger mode and the cycle timer mode on this module?

A: The trigger mode activates the output for a set delay period after receiving a trigger signal, then turns off automatically. The cycle timer mode repeatedly switches the output on and off at preset intervals, making it ideal for automated cycling applications such as pumps or motors.

Q: Is this module suitable for use in outdoor or high-temperature environments?

A: Yes. The module is rated for operating temperatures from -40°C to +85°C, making it well-suited for both indoor and outdoor applications where temperature extremes may be encountered.

Q: How many modules are included in this listing?

A: Each listing includes 1 trigger cycle timer delay switch module.
