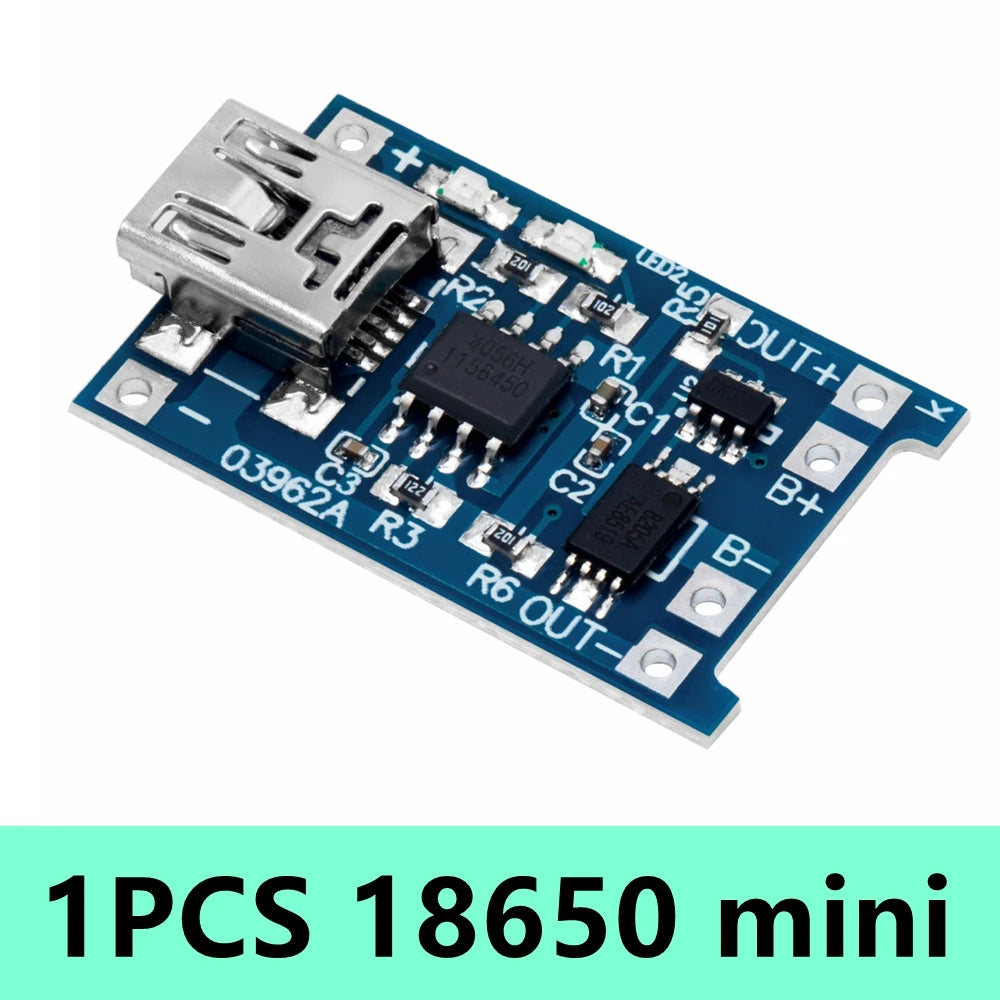

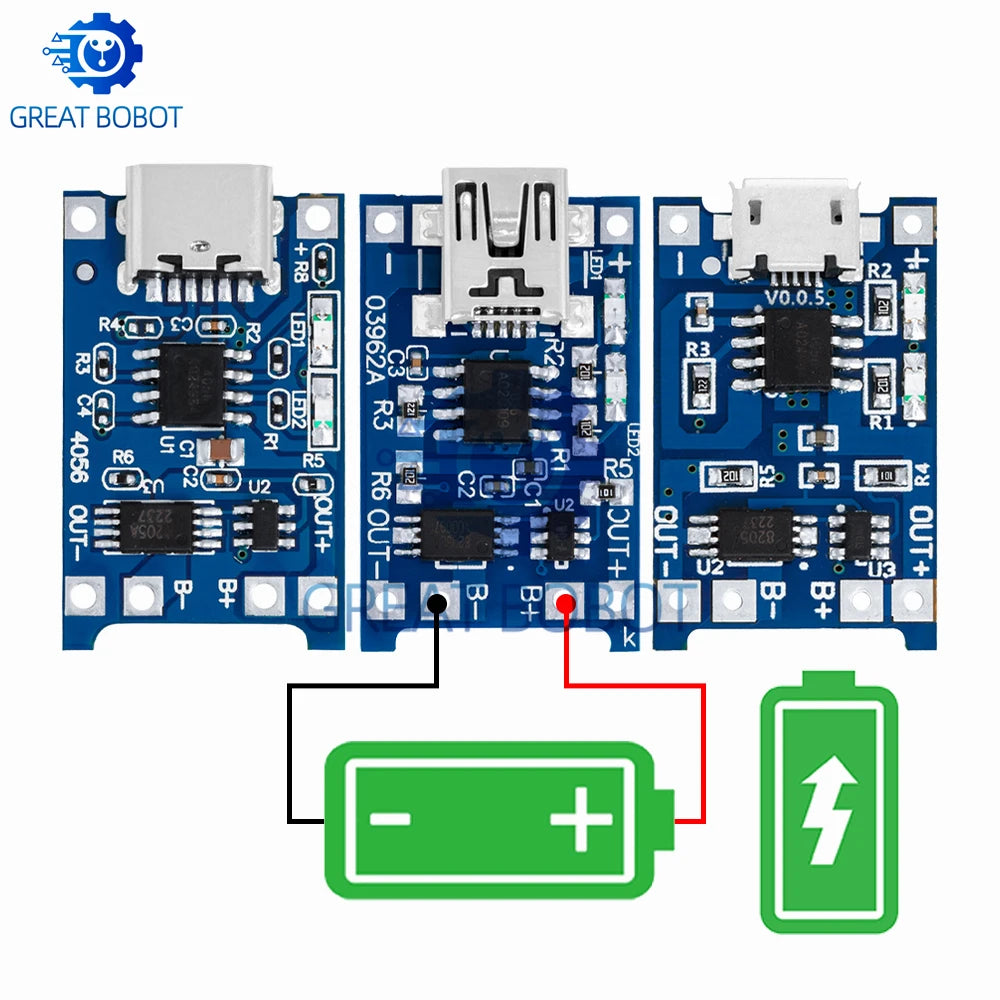

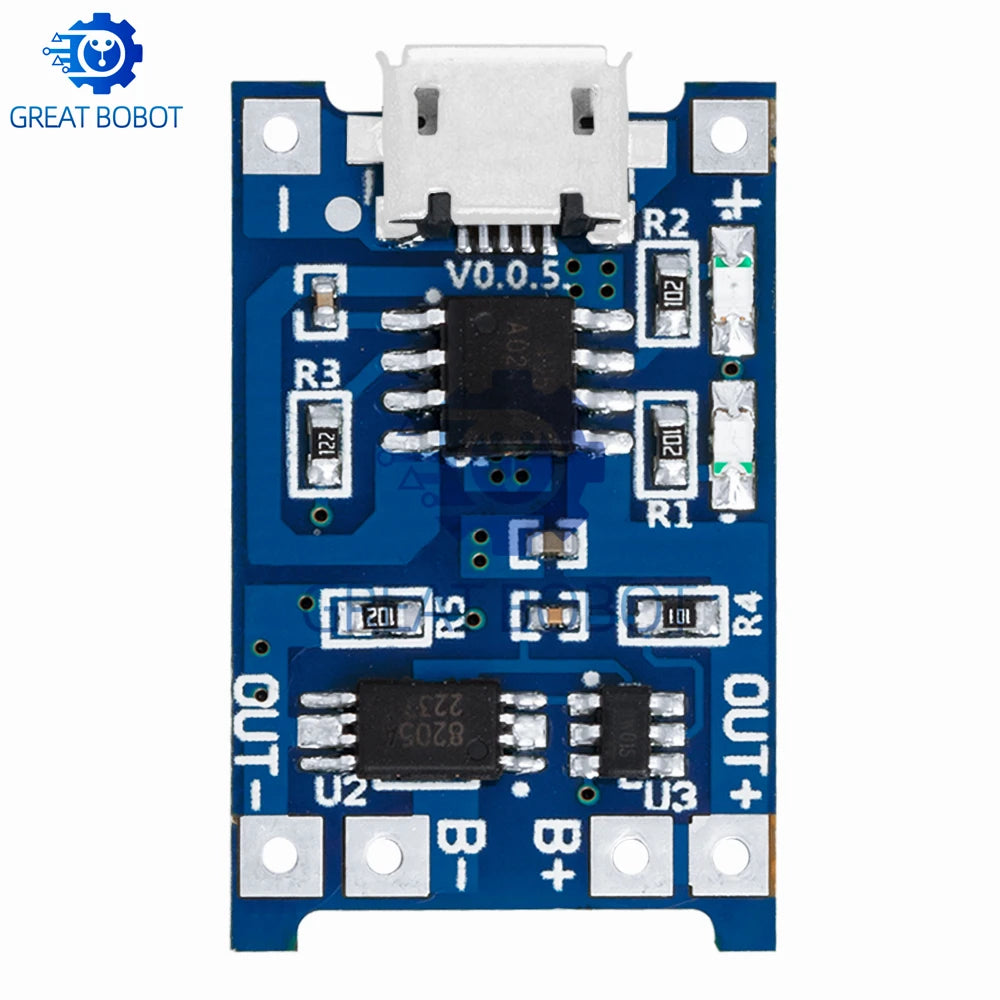

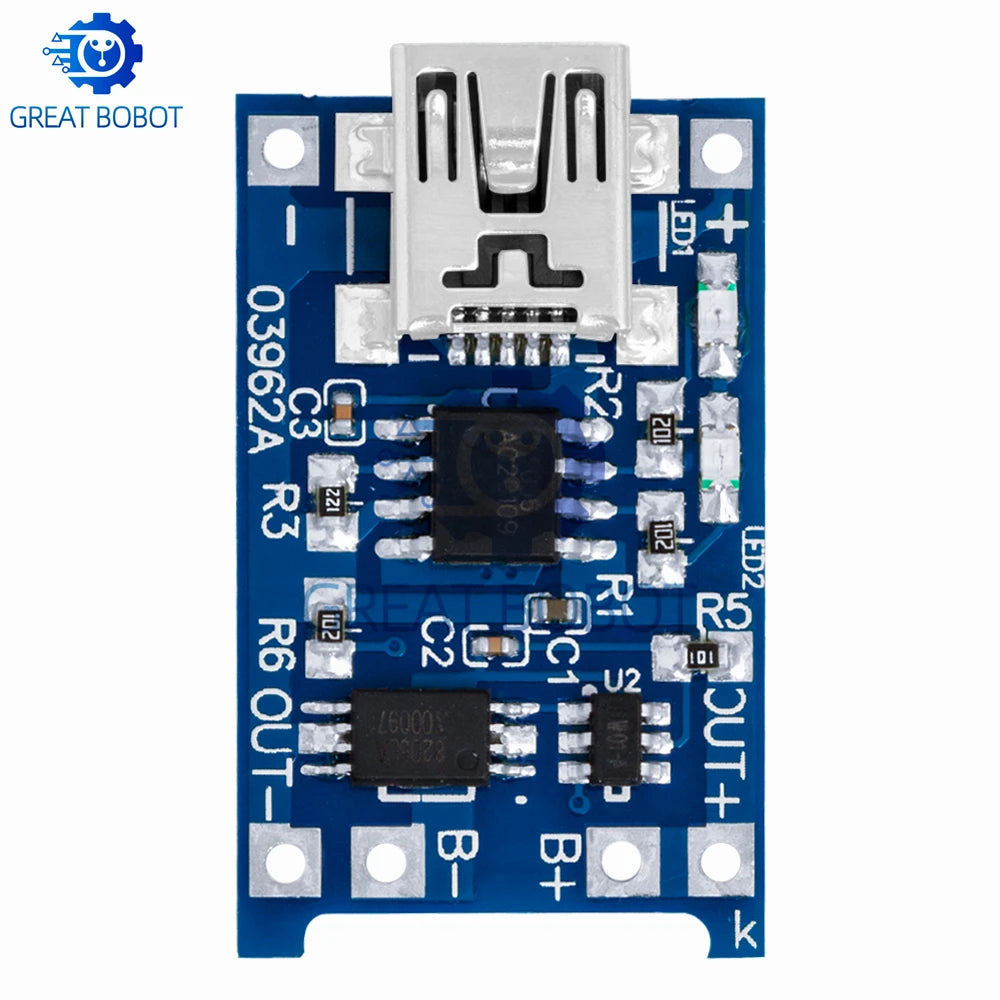

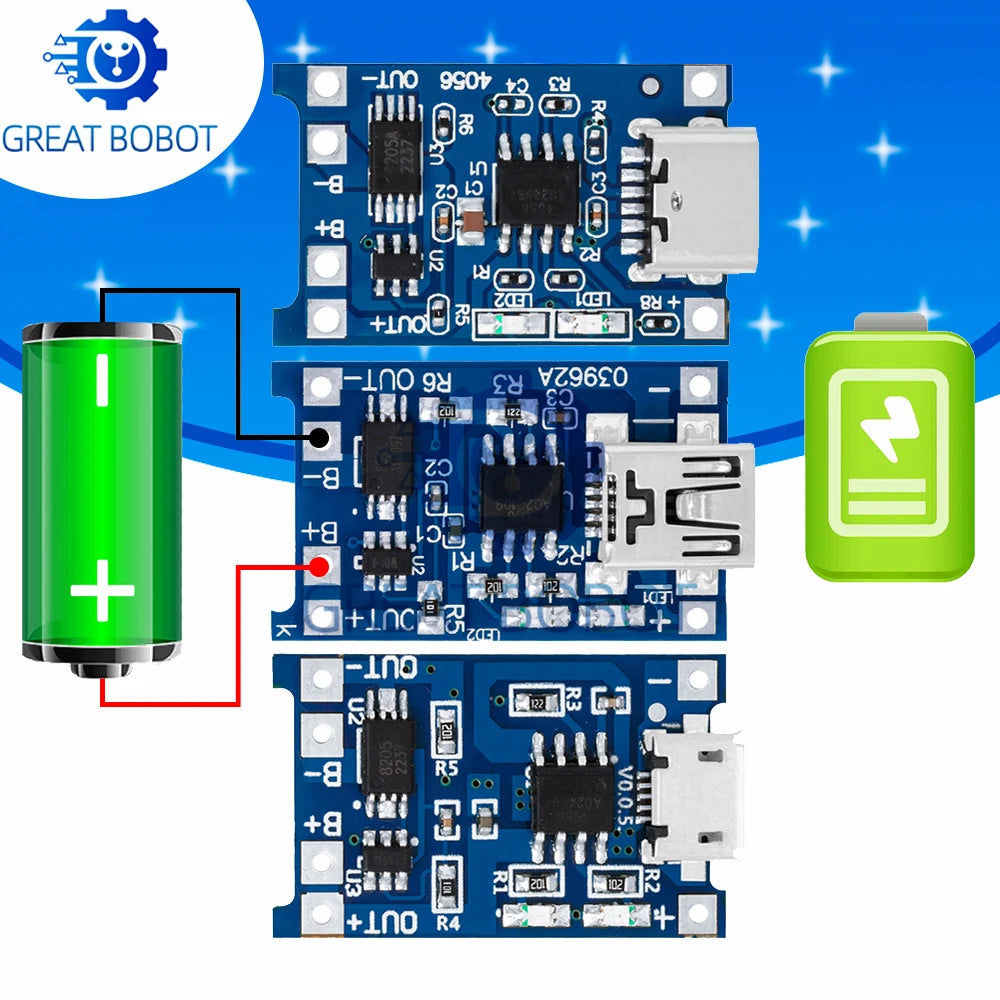

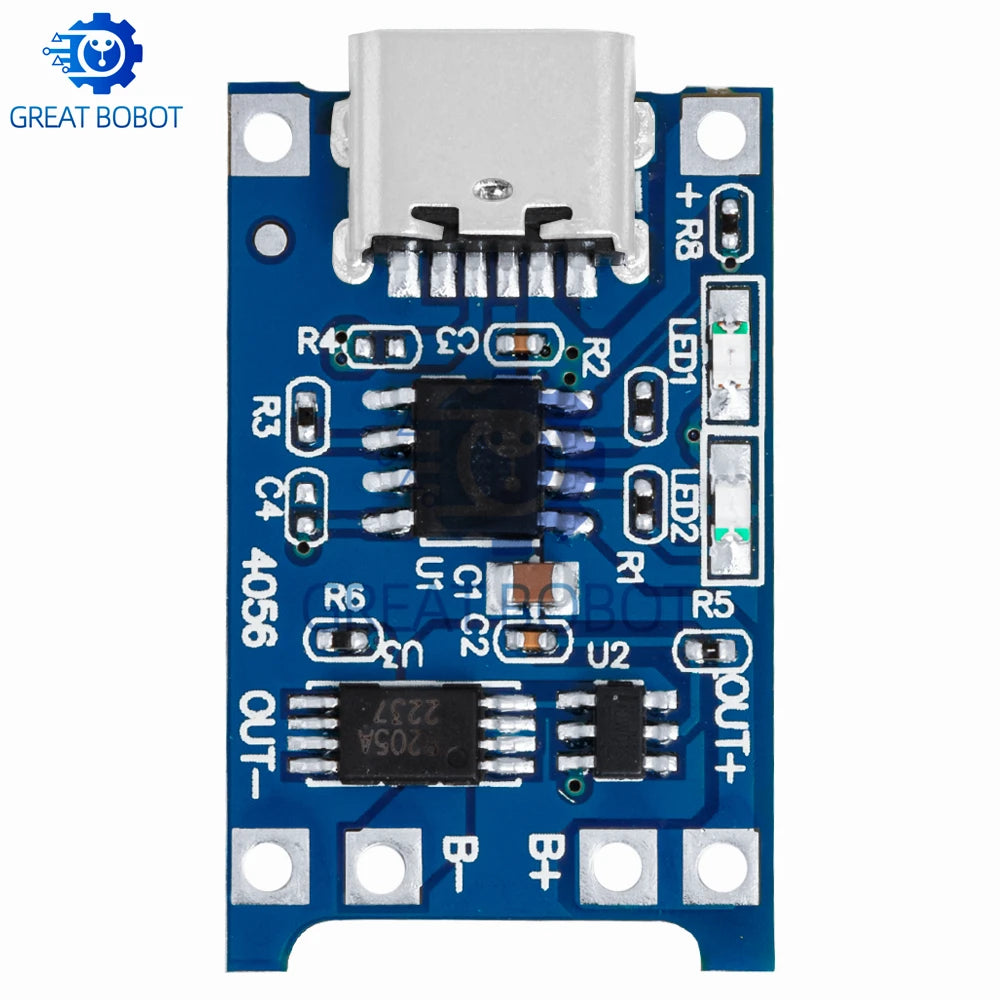

TP4056 Dual-Input Lithium Battery Charging & Protection Module
The TP4056 5V 1A Charging Board is a compact, reliable solution for charging single-cell lithium-ion and lithium-polymer batteries. Featuring both Micro USB and USB Type-C input ports, this versatile module includes built-in overcharge, over-discharge, and short-circuit protection — making it ideal for DIY electronics, prototyping, and repair projects.
Key Features
- Dual Input Compatibility: Accepts both Micro USB and USB Type-C connectors for flexible power sourcing
- TP4056 Chip: Industry-standard IC for precise, stable 1A constant-current/constant-voltage lithium battery charging
- Built-In Protection Circuit: Safeguards against overcharge, over-discharge, over-current, and short-circuit conditions
- 5V Supply Voltage: Compatible with standard USB power adapters and power banks
- Wide Operating Temperature Range: -40°C to +85°C for reliable use across various environments
- Compact SMD Package: Small form factor fits easily into custom enclosures and DIY builds
- LED Charge Indicators: Status LEDs show charging in progress and charge completion at a glance
- No High-Concern Chemicals: RoHS-compliant design — free from hazardous substances
Specifications
- Input Voltage: 5V (Micro USB / Type-C)
- Charging Current: Up to 1A
- Battery Type: Single-cell Li-ion / LiPo (3.7V nominal)
- Package Type: SMD
- Operating Temperature: -40°C to +85°C
- Quantity: 1 module per order
- Country of Origin: Made in China
Who Is This For?
Perfect for electronics hobbyists, Arduino and Raspberry Pi enthusiasts, engineers, and makers who need a reliable, compact charging and protection solution for lithium battery-powered projects. Works great in custom battery packs, portable devices, IoT projects, and more.
Related Products You May Like
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- 360° Bicycle Chain Cleaner Tool | Bike Gear Cleaning Kit
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: What type of batteries is the TP4056 charging module compatible with?
A: The TP4056 charging board is designed for single-cell 3.7V lithium-ion (Li-ion) and lithium-polymer (LiPo) batteries. It delivers a 5V, 1A input and charges batteries using a constant-current/constant-voltage method up to a 4.2V end-of-charge voltage, which is the standard for most single-cell lithium batteries.
Q: Does this module have overcharge and short-circuit protection?
A: Yes. This module integrates both the TP4056 charging IC and a dedicated protection circuit. It actively guards against overcharge, over-discharge, over-current, and short-circuit events, helping to keep your battery and connected devices safe during use.
Q: Can I use both Micro USB and USB Type-C inputs interchangeably?
A: Yes — the module features both Micro USB and USB Type-C ports. You can use whichever connection is most convenient for your power source. Only one input needs to be connected at a time to begin charging your lithium battery.
Q: Is this module suitable for DIY and maker projects?
A: Absolutely. Its compact SMD form factor and standard 5V input make it a popular choice for Arduino builds, IoT devices, portable electronics, custom battery packs, and other hobbyist or prototyping applications where a small, efficient charging and protection circuit is needed.
