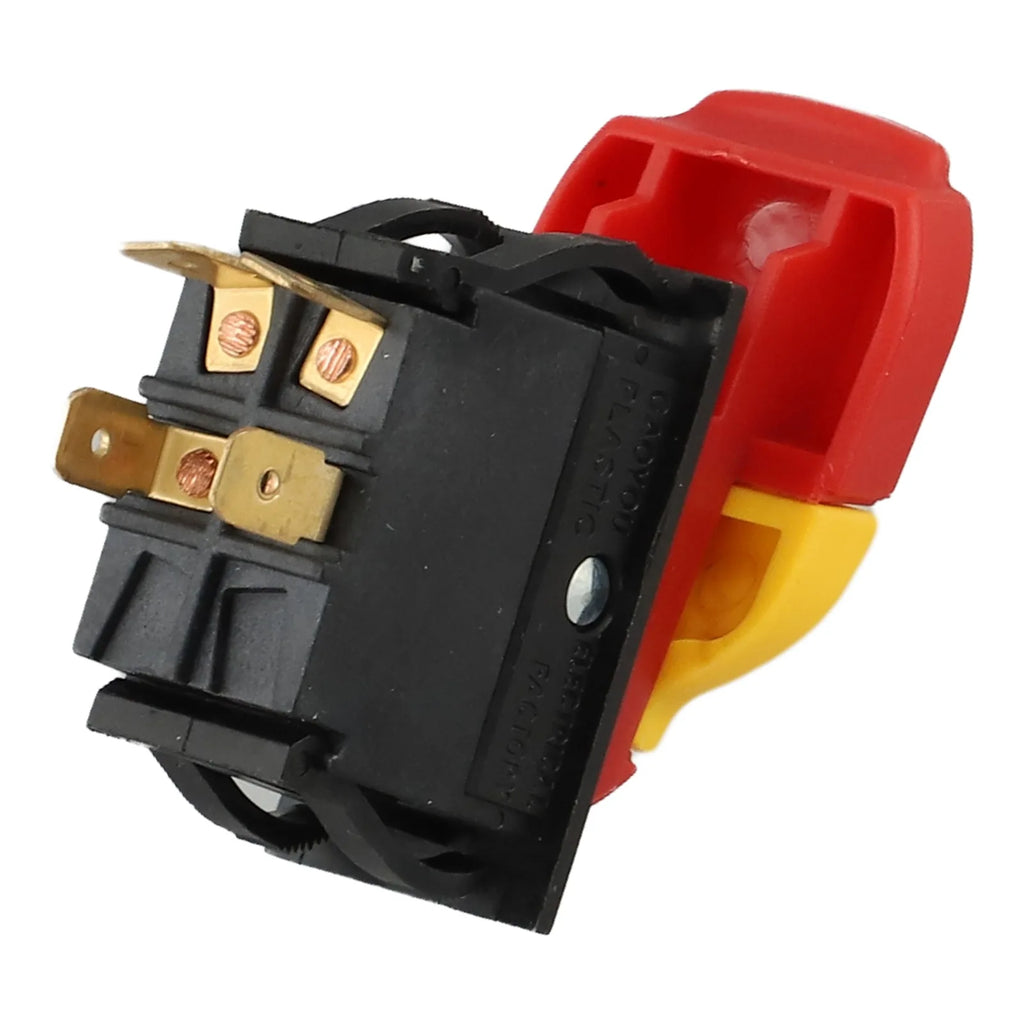

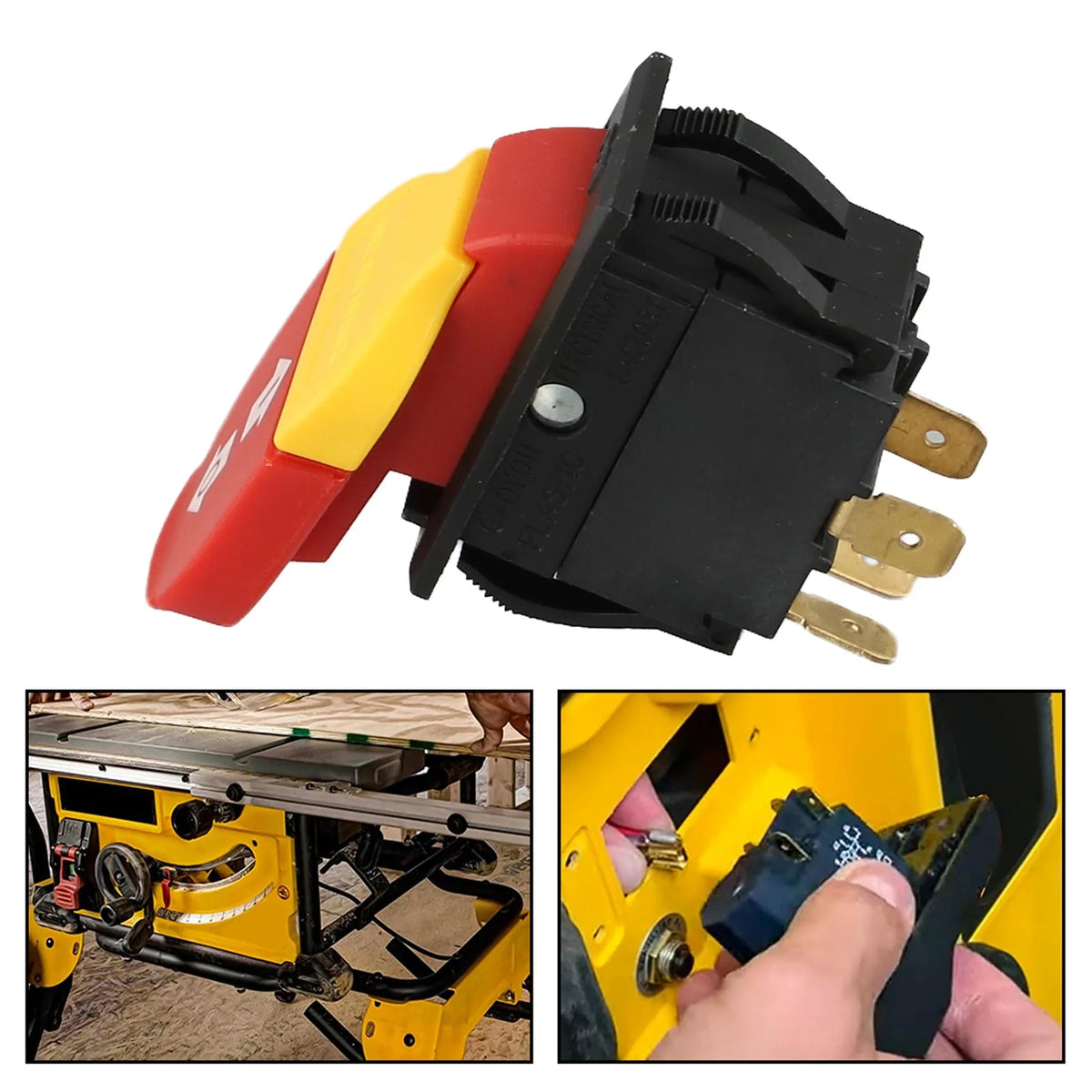

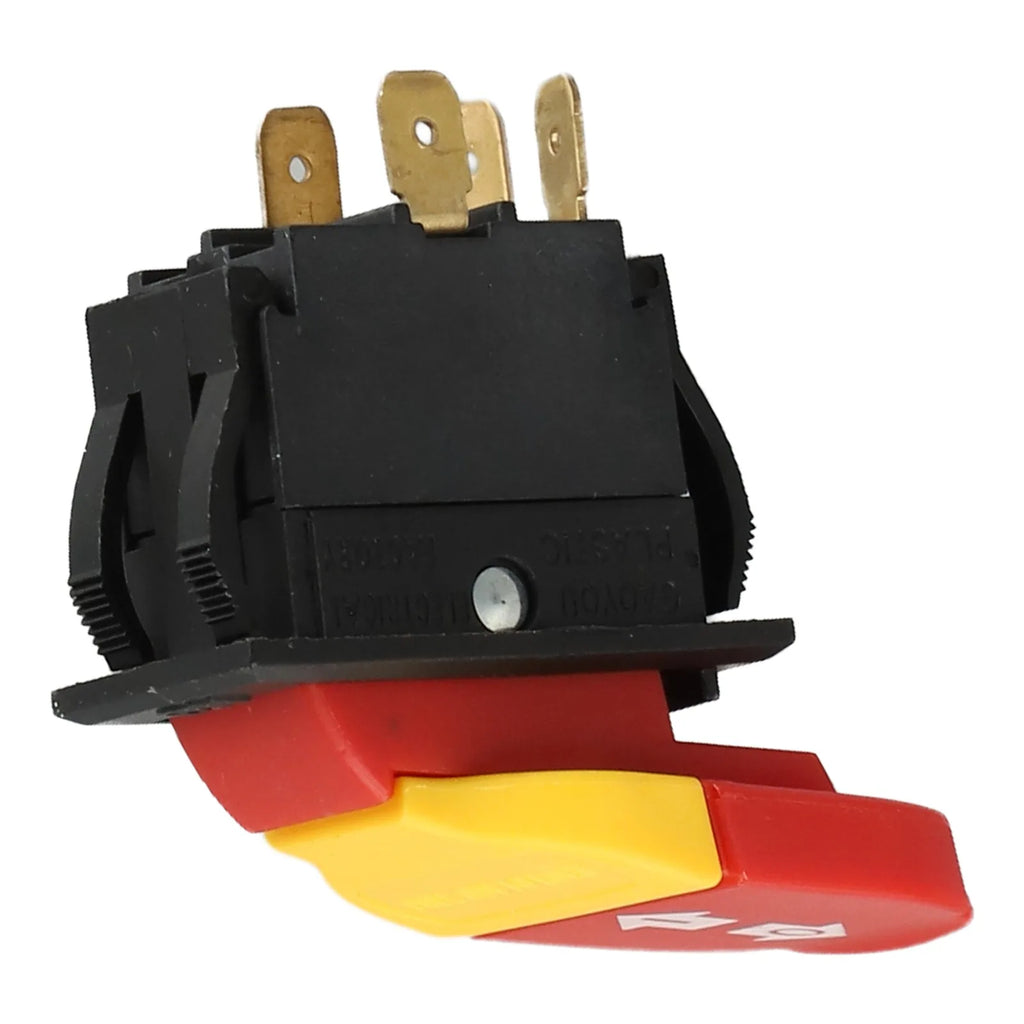

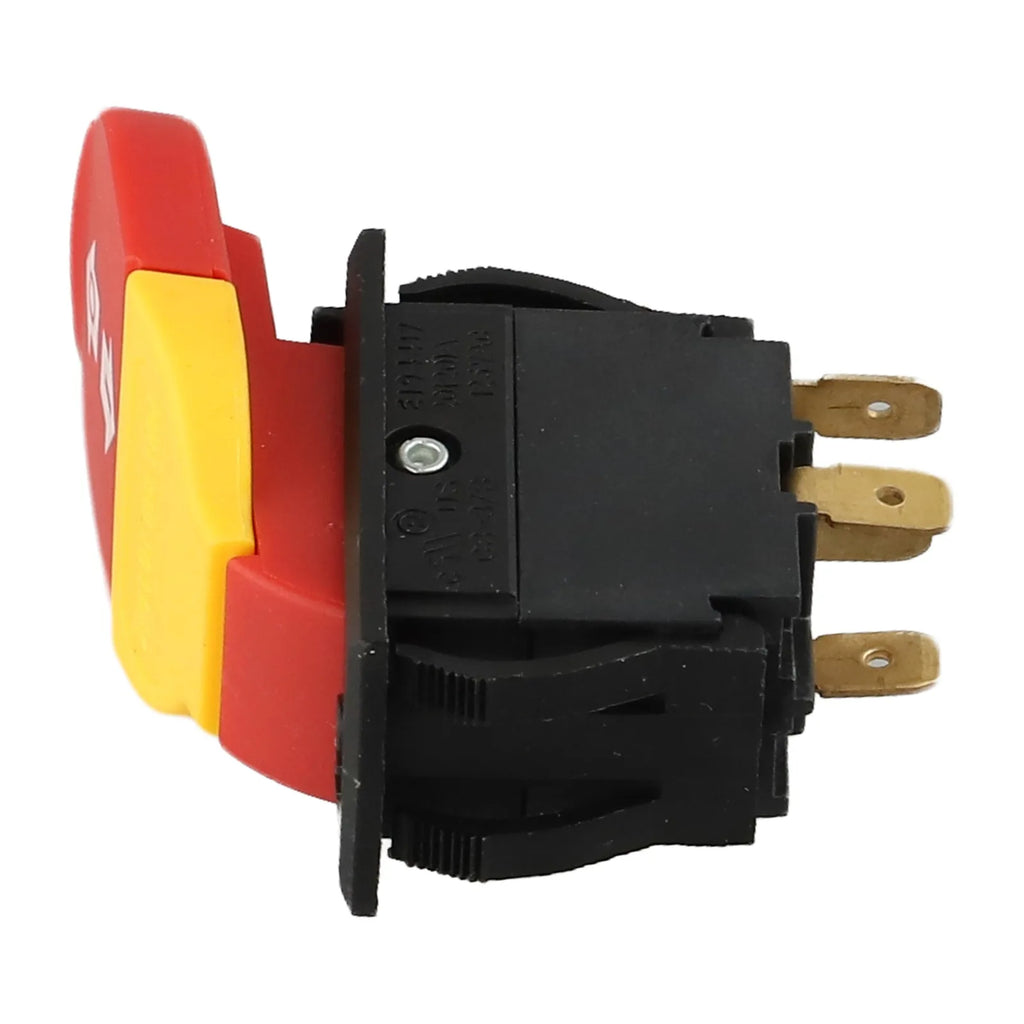

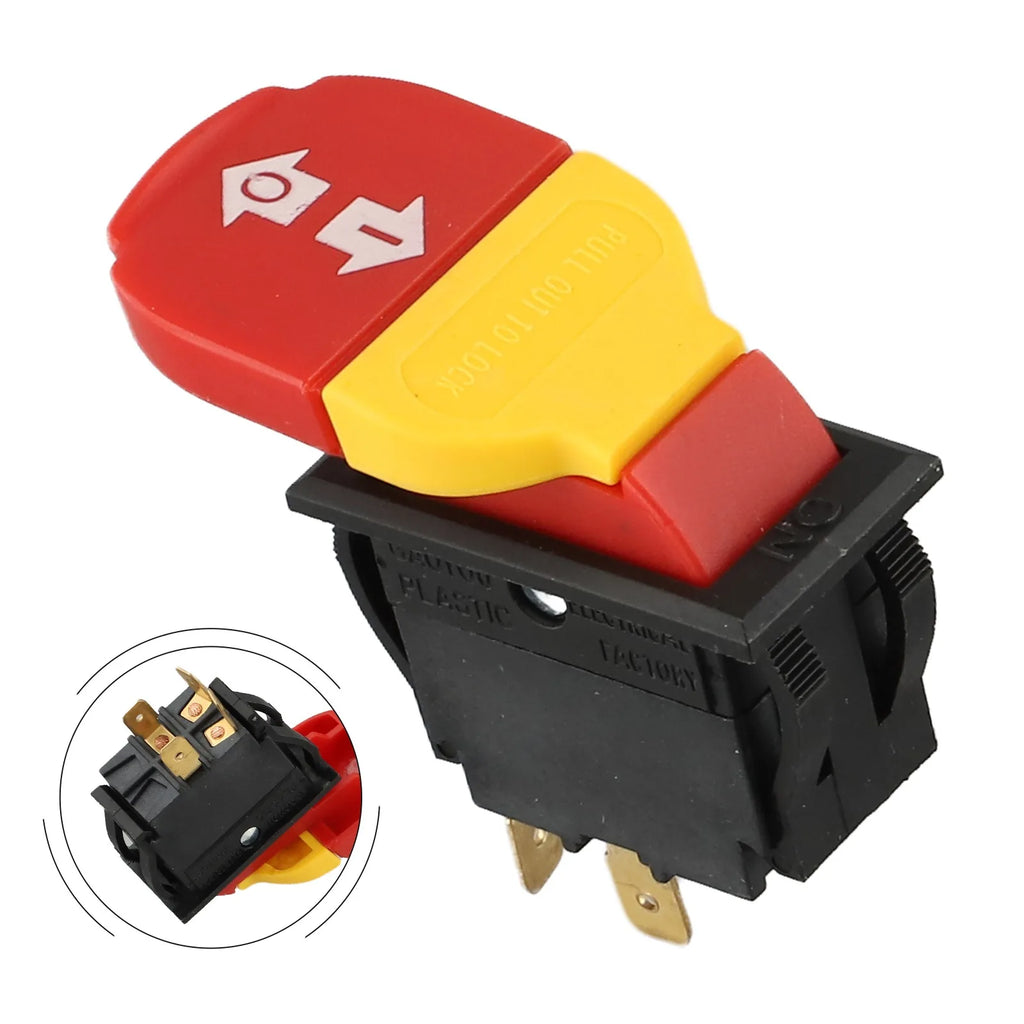

Table Saw Pushbutton Switch – Model CB-8 | 20A/12A 125/250V 5E4
Keep your table saw running safely and efficiently with this heavy-duty mechanical electromagnetic pushbutton switch. Designed as a direct replacement for select table saw models, it features built-in overload protection and a user-friendly ON/OFF design that any DIYer or professional woodworker can install in minutes — no special tools required.
Compatible Models
- DWE7480
- DW745
- DWE7499GD

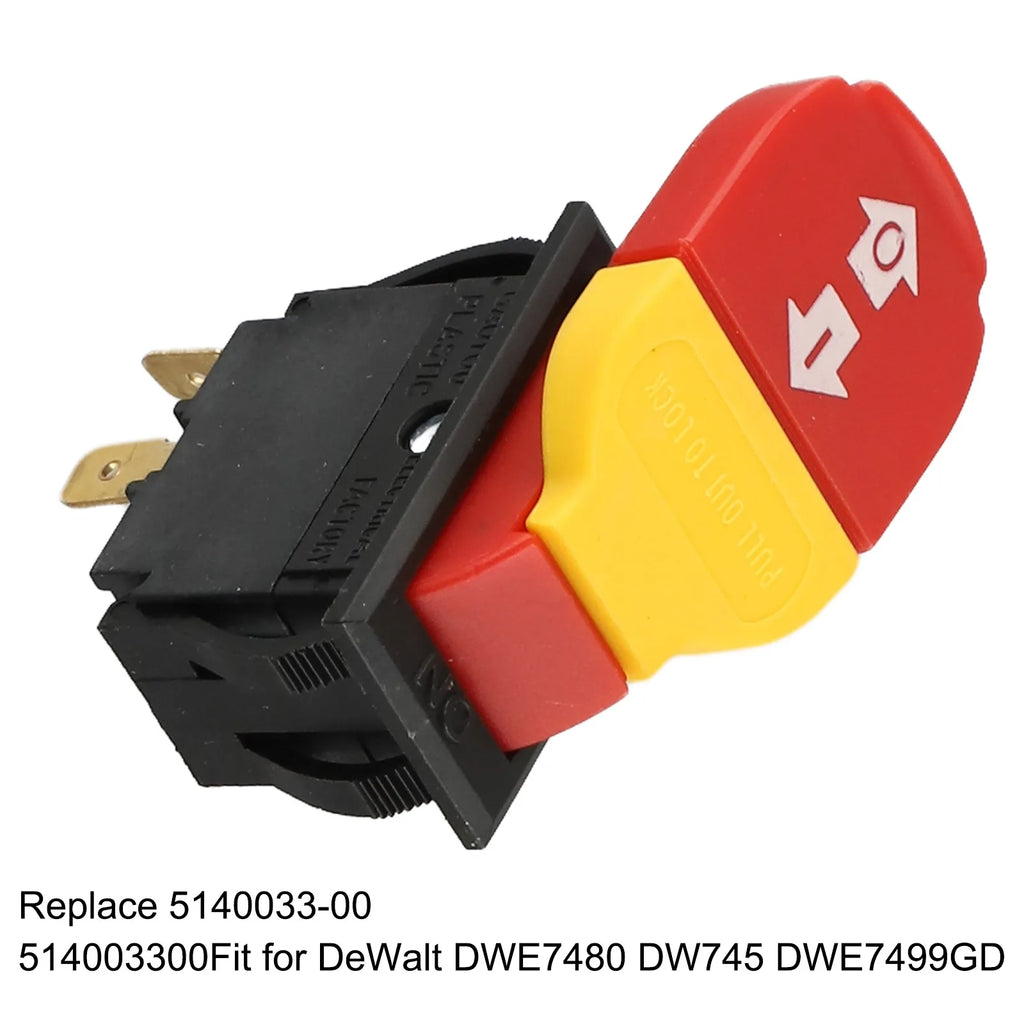

- Replaces OEM part numbers: 5140033-00 and 514003300
Key Features
- Built-In Overload Protection: Automatically cuts power if the motor overheats or draws excessive current, helping protect your saw and preventing accidents on the job.
- Anti-Misoperation Design: Reduces the risk of accidental switch activation during operation, so you can work with greater confidence and control.
- Accessible from Multiple Positions: The ergonomic pushbutton layout lets you reach the switch comfortably from various working angles — ideal for table saw use.
- High-Strength Plastic Construction: The durable plastic housing is wear-resistant and keeps sawdust, wood chips, and debris out of the switch interior for reliable long-term performance.
- Easy DIY Installation: No special skills or tools needed. Replace your old switch in just a few simple steps and get back to work quickly.
Specifications
| Model | CB-8 |
| Rating | 20A / 12A | 125V / 250V | 5E4 |
| Operation Mode | ON/OFF (Pushbutton) |
| Material | High-Strength Plastic & Metal |
| Color | Black & Red |
| Size | Standard |
| Country of Origin | Made in Mainland China |
Package Contents
- 1 × Table Saw Pushbutton Switch (Model CB-8)
Important Notes
- Actual color may vary slightly from images due to monitor settings and lighting conditions.
- Please allow minor measurement tolerances for listed dimensions.
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Garden Pruner Shears – Secateurs for Bonsai & Fruit Trees
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: Which table saw models is this pushbutton switch compatible with?
A: This CB-8 pushbutton switch is designed as a direct replacement for the DWE7480, DW745, and DWE7499GD table saws. It replaces OEM part numbers 5140033-00 and 514003300. Always verify your saw's part number before purchasing to ensure compatibility.
Q: Does this switch have overload protection?
A: Yes. The switch features built-in electromagnetic overload protection that automatically disconnects power when the motor overheats or draws excessive current, helping protect your equipment and supporting safer workshop operation.
Q: Is special wiring knowledge required to install this table saw switch?
A: This switch is designed for straightforward replacement. Most users can complete the installation in a few simple steps without special tools or professional skills. However, if you are unfamiliar with electrical components, consulting a qualified technician is always a good idea.
Q: What are the electrical ratings for this switch?
A: The switch is rated at 20A/12A and 125V/250V with a 5E4 mechanical endurance rating, making it suitable for the high-current demands of electric power tools like table saws.
