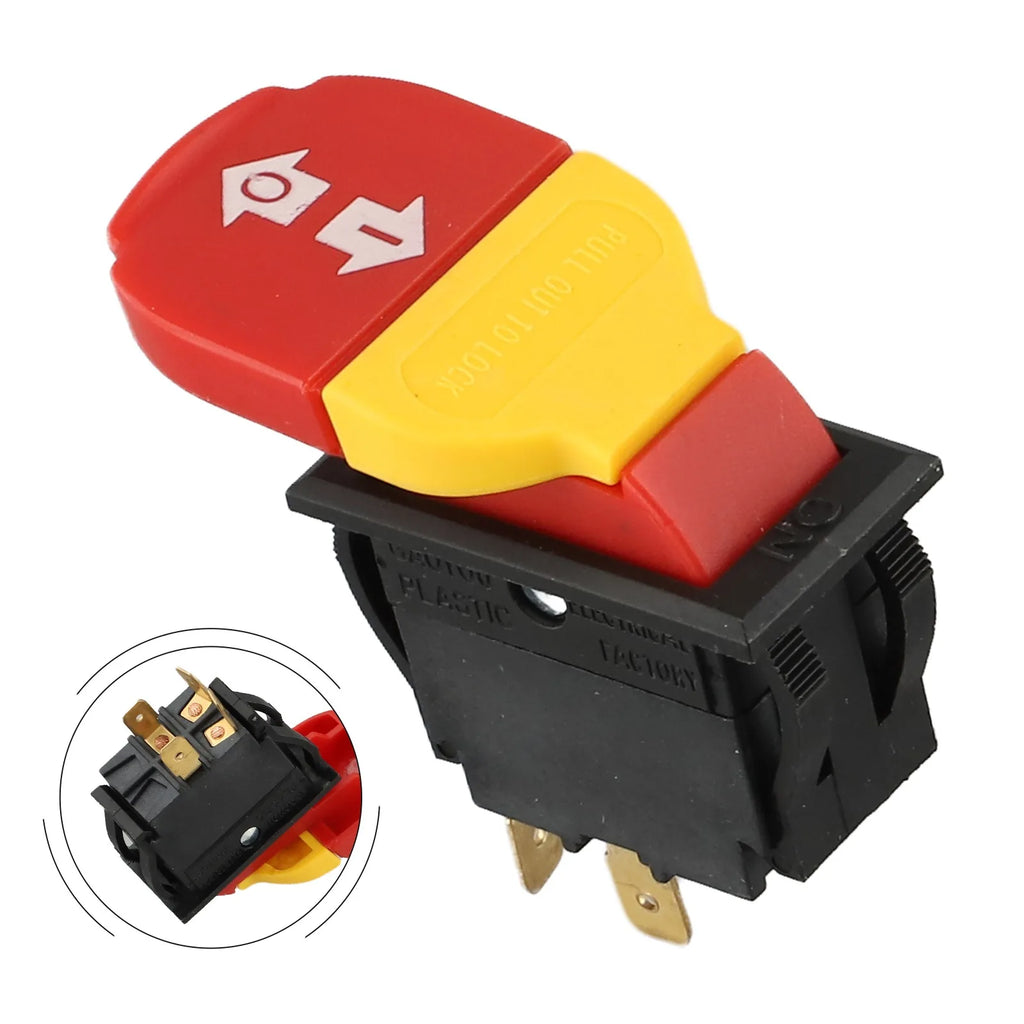

Table Saw Push Button Switch – Model CB-8 | 20A/12A, 125V/250V, 5E4 Rated
Keep your table saw running safely and reliably with this heavy-duty electromagnetic push button switch. Designed as a direct replacement for popular DeWalt table saw models including the DWE7480, DW745, and DWE7499GD, this switch replaces OEM part numbers 5140033-00 and 514003300. Constructed from high-strength plastic and metal components, it's built to withstand the demands of frequent workshop use. Made in China.
Key Features
- Direct-Fit Replacement: Compatible with DWE7480, DW745, and DWE7499GD table saws, replacing part numbers 5140033-00 and 514003300 for a seamless swap.
- Built-In Overload Protection: Automatically cuts power to the motor in the event of overheating or excessive current draw, helping to prevent motor damage and reduce the risk of accidents.
- Anti-Misoperation Design: The strategically positioned paddle-style ON/OFF switch is easy to reach from multiple working positions, while the anti-misoperation feature helps prevent accidental activation mid-operation.
- Dust & Debris Resistant: The sealed plastic housing is designed to keep wood chips, sawdust, and other workshop debris out of the switch interior, helping to maintain consistent performance over long-term, high-frequency use.

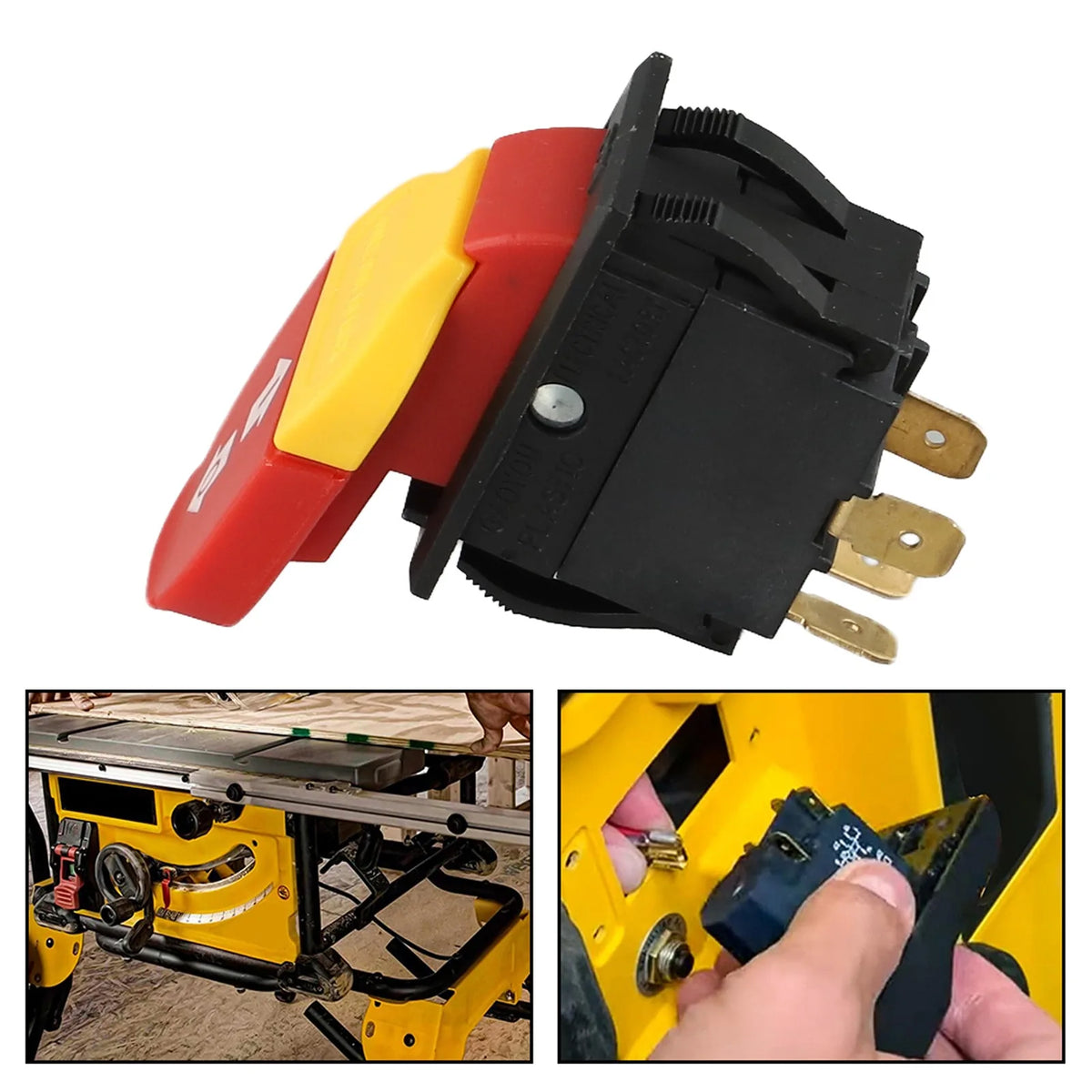

- Tool-Free Installation: No special tools or technical expertise needed. A few simple steps are all it takes to swap in this replacement switch and get your saw back up and running quickly.
- Durable Materials: Constructed from wear-resistant, high-strength plastic and metal contacts for lasting reliability in demanding workshop environments.
Specifications
| Part Name | Table Saw Switch |
| Model | CB-8 |
| Rated Current | 20A / 12A |
| Rated Voltage | 125V / 250V AC |
| Rating | 5E4 |
| Operation Mode | ON-OFF (Pushbutton) |
| Material | Plastic & Metal |
| Color | Black & Red |
| Compatible Models | DWE7480, DW745, DWE7499GD |
| Replaces Part # | 5140033-00 / 514003300 |
Package Contents
- 1 × Table Saw Push Button Switch (Model CB-8)
Note: Screen color calibration may cause slight differences in appearance. Please allow minor measurement tolerances.
You May Also Like
- Air Compressor Pressure Gauge 0–10/0–12/0–25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Garden Pruner Shears – Secateurs for Bonsai & Fruit Trees
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: Which table saw models is this push button switch compatible with?
A: This CB-8 push button switch is designed as a direct replacement for the DeWalt DWE7480, DW745, and DWE7499GD table saws. It replaces OEM part numbers 5140033-00 and 514003300. Always verify your model and part number before ordering.
Q: Does this switch include overload protection?
A: Yes. The switch features built-in electromagnetic overload protection that automatically disconnects power if the motor experiences overheating or excessive current draw, helping to protect your tool and enhance workshop safety.
Q: Is professional installation required for this table saw switch?
A: No special tools or professional skills are required. The switch is designed for straightforward installation — simply follow a few basic steps to complete the replacement. However, always ensure the saw is fully unplugged before performing any maintenance or part replacement.
Q: What are the electrical ratings for this push button switch?
A: This switch is rated at 20A/12A at 125V/250V AC with a 5E4 duty rating, making it suitable for the high-demand motor loads typical of table saws and other heavy-duty electric power tools.
