Table Saw Push Button Switch – Model CB-8 | 20A/12A 125/250V 5E4

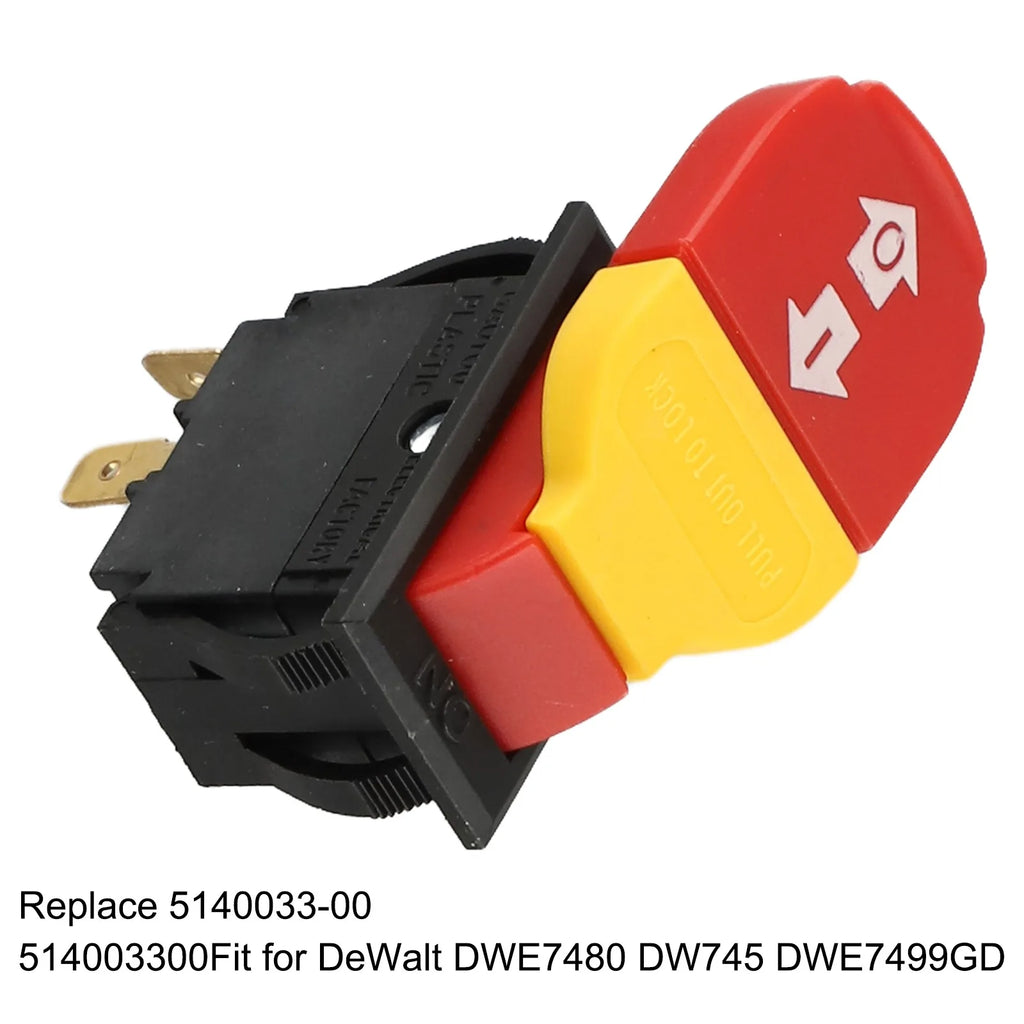

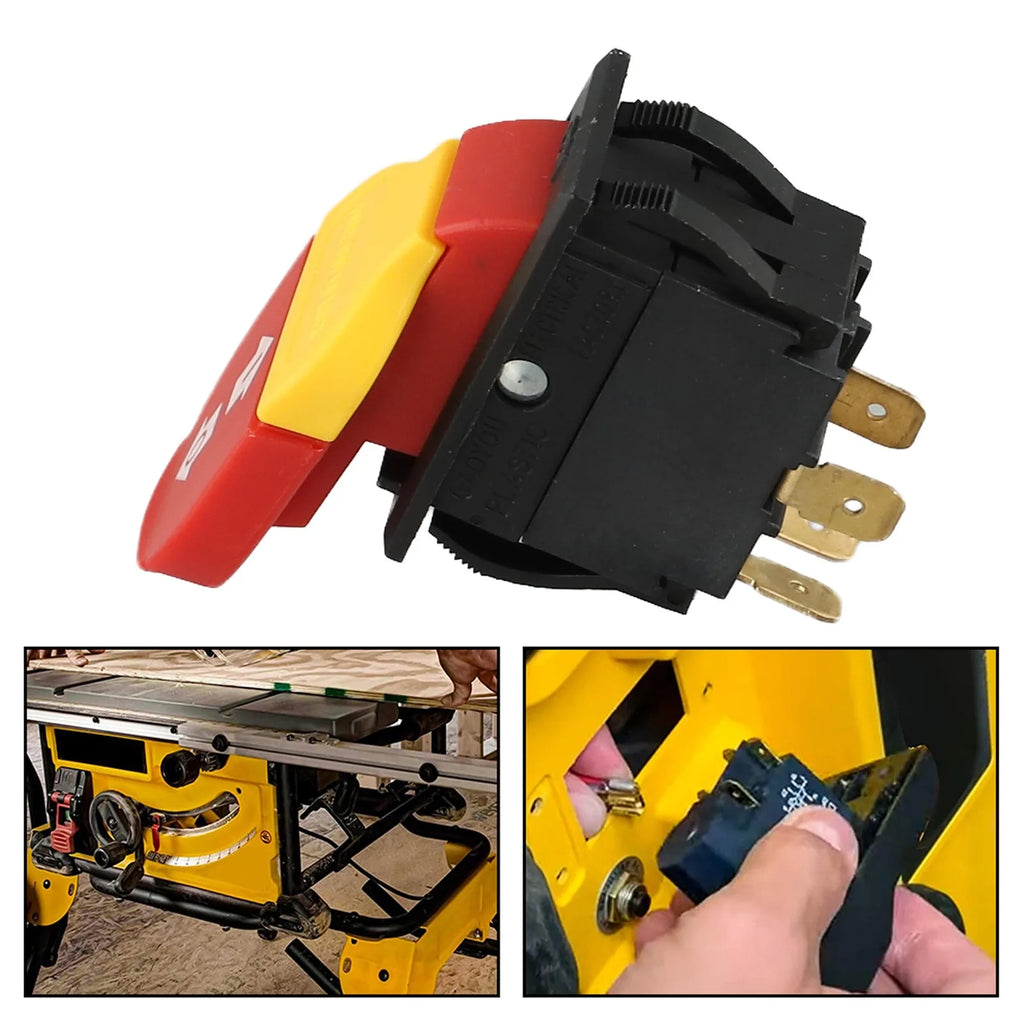

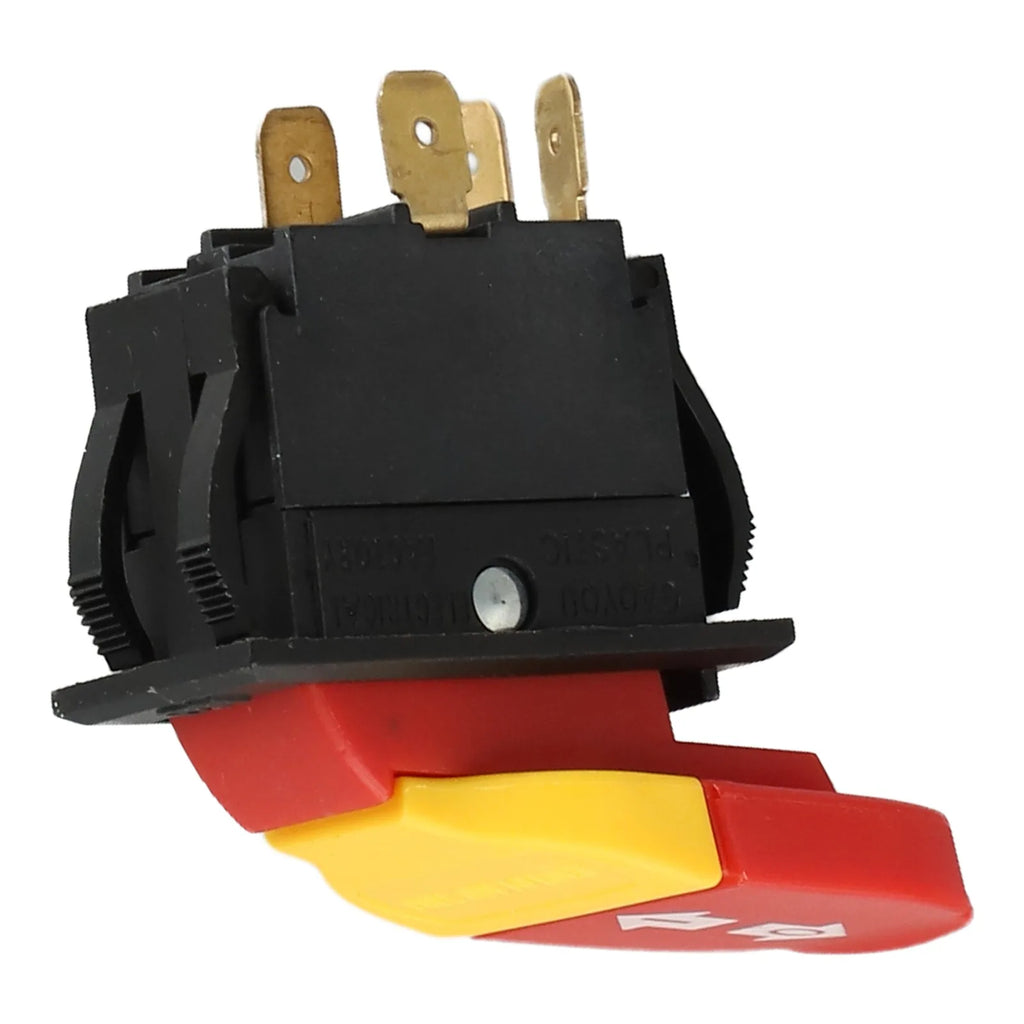

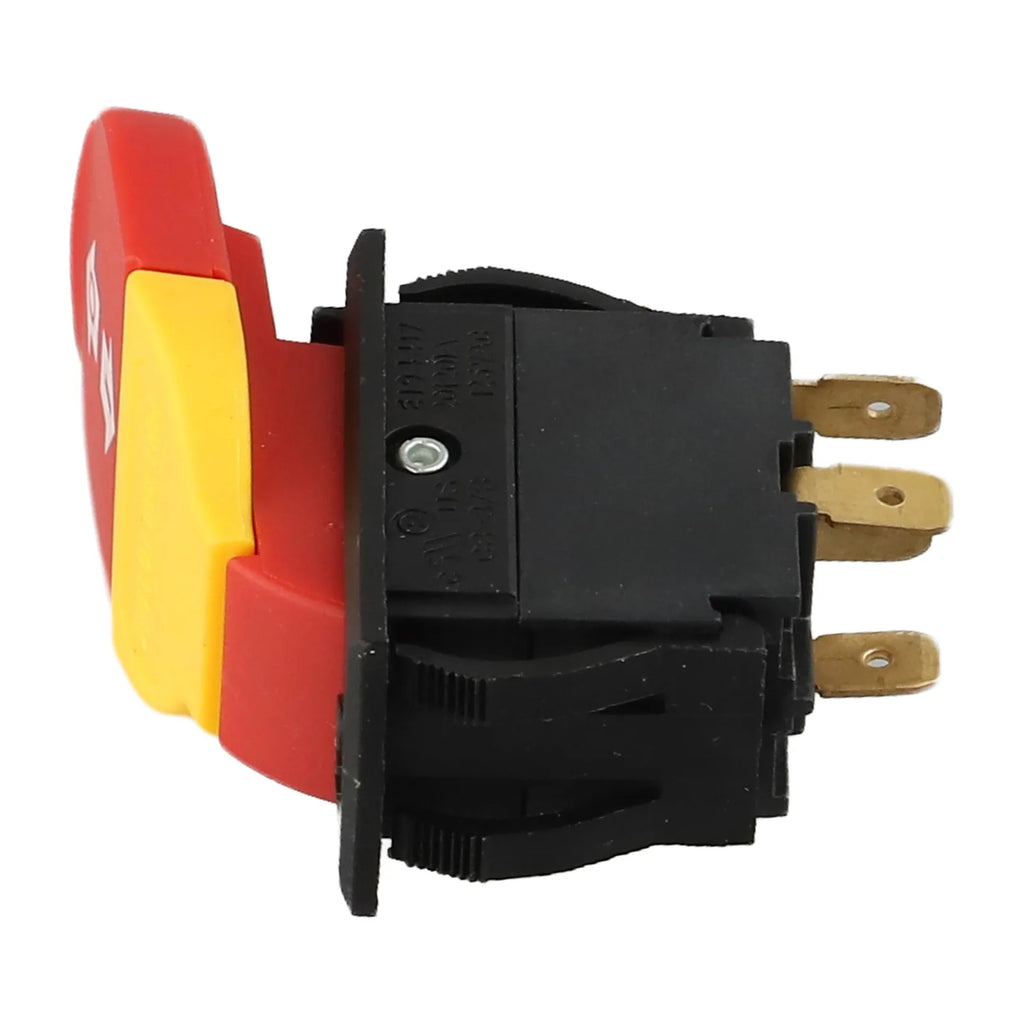

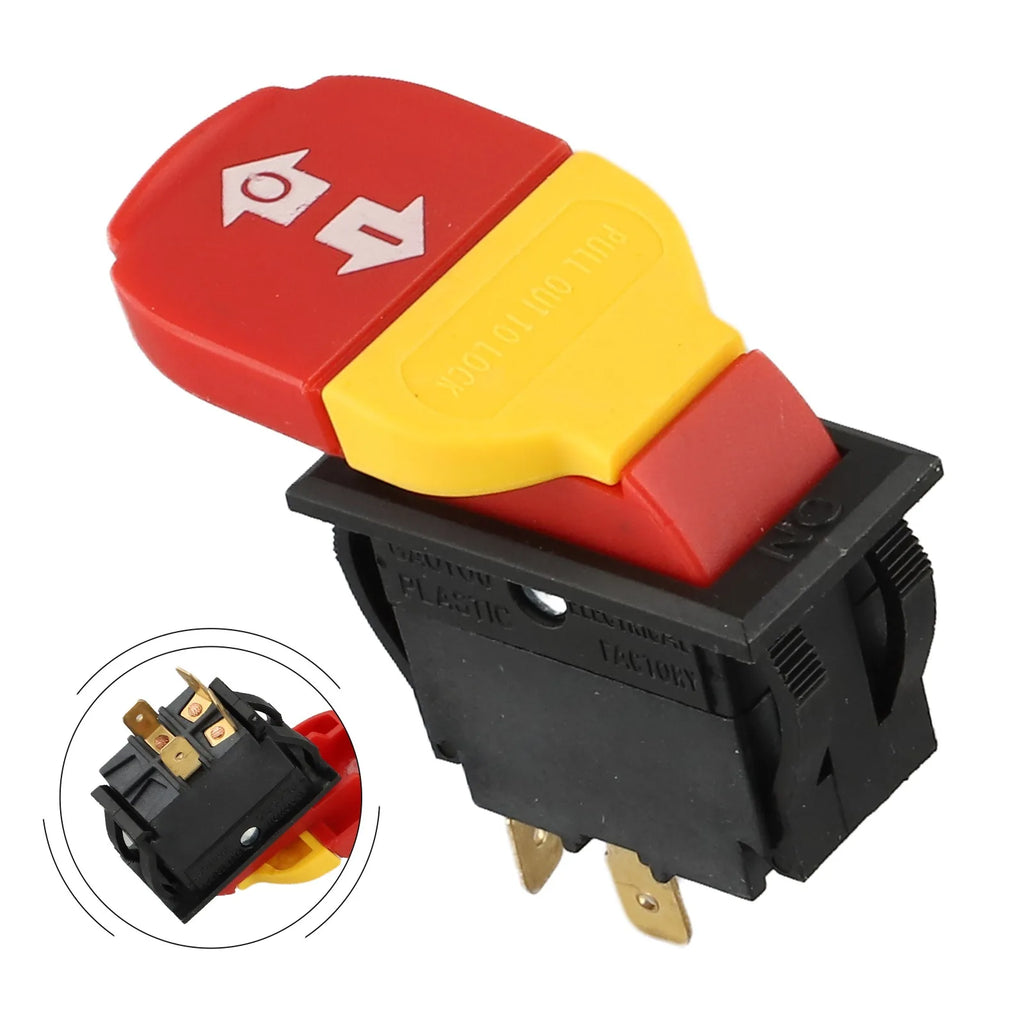

Keep your table saw running safely and efficiently with this heavy-duty electromagnetic push button switch. Rated at 20A/12A and compatible with both 125V and 250V systems, this ON-OFF switch is a direct replacement for DWE7480, DW745, and DWE7499GD table saws — replacing OEM part numbers 5140033-00 and 514003300. Made in Mainland China.
Key Features
- Direct Replacement Fit: Compatible with DWE7480, DW745, and DWE7499GD table saws. Replaces part numbers 5140033-00 and 514003300 for a seamless, no-hassle swap.
- Built-In Overload Protection: The electromagnetic mechanism automatically cuts power in the event of motor overheating or excessive current draw, helping to keep your motor intact and your workspace safe.
- User-Friendly Operation: Ergonomically positioned for easy access from multiple working angles. The anti-misoperation design minimizes accidental activations, keeping your workflow smooth and controlled.
- Durable Construction: Built from high-strength plastic and metal components, this switch is wear-resistant and built for long-term use. Its sealed design keeps sawdust, wood chips, and debris out of the switch interior, ensuring consistent performance even during high-frequency operations.
- Tool-Free Installation: Designed for non-professionals — no special tools or expertise required. A few simple steps and your table saw is back in action.
Specifications
| Part Name | Table Saw Push Button Switch |
| Model | CB-8 |
| Current Rating | 20A / 12A |
| Voltage Rating | 125V / 250V |
| Rating | 5E4 |
| Operation Mode | ON-OFF |
| Material | Plastic & Metal |
| Color | Black & Red |
| Compatible Models | DWE7480, DW745, DWE7499GD |
| Country of Origin | Made in Mainland China |
Package Contents
- 1 x Push Button Switch (Model CB-8)
Note: Actual color may vary slightly from product images due to monitor brightness and lighting conditions. Please allow minor measurement tolerances.
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Garden Pruner Shears – Secateurs for Bonsai & Fruit Trees
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: Which table saw models is this push button switch compatible with?
A: This CB-8 push button switch is designed as a direct replacement for DWE7480, DW745, and DWE7499GD table saws. It replaces OEM part numbers 5140033-00 and 514003300, making it a straightforward drop-in upgrade or replacement part.
Q: What does the built-in overload protection do?
A: The electromagnetic overload protection mechanism automatically cuts off power to the motor if it detects overheating or excessive current. This helps protect the motor from damage and reduces the risk of accidents during operation — ideal for high-frequency and demanding workshop use.
Q: Do I need special tools or skills to install this table saw switch?
A: No special tools or technical expertise are required. The switch is designed for straightforward installation — just follow a few simple steps and your table saw will be ready to use. It's suitable for both DIY enthusiasts and professionals alike.
Q: What is the voltage and current rating of this switch?
A: This push button switch is rated at 20A/12A and supports both 125V and 250V systems, giving it broad compatibility with standard power tool electrical configurations. It carries a 5E4 mechanical rating for durability.
