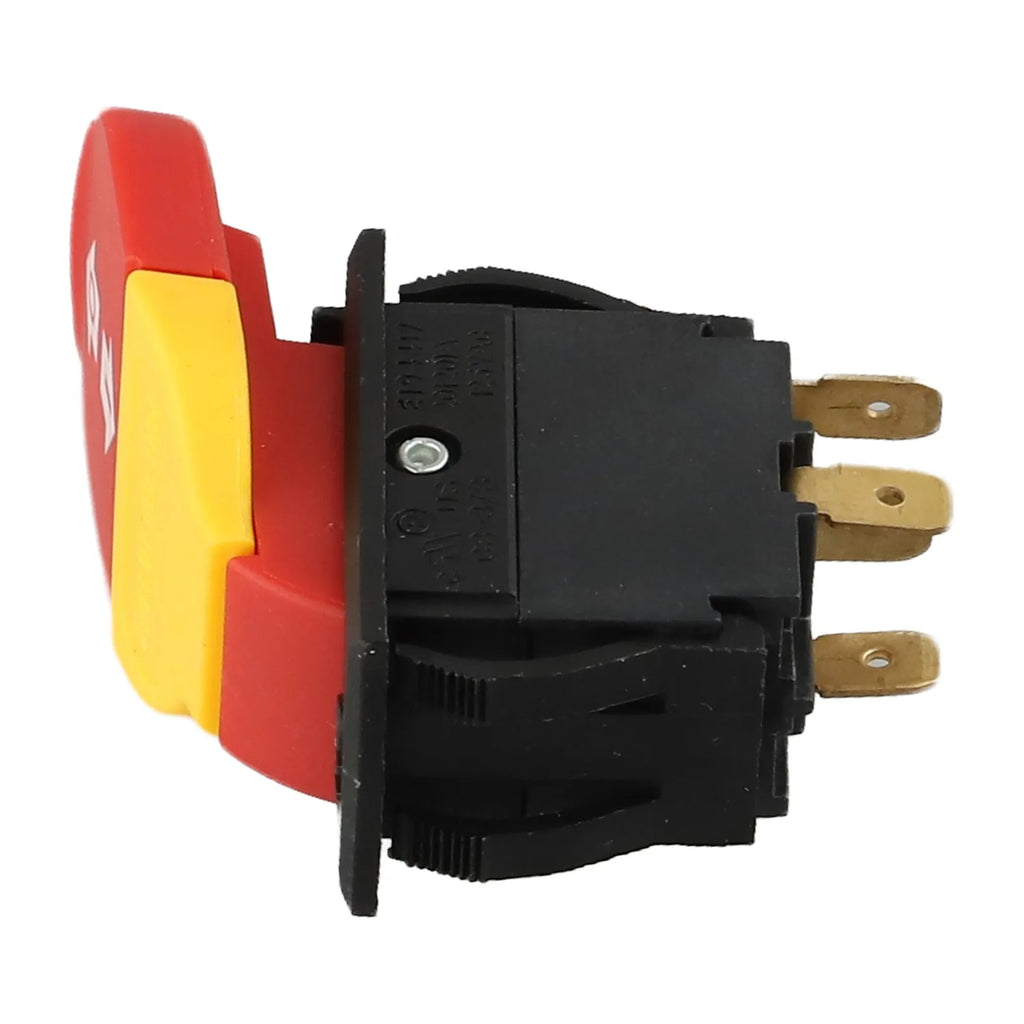

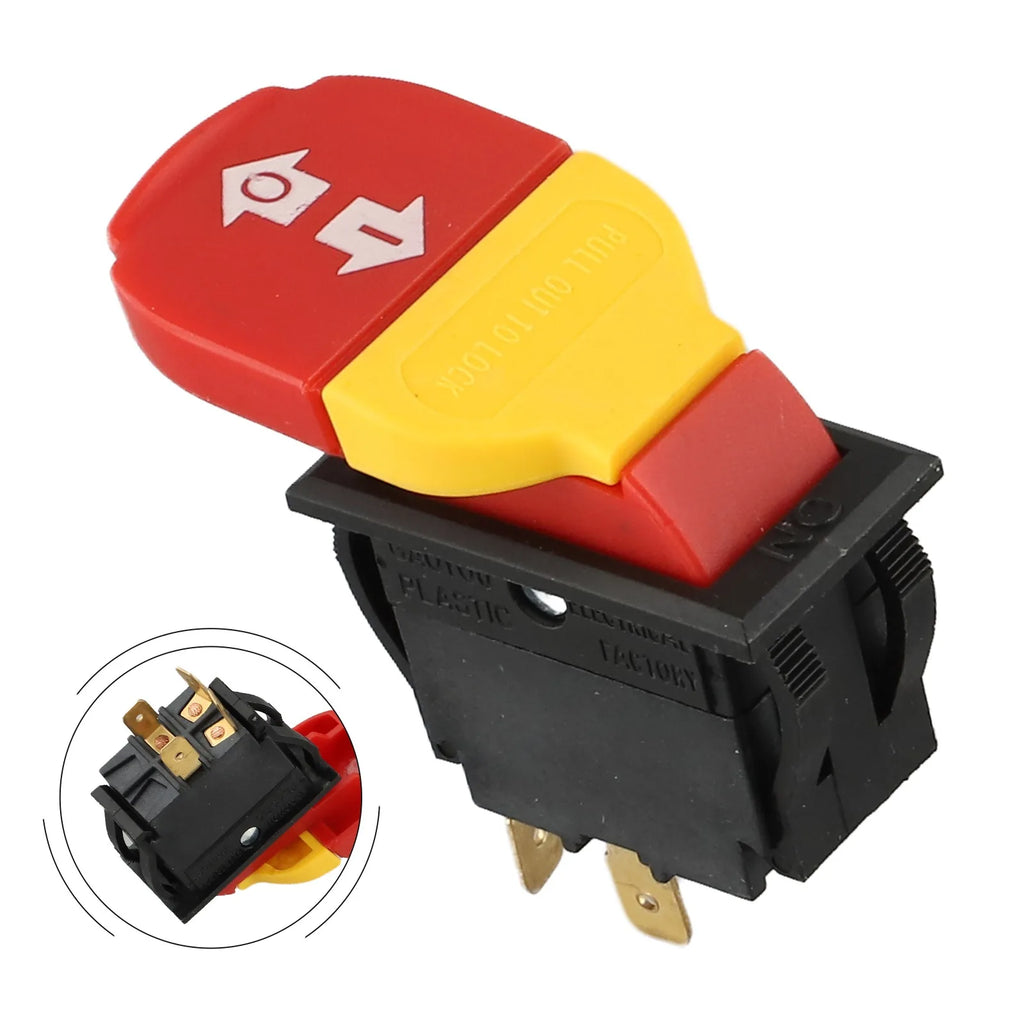

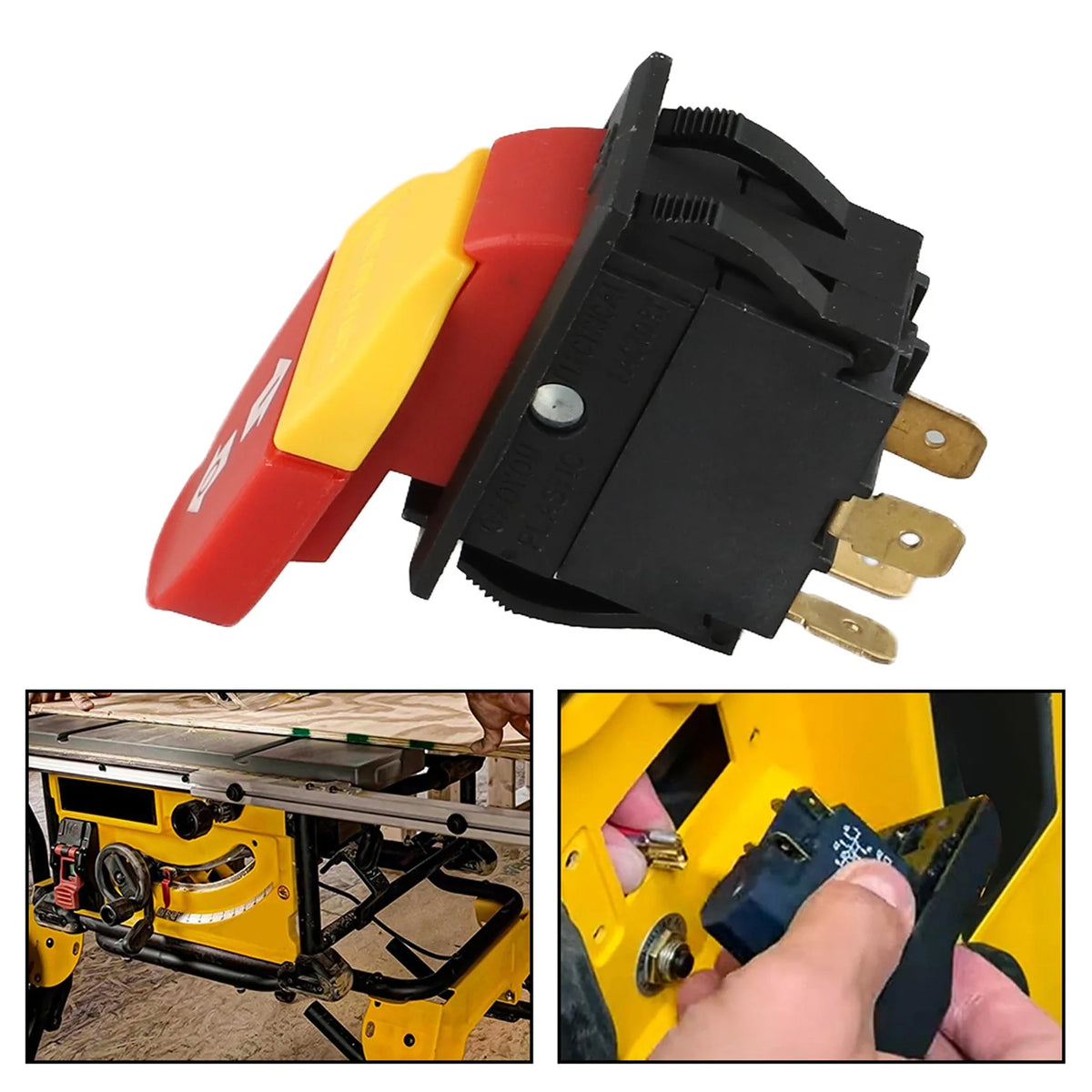

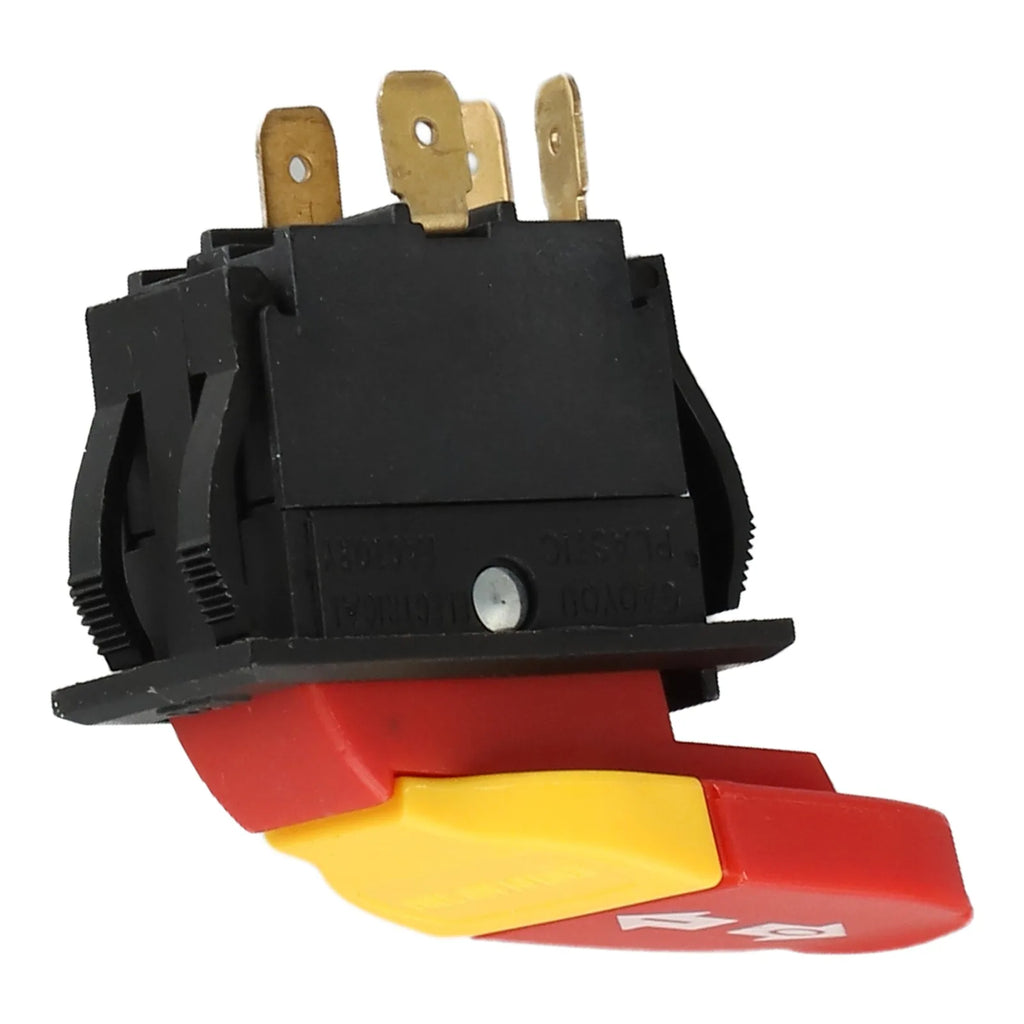

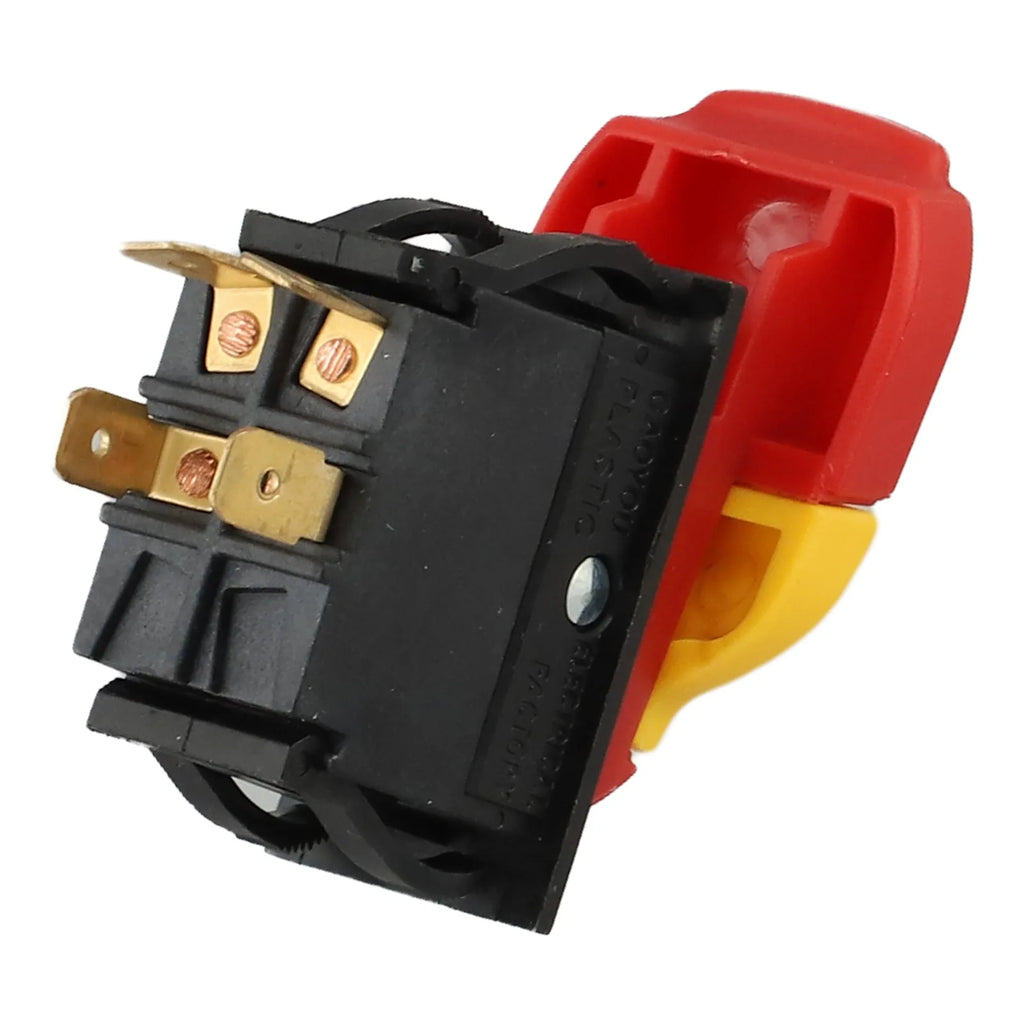

Table Saw Push Button Switch – Model CB-8 | 20A/12A, 125/250V, 5E4
Keep your table saw running safely and reliably with this heavy-duty electromagnetic push button switch. Rated at 20A/12A and compatible with both 125V and 250V power supplies, this Model CB-8 replacement switch is engineered for professional-grade electric power tools. Whether you're a woodworker, contractor, or DIY enthusiast, this switch delivers dependable ON/OFF operation with built-in overload protection to keep your equipment running at its best.
Made in Mainland China.
Key Features

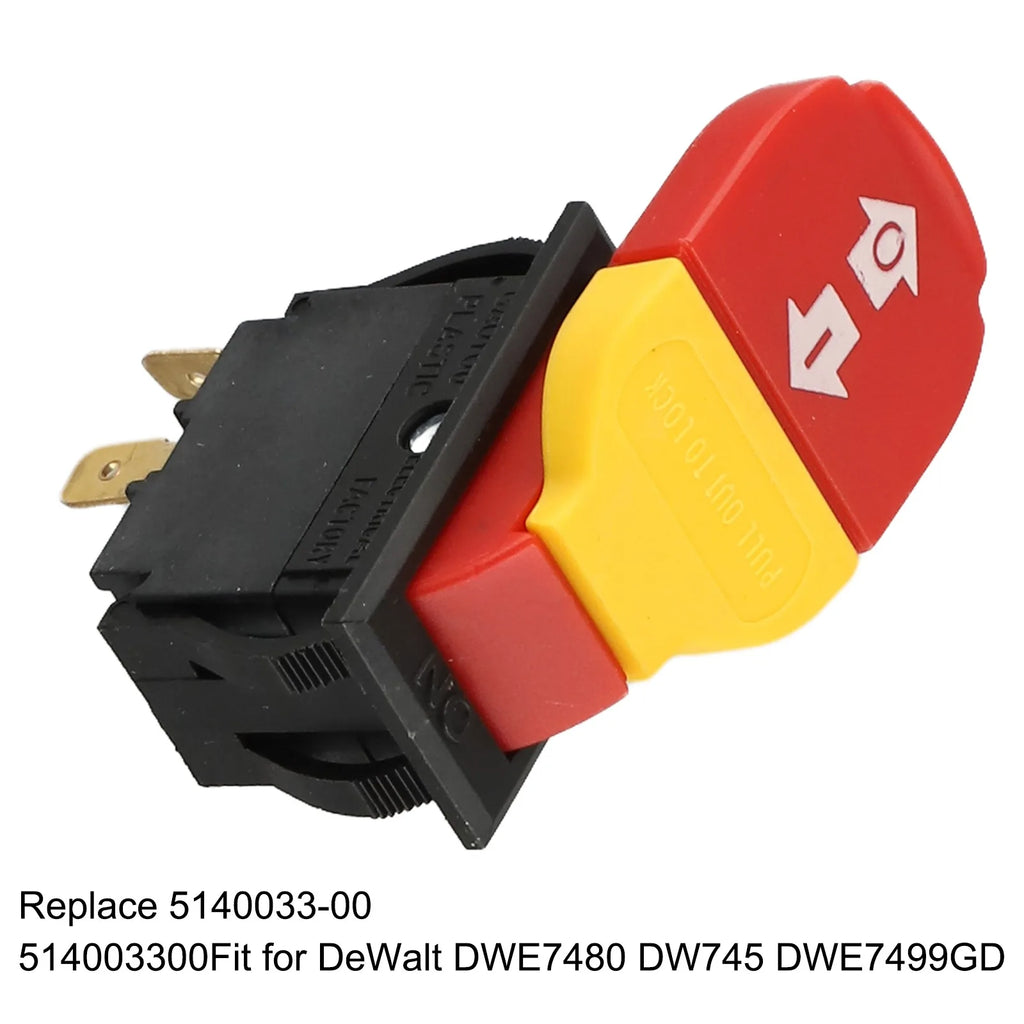

- Perfect Compatibility: Designed as a direct replacement for DWE7480, DW745, and DWE7499GD table saws. Replaces OEM part numbers 5140033-00 and 514003300 for a seamless fit.
- Built-In Overload Protection: The electromagnetic mechanism automatically cuts power if the motor overheats or draws excessive current, safeguarding your tool and preventing unexpected shutdowns during operation.
- Operator-Friendly Design: Ergonomically positioned for easy access from multiple working angles. The anti-misoperation feature minimizes the chance of accidental activation, keeping your workflow smooth and efficient.
- Durable High-Strength Construction: Made from robust plastic and metal components, this switch is wear-resistant and built to handle the demands of long-term, high-frequency woodworking operations. Its sealed design helps keep sawdust, wood chips, and debris out of the interior.
- Tool-Free Installation: No special tools or technical expertise required. A straightforward drop-in replacement — install it in minutes and get back to work right away.
Specifications
| Part Name | Table Saw Switch |
| Model | CB-8 |
| Rating | 20A/12A, 125V/250V, 5E4 |
| Operation Mode | ON/OFF Push Button |
| Material | High-Strength Plastic & Metal |
| Color | Black & Red |
| Compatible Models | DWE7480, DW745, DWE7499GD |
| OEM Part Numbers | 5140033-00, 514003300 |
| Origin | Mainland China |
What's in the Box
- 1 x Push Button Switch (Model CB-8)
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Garden Pruner Shears – Secateurs for Bonsai & Fruit Trees
Note: Screen color calibration and monitor brightness may cause slight color variation from product images. Please allow minor measurement tolerances in listed dimensions.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: Which table saw models is this push button switch compatible with?
A: This CB-8 push button switch is a direct replacement for the DWE7480, DW745, and DWE7499GD table saws. It replaces OEM part numbers 5140033-00 and 514003300, making it a precise drop-in fit for those models.
Q: What does the built-in overload protection do?
A: The electromagnetic overload protection automatically cuts off the power supply if the motor draws too much current or begins to overheat. This helps protect your table saw motor from damage and prevents unexpected hazards during heavy or prolonged use.
Q: Do I need special tools or expertise to install this table saw switch?
A: No special tools or professional skills are needed. This switch is designed for straightforward DIY installation — simply follow a few basic steps to remove the old switch and snap the new one in place, getting your table saw back in operation quickly.
Q: What is the voltage and amperage rating of this switch?
A: This switch is rated at 20A/12A and supports both 125V and 250V electrical systems, with a 5E4 mechanical life rating, making it suitable for a wide range of power tool applications.
