TA502A Wire Locator System – Find & Test LAN and Phone Lines Fast

The TA502A Cable Finder is a professional-grade wire locating and continuity testing system designed for network technicians, IT professionals, and electricians. Compatible with RJ45 LAN cables and RJ11 telephone lines, it transmits a signal up to 3km, making it ideal for tracing cables through walls, ceilings, floors, and large commercial installations. The split transmitter/receiver design keeps operation intuitive and flexible, whether you're working solo or with a partner.

Made in Mainland China.

Key Features

Simple One-Button Operation: Insert your RJ45 or RJ11 cable into the transmitter port, press SCAN to activate line search, then press and hold the receiver button — a beep confirms the target line is found.
Continuity Testing: Press TEST to activate the line calibration function. LED indicator lights on both transmitter and receiver instantly reveal connection issues, short circuits, open circuits, or crossovers.

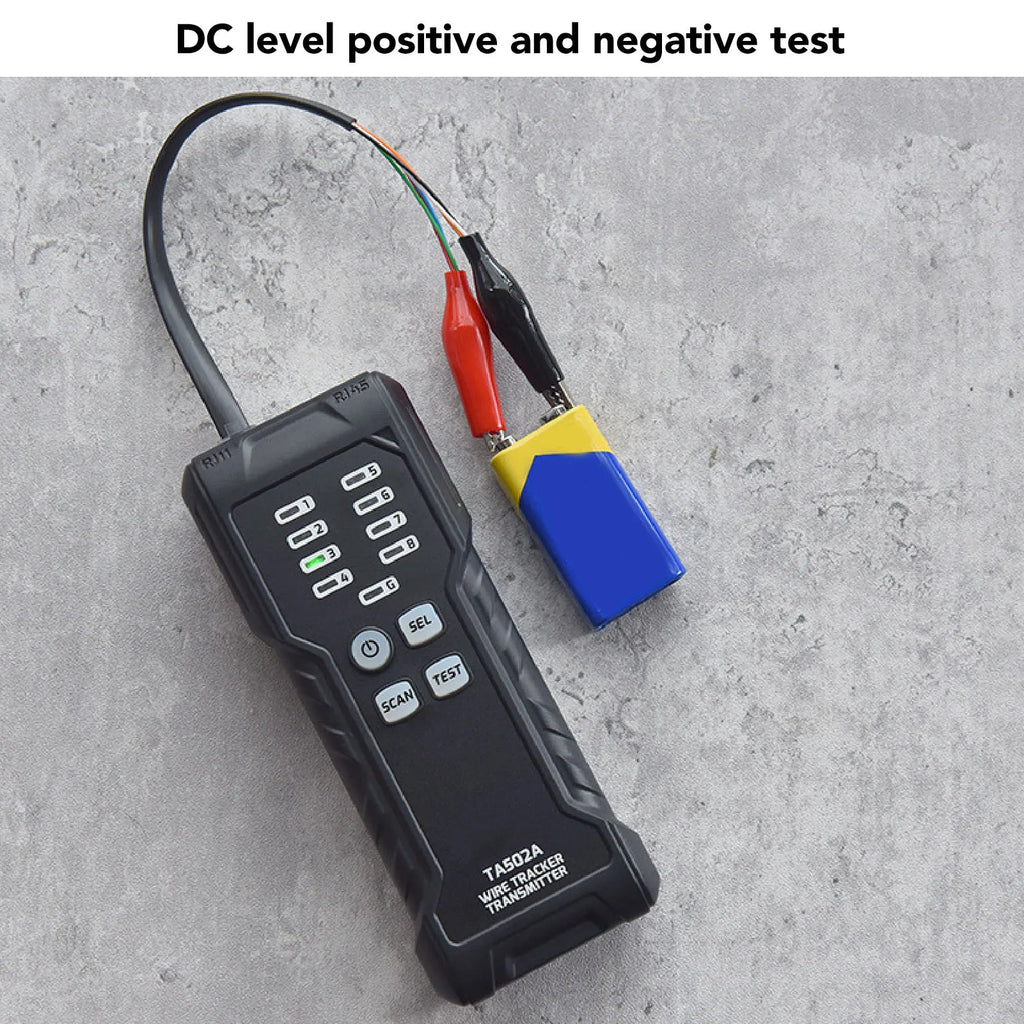

Alligator Clip Adapter: For two-core telephone lines or bare conductors, the included alligator clip adapter connects to the RJ11 port. Indicator lights identify polarity — light 1 means red clip is negative/black is positive; light 3 reverses the polarity.
Wide Cable Compatibility: Works seamlessly with RJ45 network cable interfaces and RJ11 telephone line interfaces, plus bare wire via alligator clips.
Up to 3km Signal Range: Powerful signal transmission lets you trace long cable runs in large buildings, data centers, or outdoor installations.
Built-In Flashlight: The receiver includes an illumination light for working in dark spaces like server rooms or cable conduits.
Adjustable Sensitivity: Sensitivity adjustment range of 0–5 cm allows precise cable identification in dense cable bundles.

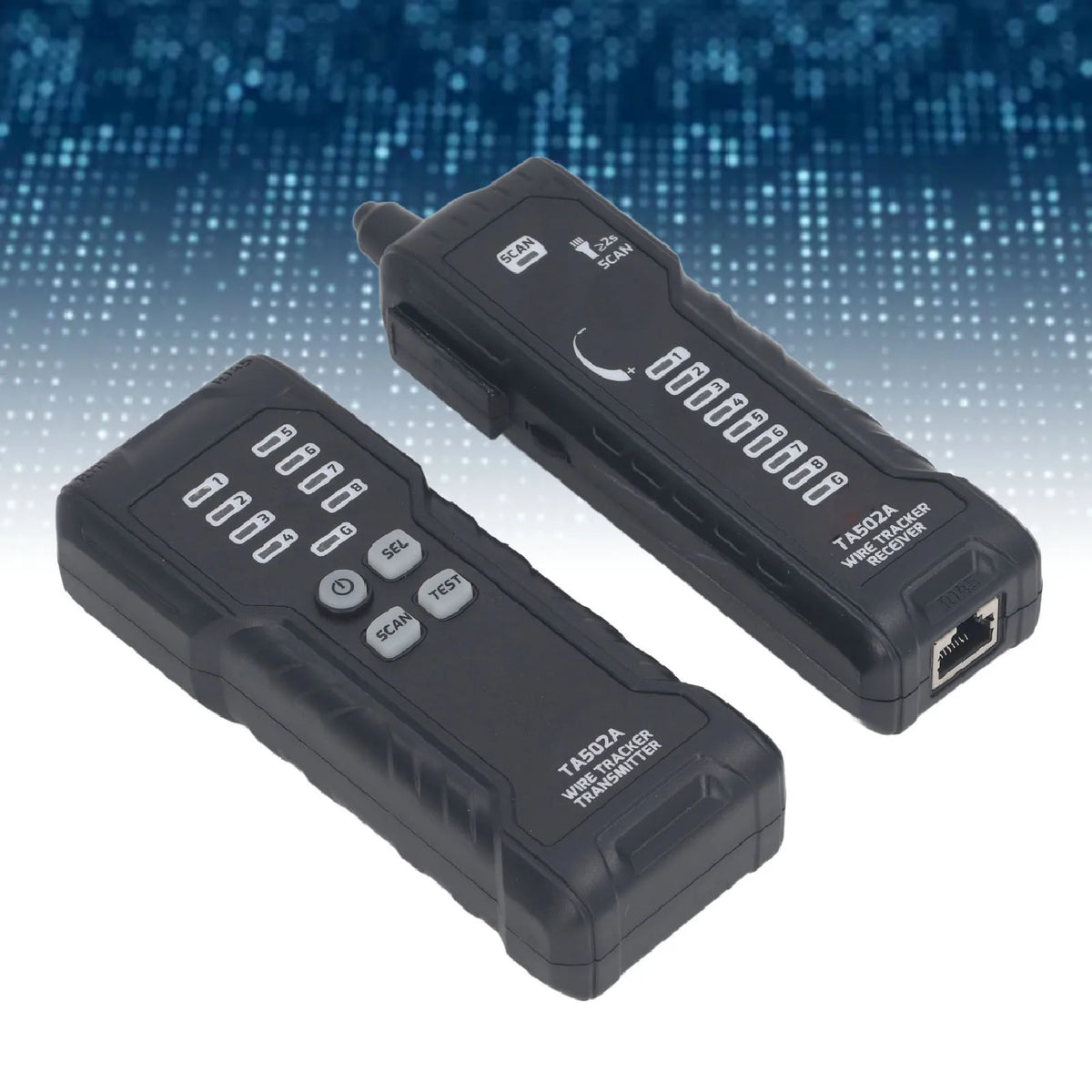

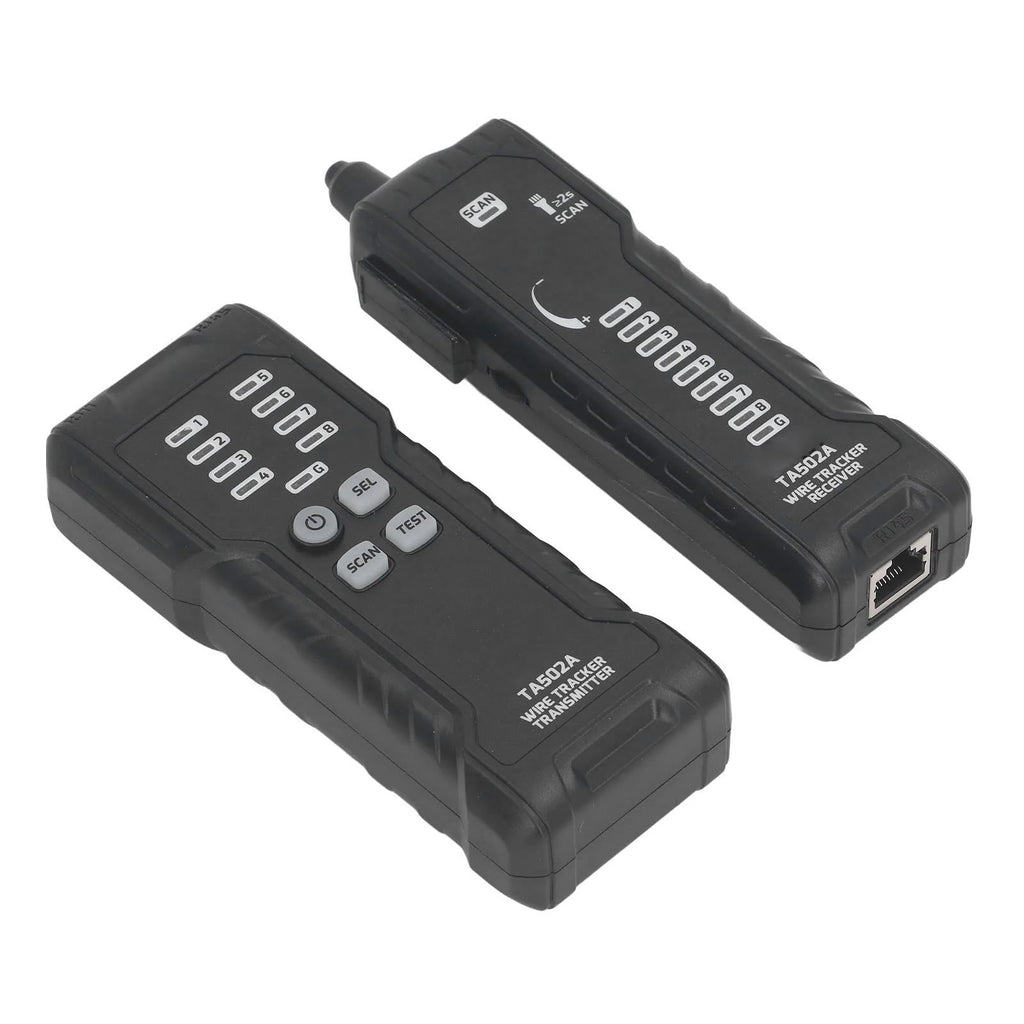

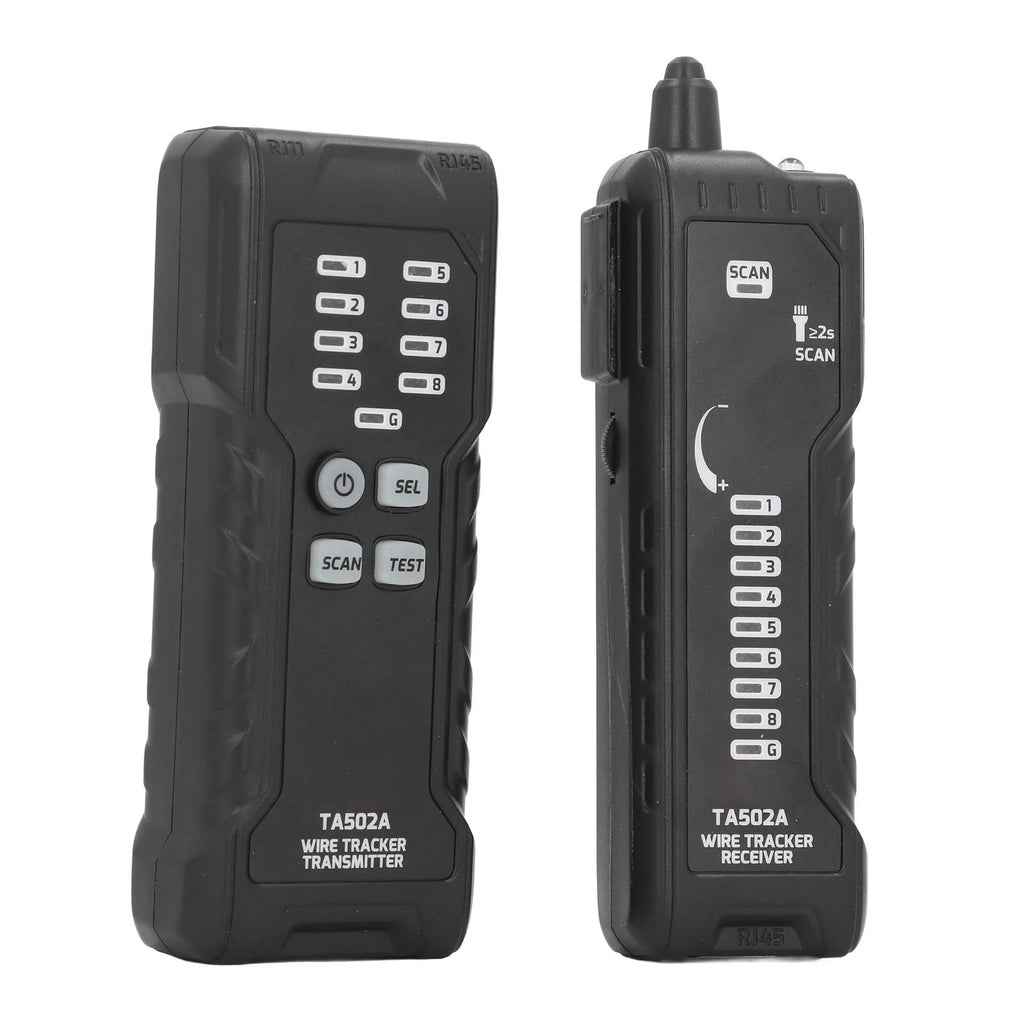

Split & Integrated Design: The units can operate separately for remote cable tracing or be combined for a compact, unified tool.

Specifications

Model: TA502A
Material: ABS
Color: Black

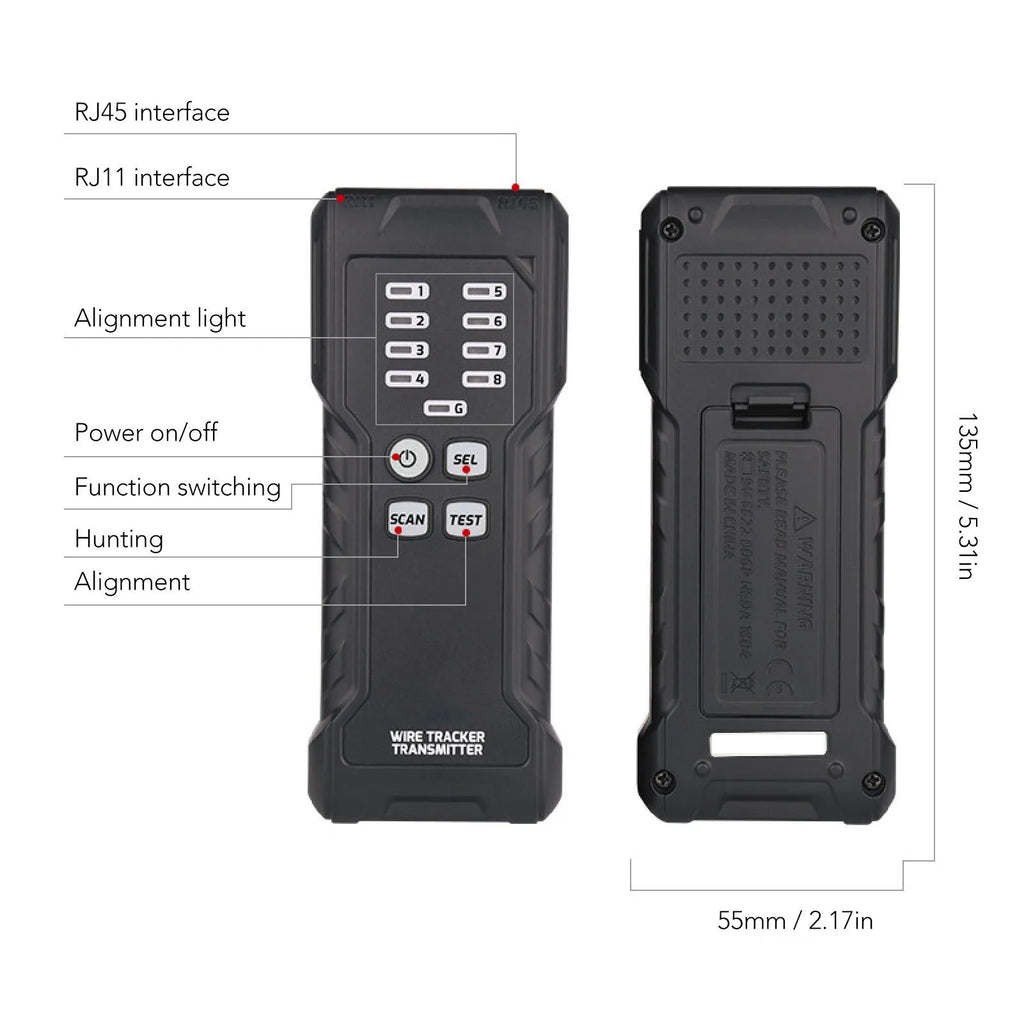

Main Unit Size: 13.5 × 5.5 × 3.5 cm
Receiver Size: 15.1 × 4.8 × 3.1 cm
Sensitivity Adjustable Range: 0–5 cm
Display: LED Indicator Lights
Output Signal Level: Approx. 5Vp-p
Max Operating Current: Transmitter ≤60mA | Receiver ≤80mA
Signal Transmission Distance: Up to 3km
Battery: Not included

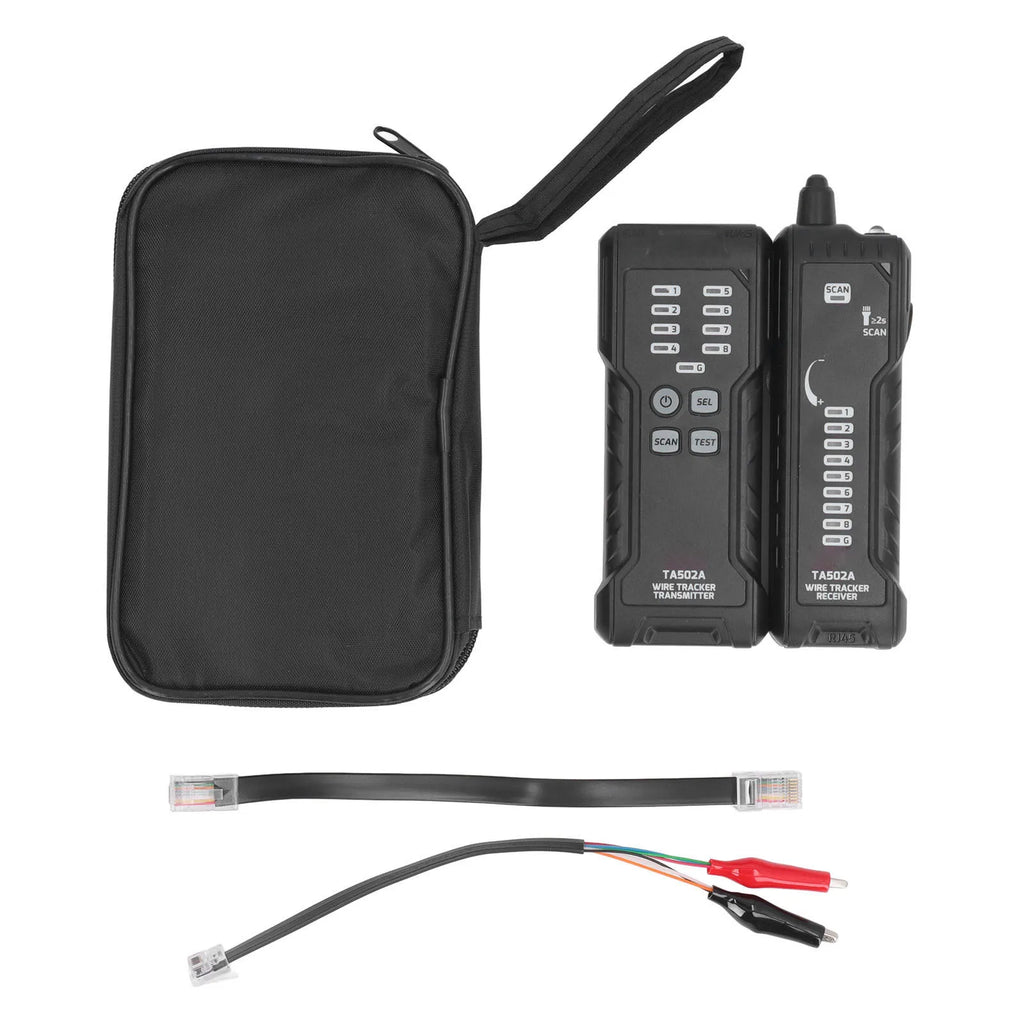

What's in the Box

1× Main Unit (Transmitter)
1× Receiver
1× Alligator Clip Adapter
1× Cable
1× Storage Bag

Related Products You May Like

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What types of cables can the TA502A wire locator identify?

A: The TA502A cable finder is compatible with RJ45 LAN/network cables and RJ11 telephone lines. It also supports two-core telephone lines and bare conductors through the included alligator clip adapter, making it a versatile tool for most common network and phone cable types.

Q: How far can the TA502A transmit a signal for cable tracing?

A: The TA502A wire locator system supports signal transmission up to approximately 3km, making it suitable for tracing cables across large buildings, data centers, and extended outdoor cable runs.

Q: Do I need batteries, and are they included?

A: Batteries are required to operate both the transmitter and receiver but are NOT included in the package. Please ensure you have the appropriate batteries on hand before use.

Q: Can I use the TA502A cable finder to detect wiring faults?

A: Yes. The TEST button activates the continuity testing mode, and the LED indicator lights on both units clearly show the status of each wire — including open circuits, short circuits, crossovers, and connection issues — so you can quickly diagnose wiring faults without guesswork.
