SW-48DGN Multi-Function Stamping Machine Controller
The SW-48DGN is a professional-grade multi-function controller designed for hot stamping machines. This versatile timer and counter unit combines voltage relay technology with a sealed, high-power contact load in a single compact instrument — making it the go-to choice for operators who need precise timing, cycle control, and accurate production counting in one device. Powered by 220V AC, it is built to handle general-purpose industrial stamping workflows with ease.
Made in Mainland China.
Key Features
- Multi-Function Control: Manages hot stamping time, tape rolling time, and tape winding length from a single unit
- Integrated Counter: Automatically counts every working cycle; easily reset with a 5-second hold of the RESET key
- Automatic Cycle Mode: Configure the unit to run continuous automatic cycles — ideal for high-volume production runs
- Single & Dual Mode: Switch between single-way (mod0) and dual-way (mod1) control via password-protected settings
- Sealed & High-Power Contact Load: Voltage relay theory with a sealed enclosure for durability in workshop environments
- Emergency Stop Support: Wiring terminals 1 & 2 dedicated to emergency stop switch for enhanced operator safety
- 220V AC Power: Connects directly to standard industrial power supply

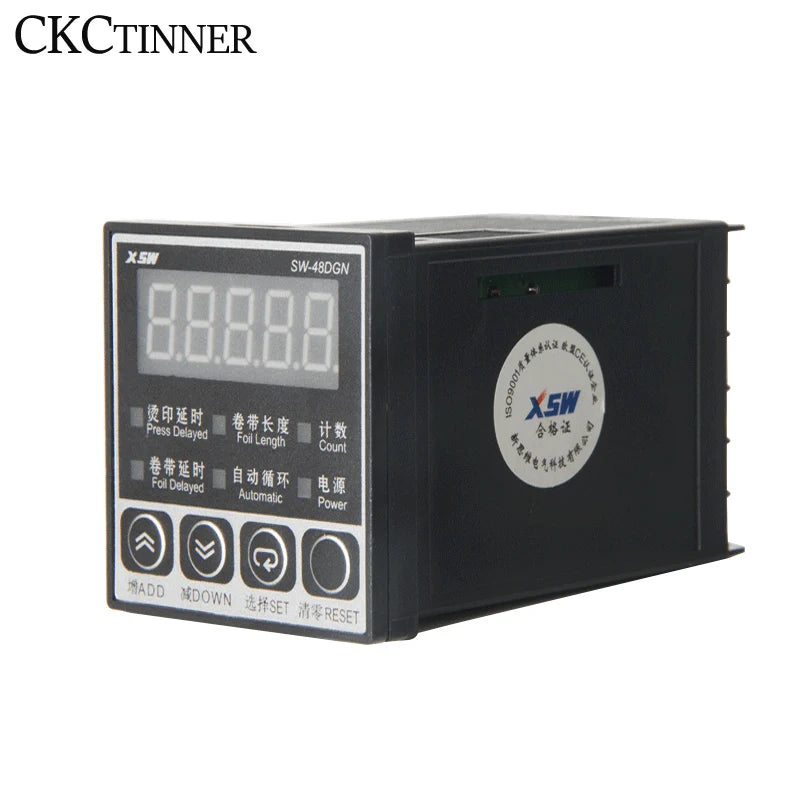

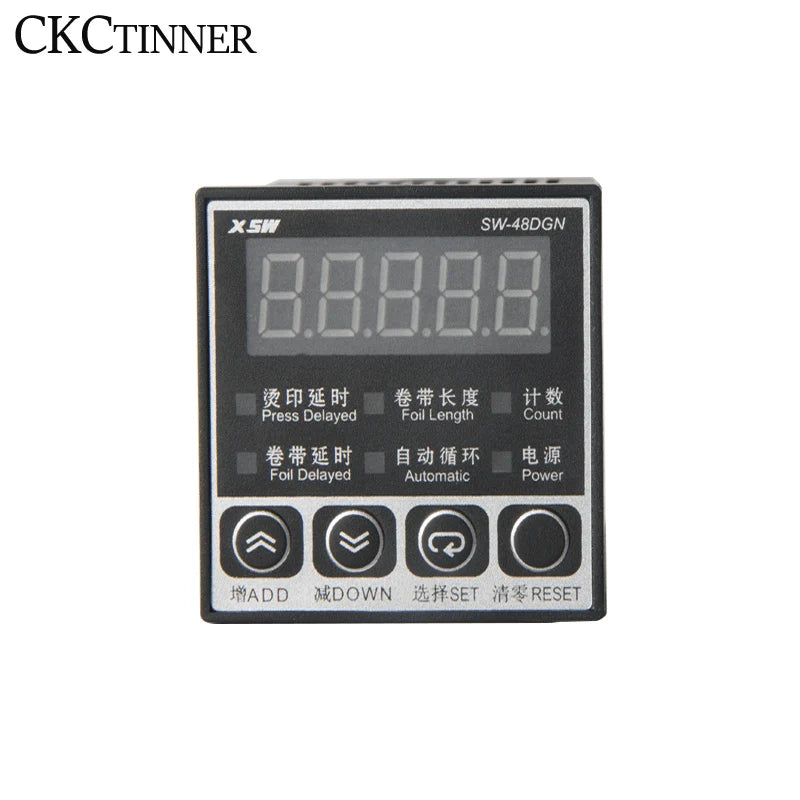

- Clear Display Interface: Powers on to a 00000 counting display for immediate operational readiness

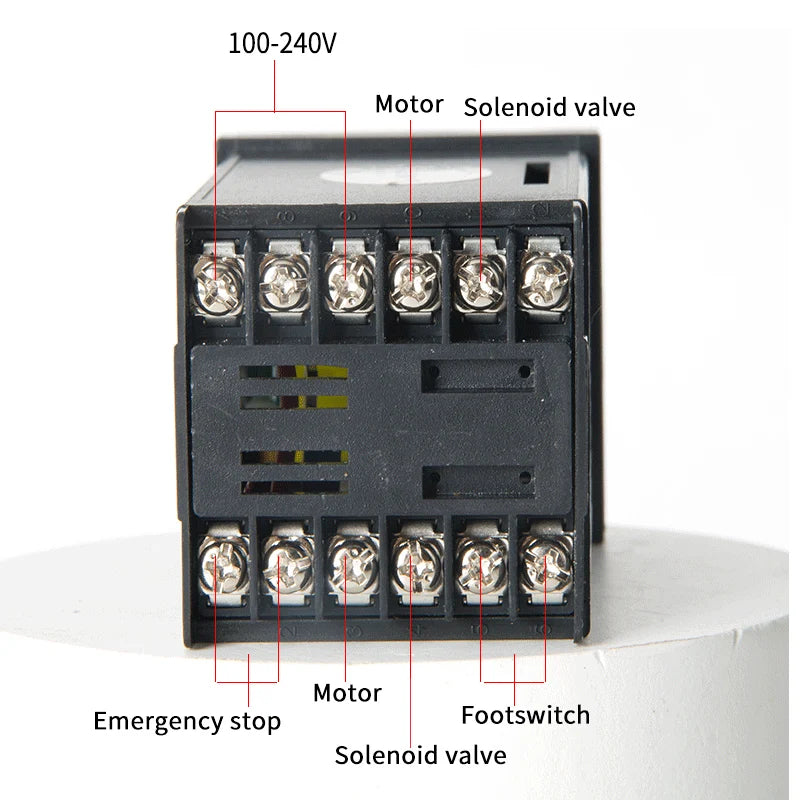

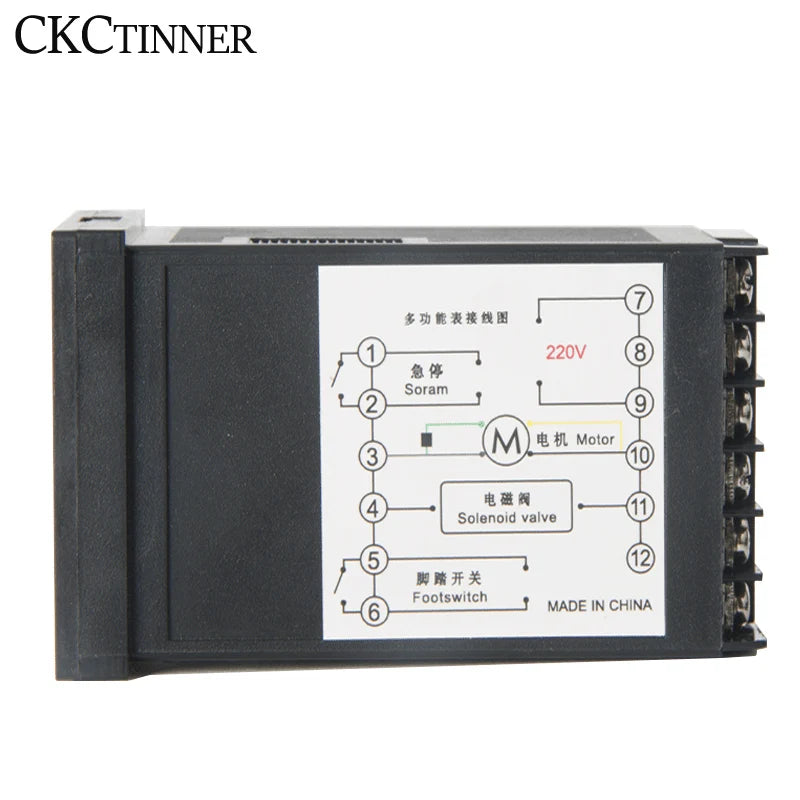

Wiring & Setup Guide
- Power Supply: Connect terminals 7 and 9 to the power supply.
- Foot Switch: Connect terminals 5 and 6 to the foot switch.
- Solenoid Valve: Connect terminals 4 and 11 to the solenoid valve.
- Motor: Connect terminals 3 and 10 to the motor (a starting capacitor is required for the motor connection).
- Emergency Stop: Connect terminals 1 and 2 to the emergency stop switch.
- Once wiring is complete, power on — the display will show the 00000 counting interface.
Time & Cycle Settings
- Press the SET key to sequentially configure hot stamping time, tape rolling time, and tape winding length, then return to the counting interface.
- To enable automatic cycle mode: hold the selection key to enter auto cycle settings, set the value to 0.10, then press SET to exit. The automatic cycle indicator will illuminate to confirm activation.
- To exit automatic cycle mode: press SET to enter, change the value to 0.00, and exit. The indicator light turns off and the unit returns to manual mode.
- For single/dual mode: long-press SET, enter password 5, and select mod0 (single) or mod1 (dual).

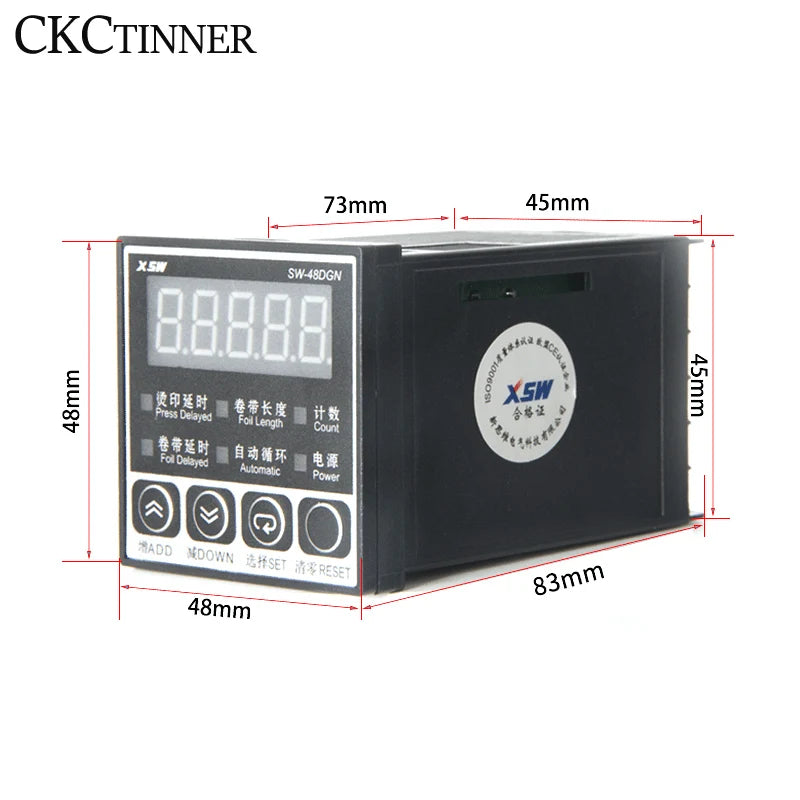

Specifications
| Model | SW-48DGN |
| Power Source | AC 220V |
| Contact Load | High Power |
| Theory | Voltage Relay |
| Protect Feature | Sealed |
| Use | General Purpose |
| Origin | Mainland China |
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What machines is the SW-48DGN controller compatible with?
A: The SW-48DGN is designed for use with hot stamping machines that require precise timer and counter control. It supports solenoid valve actuation, motor control (with starting capacitor), foot switch input, and emergency stop functionality — making it suitable for a wide range of general-purpose industrial stamping setups.
Q: How do I reset the production counter on the SW-48DGN?
A: To reset the counter, simply press and hold the RESET key for 5 seconds. The instrument will automatically reset the count back to 00000, ready for a new production run.
Q: Can the SW-48DGN run in fully automatic mode?
A: Yes. By holding the selection key to access the automatic cycle settings and changing the value to 0.10, you can enable continuous automatic cycle operation. The automatic cycle indicator light will turn on to confirm the mode is active. To return to manual mode, re-enter the settings and change the value back to 0.00.
Q: What is the difference between mod0 and mod1 on this controller?
A: mod0 is single-way control mode, while mod1 is dual-way control mode. You can switch between them by long-pressing the SET key, entering password 5, and selecting the desired mode — giving you flexibility for different stamping machine configurations.
