STC-8080A+ Digital Temperature Controller Thermostat 110-220V NTC
STC-8080A+ Digital Temperature Controller Thermostat 110-220V NTC

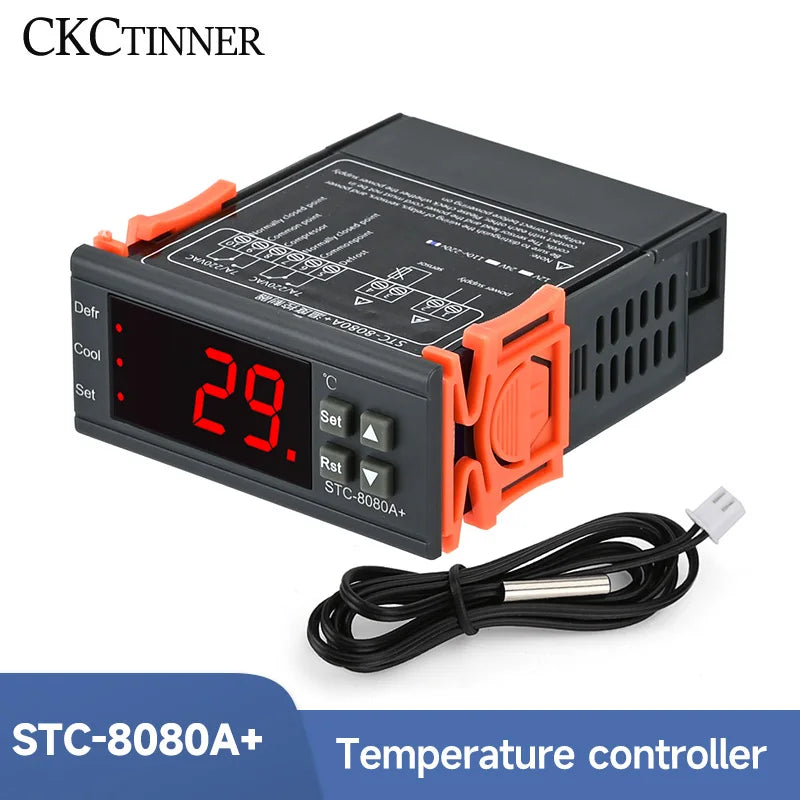

STC-8080A+ LED Digital Thermostat Temperature Controller
Take precise control of your heating and cooling systems with the STC-8080A+ Microcomputer Temperature Controller. Featuring a bright LED digital display and dual relay outputs, this embedded thermoregulator is ideal for incubators, fermentation chambers, greenhouses, aquariums, refrigeration units, and a wide range of industrial and hobbyist applications. CE certified and built to last, it delivers consistent, accurate temperature management across a wide operating range.
Made in China.
Key Features
- Wide Measurement Range: Monitors temperatures from -50°C to 99°C with a resolution of 1°C
- Precise Temperature Control: Control range of -40°C to 50°C; accuracy ±1°C between -40°C and 50°C

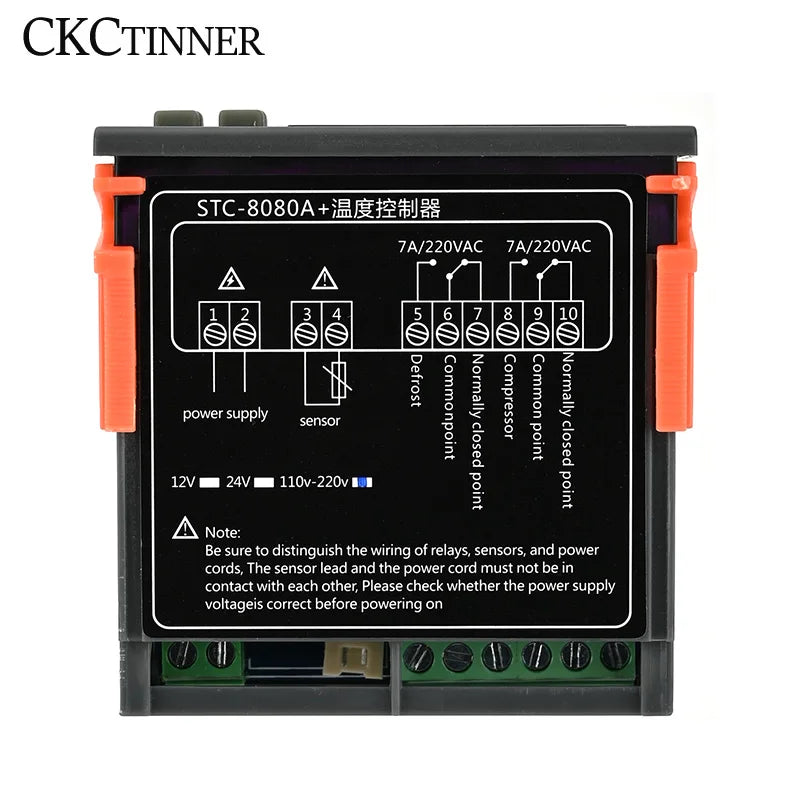

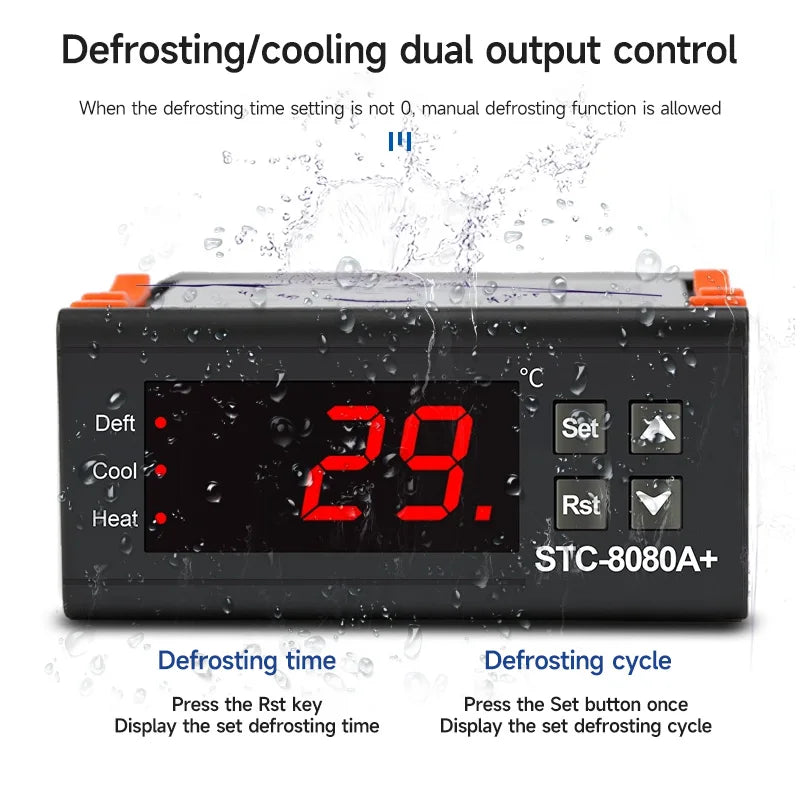

- Dual Relay Output: Independent refrigeration and defrost relay outputs (7A/220VAC each) for flexible system control
- NTC Sensor Included: 1-metre NTC sensor cable for fast and accurate ambient or liquid temperature sensing

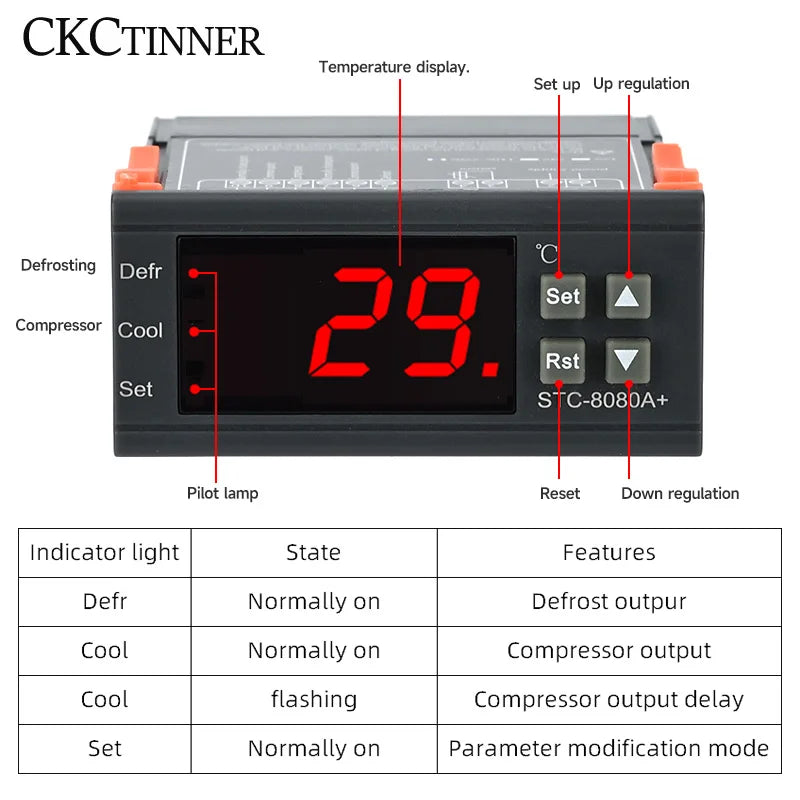

- LED Digital Display: Clear, easy-to-read display up to 1.9 inches for at-a-glance monitoring
- IP64 Front Panel: Dust and splash-resistant front panel for reliable performance in demanding environments
- Low Power Consumption: Only 3W machine power draw — energy-efficient operation 24/7
- CE Certified: Meets European safety and electromagnetic compatibility standards

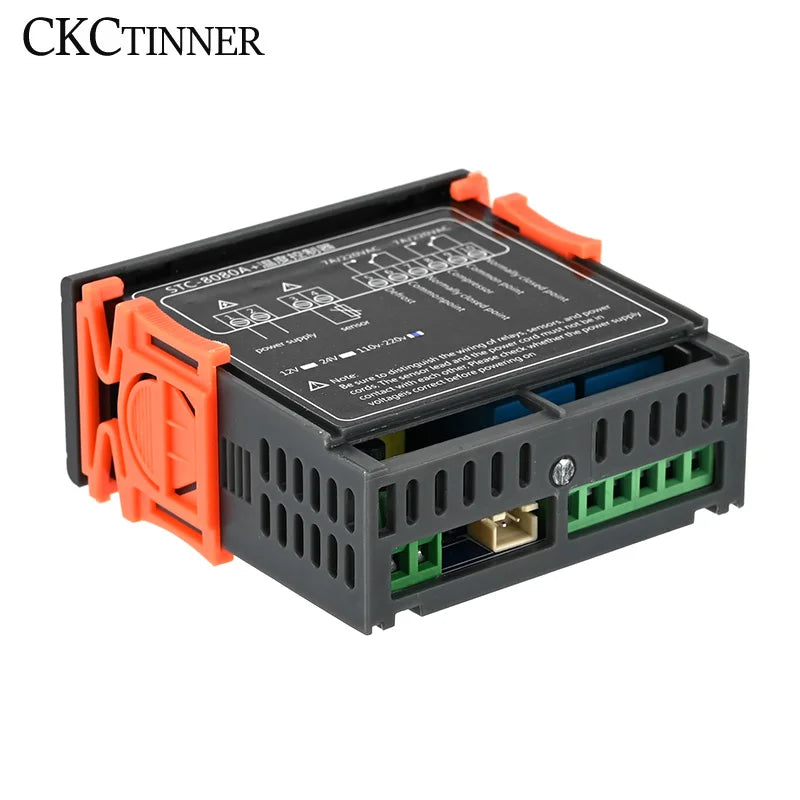

- Embedded (Panel Mount) Style: Designed for easy installation into control panels or enclosures

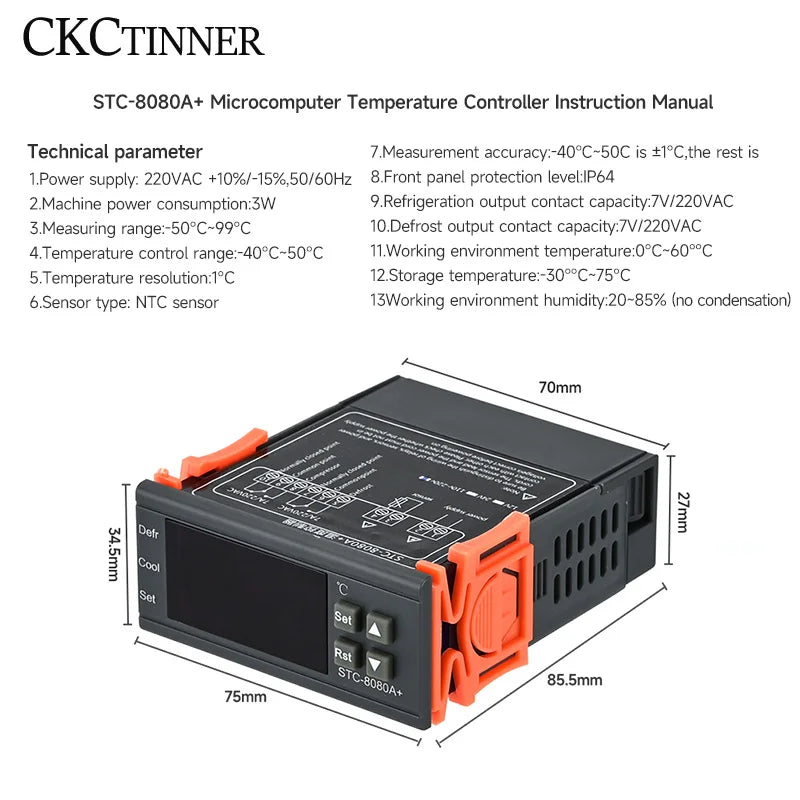

Technical Specifications
| Model | STC-8080A+ |
| Power Supply | AC 110–220V, 50/60Hz (+10%/-15%) |
| Machine Power Consumption | 3W |
| Measuring Range | -50°C ~ 99°C |
| Control Range | -40°C ~ 50°C |
| Temperature Resolution | 1°C |
| Sensor Type | NTC |
| Sensor Cable Length | 1 metre |
| Measurement Accuracy | ±1°C (-40°C to 50°C) |
| Relay Output Capacity | 7A/220VAC (Refrigeration & Defrost) |
| Front Panel Protection | IP64 |
| Working Temperature | 0°C ~ 60°C |
| Storage Temperature | -30°C ~ 75°C |
| Working Humidity | 20% ~ 85% (non-condensing) |
| Display | LED Digital, up to 1.9" |
| Certification | CE |
| Origin | Mainland China |
What's in the Box
- 1 × STC-8080A+ Temperature Controller Unit
- 1 × NTC Sensor (1m cable)
- 1 × Instruction Manual
Common Applications
- Egg incubators & brooders
- Home brewing & fermentation chambers
- Greenhouse & grow tent climate control
- Aquarium & reptile enclosure heating/cooling
- Refrigeration & freezer control systems
- Industrial process temperature management
You Might Also Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- 360° Bicycle Chain Cleaner Tool | Bike Gear Cleaning Kit
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What voltage does the STC-8080A+ temperature controller support?
A: The STC-8080A+ operates on AC 110–220V, 50/60Hz, making it compatible with standard household and industrial power supplies in most countries worldwide.
Q: Can the STC-8080A+ control both heating and cooling devices simultaneously?
A: Yes. The controller features dual relay outputs — one for refrigeration/cooling and one for defrost/heating — allowing it to manage both functions independently through separate connected devices.
Q: What type of sensor does the STC-8080A+ use, and how long is the cable?
A: It uses an NTC (Negative Temperature Coefficient) sensor with a 1-metre cable, providing fast and accurate temperature readings across the full measurement range of -50°C to 99°C.
Q: Is the STC-8080A+ suitable for an egg incubator?
A: Absolutely. The STC-8080A+ is specifically designed for incubator applications. Its precise ±1°C accuracy within the -40°C to 50°C control range makes it ideal for maintaining the stable temperatures needed for successful incubation.
Q: Is the front panel of the STC-8080A+ water or dust resistant?
A: Yes, the front panel carries an IP64 protection rating, meaning it is fully protected against dust ingress and resistant to water splashing from any direction — suitable for use in humid or dusty environments.
