ST-Link V2 Mini STM8 STM32 Programmer with DuPont Cable

$27.04 $33.15

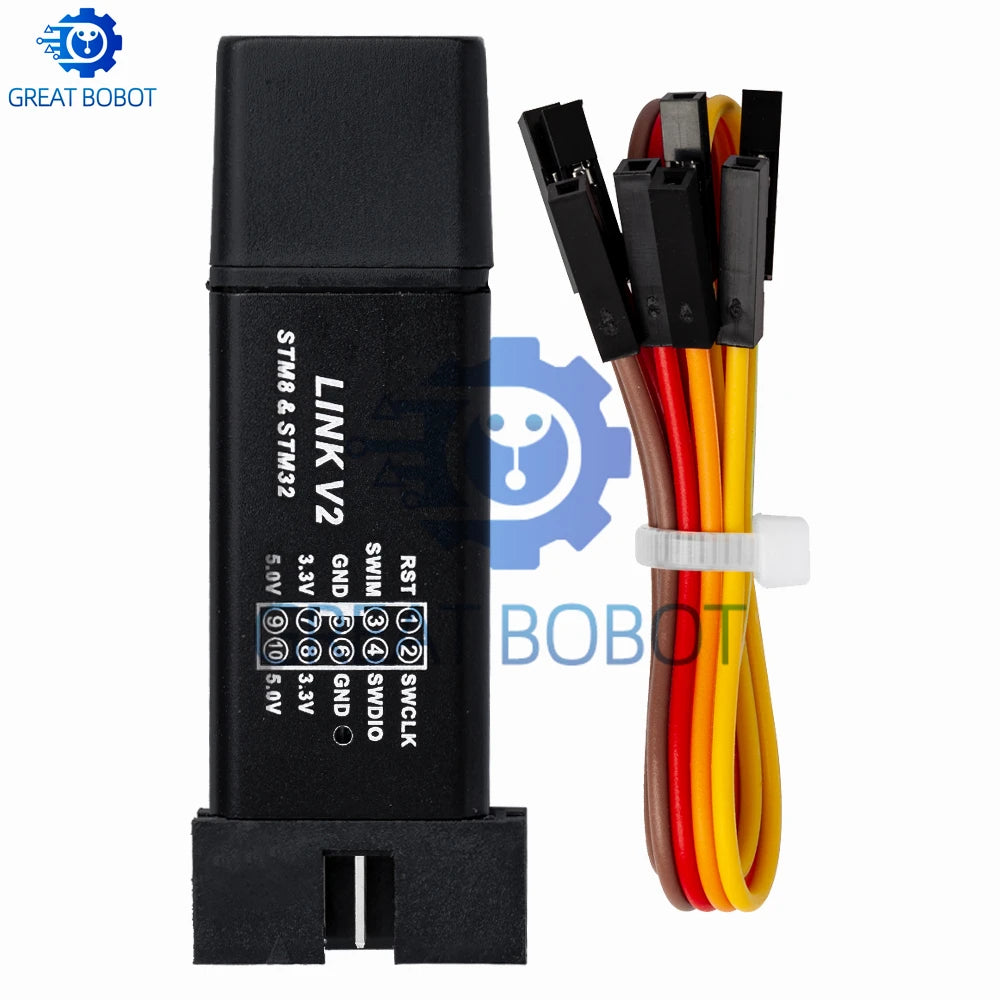

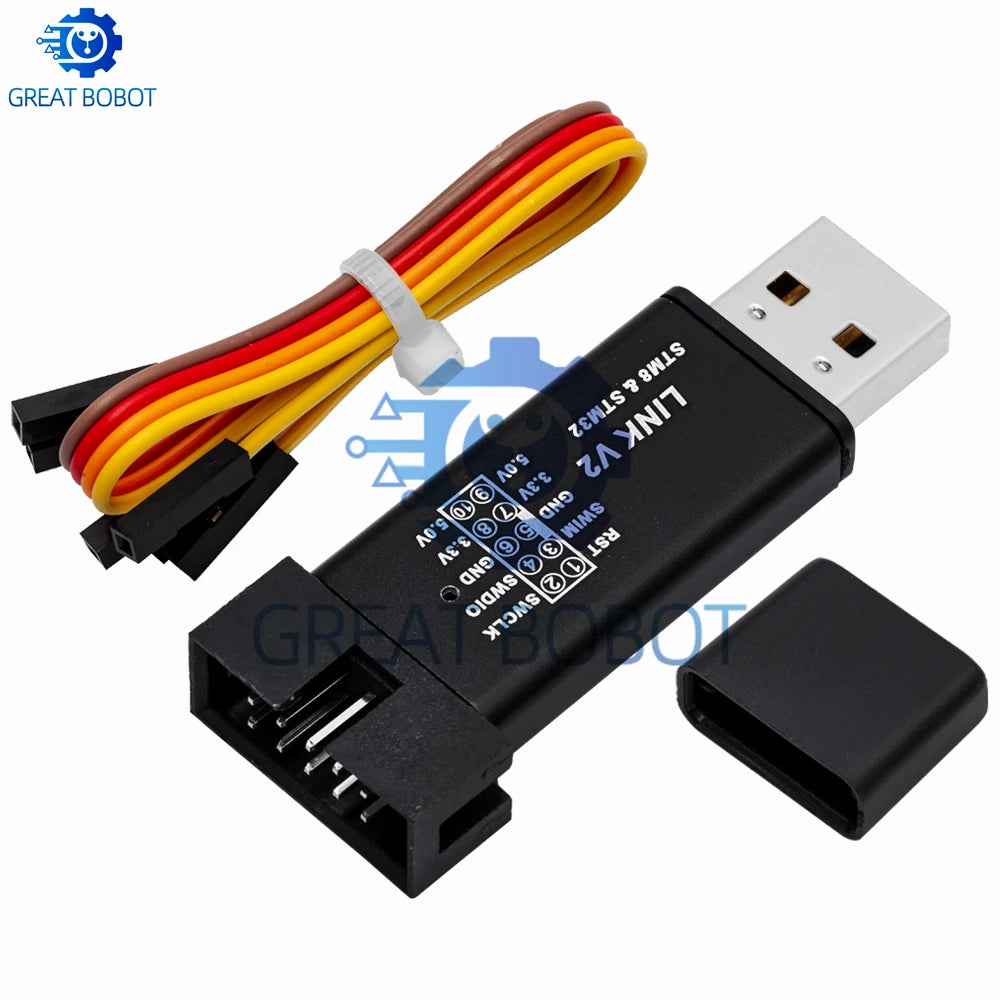

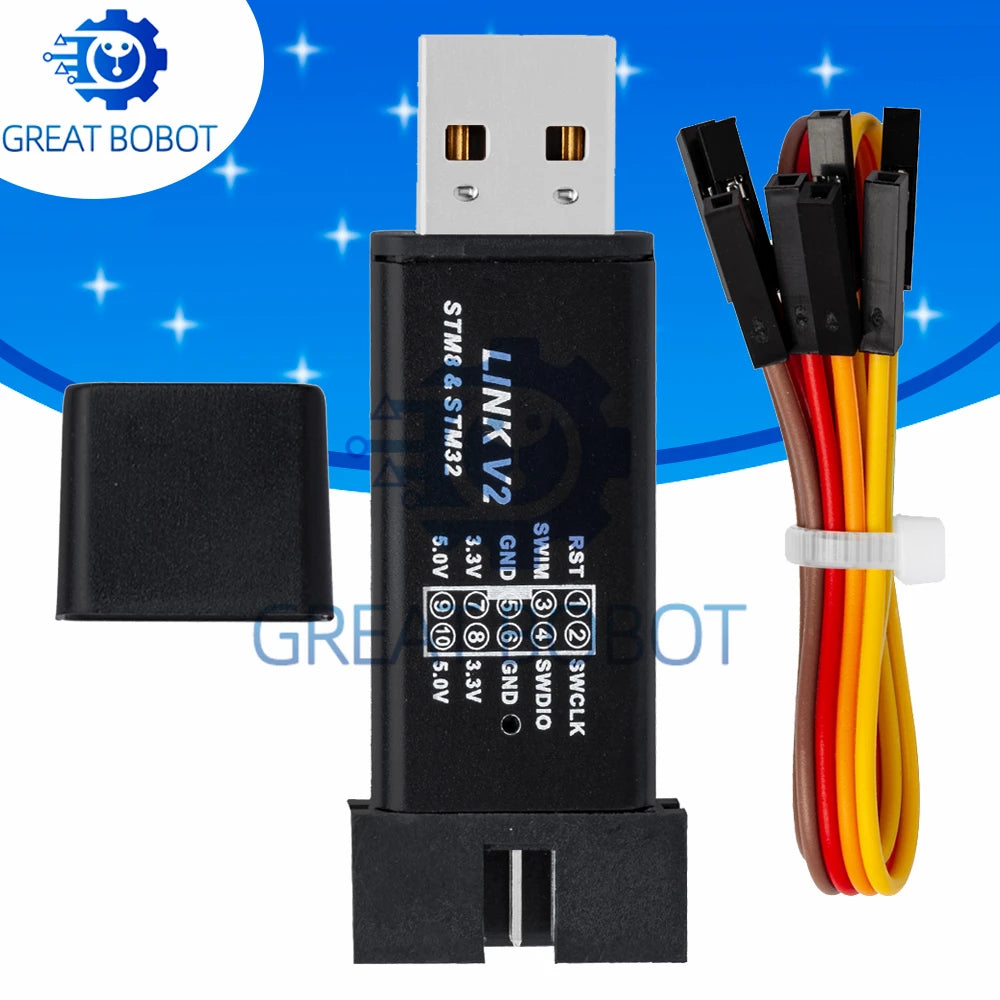

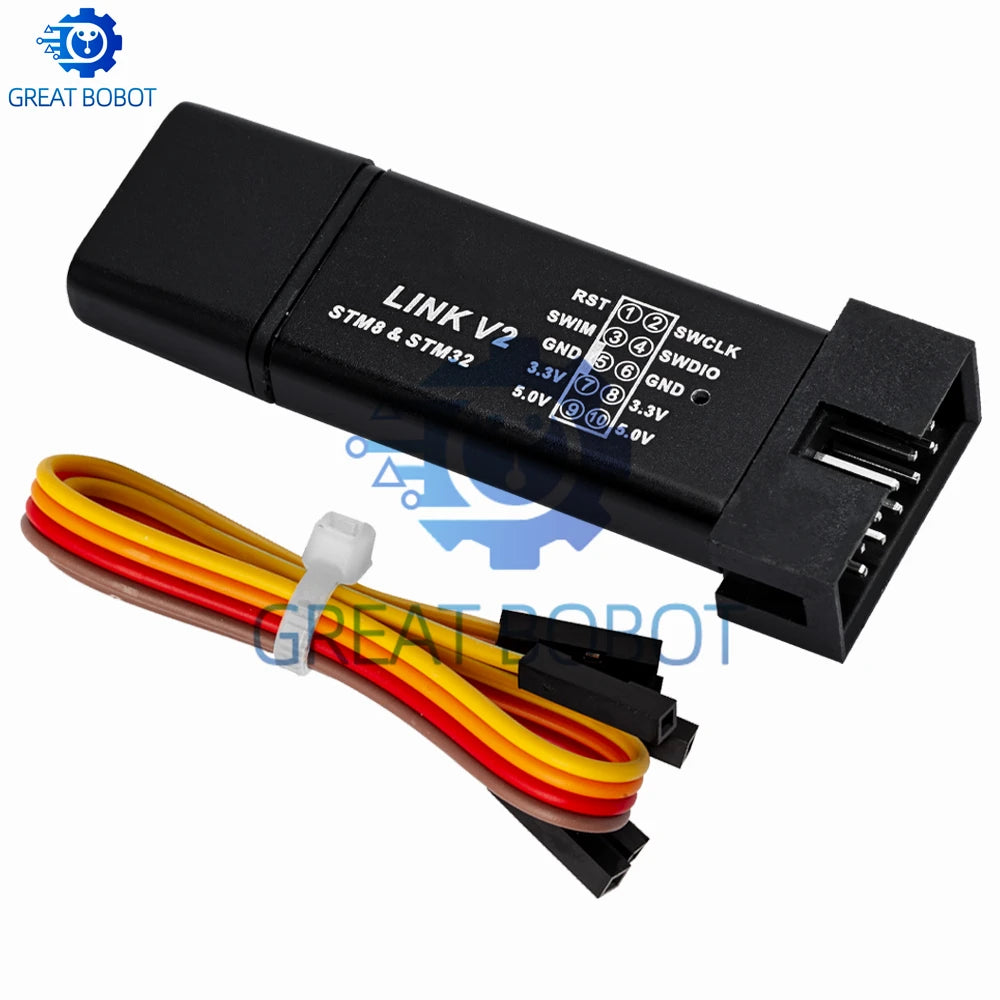

ST-Link V2 Mini Programmer & Debugger for STM8 & STM32

Take full control of your STM8 and STM32 microcontroller projects with this compact and reliable ST-Link V2 Mini Simulator & Programmer. Whether you're flashing firmware, debugging code, or developing embedded systems, this tool delivers a seamless connection between your PC and your target microcontroller — all in a pocket-sized form factor.

Made in Mainland China.

Key Features

Universal Compatibility: Supports STM8 and STM32 microcontroller families for broad project coverage
Plug & Play: Recognized by popular IDEs including STM32CubeIDE, Keil, and IAR Embedded Workbench with minimal setup
Compact Design with Protective Cover: Durable housing keeps internal components safe during everyday use
DuPont Cable Included: Ready-to-use connection cables included in the set — no need for additional wiring
Wide Operating Temperature: Rated from -40°C to +85°C for use across a variety of environments
SMD Package: Efficient, space-saving surface-mount design
In-Circuit Debugging & Programming: Supports real-time debugging, single-step execution, and flash download directly to your target device
No High-Concern Chemicals: Manufactured without hazardous materials for safer handling

What's in the Box?

1× ST-Link V2 Mini Programmer with Protective Cover
DuPont Connection Cables

Technical Specifications

Compatible MCUs: STM8, STM32 series
Interface: USB (PC side), JTAG/SWD (target side)
Operating Temperature: -40°C to +85°C
Package Type: SMD
Condition: Brand New
Origin: Mainland China

Related Products You May Like

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What microcontrollers are compatible with the ST-Link V2 Mini programmer?

A: The ST-Link V2 Mini programmer is compatible with the full range of STM8 and STM32 microcontrollers from STMicroelectronics. It supports both JTAG and SWD (Serial Wire Debug) interfaces, making it suitable for the vast majority of STM32 development boards and STM8 target circuits.

Q: Does the ST-Link V2 Mini work with popular development environments?

A: Yes. The ST-Link V2 Mini is compatible with major embedded development IDEs including STM32CubeIDE, Keil MDK, IAR Embedded Workbench, and STM32CubeProgrammer. Drivers are freely available from STMicroelectronics and install quickly on Windows, macOS, and Linux systems.

Q: Are the DuPont cables and protective cover included in the package?

A: Yes. Each set includes the ST-Link V2 Mini unit with a protective cover already fitted, plus a set of DuPont connection cables so you can connect directly to your target board right out of the box — no additional accessories required.

Q: Can this programmer be used for both in-circuit debugging and firmware flashing?

A: Absolutely. The ST-Link V2 Mini supports full in-circuit debugging features (breakpoints, single-step execution, variable watching) as well as direct firmware download (flash programming) to your STM8 or STM32 target device.
