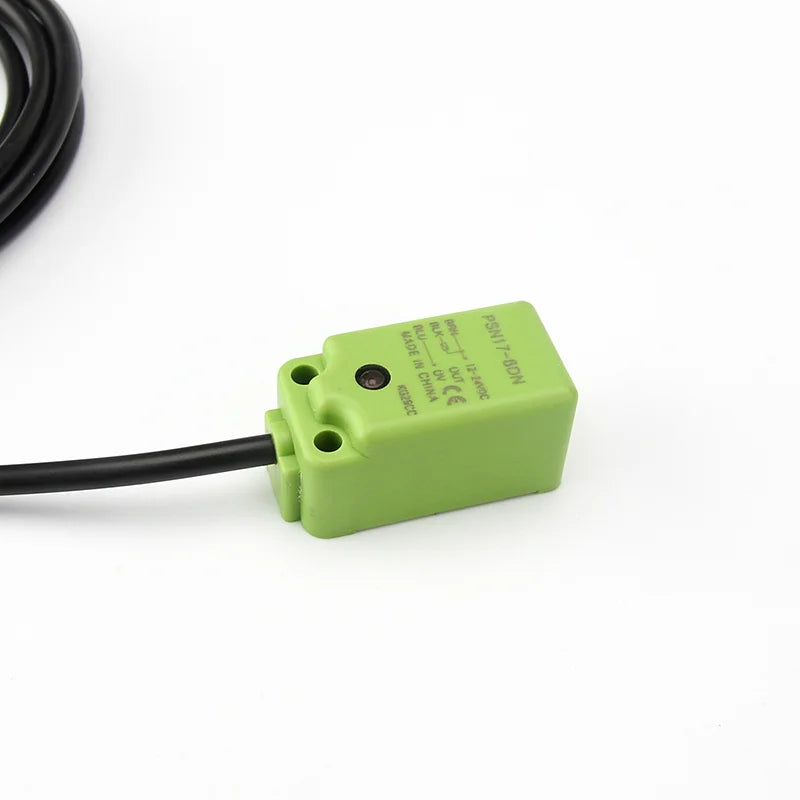

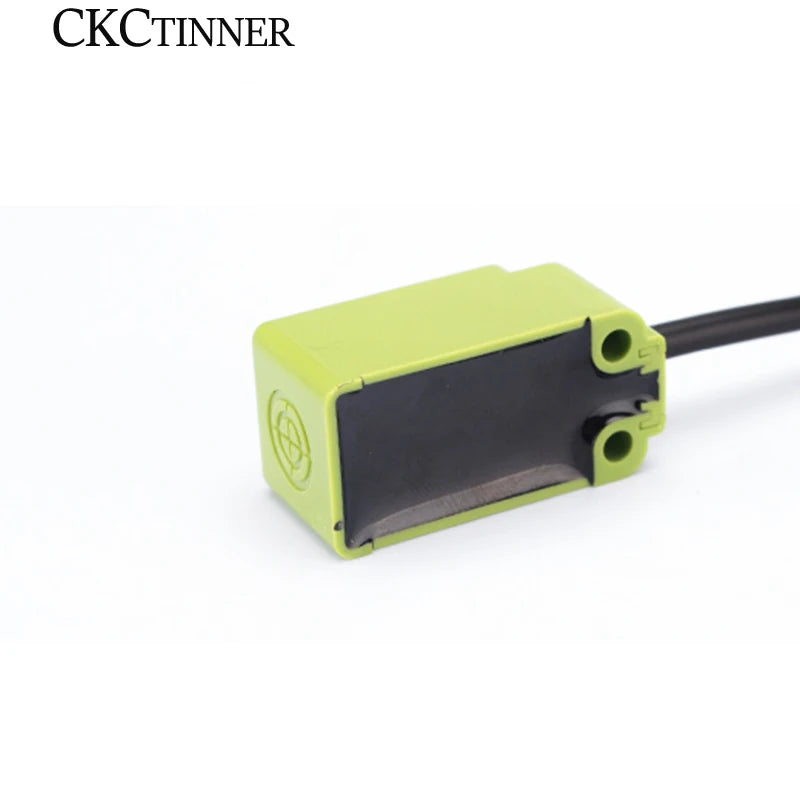

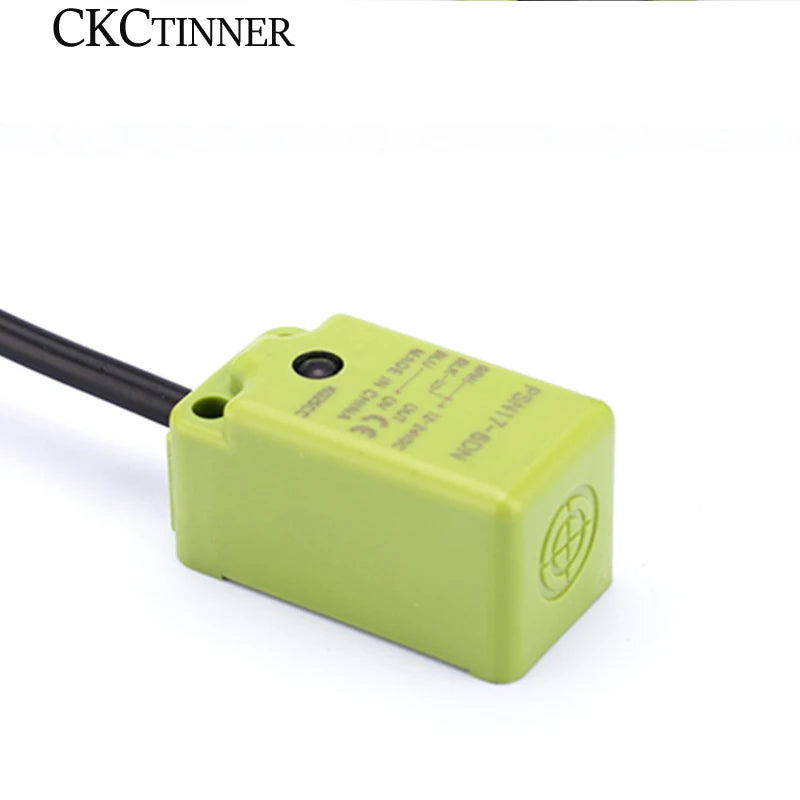

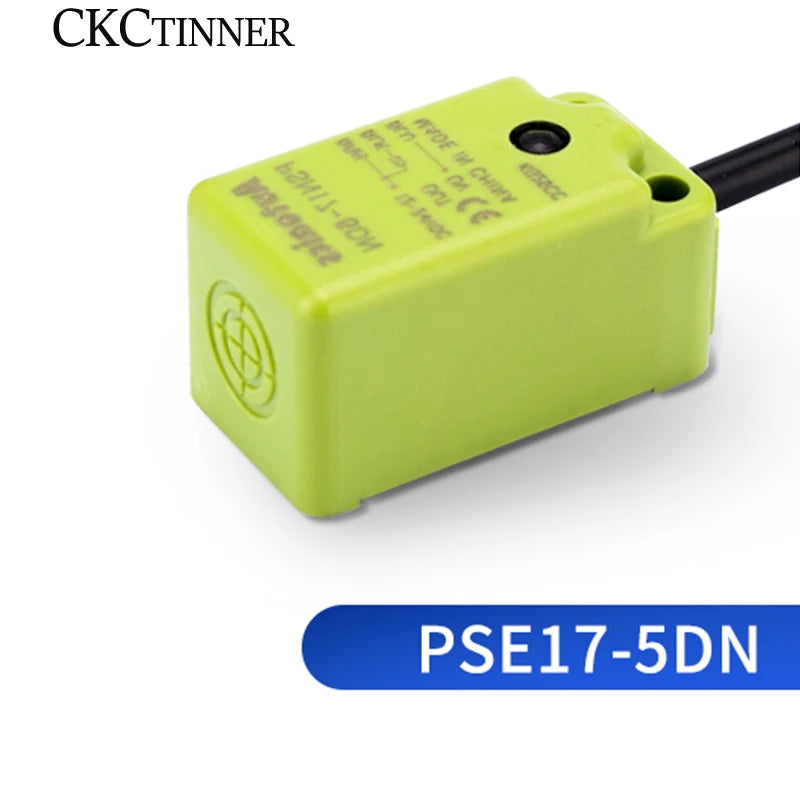

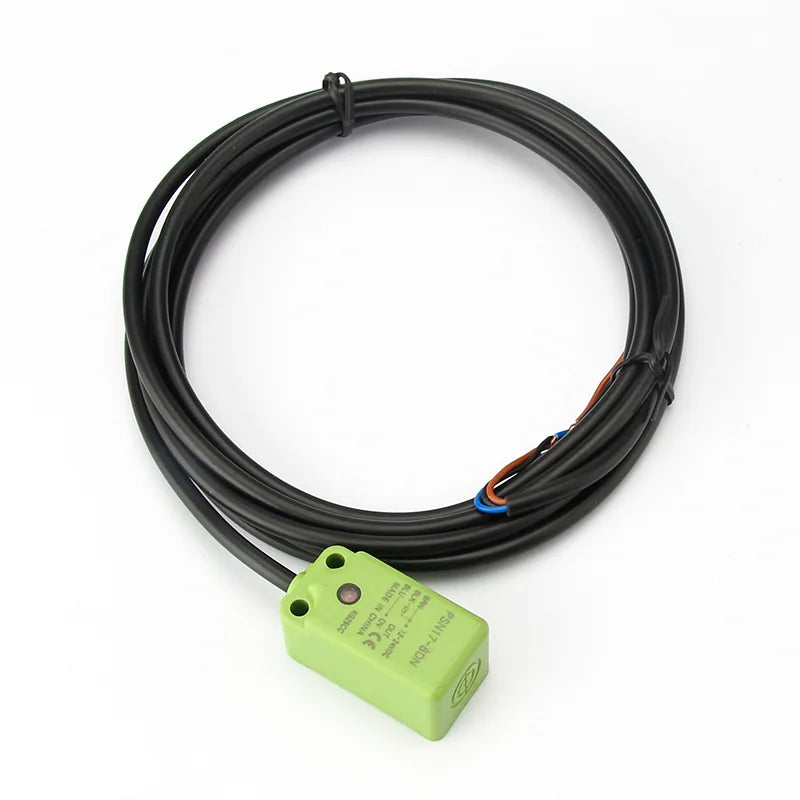

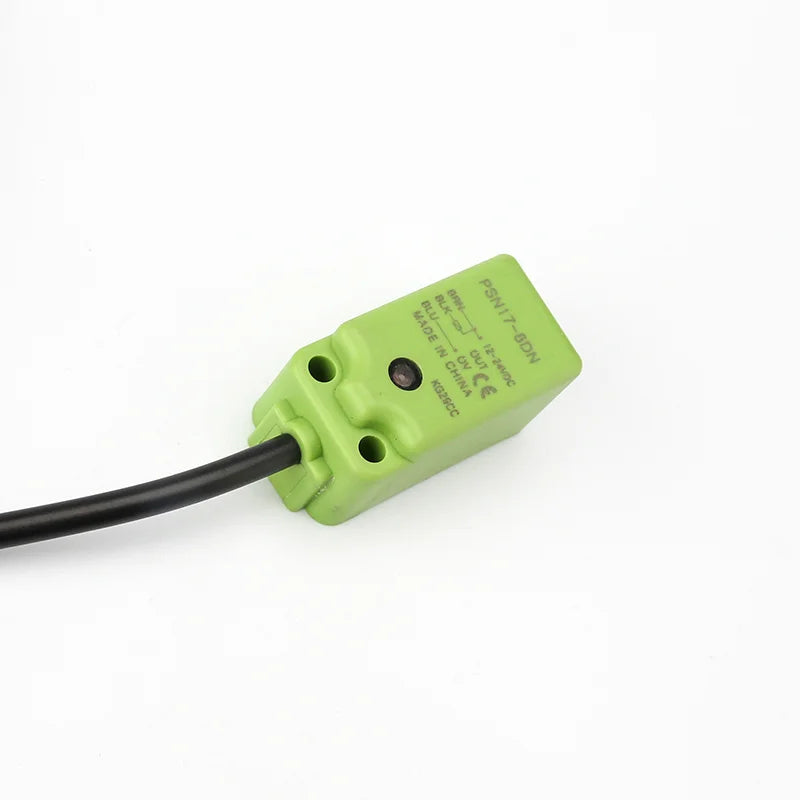

Square Inductive Proximity Sensor – PSN17-5DN / PSN17-8DN
This compact square inductive proximity switch delivers reliable, non-contact metal detection for elevators, industrial machinery, conveyor systems, and automation equipment. With a sturdy plastic housing and wide operating voltage range, it integrates effortlessly into both new builds and existing control panels.
Key Specifications
- Models: PSN17-5DN / PSN17-8DN
- Switch Type: Inductive Proximity Switch
- Output: NPN, 3-Wire, Normally Open (NO)
- Housing Size: 18 × 18 × 36 mm
- Detection Distance: 4 mm (PSN17-5DN) / 8 mm (PSN17-8DN)
- Output Current: 300 mA
- Operating Voltage: 10–30 V DC
- Material: Plastic housing
- Certifications: CCC, CE
- Warranty: 1 Year
Why Choose This Proximity Sensor?
- Non-Contact Detection: Senses metallic objects without physical touch, reducing mechanical wear and extending service life.
- Wide Voltage Range: Operates at 10–30 V DC, making it compatible with a broad range of control systems and PLCs.
- Compact Square Form Factor: The 18 × 18 mm face fits standard mounting slots in elevator panels and industrial cabinets.
- High Output Current: 300 mA output current drives loads directly, minimizing the need for additional relay stages.
- CE & CCC Certified: Meets international safety and electromagnetic compatibility standards for industrial environments.
- Easy 3-Wire NPN Wiring: Standard NPN normally-open configuration integrates with common PLCs and automation controllers.
Typical Applications
- Elevator floor-level detection and door control systems
- Conveyor belt position sensing and object counting
- Industrial automation and machine tool safety interlocks
- Packaging machinery and material handling equipment
Package Contents
- 1 × Square Inductive Proximity Sensor (PSN17-5DN or PSN17-8DN, as selected)
Made in Mainland China.
Related Products You May Like
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What is the difference between the PSN17-5DN and PSN17-8DN proximity sensor models?
A: The main difference is the sensing distance. The PSN17-5DN has a detection distance of approximately 4 mm, while the PSN17-8DN offers an extended detection distance of approximately 8 mm. Both share the same NPN 3-wire normally-open output, 10–30 V DC operating range, and 18 × 18 × 36 mm housing dimensions.
Q: Is this proximity sensor compatible with a PLC or automation controller?
A: Yes. The NPN normally-open (NO) 3-wire output is the most widely used configuration for PLCs, relay modules, and automation controllers. Simply connect the brown wire to positive supply (10–30 V DC), the blue wire to negative/ground, and the black output wire to your PLC input terminal.
Q: Can this sensor detect all types of metal?
A: As an inductive proximity sensor, it detects ferrous and non-ferrous metallic objects. Detection range may vary slightly depending on the target metal type (e.g., the rated distance applies to standard mild steel targets; aluminium or copper may have a reduced effective range).
Q: What certifications does the PSN17-5DN / PSN17-8DN carry?
A: This proximity sensor is CCC (China Compulsory Certificate) and CE certified, confirming it meets both Chinese national safety standards and European electromagnetic compatibility requirements for industrial use.
