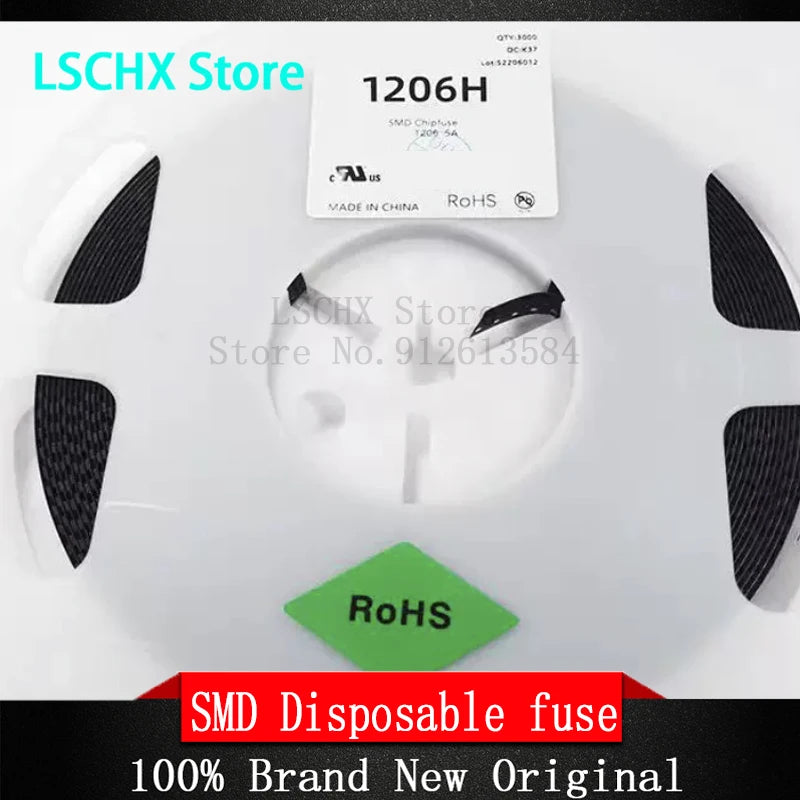

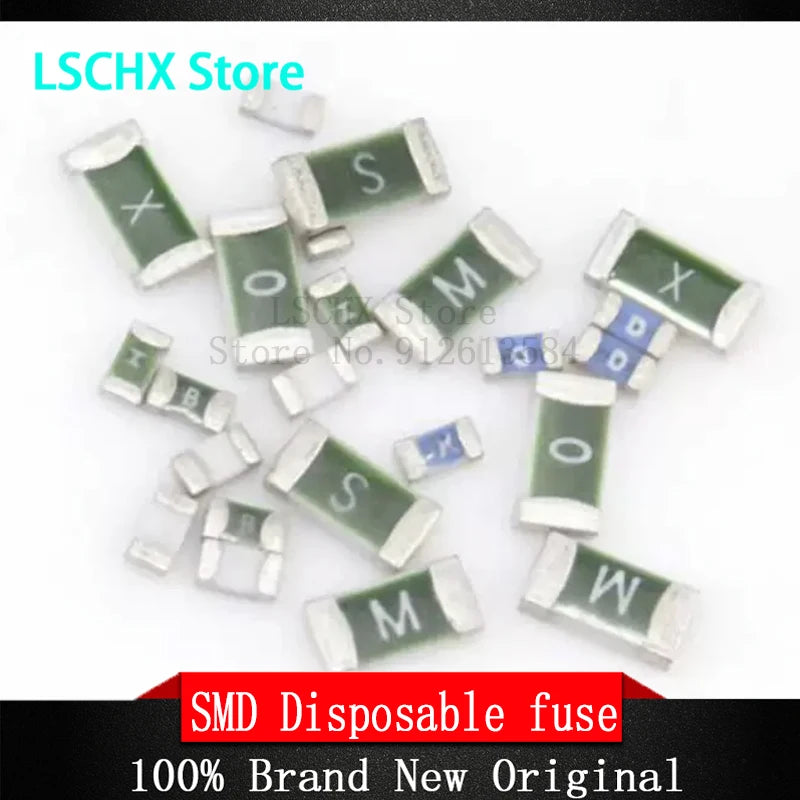

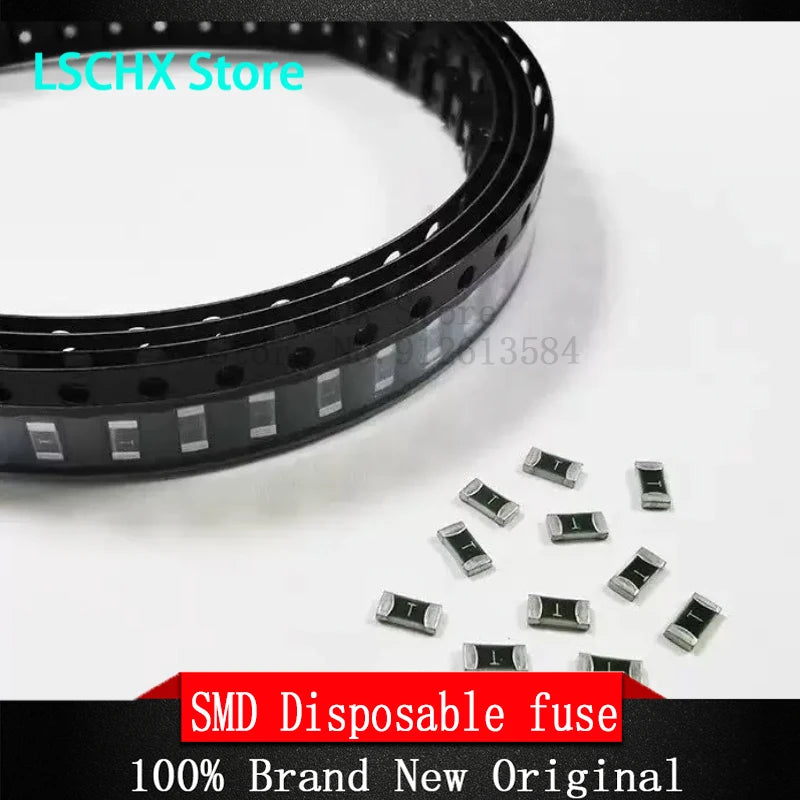

SMD Disposable Fuses – 1206 & 0603 Package Sizes
Keep your electronics projects protected with this comprehensive assortment of SMD (Surface Mount Device) disposable fuses. Available in both 1206 and 0603 footprints, these fuses cover a wide range of current ratings — 0.5A, 1A, 2A, 3A, 4A, 5A, and 10A — at voltage ratings of 32V and 63V. Ideal for PCB designers, electronics engineers, hobbyists, and repair technicians who need reliable overcurrent protection in compact surface-mount form.
Key Features
- Package Sizes: 1206 and 0603 SMD footprints for versatile PCB compatibility
- Current Ratings: 0.5A, 1A, 2A, 3A, 4A, 5A, 10A — wide range for diverse applications
- Voltage Ratings: 32V and 63V options (low voltage: below 50Vac or 75Vdc)
- Disposable / One-Time Use: Fast-acting protection that interrupts fault currents instantly
- No Battery Required: Passive component — no external power source needed
- RoHS-Compliant Design: Free from high-concern chemicals
- Compact Form Factor: Space-saving SMD design ideal for dense PCB layouts
Specifications
| Package Sizes | 1206, 0603 |
| Current Ratings | 0.5A, 1A, 2A, 3A, 4A, 5A, 10A |
| Voltage Ratings | 32V, 63V |
| Type | Disposable (One-Time Use) |
| Battery Included | No |
| High-Concern Chemicals | None |
| Country of Origin | Made in Mainland China |
Who Needs These Fuses?
These SMD fuses are perfect for:
- PCB design and prototyping engineers
- Electronics repair shops and technicians
- DIY electronics hobbyists and makers
- Industrial and consumer electronics manufacturing
Related Products
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What is the difference between 1206 and 0603 SMD fuse package sizes?
A: The numbers refer to the physical dimensions of the surface-mount component. A 1206 fuse measures approximately 3.2mm × 1.6mm, while a 0603 fuse measures approximately 1.6mm × 0.8mm. The 0603 package is smaller and suited for more compact PCB layouts, while the 1206 is easier to hand-solder and handle during prototyping. Both are included in this assortment for maximum flexibility.
Q: Are these fuses fast-acting or slow-blow (time-delay)?
A: These are fast-acting (quick-blow) disposable SMD fuses, meaning they interrupt the circuit rapidly upon reaching the rated overcurrent threshold. They are ideal for protecting sensitive electronic components from instantaneous current surges and short circuits. Always match the fuse current rating to your circuit's requirements for optimal protection.
Q: Can these SMD fuses be reused after they blow?
A: No. These are disposable, one-time-use fuses. Once a fuse has interrupted the circuit due to an overcurrent event, it must be replaced with a new one of the same rating. This ensures consistent and reliable protection for your circuit boards every time.
Q: What voltage rating should I choose — 32V or 63V?
A: Select the voltage rating that meets or exceeds the maximum voltage in your circuit. For circuits operating at up to 32V DC, the 32V-rated fuses are suitable. For higher-voltage applications up to 63V DC, choose the 63V-rated variants. Both are well within the EU LVD low-voltage classification (below 75Vdc).
