SM4522NHKPC N-Channel MOSFET – 110A 30V DFN56 SMD Transistor

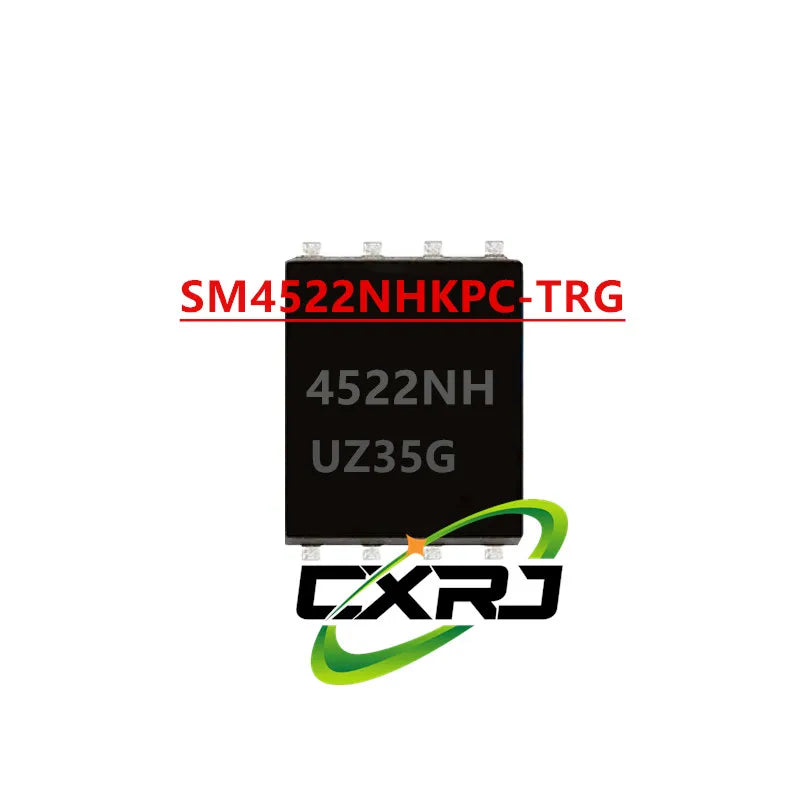

The SM4522NHKPC (SM4522NHKPC-TRG / 4522NH) is a high-performance N-Channel Field Effect Transistor (MOSFET) in a compact DFN56 SMD package. With a continuous drain current rating of 110A and a drain-to-source voltage of 30V, this component delivers excellent switching efficiency for computer motherboards, power conversion circuits, and other demanding electronic applications. Available in a convenient multi-pack of 2 to 10 pieces to suit prototyping and production runs alike.
Made in Mainland China.
Key Specifications
- Part Number: SM4522NHKPC / SM4522NHKPC-TRG / 4522NH
- Channel Type: N-Channel
- Max Drain Current (ID): 110A
- Drain-to-Source Voltage (VDS): 30V
- Package: DFN56 (SMD / Surface Mount)
- Application: Computer motherboards, power management, switching circuits
- Condition: Brand New
- Quantity Options: 2, 4, 6, 8, or 10 pieces per order
Why Choose This MOSFET?
- ✅ High current handling – 110A continuous drain current for demanding circuits
- ✅ Low on-resistance – efficient switching with minimal power loss
- ✅ Compact DFN56 SMD package – ideal for space-constrained PCB designs
- ✅ Flexible quantities – buy exactly what you need, from 2 to 10 units
- ✅ New condition – factory-fresh components for reliable performance
Typical Applications
- Computer motherboard power stages
- DC-DC buck/boost converters
- Battery management systems
- Motor drive circuits
- Load switching and power sequencing
Related Products You May Like
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- 360° Bicycle Chain Cleaner Tool | Bike Gear Cleaning Kit
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: What is the SM4522NHKPC MOSFET used for?
A: The SM4522NHKPC is an N-Channel MOSFET primarily used in computer motherboard power stages, DC-DC converters, battery management systems, and motor drive circuits. Its 110A current rating and 30V VDS make it well-suited for high-current switching applications.
Q: What package type is the SM4522NHKPC, and is it surface-mount compatible?
A: Yes — the SM4522NHKPC comes in a DFN56 package, which is a Surface Mount Device (SMD) format. It is fully compatible with standard SMD PCB assembly and reflow soldering processes.
Q: How many pieces are included in one order?
A: This listing offers flexible quantity options ranging from 2 to 10 pieces per order. Simply select the quantity that best suits your prototyping or production needs at checkout.
Q: Is SM4522NHKPC the same as SM4522NHKPC-TRG or 4522NH?
A: Yes — SM4522NHKPC, SM4522NHKPC-TRG, and 4522NH all refer to the same component. The "-TRG" suffix typically denotes a tape-and-reel packaging variant commonly used in automated SMD assembly lines.
