SK & SHF Aluminum Linear Bearing Rail Shaft Support
Upgrade your CNC router, 3D printer, or XYZ motion table with these precision-machined SK and SHF series linear bearing shaft support holders. Available in a full range of sizes — SK8, SK10, SK12, SK16, SK20, SHF8, SHF10, SHF12, and SHF16 — these rod holders deliver stable, low-friction linear motion for smooth and accurate axis travel.
Why Choose These Shaft Supports?
- High-Quality Aluminum Alloy construction for a rigid, lightweight, and corrosion-resistant hold
- SK & SHF Styles Available — choose the profile that fits your frame or rail system
- Multiple Size Options — 8mm, 10mm, 12mm, 16mm, and 20mm to suit a wide range of linear shafts
- Precision Fit — machined to tight tolerances for minimal play and consistent alignment
- Versatile Compatibility — suitable for CNC routers, 3D printers, laser engravers, pick-and-place machines, and DIY motion platforms
- Easy Mounting — standard bolt-hole pattern for straightforward installation on frames and extrusions
Product Details
- Material: Aluminum Alloy

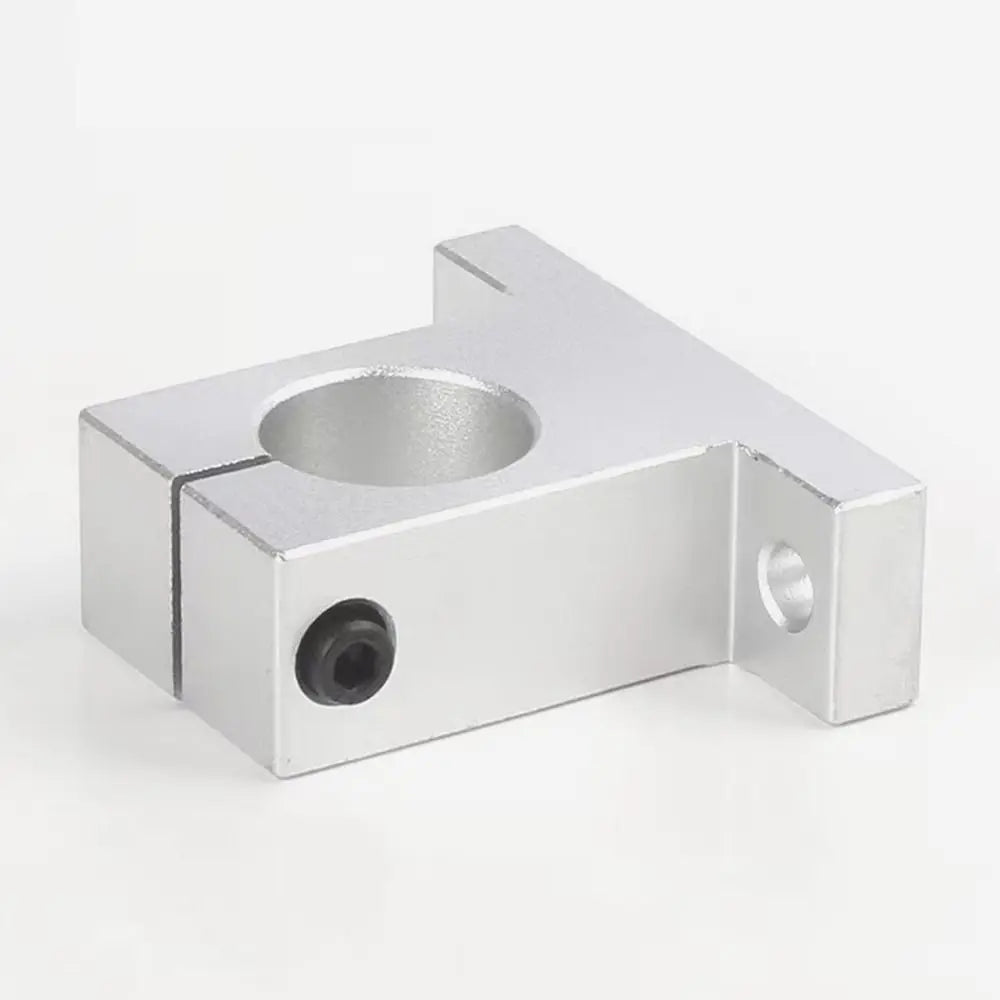

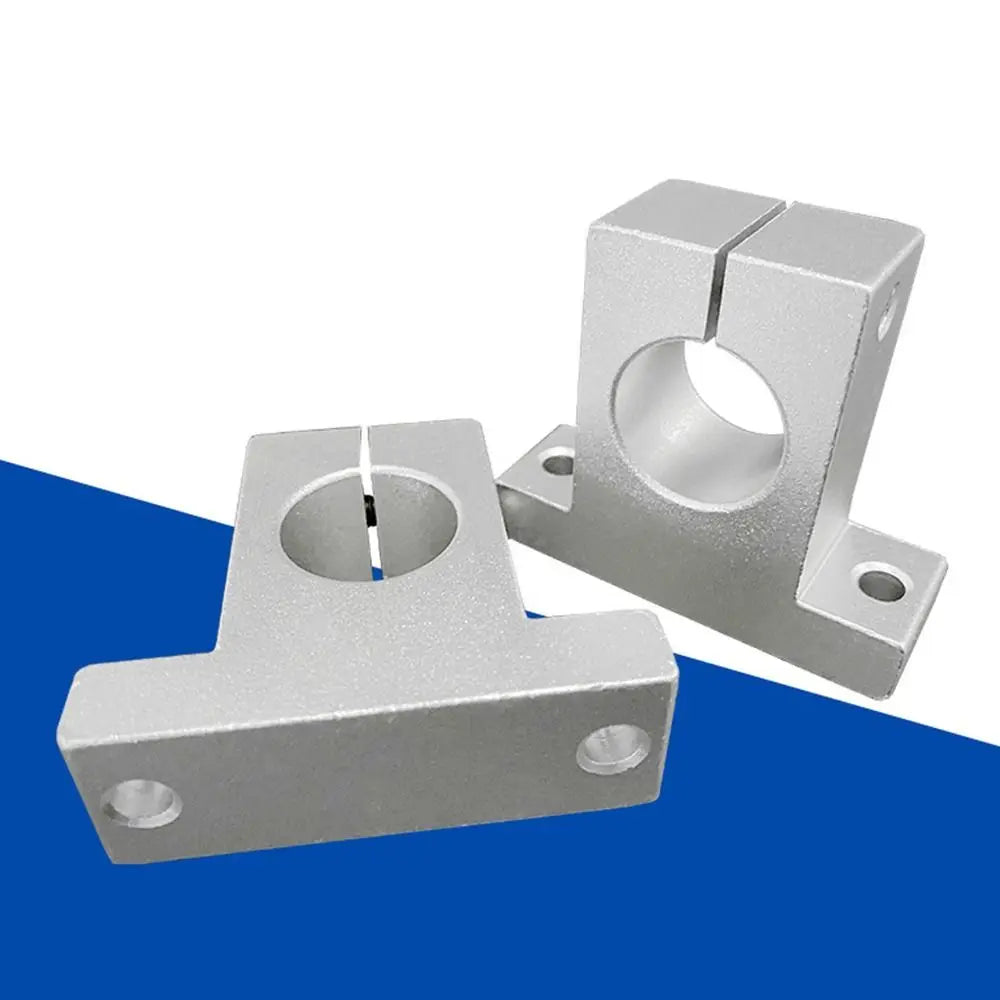

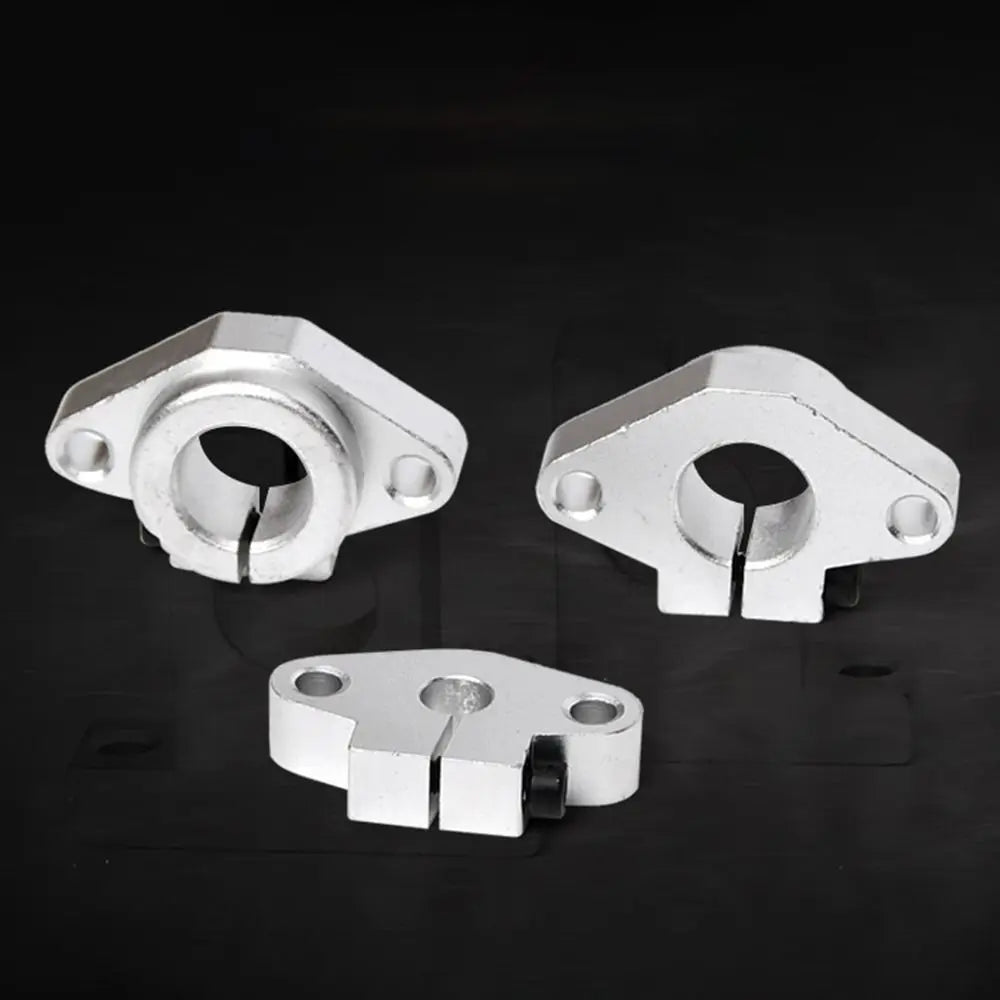

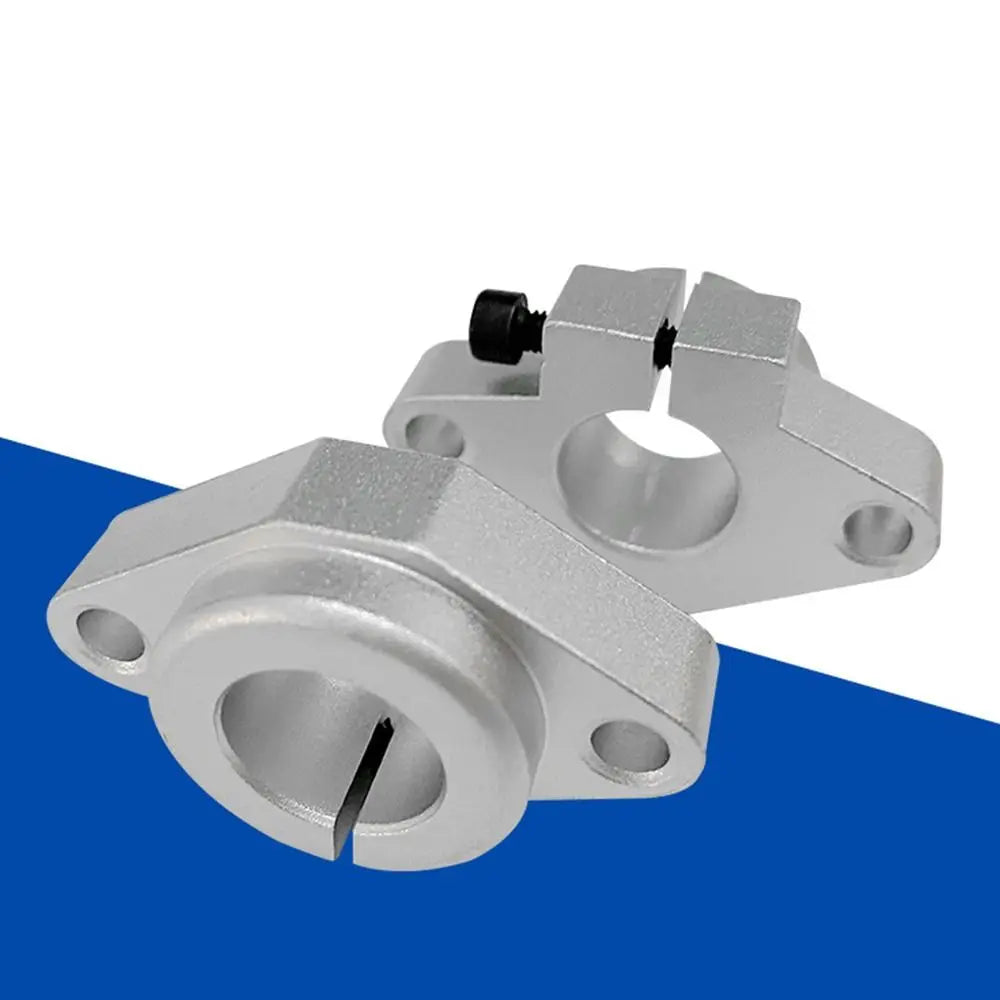

- Styles: SK (pillow block) and SHF (flange type)

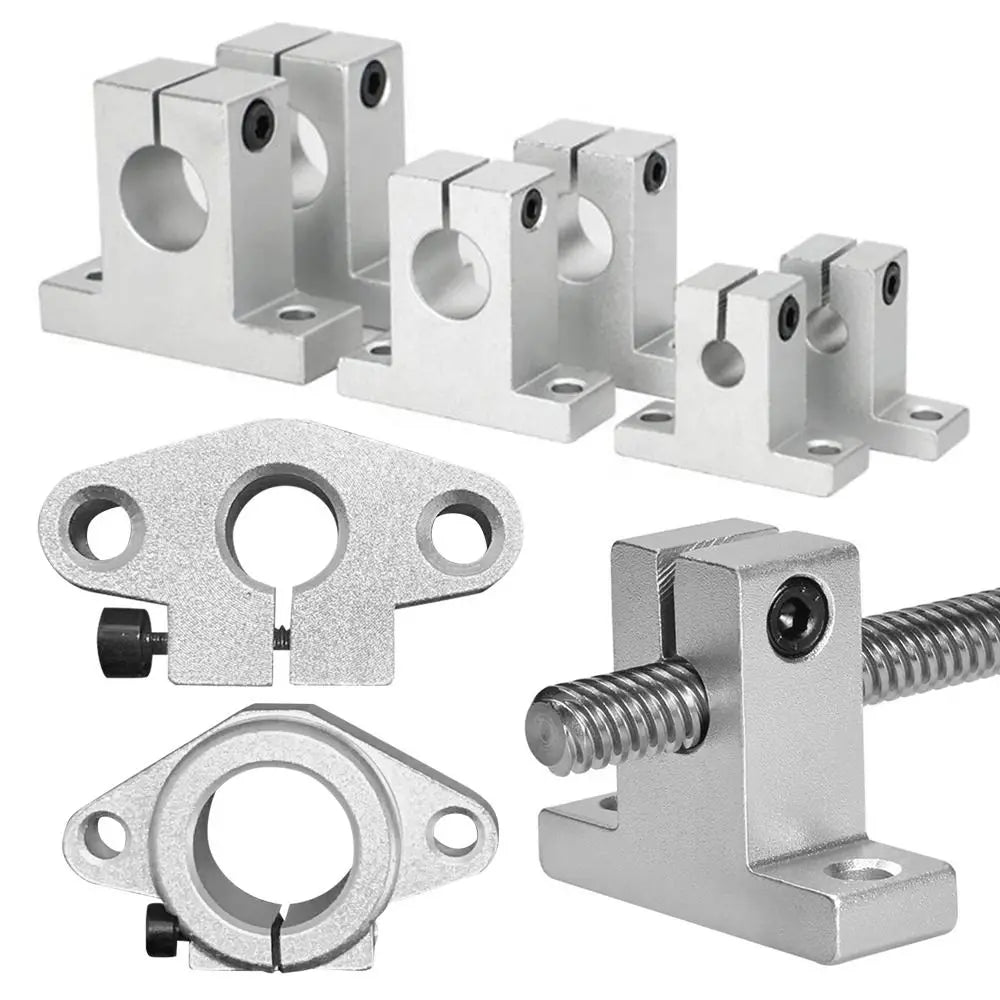

- Available Sizes: SK8, SK10, SK12, SK16, SK20 / SHF8, SHF10, SHF12, SHF16
- Condition: Brand New
- Country of Origin: Made in China
Package Contents
- 1× Linear Bearing Shaft Support (style and size as selected)
Note: Monitor color calibration and lighting conditions may cause slight color variation from the photos shown. Please allow for minor measurement tolerances (±1 mm). 1 cm = 0.39 inches.
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- 360° Bicycle Chain Cleaner Tool | Bike Gear Cleaning Kit
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What is the difference between SK and SHF linear shaft support styles?
A: SK supports are pillow-block style with a round bore and side-mounting bolt holes, making them ideal for frame-side mounting. SHF supports are flange-type with a flat mounting base and are better suited for surface or base-plate mounting. Both provide excellent shaft alignment for CNC and 3D printer applications.
Q: Which shaft diameter should I choose for my CNC router or 3D printer?
A: Select the size that matches your linear rod diameter. Common sizes include 8mm for compact 3D printers, 10mm and 12mm for mid-size CNC routers, and 16mm or 20mm for heavier-duty motion systems. Measure your existing rod or consult your machine's BOM (bill of materials) before ordering.
Q: Are these shaft supports compatible with standard linear rods and bearings?
A: Yes. These SK and SHF shaft supports are designed to the standard metric dimensions widely used in CNC, 3D printing, and automation applications and are compatible with standard chrome or hardened linear rods and LM-series linear bearings of the corresponding diameter.
