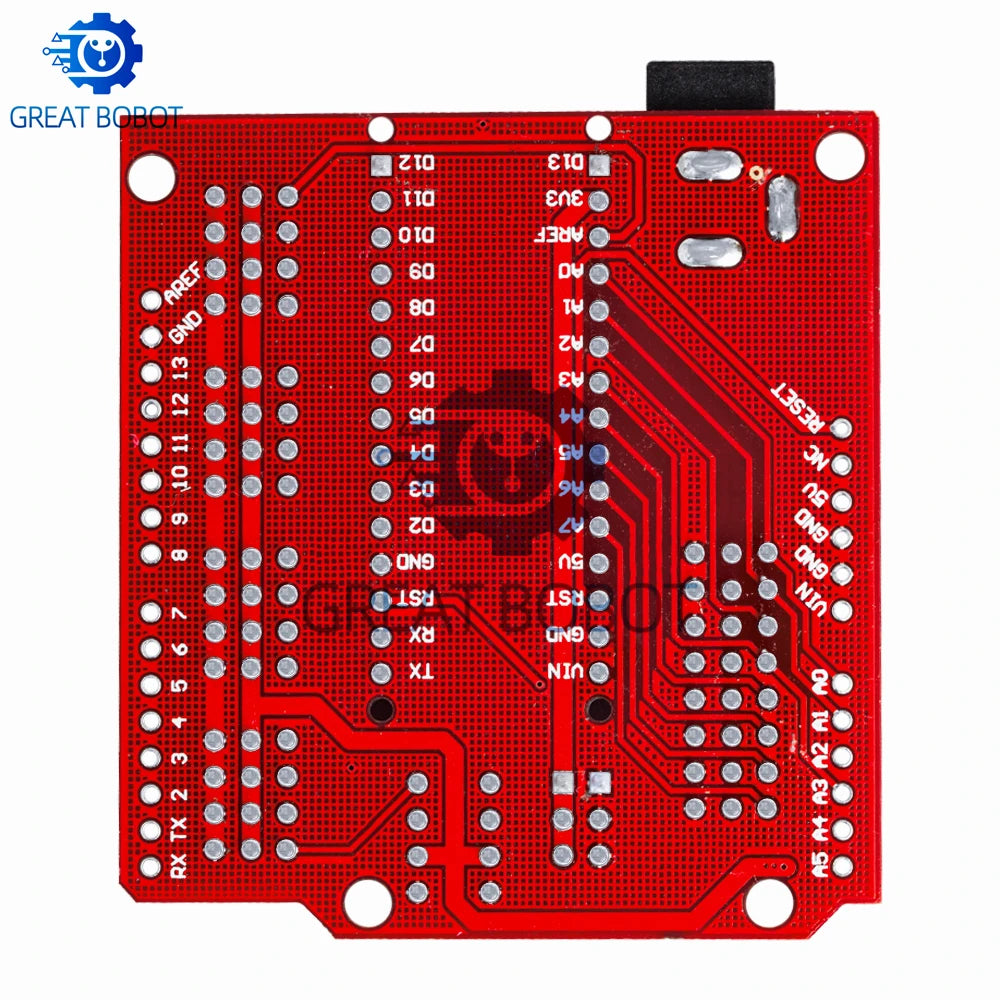

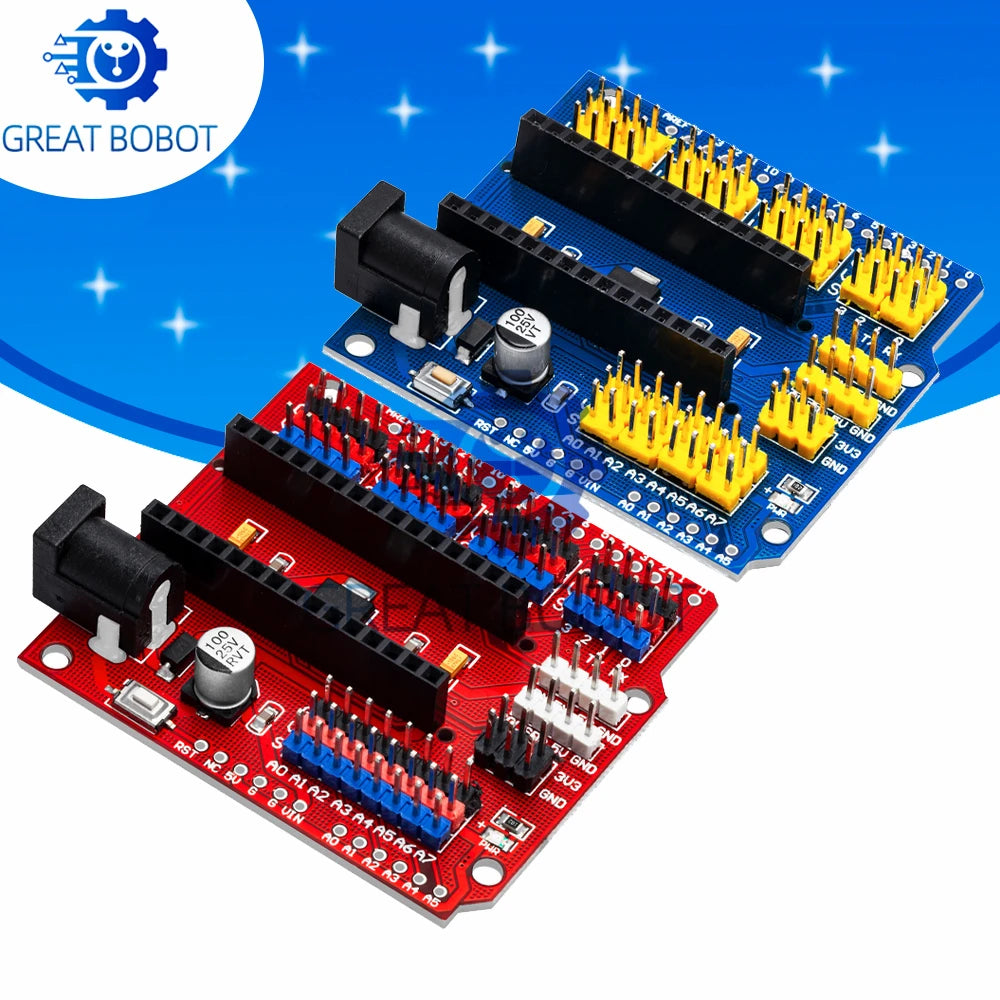

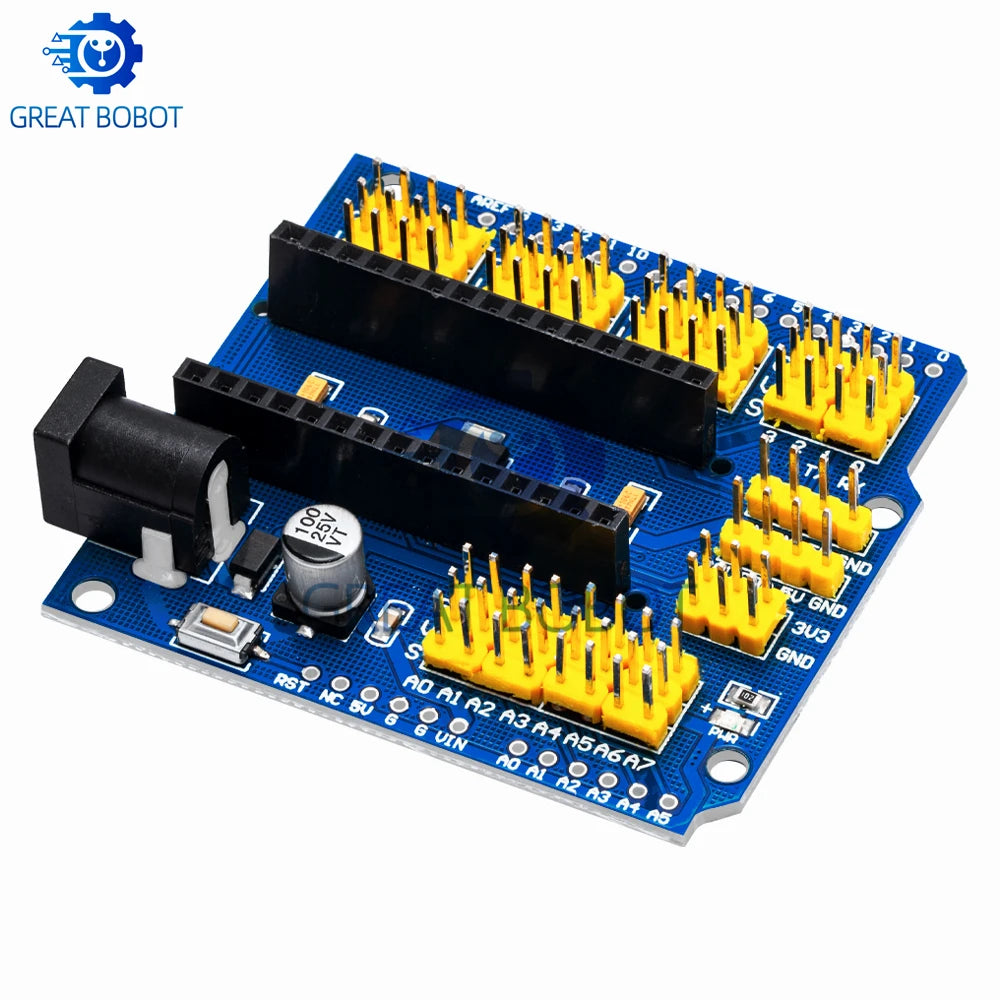

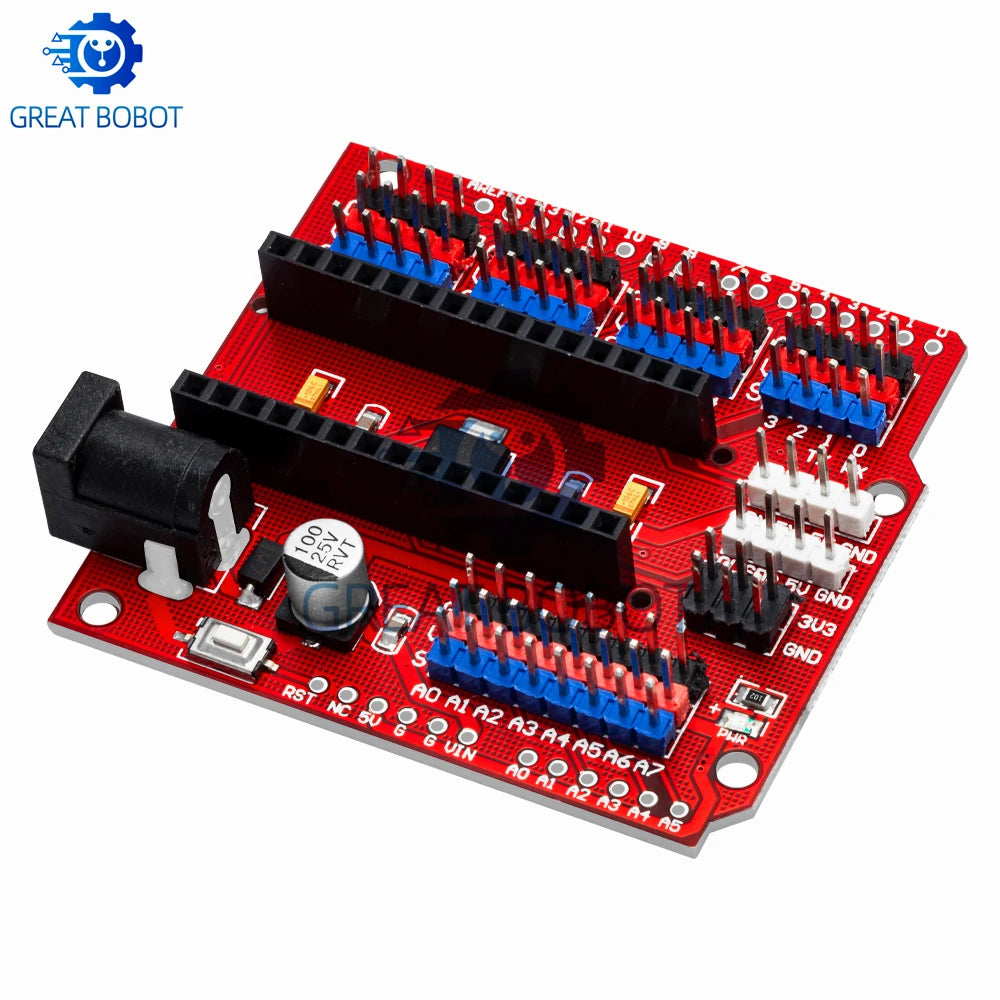

Sensor Shield Expansion Module for Arduino UNO R3 & Nano V3
Expand the capabilities of your Arduino UNO R3 or Nano V3.0 controller board with this versatile Sensor Shield Expansion Module. Designed for makers, electronics hobbyists, and students, this compact SMD module provides convenient I2C, PWM, and 3.3V interface access — making it effortless to connect sensors, servos, and other peripherals without messy wiring.
Key Features
- Broad Compatibility: Works seamlessly with Arduino UNO R3 and Nano V3.0 compatible controller boards.
- I2C & PWM Interfaces: Dedicated headers for I2C communication and PWM signal output — perfect for sensors, motors, and displays.
- 3.3V Power Output: Onboard 3.3V regulated supply for low-voltage peripherals and sensors.
- Wide Supply Voltage: Accepts 7–12V input supply voltage for flexible power arrangements.
- Wide Operating Temperature: Rated from -40°C to +85°C for reliable performance across environments.
- SMD Package: Compact surface-mount design for a clean, low-profile build.
- No High-Concern Chemicals: Manufactured without any high-concern chemical substances.
- Brand New: Ships in new condition, quantity: 1 module per package.

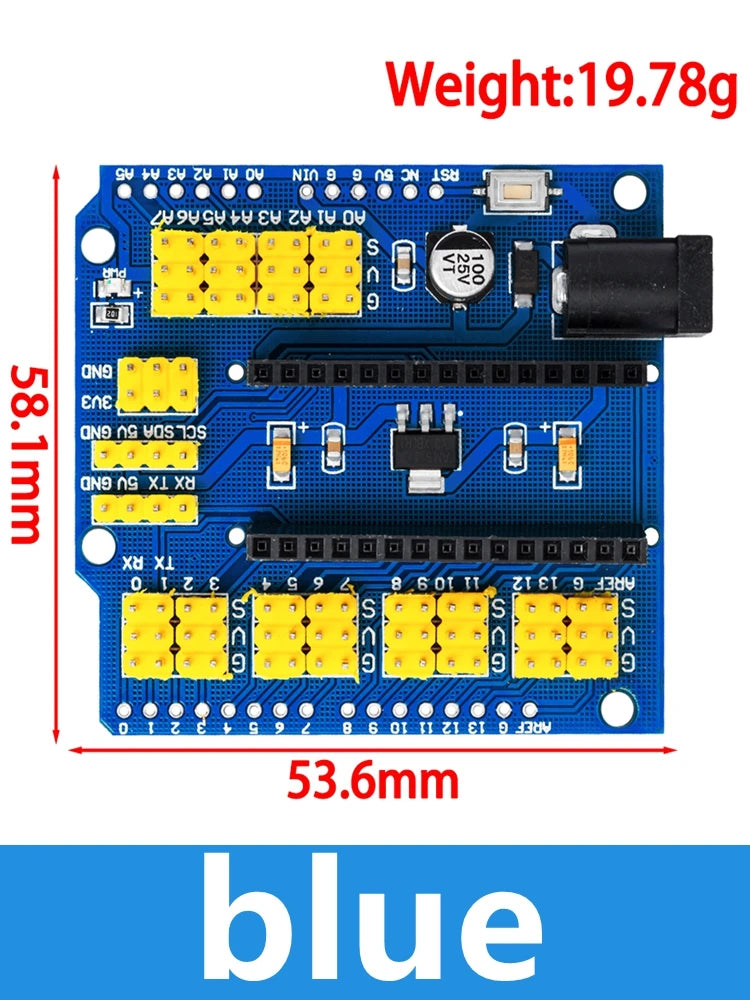

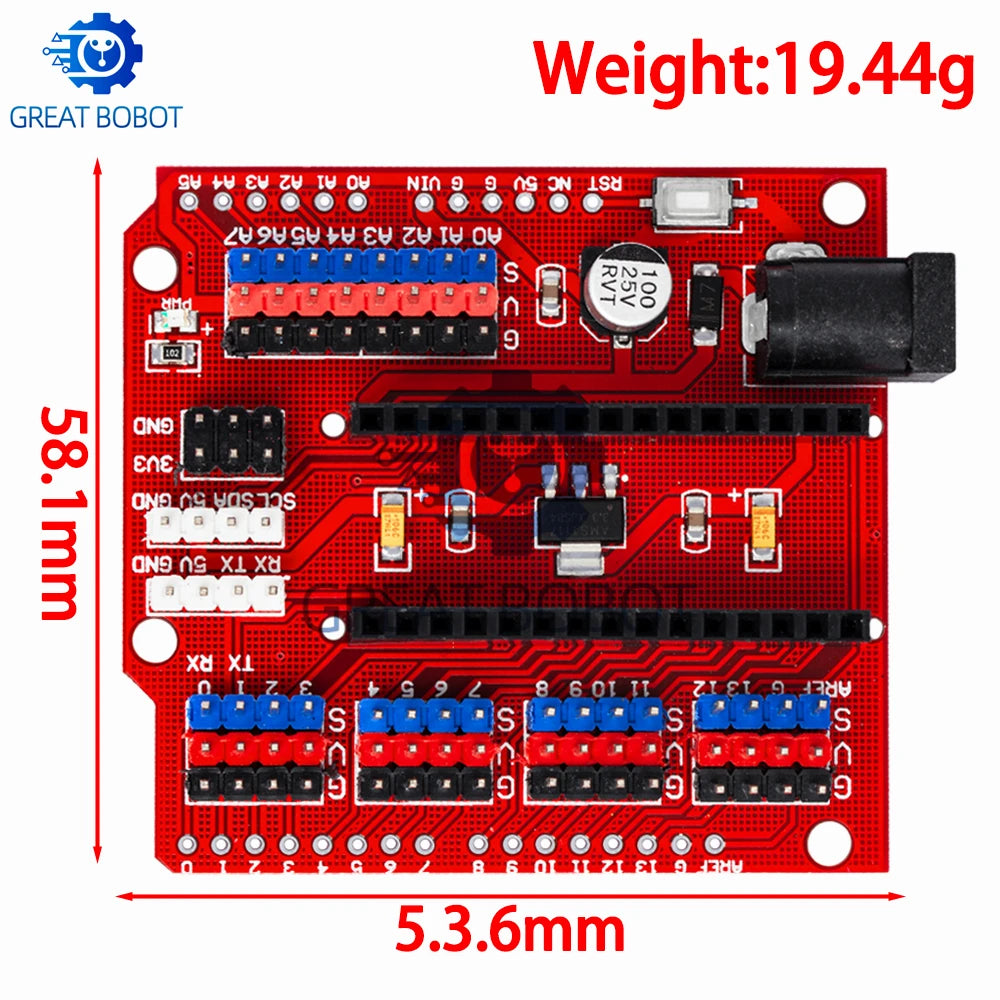

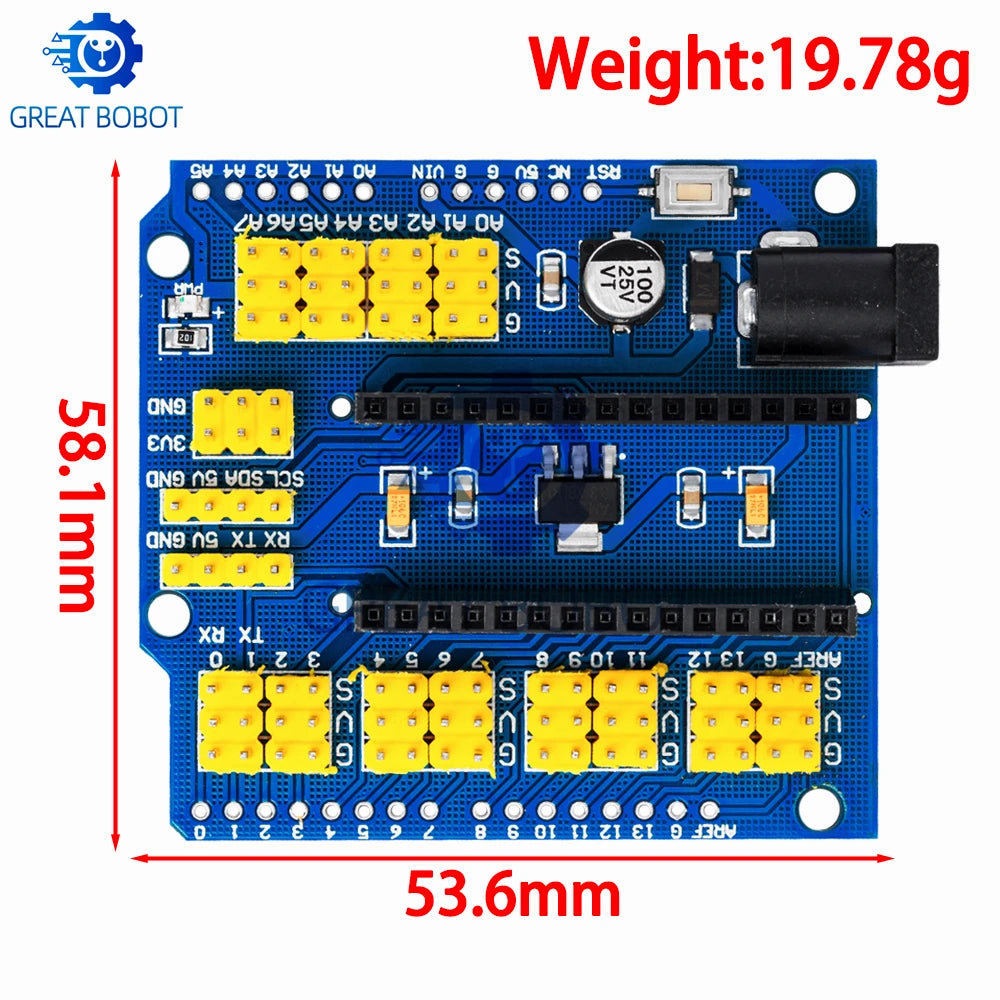

Specifications
- Compatible Boards: Arduino UNO R3, Nano V3.0, and compatible controllers
- Interface: I2C, PWM
- Output Voltage: 3.3V
- Supply Voltage: 7–12V
- Operating Temperature: -40°C to +85°C
- Package Type: SMD
- Quantity: 1 piece
- Country of Origin: Made in China
Who Is This For?
Whether you're a student building your first Arduino project, a hobbyist prototyping an IoT device, or a professional quickly testing sensor arrays, this sensor shield simplifies your wiring and speeds up development. Simply plug it onto your compatible Arduino board and start connecting modules right away.
Related Products You May Like
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: Is this sensor shield expansion module compatible with Arduino UNO R3 and Nano V3.0 boards?
A: Yes! This sensor shield is specifically designed for Arduino UNO R3 and Nano V3.0 compatible controller boards. It plugs directly onto the board's headers, providing easy access to I2C, PWM, and 3.3V interfaces for connecting sensors and peripherals.
Q: What interfaces does this expansion shield support?
A: The module supports I2C and PWM interfaces, as well as a 3.3V regulated output. This makes it straightforward to connect a wide range of sensors, servo motors, OLED displays, and other I2C or PWM-compatible components to your Arduino project.
Q: What is the recommended power supply voltage for this sensor shield?
A: The sensor shield expansion module accepts a supply voltage of 7–12V, which is the standard range for Arduino UNO R3 and Nano V3.0 boards. Connect power via your Arduino board's standard power input for reliable operation.
