SC Standard Cylinder Y-Type & I-Type Connector Fittings

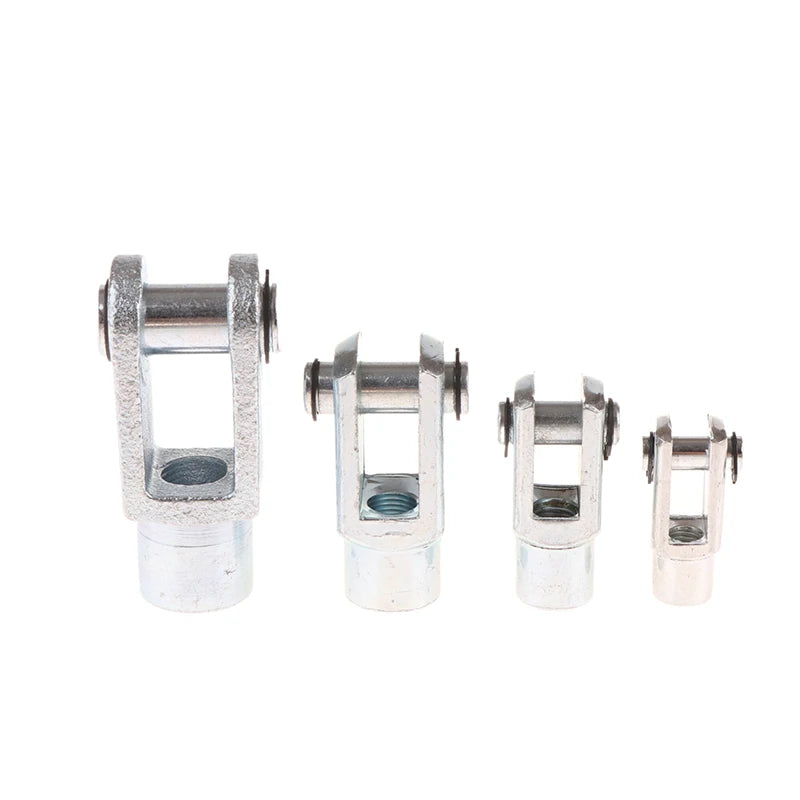

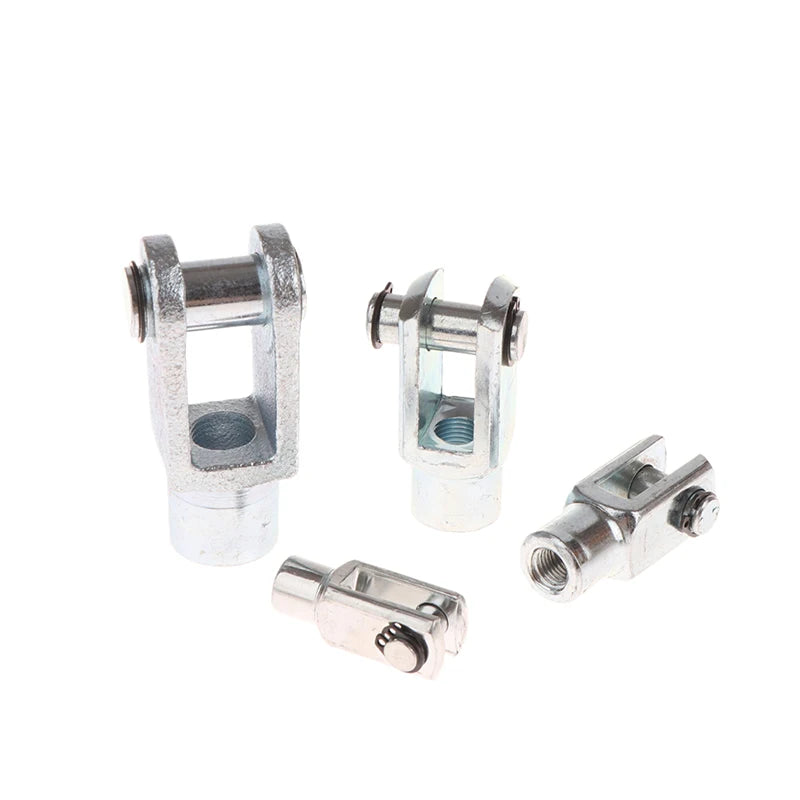

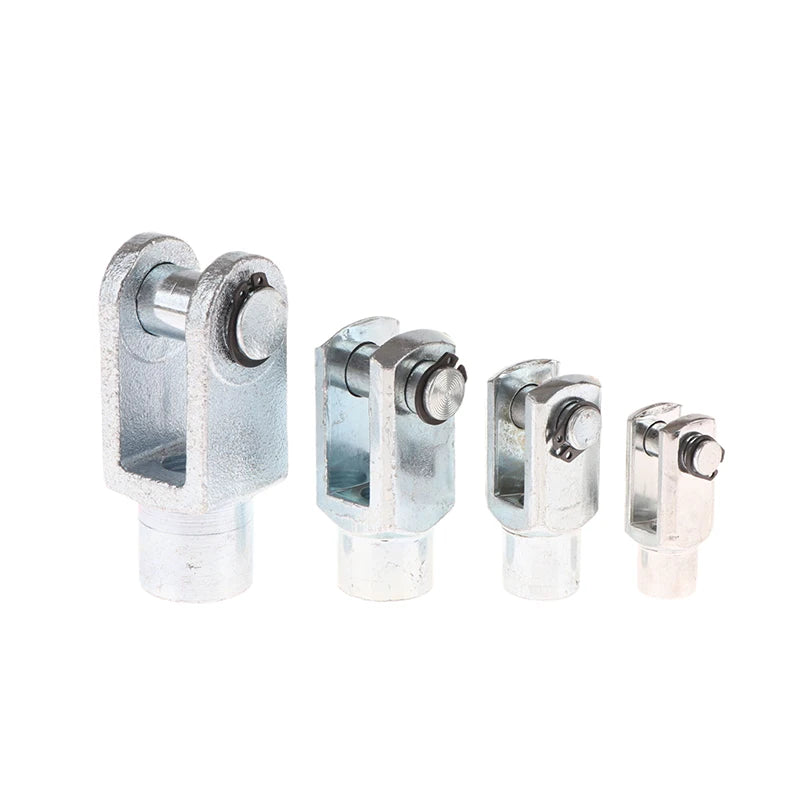

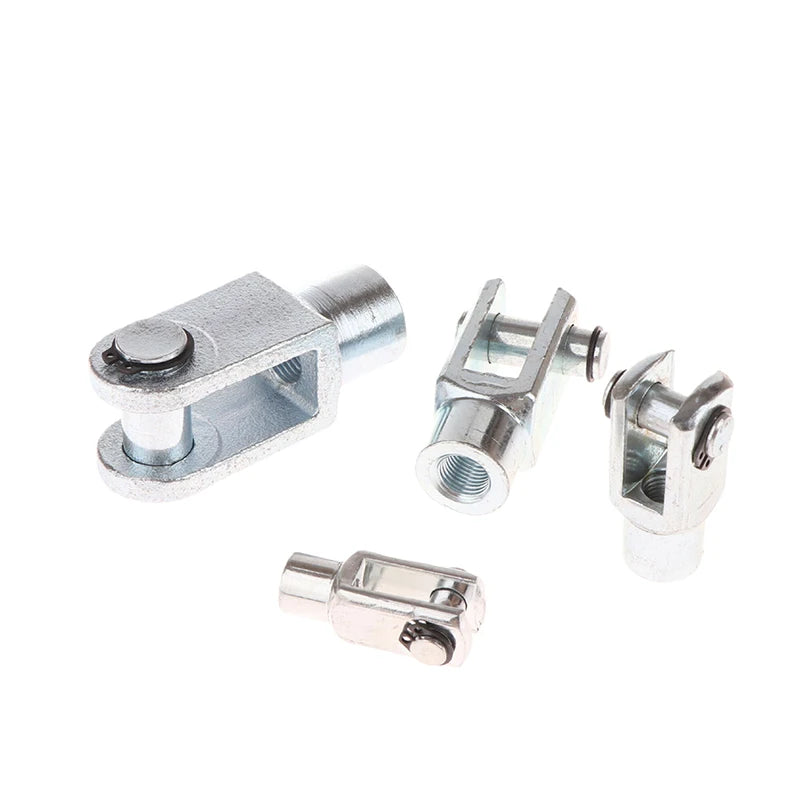

Keep your pneumatic systems running smoothly with these precision-made SC Standard Cylinder connector fittings. Whether you need a Y-type fork fitting (with pin) or an I-type clevis connector, this galvanized iron component is built to deliver reliable performance across a wide range of MAL and MA cylinder applications.
Key Features
- Universal Compatibility: Designed to fit various SC standard cylinders, including MAL and MA series — offering flexible installation options for different setups.
- Durable Galvanized Iron Construction: Iron galvanized material provides corrosion resistance and long-lasting structural integrity under demanding pneumatic conditions.

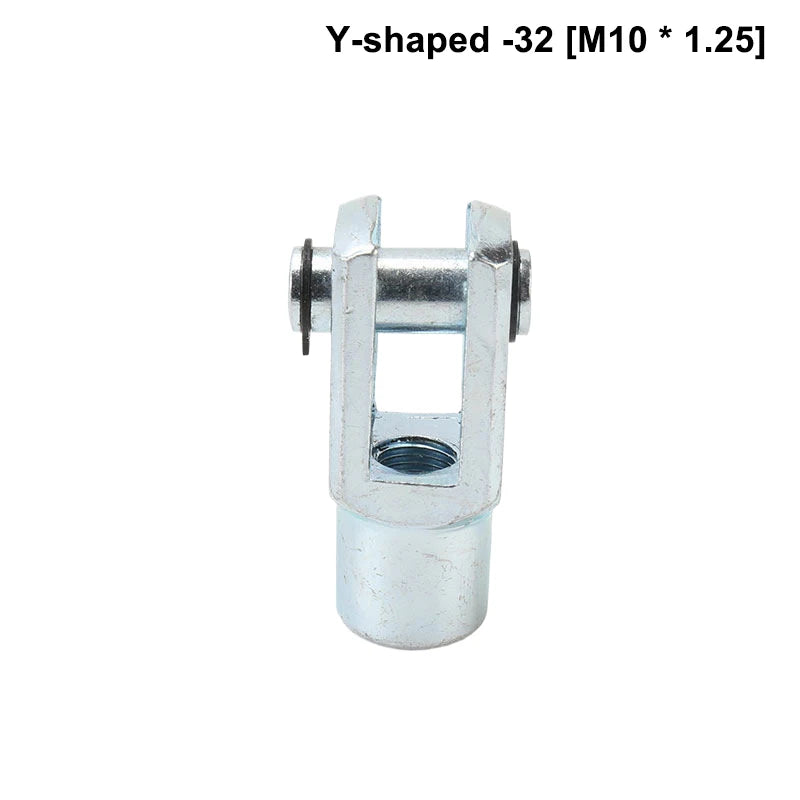

- Two Connector Styles Available: Choose between the Y-type fitting (with clevis pin) or the I-type connector to match your specific cylinder rod end requirement.
- Precision Fit: Manufactured to close tolerances for a secure, stable connection that minimizes play and maximizes transmission efficiency.
- Compact & Lightweight: Space-efficient design that integrates seamlessly into automated machinery, fixtures, and pneumatic assemblies.
Specifications
| Material | Iron Galvanized |
| Connector Types | Y-Type (with pin) / I-Type |
| Compatible Cylinders | SC Standard, MAL, MA Series |
| Package Contents | 1 pc |
| Country of Origin | Made in Mainland China |
What's in the Box?
1 × SC Cylinder Connector Fitting (Y-type or I-type, as selected)
Please Note
- Colors may vary slightly from on-screen images due to monitor brightness and lighting conditions. Please refer to the actual product received.
- Minor measurement deviations may occur due to manual measurement. Please allow a slight tolerance.
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- 360° Bicycle Chain Cleaner Tool | Bike Gear Cleaning Kit
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What cylinder types are these SC cylinder fittings compatible with?
A: These connectors are designed to work with SC standard pneumatic cylinders and are also compatible with MAL and MA series cylinders. Always confirm the rod thread size and cylinder bore before ordering to ensure a proper fit.
Q: What is the difference between the Y-type and I-type fittings?

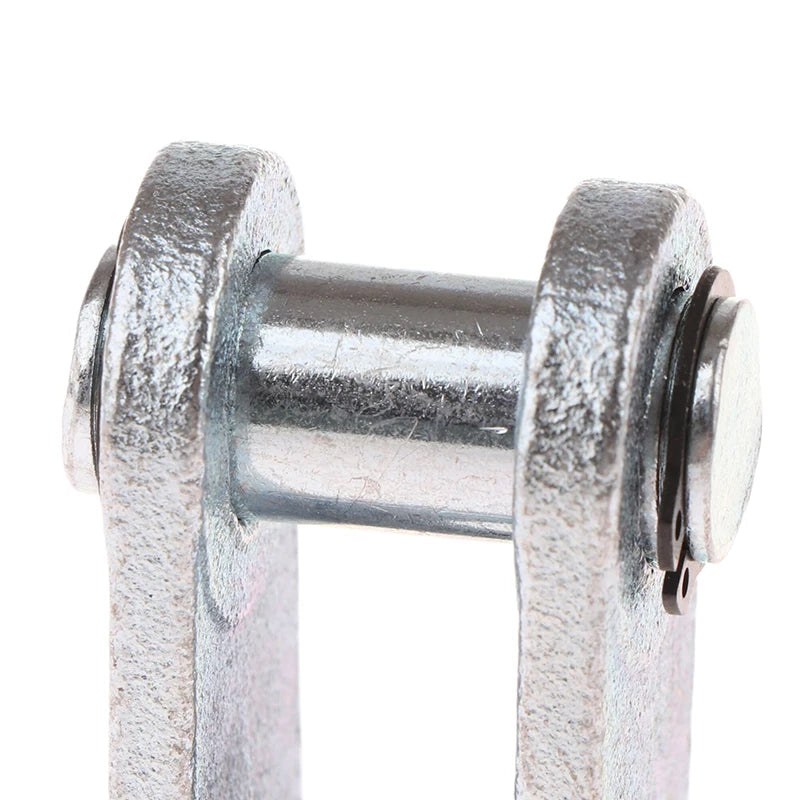

A: The Y-type (fork/clevis) fitting includes a clevis pin and is designed for pivot-point linkage connections, allowing angular movement. The I-type connector provides a straight, rigid rod-end connection. Choose based on your application's motion and mounting requirements.
Q: What material are these fittings made from, and are they corrosion resistant?
A: These fittings are made from galvanized iron, which provides a protective zinc coating that helps resist rust and corrosion, making them suitable for use in typical industrial and workshop pneumatic environments.
