RT18-32X DIN Rail Fuse Holder 1P–4P 500V 10×38mm | CE Certified
RT18-32X DIN Rail Fuse Holder 1P–4P 500V 10×38mm | CE Certified

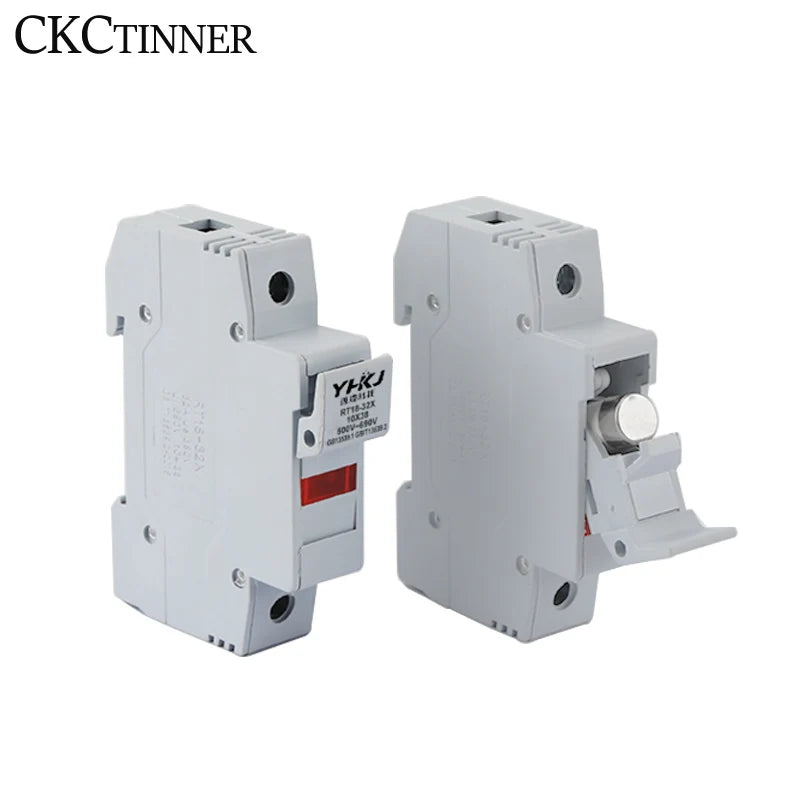

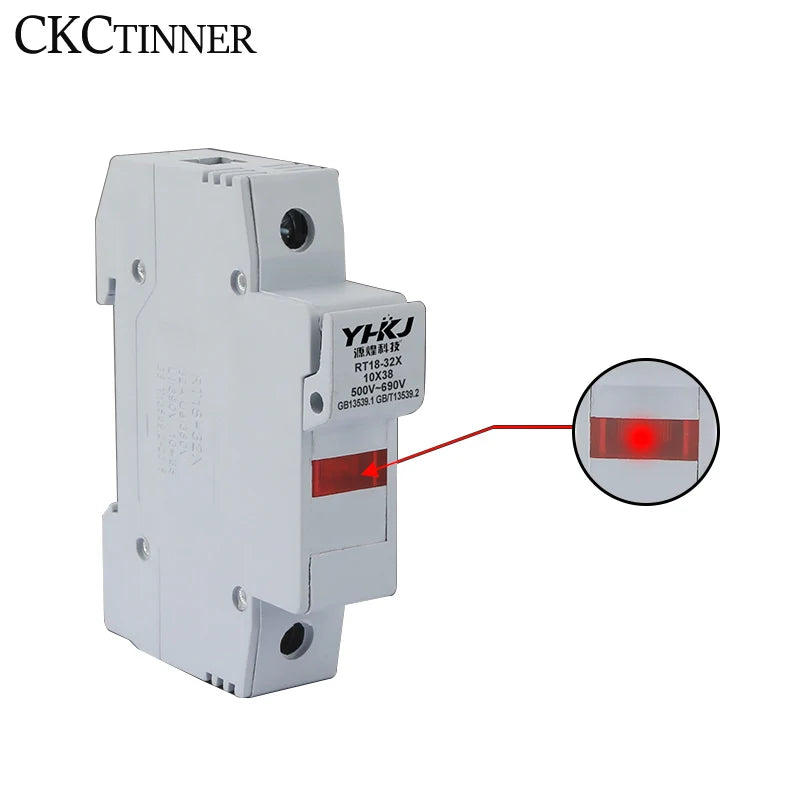

RT18-32X DIN Rail Fuse Holder – 1P, 2P, 3P & 4P | 500V AC | 10×38mm
The CKCTINNER RT18-32X Fuse Holder is a professional-grade, CE-certified ceramic fuse holder designed for industrial and commercial electrical panels. Compatible with 1-pole, 2-pole, 3-pole, and 4-pole configurations, this unit mounts securely on a standard DIN rail and ships complete with fuses included — everything you need right out of the box.
Built from high-quality ceramics and copper contacts, this fuse holder is engineered to handle AC voltages from 380V up to 500V, making it a dependable choice for high-voltage distribution boards, control panels, and industrial wiring installations. The bottom adapter design ensures a clean, organised installation while enabling quick and safe fuse access.
Made in Mainland China.
Key Features

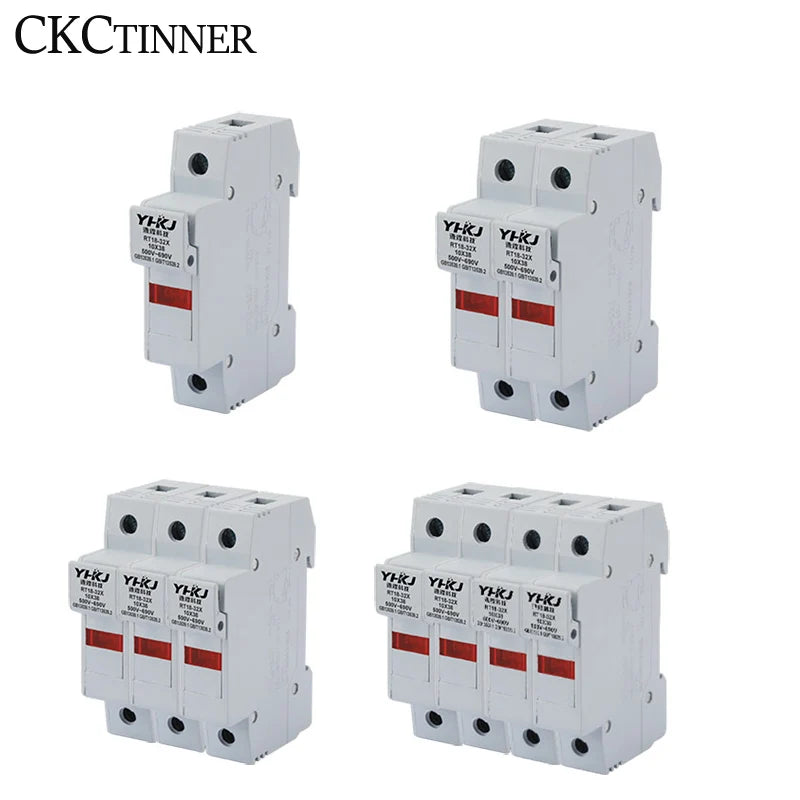

- Multi-Pole Options: Available in 1P, 2P, 3P, and 4P configurations to suit a wide range of panel layouts
- High Voltage Rated: Supports AC 380V–500V for demanding industrial environments
- 10×38mm Fuse Size: Accepts standard 10×38mm cylindrical fuses (included)
- Ceramic Construction: Superior heat resistance and electrical insulation for long-term reliability
- Copper Contacts: Excellent conductivity with low contact resistance

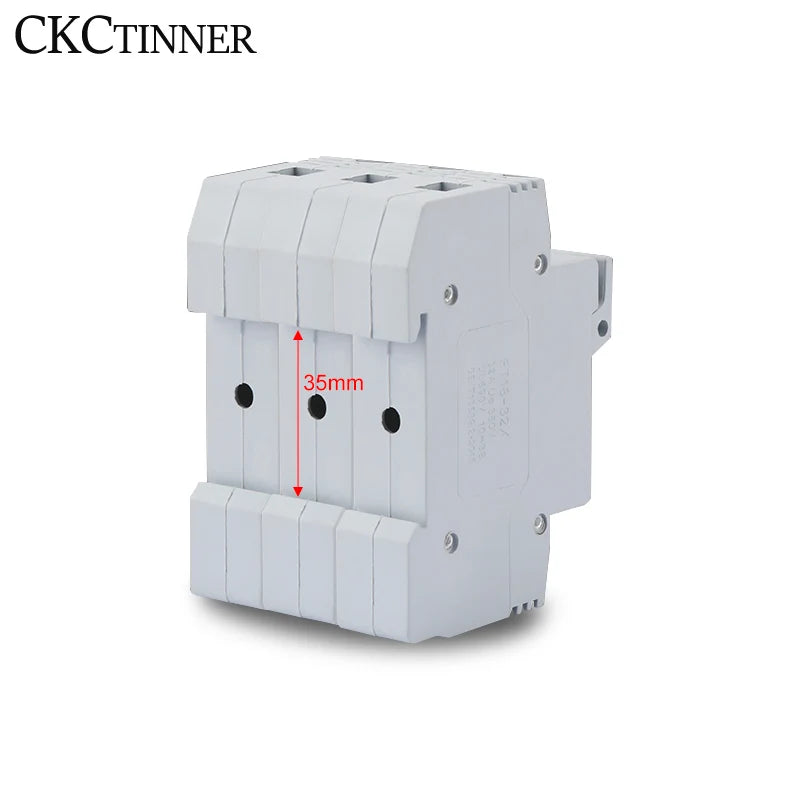

- Standard DIN Rail Mounting: Quick snap-on installation onto 35mm DIN rail
- Bottom Adapter Included: Neat cable entry from below for cleaner panel wiring
- CE Certified: Meets European safety and performance standards
- Model: RT-18-32X | Brand: CKCTINNER

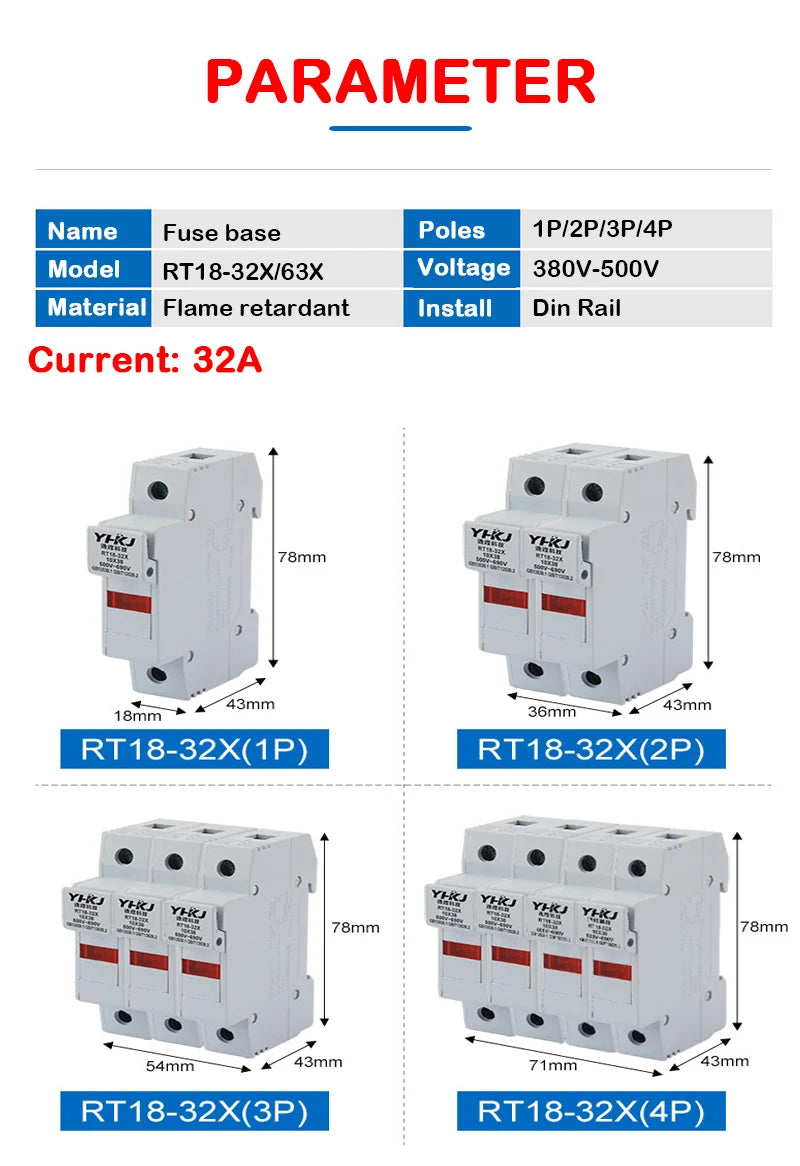

Specifications
| Brand | CKCTINNER |
| Model | RT-18-32X |

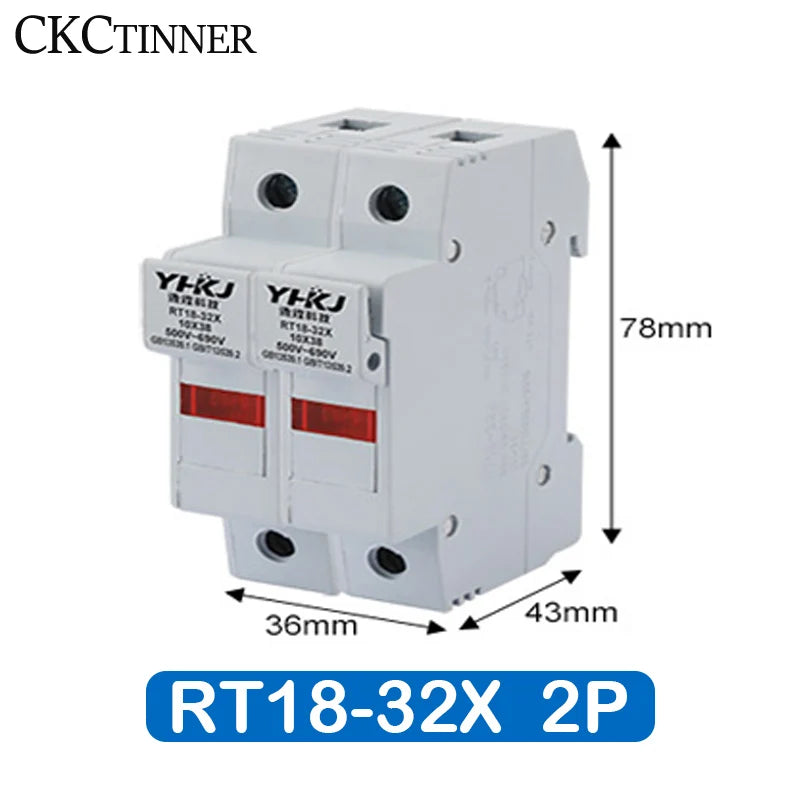

| Poles | 1P / 2P / 3P / 4P |
| Voltage Rating | AC 380V – 500V |
| Fuse Size | 10 × 38mm |
| Material | Ceramics & Copper |
| Mounting | 35mm DIN Rail |
| Certification | CE |
| Origin | Mainland China |
What's in the Box?
- RT18-32X Fuse Holder (selected pole configuration)
- Bottom DIN Rail Mounting Adapter
- 10×38mm Fuse(s) included
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What fuse size does the RT18-32X fuse holder use?
A: The RT18-32X fuse holder is designed for standard 10×38mm cylindrical fuses. Fuses are included with purchase, so you can install it immediately without sourcing additional components.
Q: What voltage is this fuse holder rated for?
A: This fuse holder is rated for AC 380V to 500V, making it suitable for industrial-grade electrical panels, control cabinets, and distribution boards operating within that voltage range.
Q: Does this fuse holder fit a standard DIN rail?
A: Yes — the RT18-32X features a snap-on design that mounts directly to a standard 35mm DIN rail. The included bottom adapter allows for neat, downward cable routing within your panel enclosure.
Q: Is this product CE certified?
A: Yes, the CKCTINNER RT18-32X Fuse Holder carries CE certification, confirming it meets the relevant European safety and electromagnetic compatibility standards for electrical components.
