Rotor & Stator Repair Kit with Carbon Brushes – Compatible with Makita HR4001C, HR4001CX, HR4011C, HR4013C & HR4003C
Keep your Makita rotary hammer running at peak performance with this complete Rotor & Stator Repair Kit. Designed as a direct-fit replacement for a range of Makita HR-series rotary hammers, this kit includes all the essential internal components you need to restore your tool's motor to full working condition — saving you the cost of a full tool replacement.
Made in Mainland China.

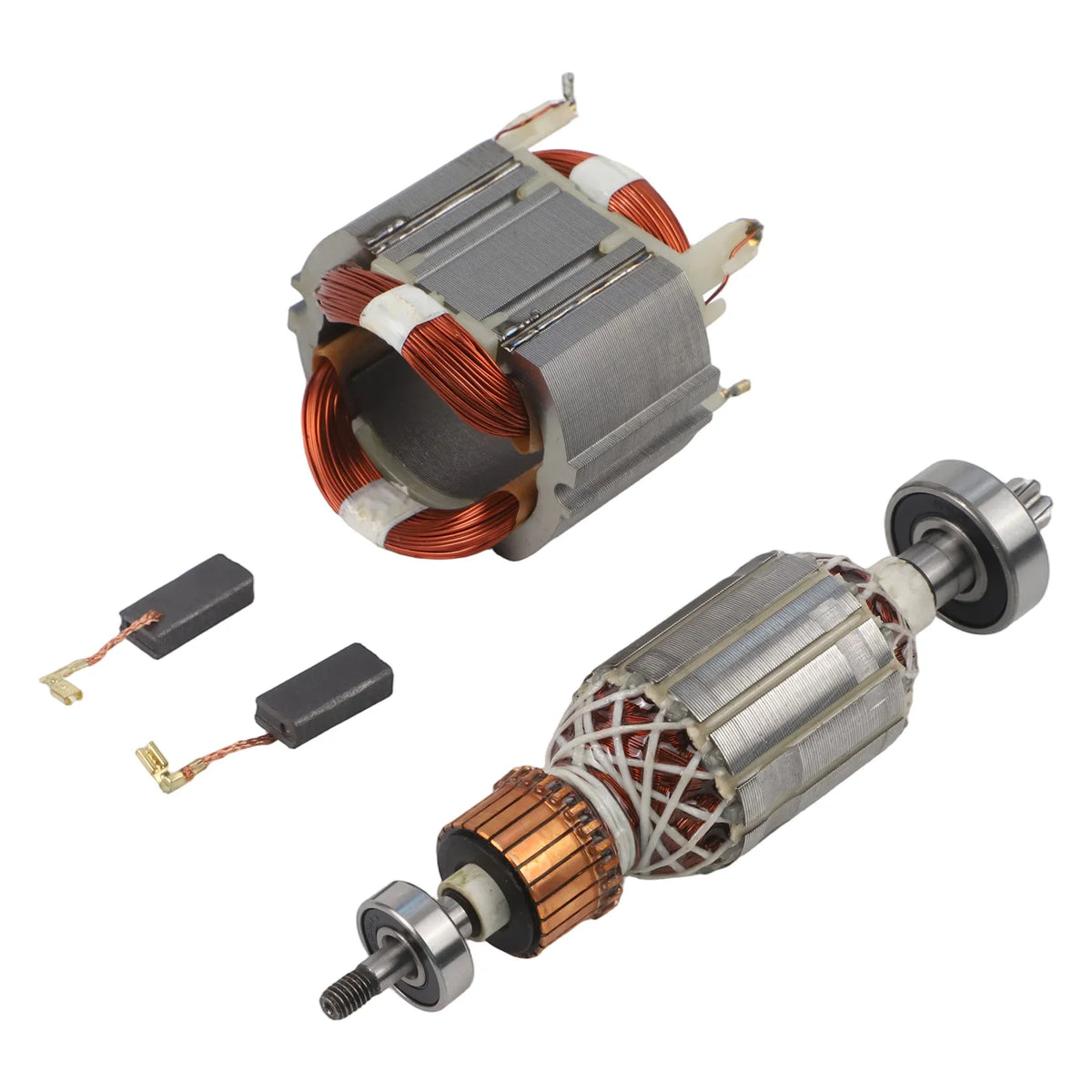

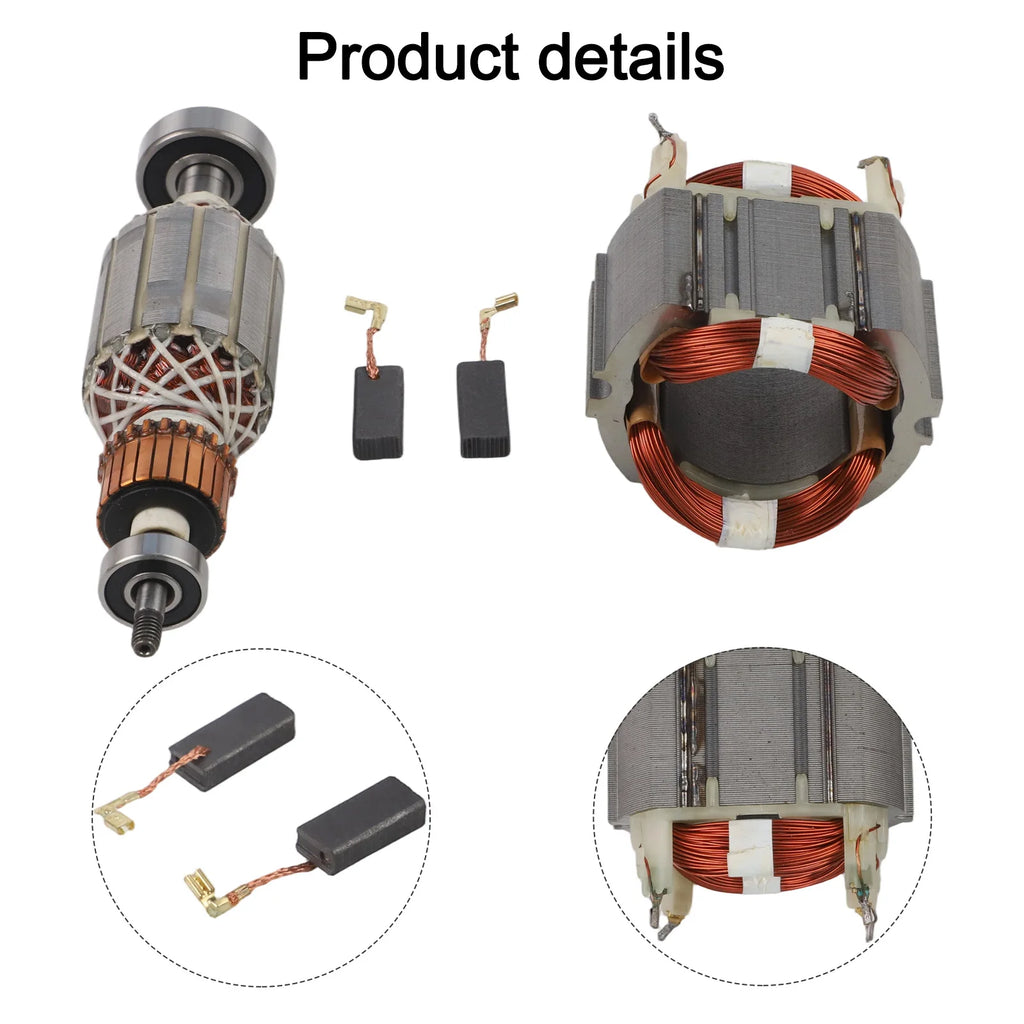

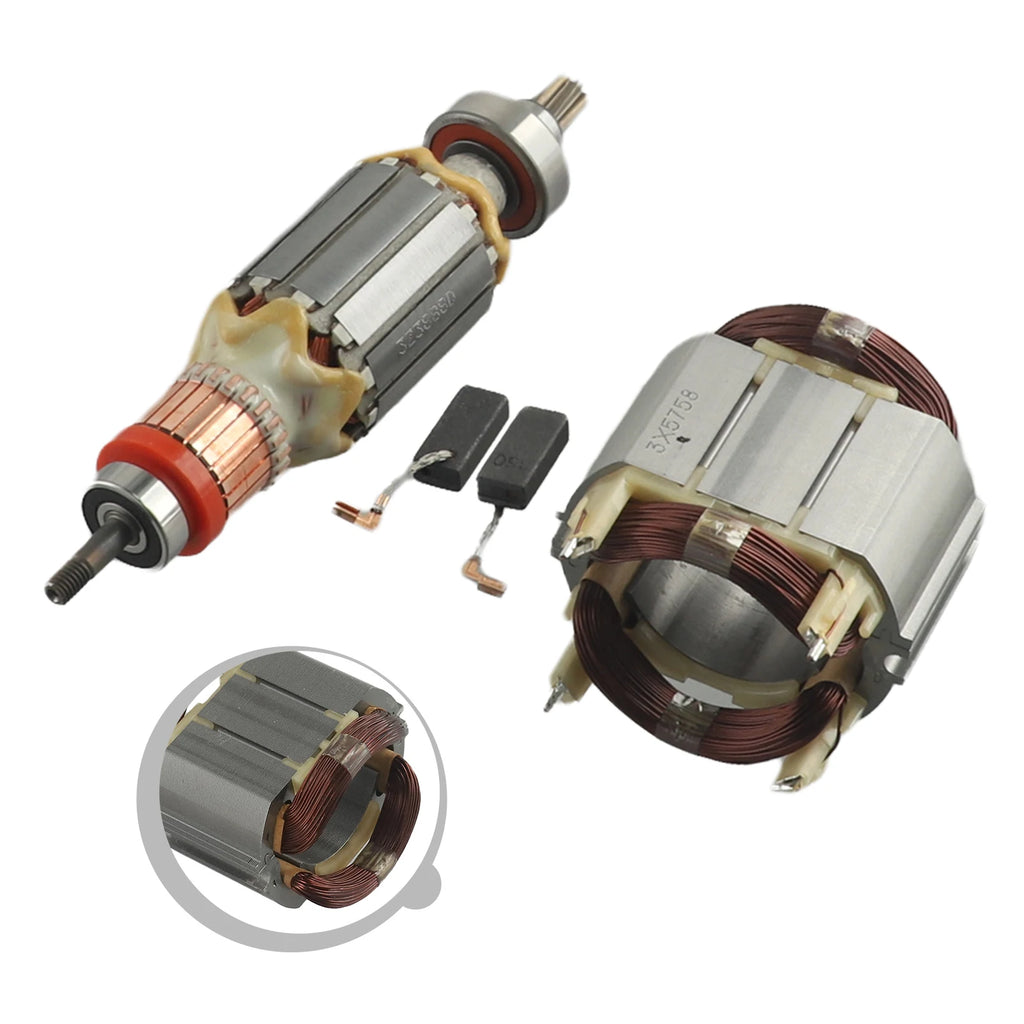

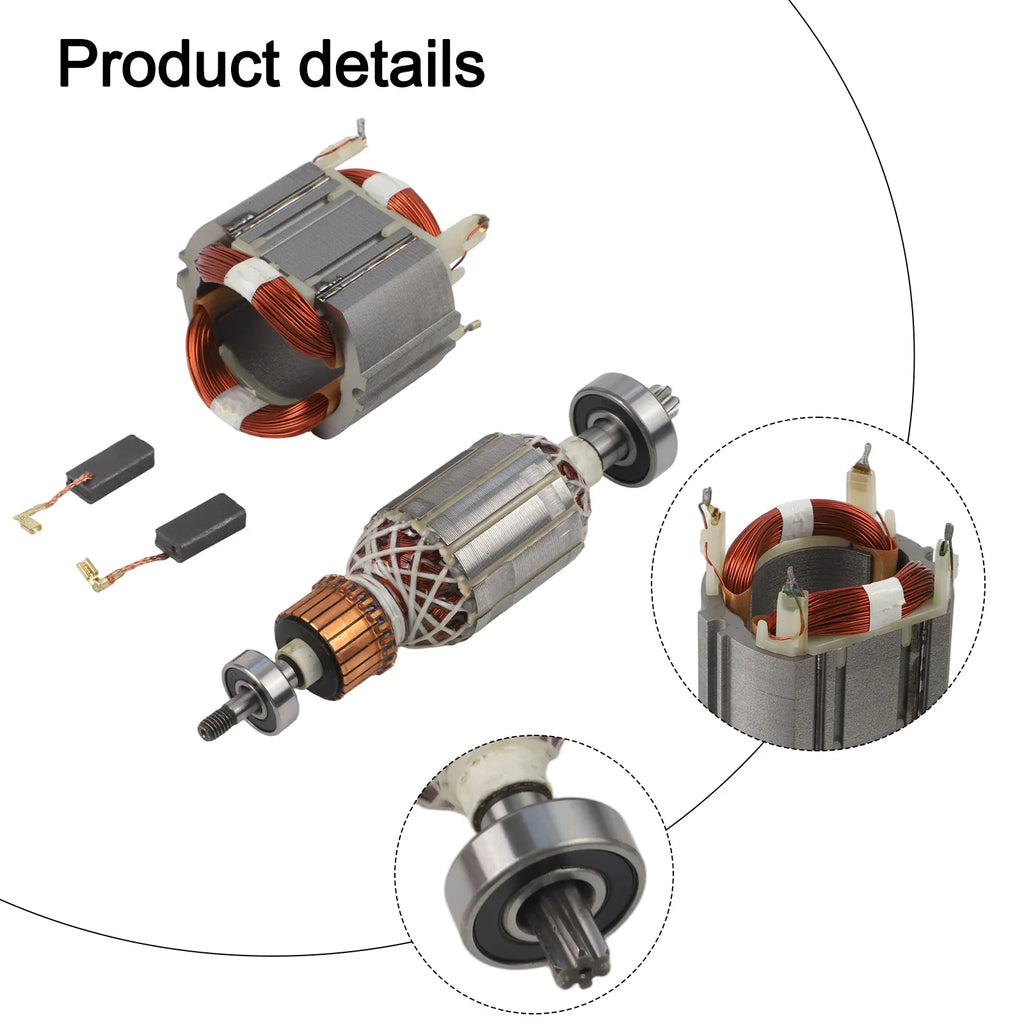

What's Included

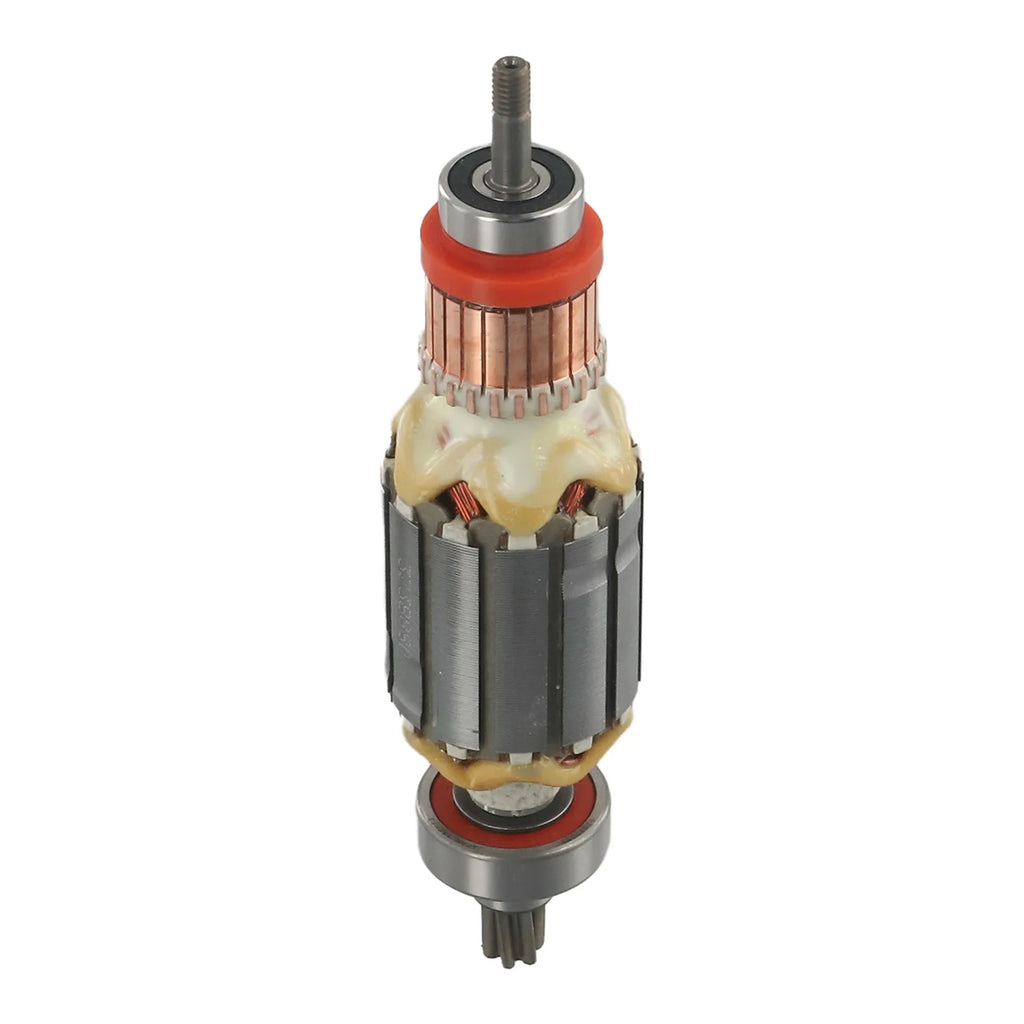

- 1× Rotor (Part No. 513888-4)
- 1× Stator (Part No. 625758-6)
- 2× Carbon Brushes (CB350 / 194160-9) – Size: 6.5 × 11 × 25 mm
Key Features
- Broad Compatibility: Fits Makita HR4001C, HR4001CX, HR4011C, HR4013C, and HR4003C rotary hammers
- Quality Metal Construction: Rotor and stator crafted from durable metal materials for long-lasting performance
- Precise Carbon Brush Size: 6.5 × 11 × 25 mm brushes ensure proper contact and efficient motor operation
- Genuine Part Numbers: Rotor 513888-4, Stator 625758-6, Carbon Brush CB350 / 194160-9 for easy cross-referencing
- Complete Kit: Everything you need in one package — no need to source parts separately
- Brand New / Unused: Supplied in new condition, ready for immediate installation
Specifications
| Compatible Models | HR4001C, HR4001CX, HR4011C, HR4013C, HR4003C |
| Material | Metal |
| Carbon Brush Size | 6.5 × 11 × 25 mm |
| Rotor Part No. | 513888-4 |
| Stator Part No. | 625758-6 |
| Carbon Brush Part No. | CB350 / 194160-9 |
| Package Quantity | 4 pcs (1 Rotor + 1 Stator + 2 Carbon Brushes) |
| Country of Origin | Mainland China |
Important Notes
- Actual color may vary slightly from product images due to monitor brightness and lighting conditions.
- Please allow for slight measurement deviations due to manual measurement.
Related Products You May Find Useful
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- 360° Bicycle Chain Cleaner Tool | Bike Gear Cleaning Kit
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: Which Makita rotary hammer models is this rotor and stator kit compatible with?
A: This repair kit is designed to fit the Makita HR4001C, HR4001CX, HR4011C, HR4013C, and HR4003C rotary hammer models. Always verify the part numbers (Rotor 513888-4, Stator 625758-6, Carbon Brush CB350/194160-9) against your tool's service manual before installation.
Q: What is included in this Makita HR4003C rotor kit?
A: The kit includes 1 rotor (513888-4), 1 stator (625758-6), and 2 carbon brushes (CB350 / 194160-9, each measuring 6.5 × 11 × 25 mm) — a total of 4 pieces, giving you everything needed for a complete motor service or rebuild.
Q: How do I know when to replace the carbon brushes on my Makita rotary hammer?
A: Common signs that carbon brushes need replacement include reduced tool power, intermittent operation, visible sparking at the motor, or the tool stopping unexpectedly during use. Regular inspection of the brushes during routine maintenance helps prevent unexpected downtime on the job site.
