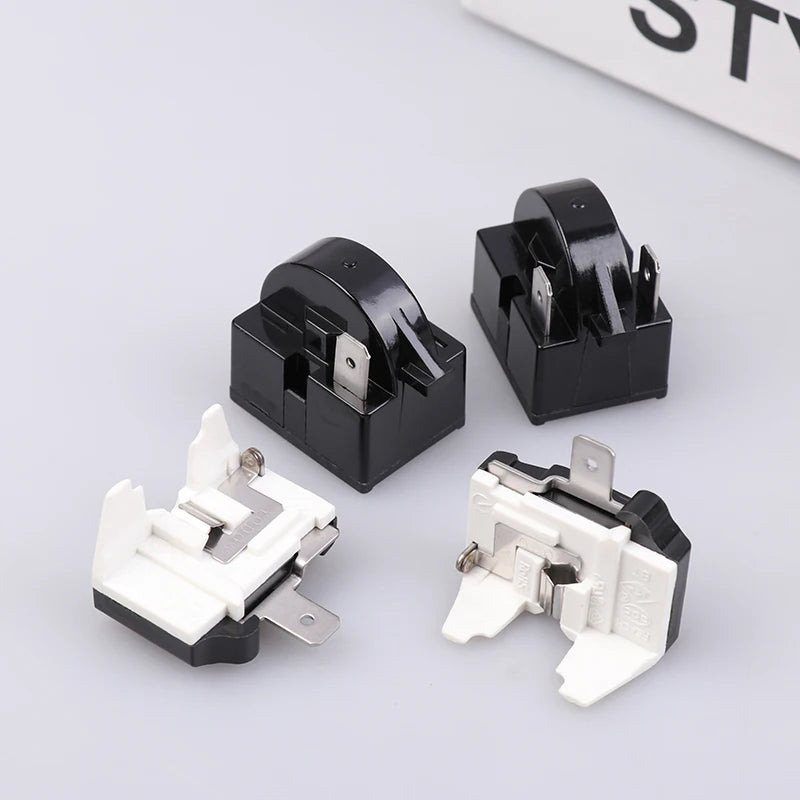

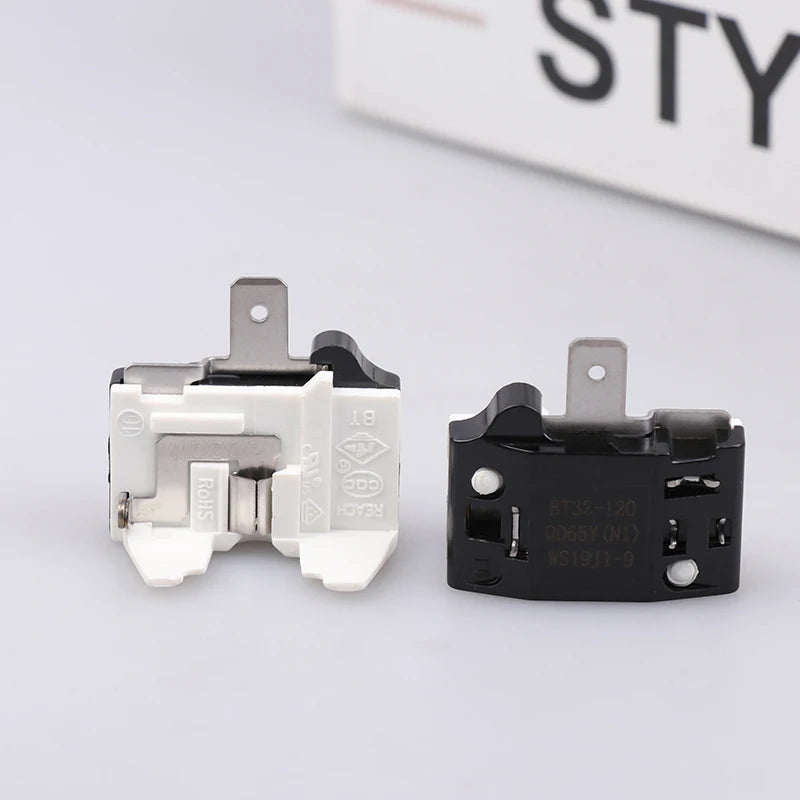

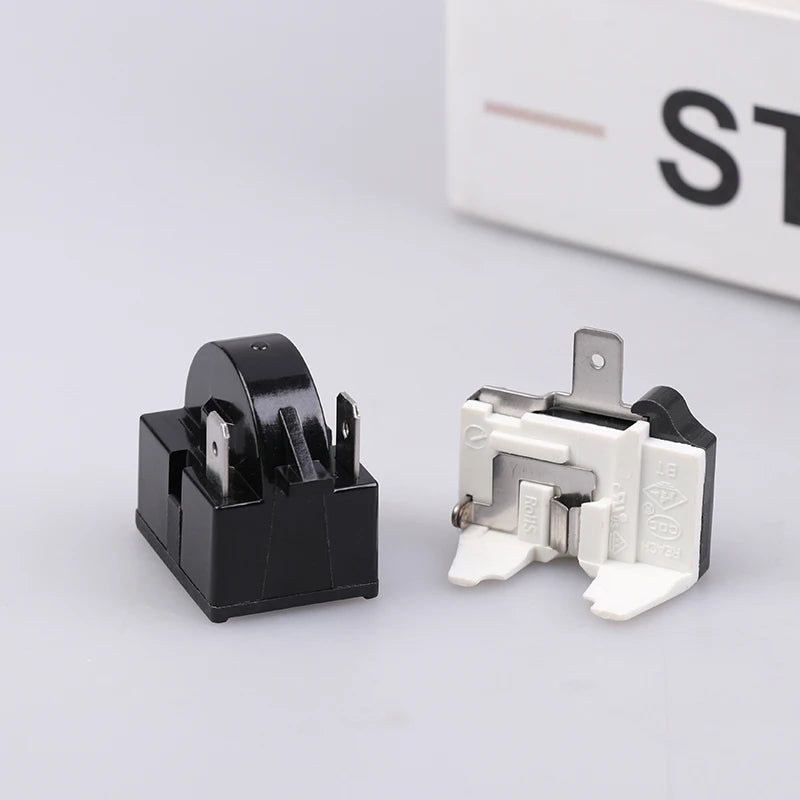

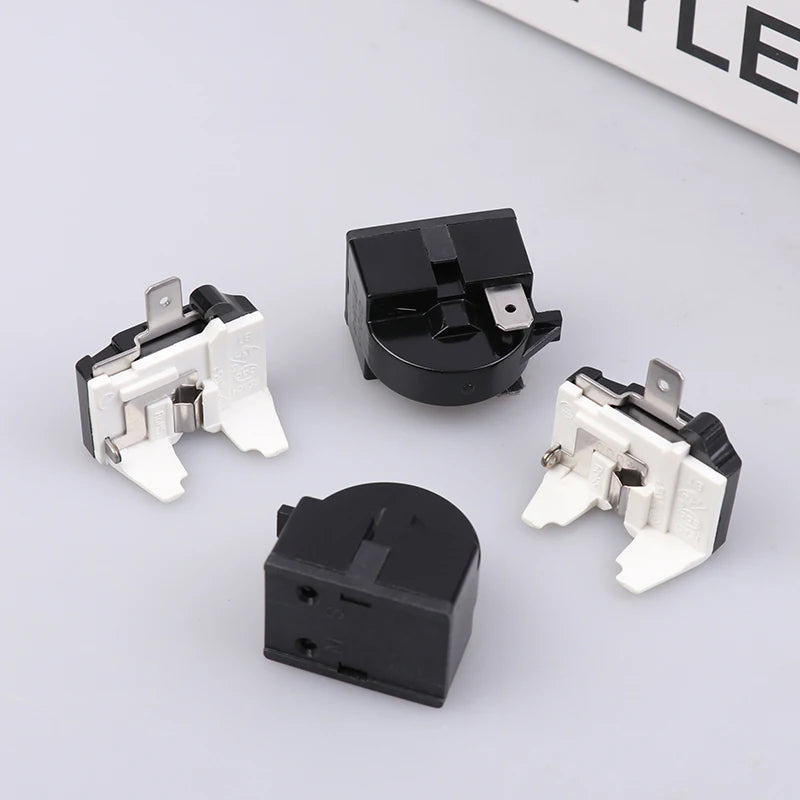

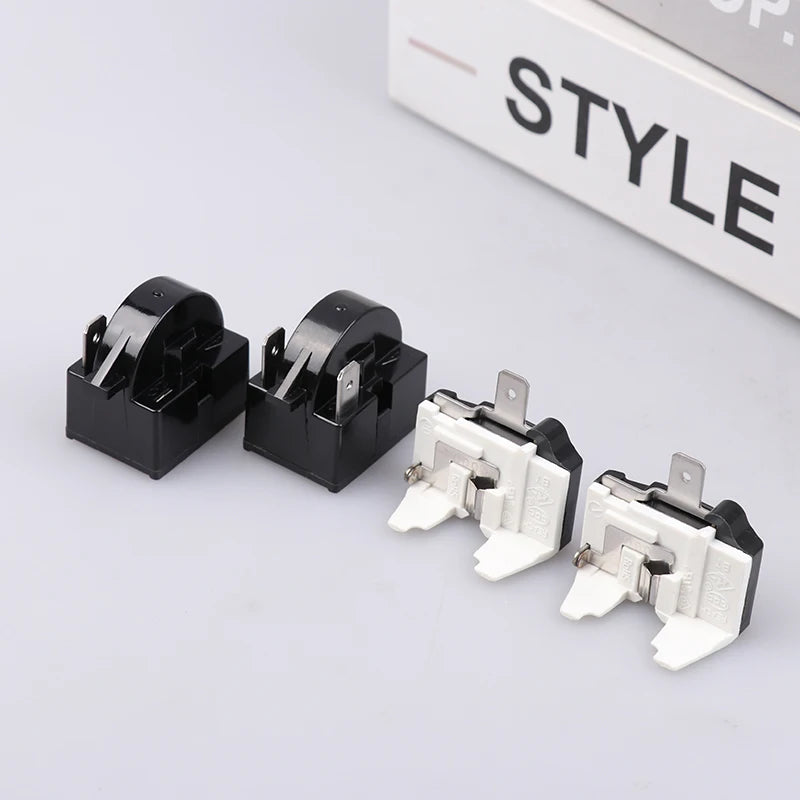

Refrigerator PTC Start Relay & Overload Protector 1/2 Pin 15Ω

Refrigerator Compressor PTC Start Relay & Overload Protector

Keep your mini refrigerator or cooler running smoothly with this high-quality PTC Start Relay and Overload Protector. Designed as a direct replacement part, this compact component works with a wide range of mini refrigerators, coolers, and air conditioning compressors. Available in 1-pin and 2-pin configurations, it's an easy, affordable fix to get your appliance back up and running fast.

Made in Mainland China.

Key Features

• Universal Compatibility: Suitable for various brands of mini refrigerators, coolers, and compressor units
• Dual-Function Design: Combines a PTC starting relay and overload protector in one convenient package
• Overload Protection: Automatically shuts down the compressor motor if it draws excessive current, protecting your appliance from damage
• 15 Ohm Resistance: Optimized for R600A/125W compressors (1/6HP rating)

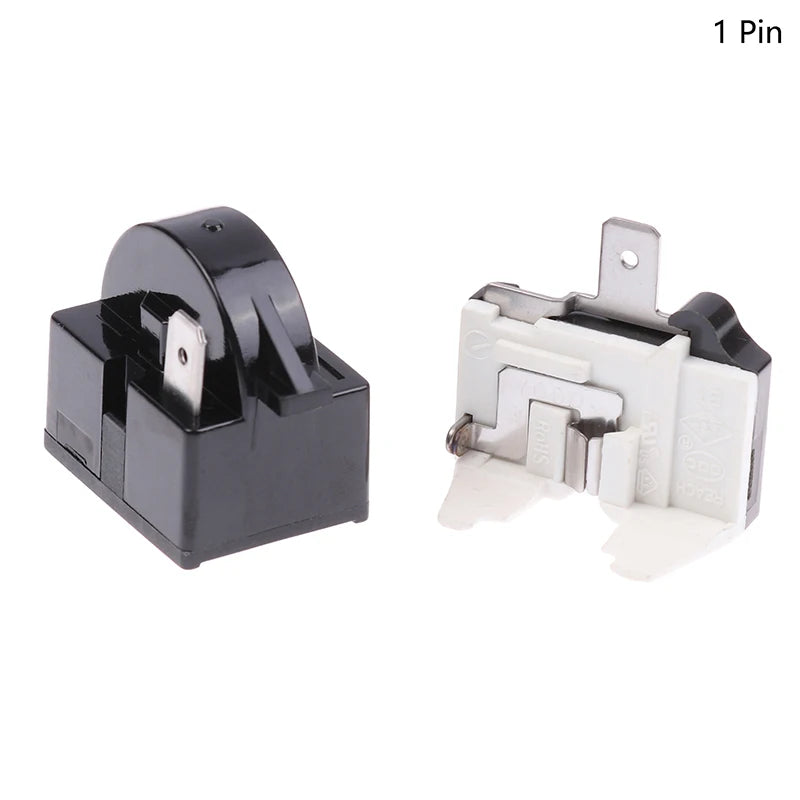

• 1-Pin & 2-Pin Options: Choose the configuration that matches your compressor socket
• High-Quality Materials: Durable plastic and metal construction for reliable, long-lasting performance
• Compact & Lightweight: Small form factor for easy installation — no special tools required
• Available in Black or White to suit different appliance interiors

Specifications

What's in the Box

• 1× Refrigerator PTC Starter Relay
• 1× Overload Protector

Important Notes

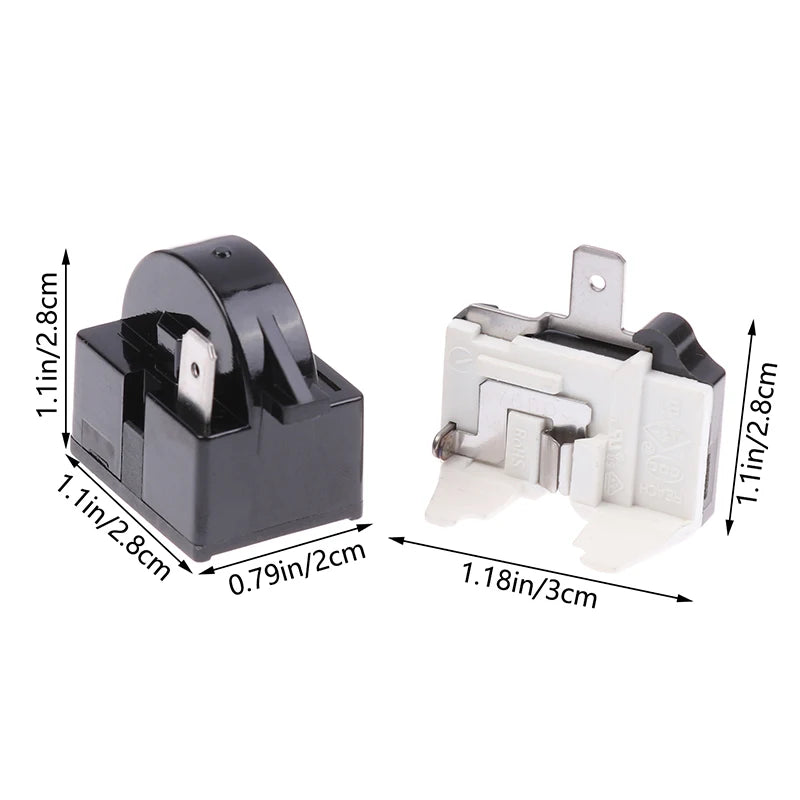

• Product images are for reference only; please refer to the written specifications for exact dimensions.
• Minor measurement variations may occur due to manual measurement.
• Colors may vary slightly depending on your monitor's display settings.
• Always disconnect power before replacing compressor components.

Looking for more handy home and appliance tools? Check out our BALASHOV 2500W Handheld Steam Cleaner – Kitchen, Car & Home or our Air Compressor Pressure Gauge 0–25 Bar | DIY Tool for more appliance and DIY essentials.

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: What refrigerators is this PTC start relay compatible with?

A: This PTC start relay and overload protector is designed to fit a wide variety of mini refrigerators, compact coolers, and air conditioning compressors rated at 1/6HP (R600A/125W). It is available in both 1-pin and 2-pin configurations to match different compressor sockets. Always verify your compressor's pin layout and resistance rating before ordering.

Q: How do I know if I need to replace my refrigerator's start relay?

A: Common signs that your start relay may need replacement include the refrigerator not cooling, the compressor clicking on and off repeatedly, or the appliance not starting at all. You can test the existing relay by shaking it — a rattling sound often indicates a faulty relay that needs to be swapped out.

Q: Is this relay easy to install yourself?

A: Yes! The PTC start relay is designed for straightforward DIY installation. Simply unplug your refrigerator, locate the compressor, remove the old relay by pulling it off the compressor terminals, and snap the new one into place. Always ensure the power is completely disconnected before beginning any repair work.

Q: What is the difference between the 1-pin and 2-pin versions?

A: The pin count refers to the number of electrical terminals on the relay that connect to your compressor. Different compressor models use different socket configurations. Check your existing relay or your appliance's service manual to confirm whether you need a 1-pin or 2-pin replacement before purchasing.
