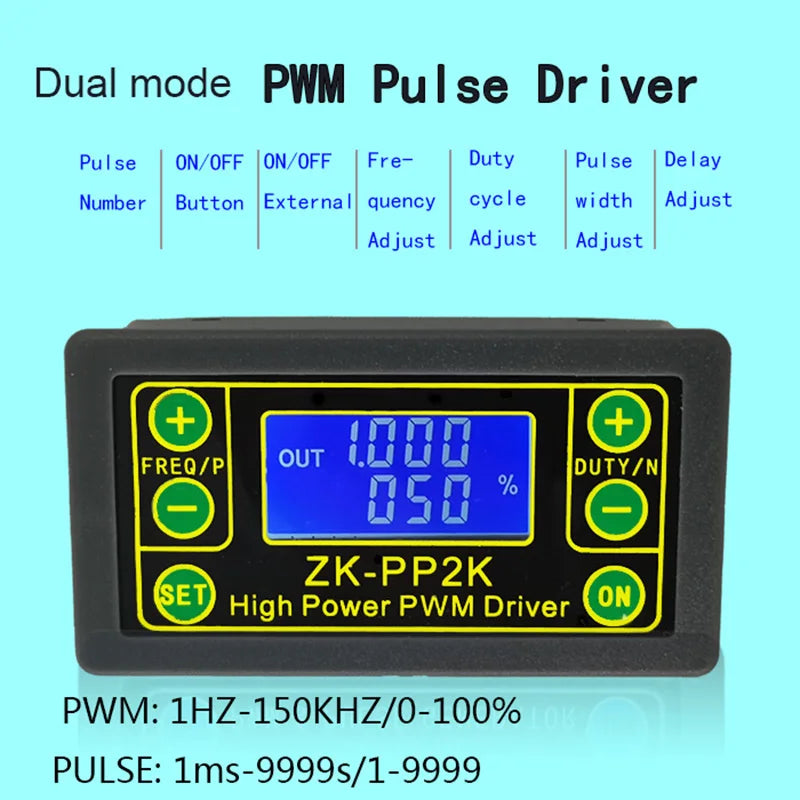

LOTHYE PP1K & PP2K Dual-Mode PWM Pulse Signal Generator

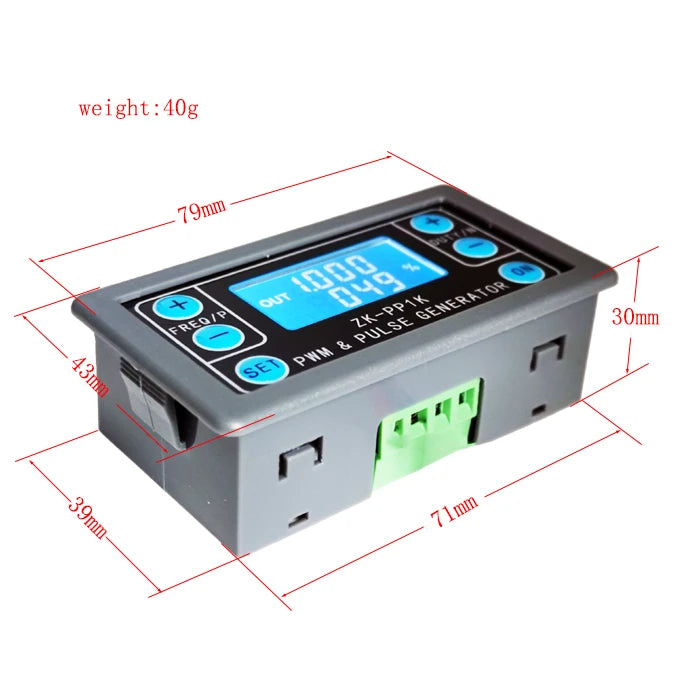

Take precise control of motors, LEDs, solenoid valves, and more with the LOTHYE PP1K and PP2K dual-mode PWM pulse signal generator modules. Whether you need a continuous square-wave signal or a fully programmable timed pulse sequence, these compact modules deliver professional-grade performance in a package measuring just 79 × 43 × 30 mm. Made in Mainland China.

Which Model Is Right for You?

  • PP1K – Signal-level output (up to 30 mA). Designed to feed signals to external motor drivers, stepper motor controllers, servo systems, electric grippers, and robot arms. Cannot directly drive high-current loads.

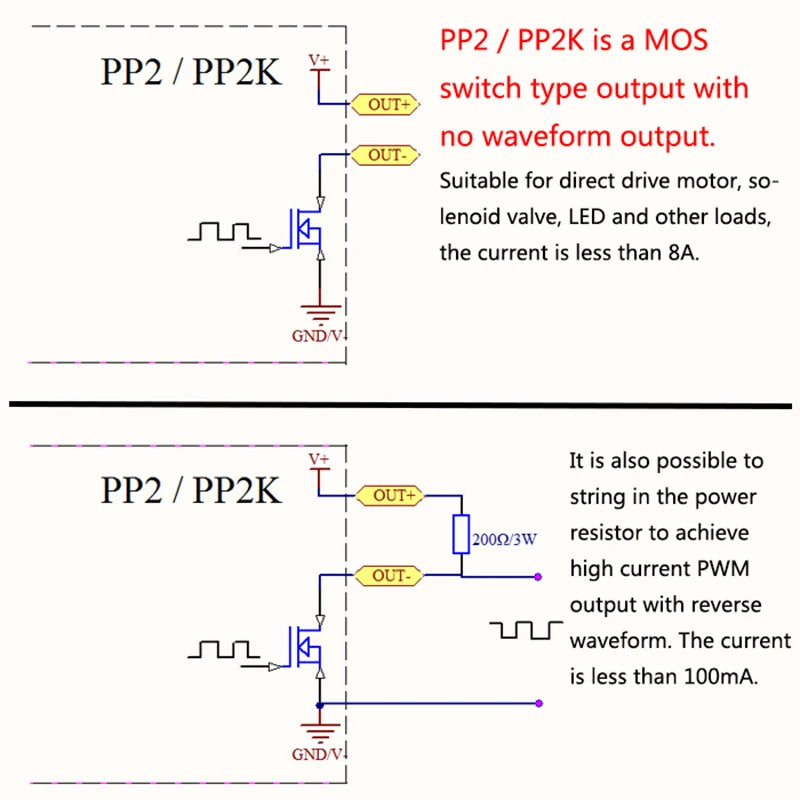

  • PP2K – High-power MOS-switch output (up to 8 A). Can directly drive LEDs, DC motors, and solenoid valves without a separate driver board. Note: waveform is only visible on an oscilloscope when a load is connected.

Two Powerful Operating Modes

PWM Mode (Continuous)

Set frequency and duty cycle independently. The module continuously outputs a square wave — ideal for motor speed adjustment, LED brightness dimming, and general PWM control applications. Factory defaults: 1 kHz frequency, 50% duty cycle. The "%" symbol on the LCD confirms PWM mode is active.

PULSE Mode (Programmable)

Set positive pulse width, negative pulse width, power-on delay time, and total pulse count — all independently. Outputs a precise number of pulses (1–9999) or runs in an infinite loop. Perfect for controlling stepper motor revolution counts, solenoid valve cycling, timed load switching, and automated switch fatigue testing. No "%" on the display confirms PULSE mode.

Key Features

  • Wide input voltage range: 3.3 V – 30 V
  • Frequency range: 1 Hz – 150 kHz (~1–2% accuracy)
  • Duty cycle: 0–100% in 1% steps
  • Pulse count: 1–9999 or infinite (displayed as "----")
  • Delay output time: 0.000 s – 9999 s (1 ms minimum resolution)
  • Positive/negative pulse width: 0.000 s – 9999 s (1 ms minimum resolution)
  • PP1K signal load capacity: < 30 mA | PP2K load capacity: < 8 A (MOS switch)
  • Output amplitude equals supply voltage
  • Built-in start/stop button; supports external switch for remote ON/OFF control
  • PP1K includes anti-reverse polarity protection
  • 5.08 mm terminal block wiring for easy connection
  • All settings retained after power-off
  • Compact size: 79 × 43 × 30 mm

Typical Application Examples

  1. Motor speed control: PWM mode at 20 kHz, 60% duty cycle → smooth DC motor speed regulation.
  2. LED dimming: Adjust frequency and duty cycle to set precise brightness levels.
  3. Solenoid valve cycling: PULSE mode, positive width 0.600 s, negative width 0.200 s, infinite loop.
  4. Delayed start: PULSE mode, delay = 5.000 s, then infinite on/off cycle.
  5. Precise stepper motor positioning: PULSE mode, set exact pulse count to control number of revolutions.
  6. Switch fatigue / reliability testing: Automate thousands of ON/OFF cycles to verify equipment durability.

Technical Specifications at a Glance

Parameter PP1K PP2K
Working Voltage 3.3 – 30 V (with anti-reverse protection) 3.3 – 30 V (observe polarity)
Frequency Range 1 Hz – 150 kHz (±1%) 1 Hz – 150 kHz (±2%)
Duty Cycle 0–100%, 1% step 0–100%, 1% step
Pulse Count 1–9999 or infinite 1–9999 or infinite
Delay Output 0.000 – 9999 s (1 ms min) 0.000 – 9999 s (1 ms min)
Output Load Capacity < 30 mA < 8 A (MOS switch)
Output Amplitude = Supply voltage = Supply voltage
Dimensions 79 × 43 × 30 mm

Related Products You May Like

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What is the difference between the PP1K and PP2K PWM signal generator modules?

A: The PP1K outputs a low-power signal (up to 30 mA) intended to drive external motor driver boards, stepper motor controllers, servo amplifiers, or other signal-level inputs. It also features built-in anti-reverse polarity protection. The PP2K uses a high-power MOS transistor switch output rated up to 8 A, so it can directly drive DC motors, LEDs, and solenoid valves without a separate driver. Both modules share the same dual-mode (PWM + PULSE) functionality and the same frequency/duty cycle range.

Q: How do I switch between PWM mode and PULSE mode on the module?

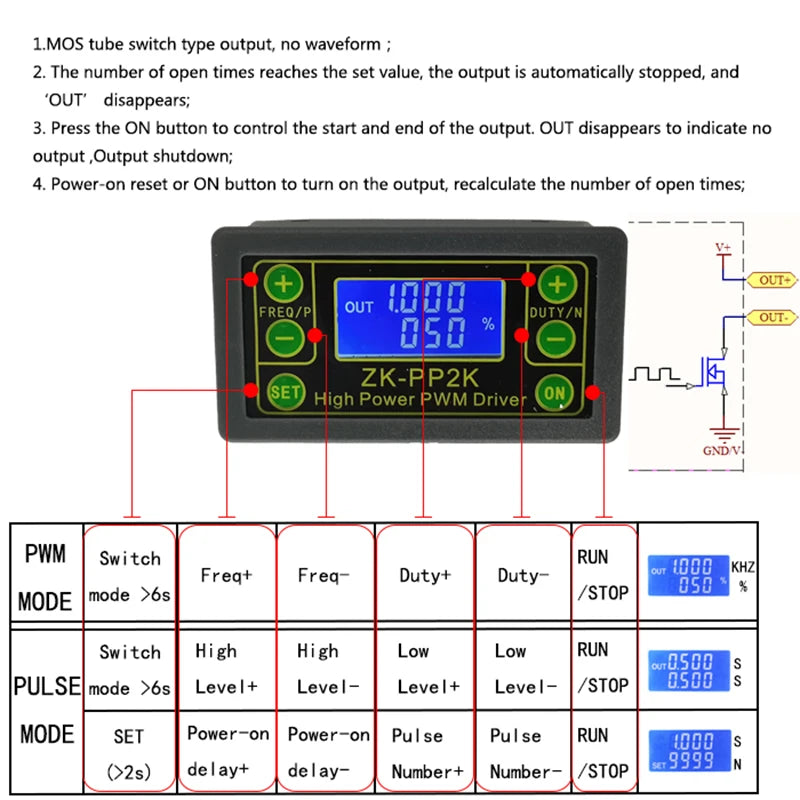

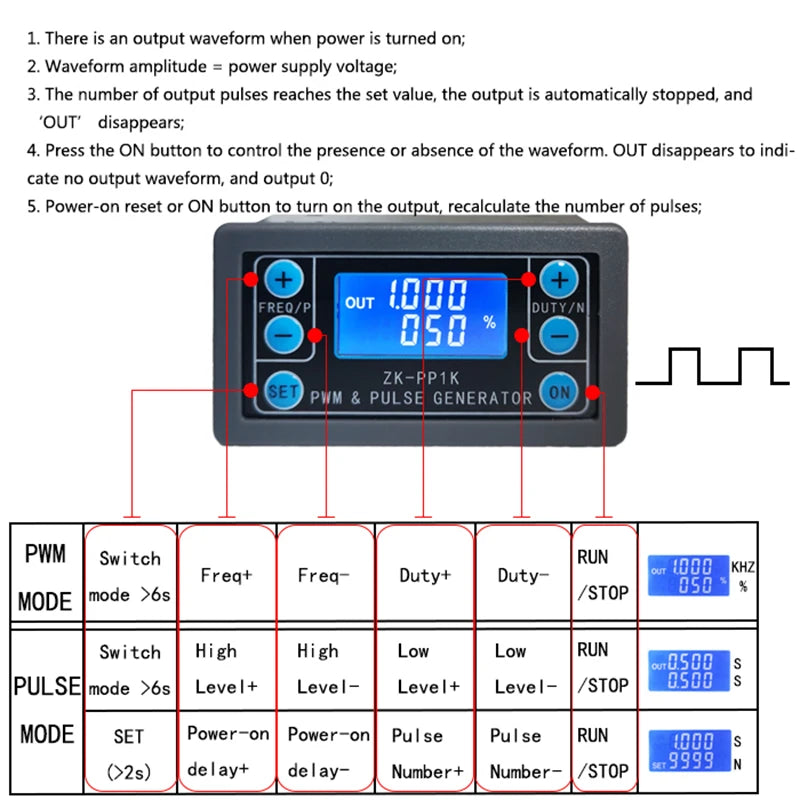

A: The module powers on in PWM mode by default (a "%" symbol is shown on the LCD). To switch to PULSE mode, press and hold the SET button for more than 6 seconds until the "%" symbol disappears from the display. To switch back, repeat the long-press. All parameters are stored in non-volatile memory, so your settings are preserved after power-off.

Q: Can I set a timed delay before the output starts?

A: Yes. In PULSE mode, press and hold the SET button for approximately 2 seconds to enter the pulse count and delay time settings interface. Use the P+/P− buttons to set the delay time (0.000 s up to 9999 s, with 1 ms resolution) and the N+/N− buttons to set the number of output pulses (1–9999 or infinite). Press SET again to return to the main pulse interface, then press ON to begin — the module will wait the specified delay before emitting pulses.

Q: What input voltage range is supported, and is reverse polarity protection included?

A: Both modules support a wide input voltage range of 3.3 V to 30 V, making them compatible with common power supplies including 5 V, 12 V, and 24 V systems. The PP1K includes built-in anti-reverse polarity protection. The PP2K does not include this protection, so ensure correct polarity before connecting power to avoid damage.

Q: What is the maximum frequency this PWM generator can output?

A: Both the PP1K and PP2K support a frequency range of 1 Hz up to 150 kHz. The PP1K has approximately ±1% frequency accuracy; the PP2K is approximately ±2%. For DC motor speed control applications, a frequency of 20 kHz is typically recommended to keep switching noise outside the audible range.
