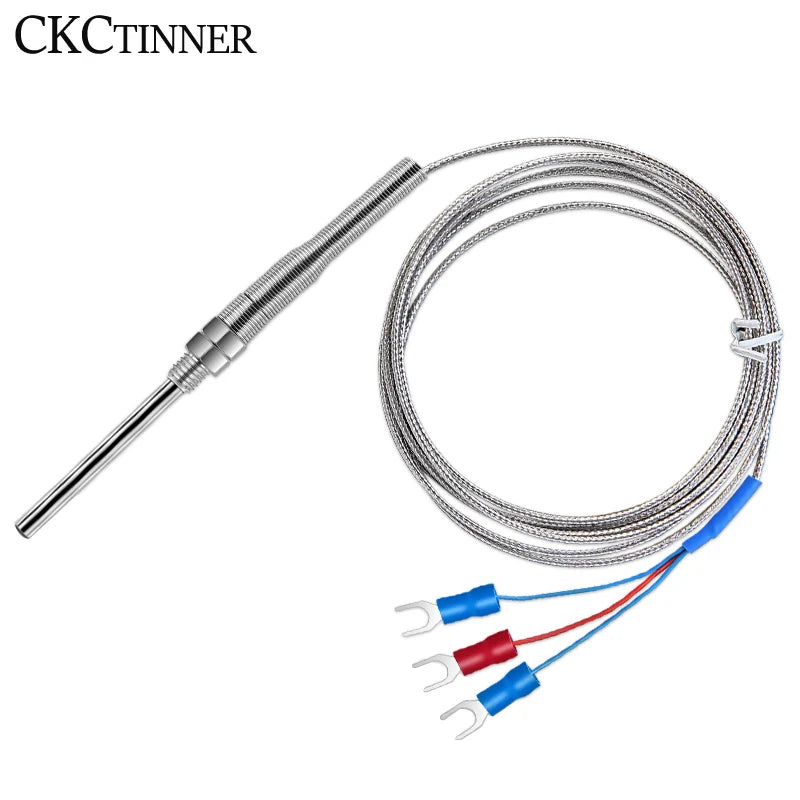

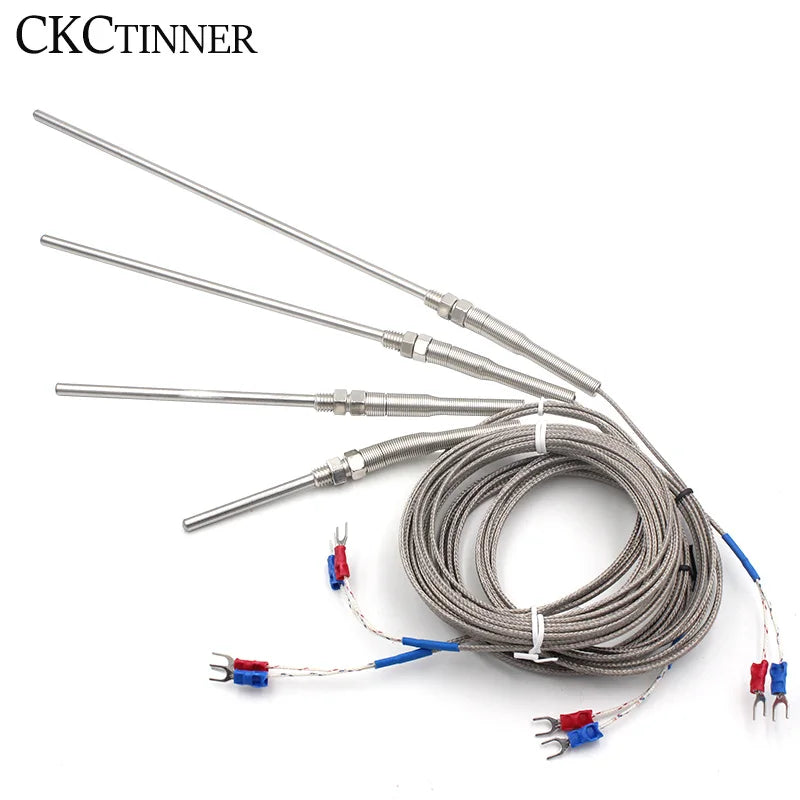

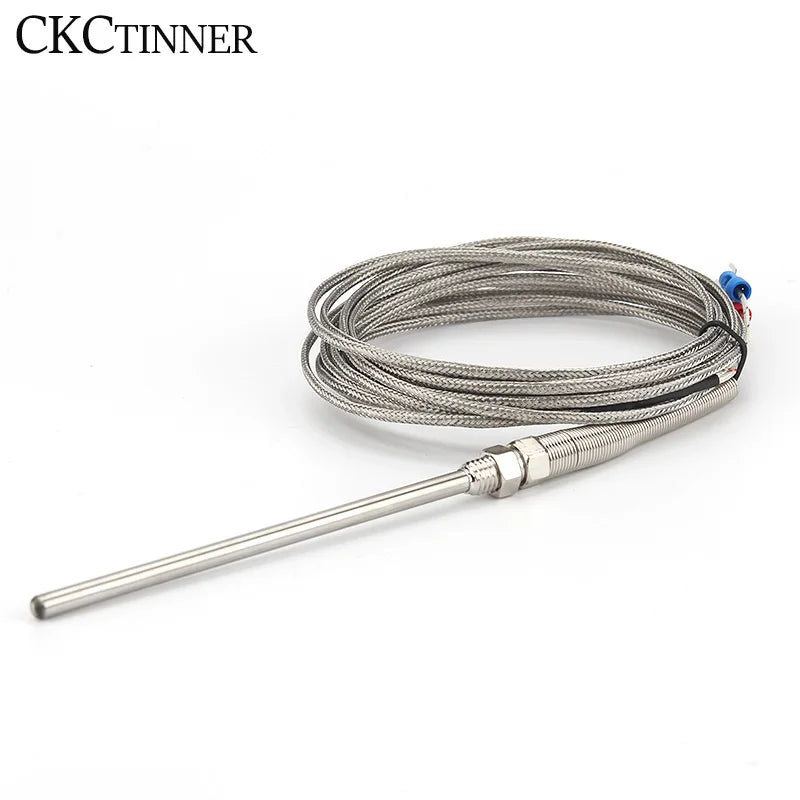

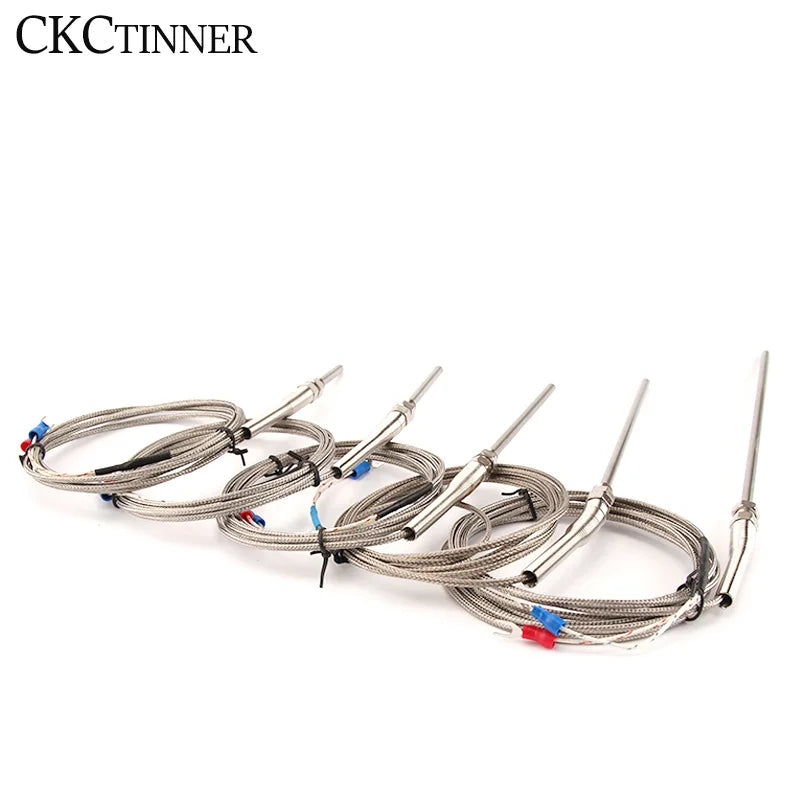

PT100 Thermocouple M8 Temperature Sensor Probe -200–600°C

PT100 Thermocouple M8 Screw Thread Temperature Sensor

Get precise, reliable temperature readings across an extraordinary range with the CKCTINNER PT100 Thermocouple Temperature Sensor. Designed for industrial and DIY applications alike, this CE-certified sensor features a durable M8 × 1.25 screw thread mount, fiberglass-insulated cable, and a stainless steel probe — delivering accurate measurements from -200°C to 600°C. Whether you're monitoring furnaces, HVAC systems, laboratory equipment, or 3D printer hot-ends, this sensor gives you the data you need with minimal fuss.

Made in Mainland China.

Key Features

• Wide Temperature Range: Accurately measures from -200°C up to 600°C, making it suitable for cryogenic and high-heat industrial environments
• PT100 Type: Platinum resistance thermometer standard for high-accuracy, stable readings over a broad range

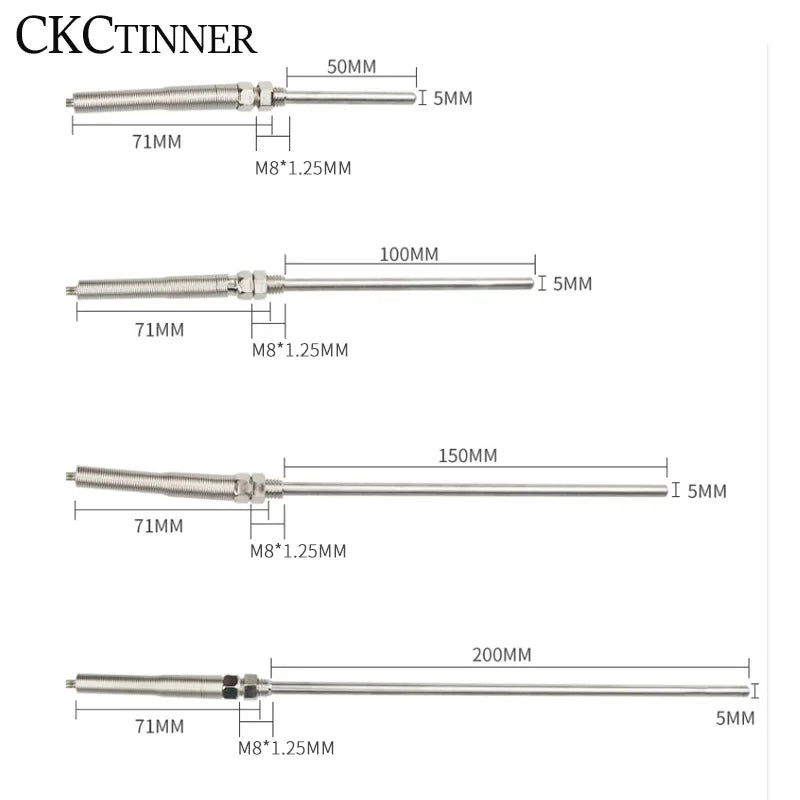

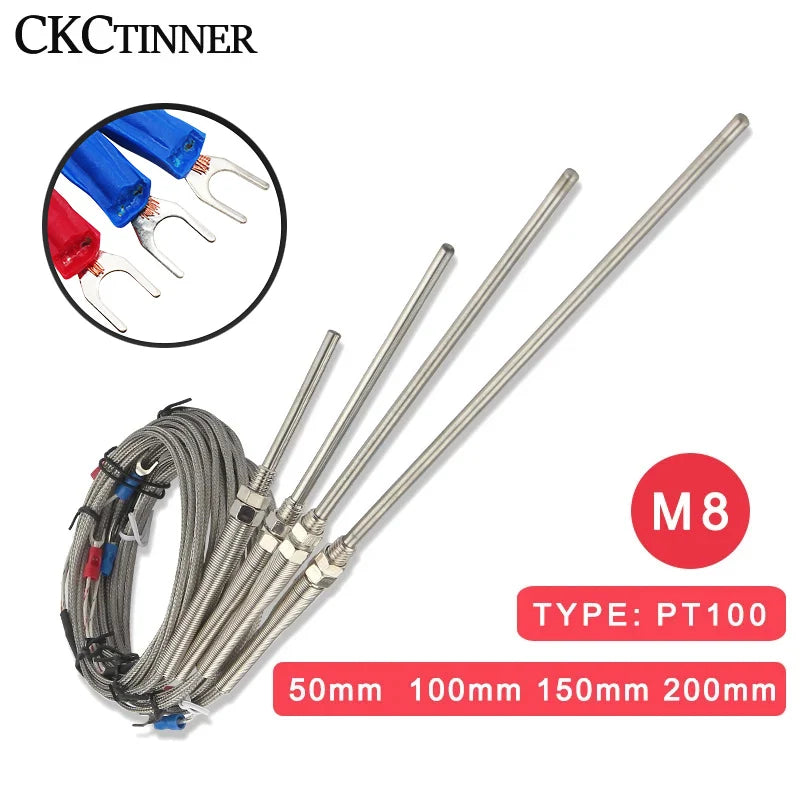

• Multiple Probe Lengths: Choose from 50mm, 100mm, 150mm, or 200mm probe lengths to suit your specific application
• Multiple Cable Lengths: Available in 1m, 2m, 3m, 4m, or 5m cable runs for flexible installation
• M8 × 1.25 Screw Thread: Standard metric thread for secure, leak-free mounting in pipes, tanks, and machinery
• Fiberglass Cable Insulation: High-temperature fiberglass insulation protects the cable in demanding environments
• CE Certified: Meets European safety and quality standards for industrial instrumentation
• No Battery Required: Passive sensor — connects directly to your temperature controller, data logger, or PLC

Specifications

Common Applications

• Industrial furnaces, ovens, and kilns
• HVAC systems and boilers
• 3D printer heated beds and hot-ends
• Laboratory and scientific equipment
• Food processing and industrial machinery monitoring
• Liquid and gas pipeline temperature measurement

Related Products You May Like

• Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
• Electromagnetic Induction Tester – Coil & Circuit Fault Detector

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What is a PT100 thermocouple temperature sensor and how does it work?

A: A PT100 is a type of Resistance Temperature Detector (RTD) made from platinum. It works by measuring the change in electrical resistance of the platinum element as temperature changes — at 0°C its resistance is 100 ohms, increasing predictably as temperature rises. This makes it highly accurate and stable compared to standard thermocouples, and ideal for precision industrial temperature monitoring between -200°C and 600°C.

Q: What probe and cable length should I choose?

A: The right probe length depends on how deep it needs to be inserted into your medium (pipe, tank, or machinery). Common choices are 50mm for shallow installations and 150–200mm for deeper immersion applications. For cable length, select based on the distance between your sensor installation point and your temperature controller or data logger — options range from 1m to 5m to suit most setups.

Q: Is this sensor compatible with standard temperature controllers and PLCs?

A: Yes. The PT100 RTD is one of the most universally supported sensor types in industrial temperature controllers, PLCs, and data loggers. Simply ensure your controller has a PT100 (3-wire or 2-wire RTD) input channel. The M8 × 1.25 screw thread also makes it easy to mount into standard industrial fittings without additional adapters.

Q: Can this sensor be used outdoors or in wet environments?

A: The stainless steel probe provides good resistance to moisture and corrosion, making it suitable for many industrial and semi-outdoor environments. However, for fully submersed or high-pressure liquid applications, verify that your specific installation meets the sealing requirements of your system. The fiberglass-insulated cable is rated for high-temperature environments.
