CKCTINNER PT100 Stainless Steel Temperature Sensor – Accurate, Waterproof & Industrial-Grade
The CKCTINNER PT100 Temperature Sensor delivers precise, reliable thermal readings across an exceptional range of -200°C to +450°C. Built for demanding industrial and DIY applications, this 3-wire RTD probe features a rugged stainless steel construction, making it highly durable, corrosion-resistant, and fully waterproof. Whether you're monitoring process temperatures in industrial equipment, 3D printers, brewing setups, HVAC systems, or laboratory instruments, this sensor provides the accuracy you need.
Key Features
- Sensor Type: PT100 RTD (Resistance Temperature Detector), 3-Wire configuration
- Wide Temperature Range: -200°C to +450°C — ideal for both extreme cold and high-heat environments

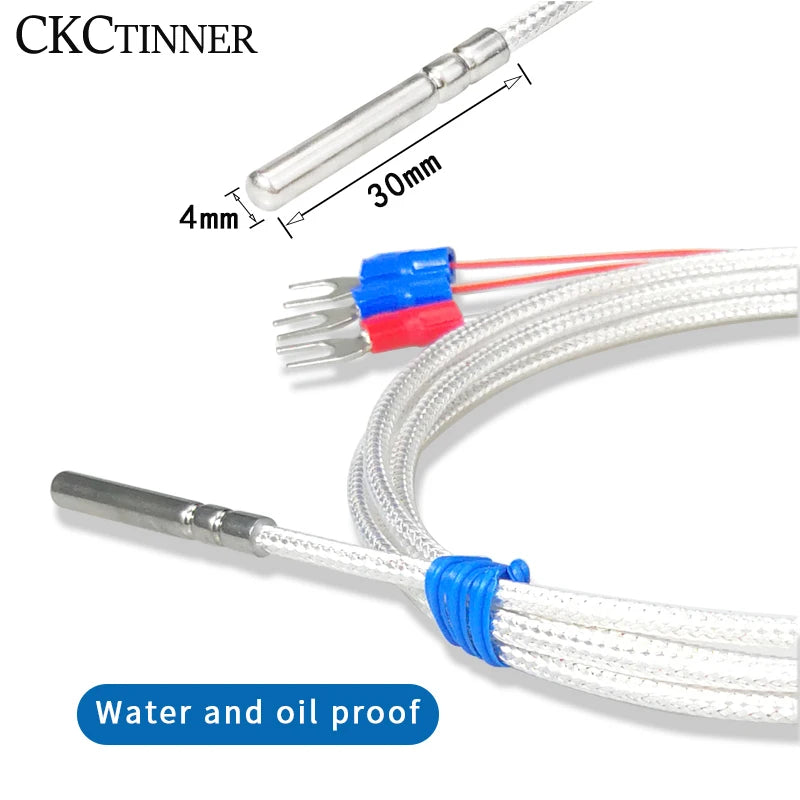

- Probe Dimensions: 4mm diameter × 30mm length — compact and easy to install in tight spaces
- Probe Material: Stainless steel — durable, rust-resistant, and fully waterproof
- Cable Lengths Available: 0.5M / 1M / 2M / 3M / 4M / 5M — choose the length that fits your setup
- High Accuracy: PT100 platinum resistance technology ensures stable, consistent temperature readings
- Industrial-Grade Build: Engineered for continuous use in harsh environments
- No Battery Required: Passive sensor — connects directly to compatible controllers or DAQ systems
Specifications
| Sensor Type | PT100 (Platinum RTD) |
| Wiring | 3-Wire |
| Probe Diameter | 4 mm |
| Probe Length | 30 mm |
| Probe Material | Stainless Steel (Waterproof) |
| Temperature Range | -200°C to +450°C |
| Cable Lengths | 0.5M / 1M / 2M / 3M / 4M / 5M |
| Battery Required | No |
| Country of Origin | Made in China |
Ideal Applications
- Industrial process temperature monitoring
- 3D printer heated bed and hot-end sensing
- Homebrew fermentation and brewing equipment
- HVAC and refrigeration systems
- Laboratory and scientific instruments
- Aquariums, chillers, and water temperature control
- Automotive and engine temperature monitoring
Related Products You Might Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What is a PT100 temperature sensor and how does it work?
A: A PT100 is a type of Resistance Temperature Detector (RTD) made from platinum. It works by measuring the change in electrical resistance of the platinum element as temperature changes — PT100 sensors have a resistance of 100 ohms at 0°C. They are known for high accuracy, stability, and a wide measurement range, making them a preferred choice for industrial and scientific temperature monitoring.
Q: What cable length should I choose for my application?
A: This PT100 sensor is available in five cable lengths: 0.5M, 1M, 2M, 3M, 4M, and 5M. Choose a length based on the distance between your measurement point and your temperature controller or data acquisition system. Longer cables (3M–5M) suit larger equipment or installations where the controller is mounted away from the probe. Shorter cables (0.5M–1M) work well for compact setups like 3D printers or small appliances.
Q: Is this PT100 sensor compatible with common temperature controllers?
A: Yes. This 3-wire PT100 RTD sensor is compatible with a wide range of temperature controllers, PLCs, and data acquisition modules that support PT100/PT1000 RTD inputs. Always verify that your controller supports a 3-wire PT100 configuration before connecting.
Q: Is the probe truly waterproof?
A: The probe itself is constructed from stainless steel and is waterproof, making it suitable for liquid immersion and wet or high-humidity environments. However, the cable and connector end should be kept away from direct water exposure unless your installation includes additional sealing.
