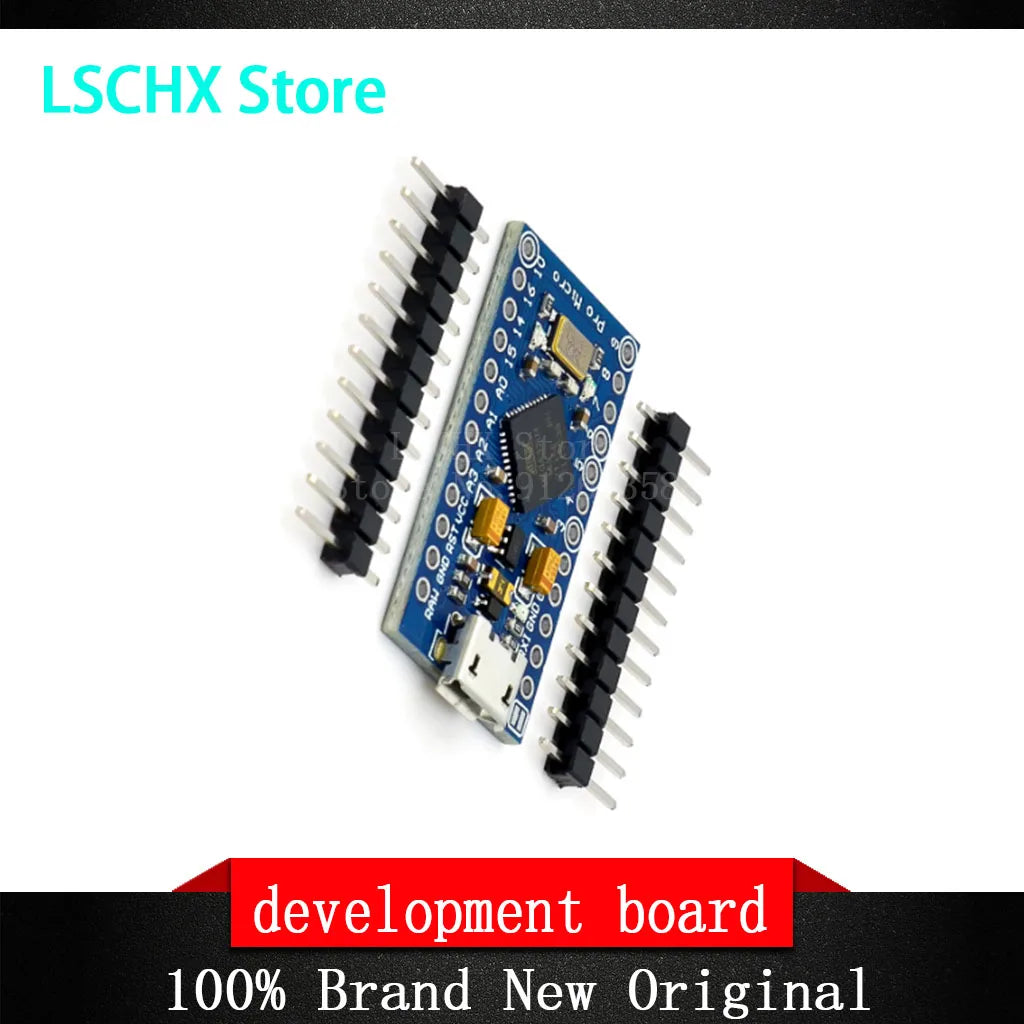

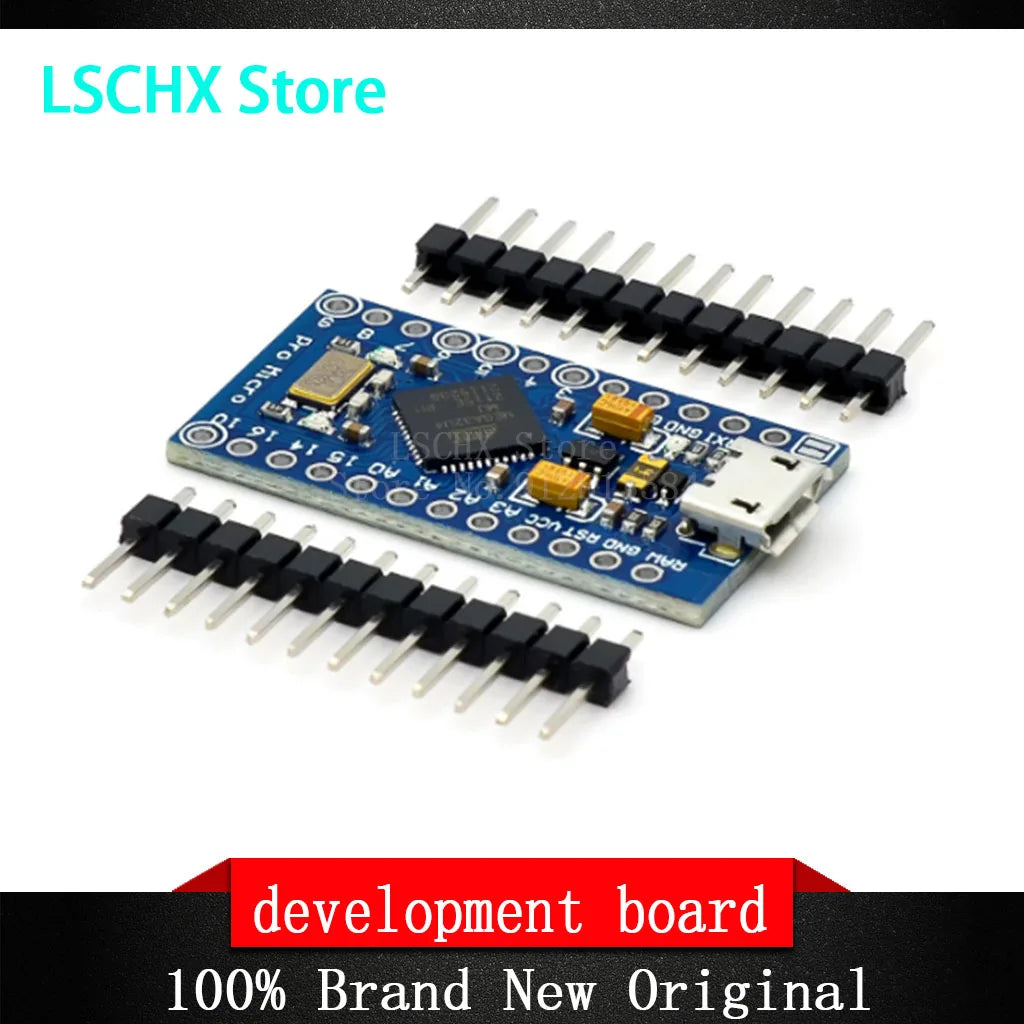

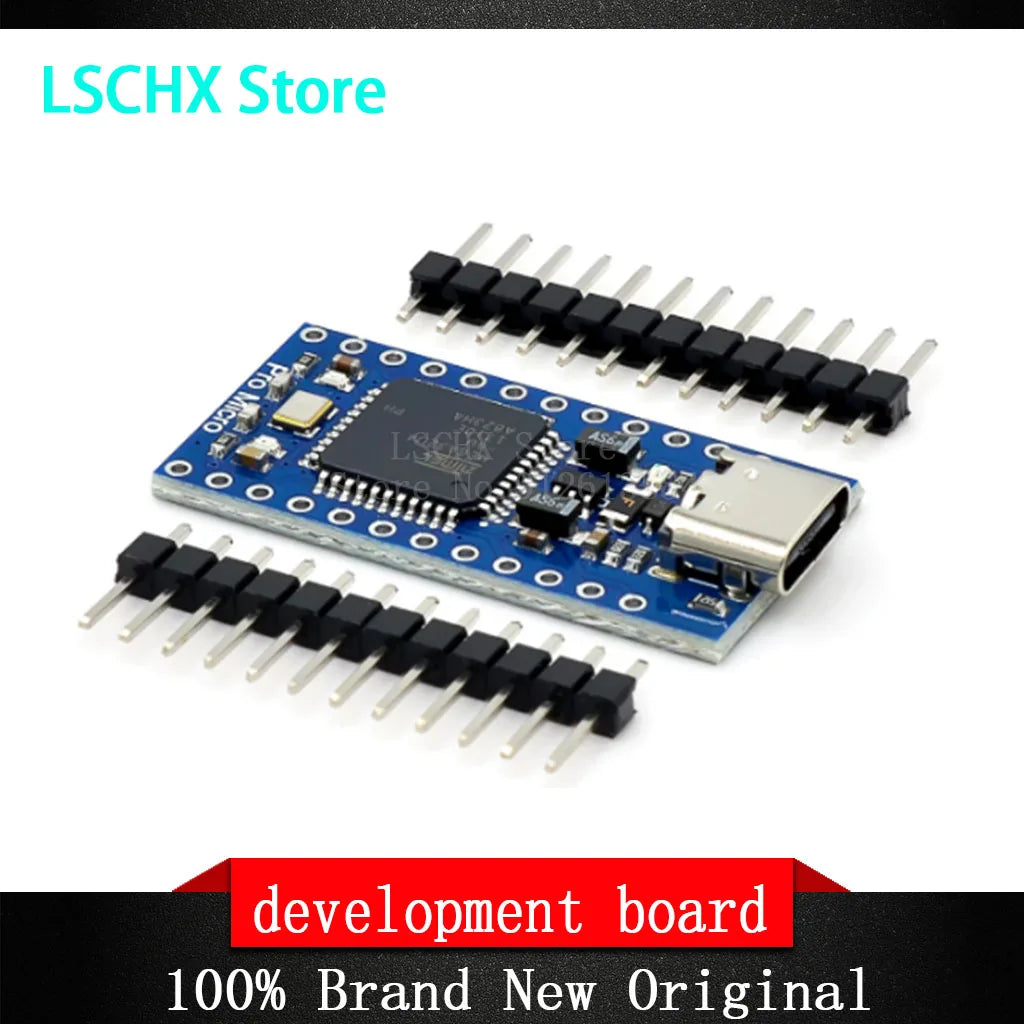

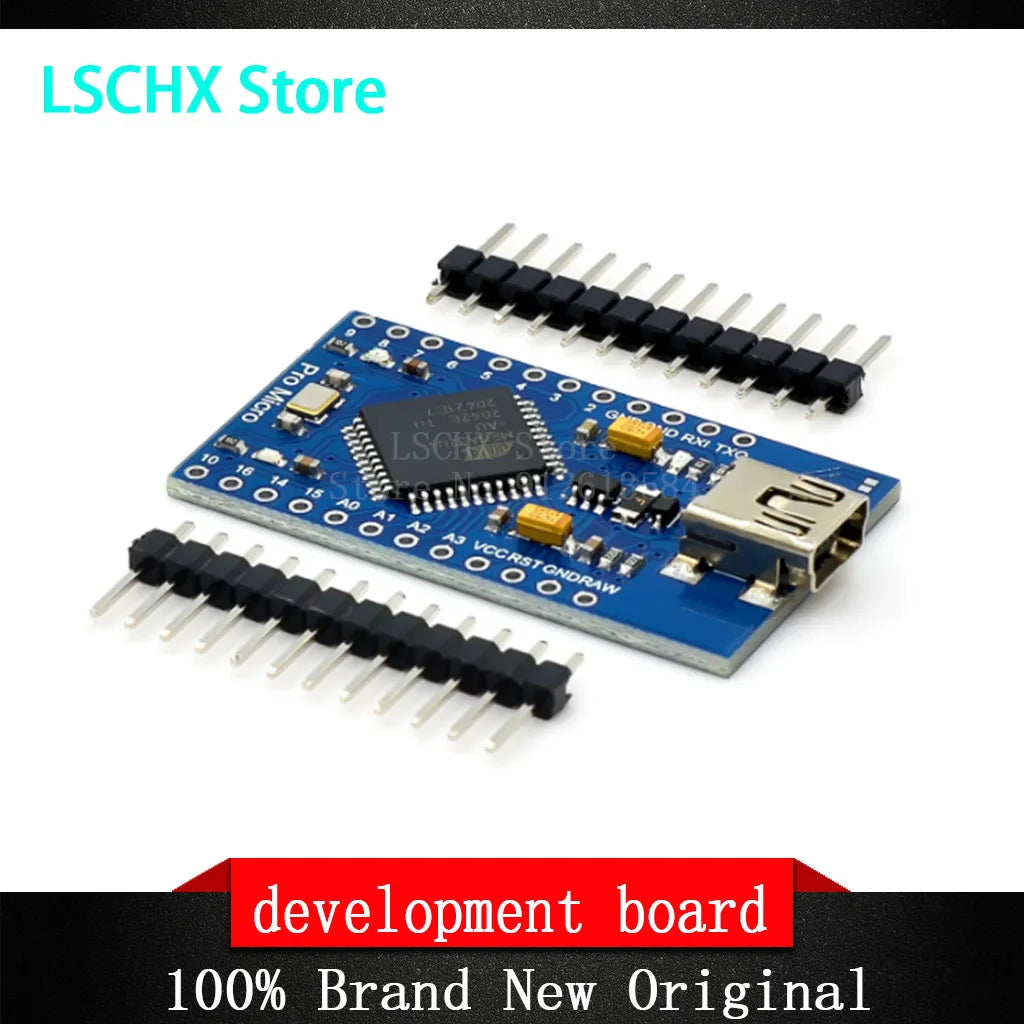

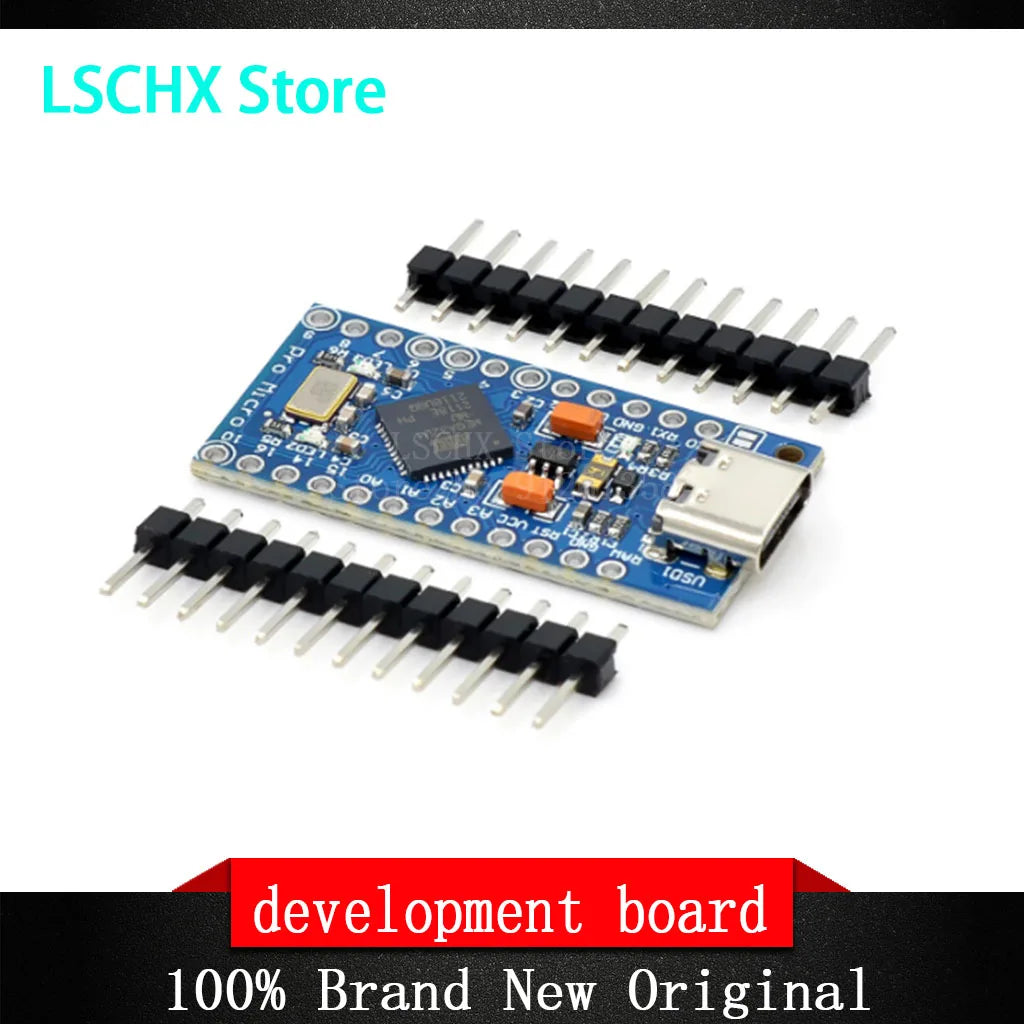

Pro Micro ATmega32U4 Development Board – 5V / 16MHz USB
The Pro Micro ATmega32U4 Development Board is a compact, powerful microcontroller board built around the Atmel ATmega32U4 chip. Running at 5V and 16MHz, it features native USB support, allowing you to program and communicate directly via USB — no external USB-to-serial converter needed. Whether you're building custom keyboards, HID devices, robotics projects, or any general-purpose embedded application, this board delivers professional-grade performance in a tiny footprint.
Key Features
- ATmega32U4 MCU – Built-in USB hardware for seamless PC communication and HID emulation
- 5V / 16MHz – Full-speed operation suitable for time-sensitive projects
- Native USB Programming – Flash firmware updates directly over USB without additional hardware
- Compact Form Factor – Breadboard-friendly pin layout, ideal for space-constrained builds
- General Purpose I/O – Multiple digital I/O pins, PWM outputs, and analog inputs
- Arduino Compatible – Works seamlessly with the Arduino IDE and a wide range of libraries
- Customizable – Supports custom firmware for keyboards, game controllers, automation devices, and more
Technical Specifications
- Microcontroller: ATmega32U4
- Operating Voltage: 5V
- Clock Speed: 16MHz
- USB Interface: Micro-USB (native, no USB-to-serial chip required)
- Flash Memory: 32KB (4KB used by bootloader)
- SRAM: 2.5KB
- EEPROM: 1KB
- Digital I/O Pins: 12
- PWM Channels: 5
- Analog Inputs: 4
- Country of Origin: Made in Mainland China
What Can You Build With It?
The ATmega32U4's native USB capability opens up a world of possibilities:
- Custom mechanical keyboards and macropads
- USB HID devices (mouse, joystick, game controller)
- Automation scripts and USB-triggered macros
- Sensor data loggers with USB serial output
- Robotics and embedded control systems
Related Products You Might Like
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: Is the Pro Micro ATmega32U4 board compatible with the Arduino IDE?
A: Yes! The Pro Micro ATmega32U4 development board is fully compatible with the Arduino IDE. Simply install the SparkFun or compatible board package, select "Arduino Leonardo" or "Pro Micro" as your board type, and you're ready to upload sketches over USB.
Q: What is the difference between the ATmega32U4 and other Arduino-style boards?
A: The key advantage of the ATmega32U4 is its built-in USB hardware. Unlike boards that use a separate USB-to-serial chip (like the ATmega328P-based Nano or Uno), the ATmega32U4 can natively emulate USB devices such as keyboards, mice, and joysticks — making it ideal for HID projects and custom input devices.
Q: What voltage does this development board operate at?
A: This Pro Micro board operates at 5V with a 16MHz clock speed. It can be powered via the Micro-USB port or through the VCC and GND pins, making it flexible for both standalone and integrated project builds.
Q: Do I need any additional hardware to program this board?
A: No additional hardware is required. The ATmega32U4's native USB support means you can connect the board directly to your computer via a Micro-USB cable and upload firmware using the Arduino IDE or other compatible tools.
