PP Horizontal Float Switch – Liquid Water Level Sensor

$11.82 $14.06

PP Horizontal Float Switch – Liquid Water Level Sensor

Keep your water tanks, reservoirs, and industrial systems running at the right level with this reliable PP Floating Ball Horizontal Float Switch. Built from durable polypropylene (PP) plastic, this compact liquid level sensor uses a magnetic reed switch mechanism to automatically open or close a circuit as the liquid rises or falls — no external power supply or complex wiring required.

Ideal for home water tanks, aquariums, sump pumps, dyeing equipment, food processing lines, hydraulic machinery, petrochemical systems, and more. Its simple mechanical design means fewer failure points and a longer service life compared to electronic-only alternatives.

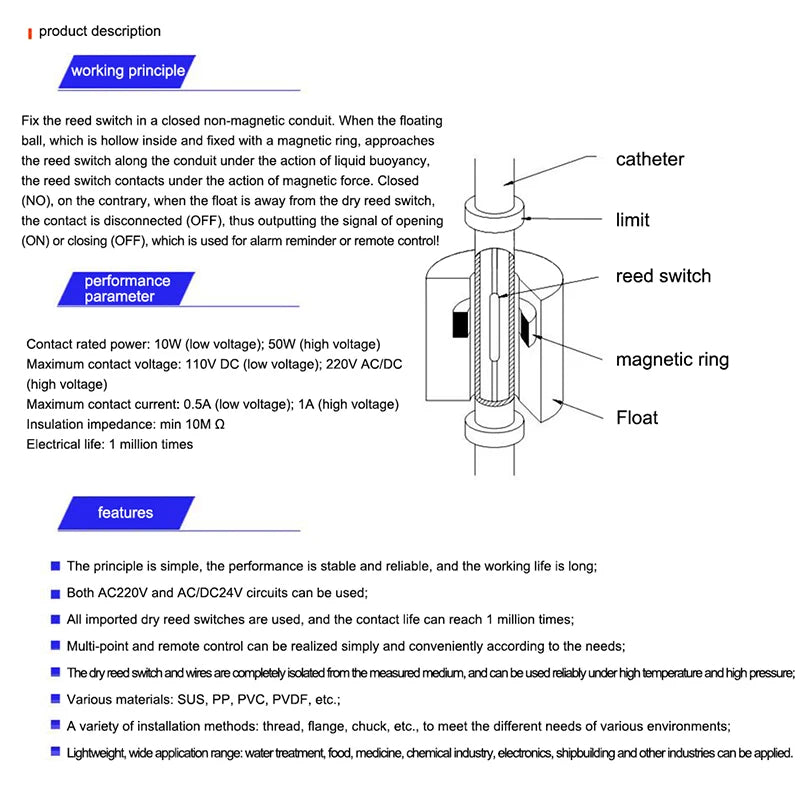

How It Works

The float ball rises and falls with the liquid level. Inside the sealed non-magnetic tube, a magnetic reed switch activates when the float's internal magnet comes close — completing the circuit. When the float moves away, the circuit opens. The clamp can be removed and the float flipped downward to reverse the switching action (open or close on water outlet).

Technical Specifications

Float Ball Material: Polypropylene (PP)
Float Body Material: Polypropylene (PP)
Max Contact Rating: 10W
Max Switching Voltage: 220V
Max Switching Current: 0.5A
Max Breakdown Voltage: 220VDC
Max Carry Current: 1.0A
Max Contact Resistance: 100mΩ
Operating Temperature Range: -10°C to +60°C
Operating Voltage: Low voltage — below 50VAC or 75VDC
High-Concern Chemicals: None

Key Features

✅ Simple, No-Power Design — purely mechanical magnetic reed switch; no external power needed
✅ Durable PP Construction — resistant to a wide range of liquids including water and mild chemicals
✅ Adjustable Switching Direction — flip the float to reverse open/close action
✅ Compact & Long-Lasting — smaller than standard mechanical switches with extended service life
✅ Wide Application Range — suitable for any compatible liquid within the rated temperature and voltage range
✅ Easy Installation — horizontal mount, straightforward wiring

Wide Industry Applications

This float switch is used across many industries and setups: shipbuilding, power generation equipment, petrochemical plants, food processing, water treatment facilities, dyeing and finishing machinery, hydraulic systems, home water tanks, and more.

Made in Mainland China.

Frequently Asked Questions

Q: What liquid types is this PP float switch compatible with?

A: The polypropylene (PP) float switch is compatible with water, mild chemicals, and a wide range of non-aggressive liquids. As long as the liquid is within the rated temperature range (-10°C to +60°C) and does not chemically degrade PP plastic, this float switch can be used effectively.

Q: How do I reverse the switching action of the horizontal float switch?

A: Simply remove the retaining clamp and flip the float ball downward. This reverses the open/close action so the switch triggers when the liquid level drops rather than rises — or vice versa — giving you flexible control over your application.

Q: Can I use this float switch with a pump or solenoid valve?

A: Yes. The float switch can be wired into a control circuit to activate or deactivate a pump, solenoid valve, or alarm when a set liquid level is reached. Ensure the load stays within the rated limits: max 0.5A switching current and 220V switching voltage.
