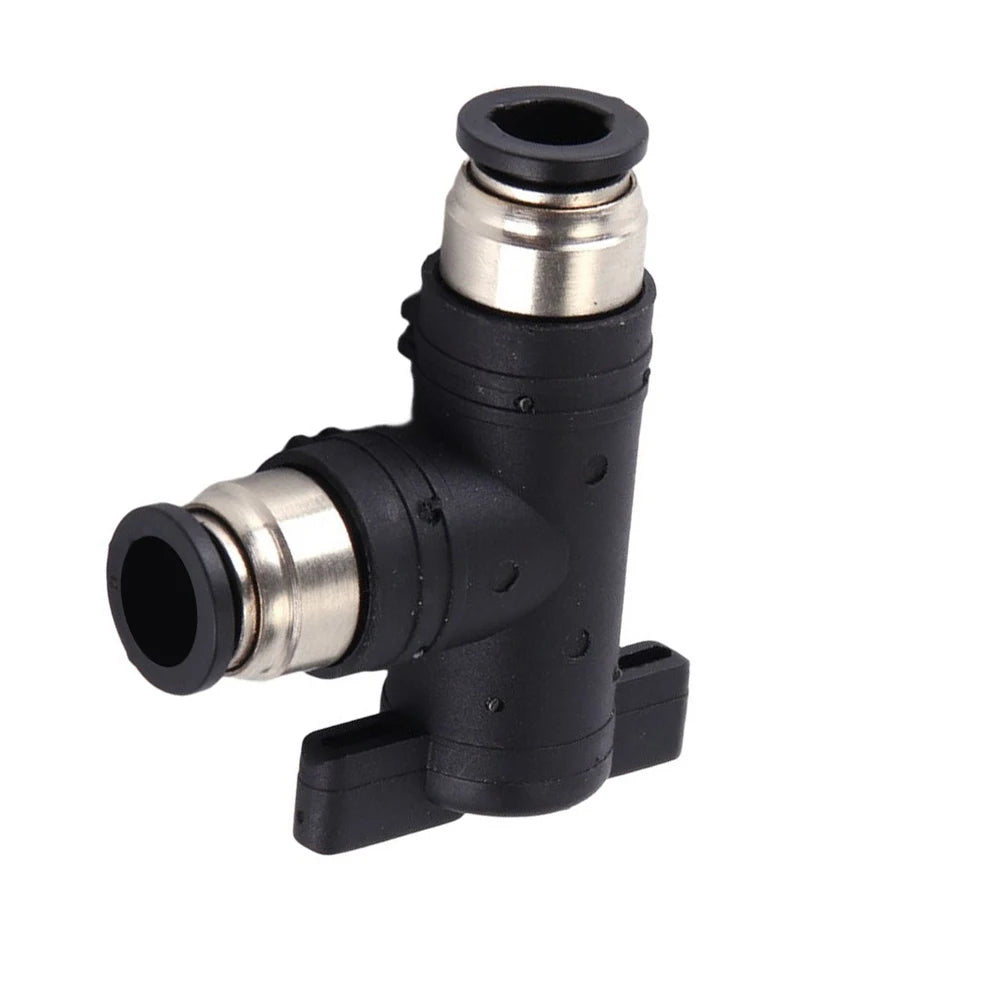

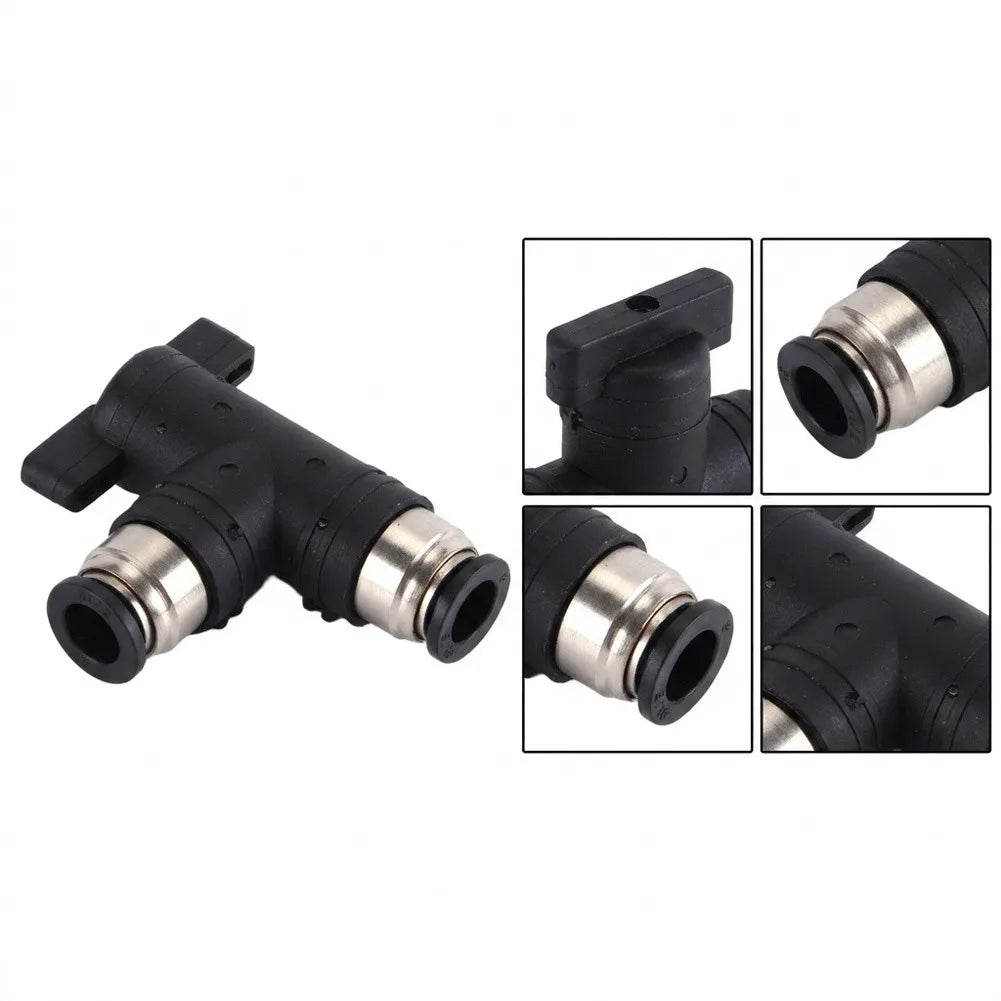

Pneumatic L-Type Manual Ball Valve – 90° Quick-Connect Air Flow Switch
Take full control of your pneumatic system with this compact L-Type Manual Ball Valve. Designed for air compressors and pneumatic lines, its 90-degree quick-connect fitting lets you snap standard tubing in and out in seconds — no tools required. A simple quarter-turn of the ergonomic handle opens or fully closes airflow, giving you precise, leak-free control every time.
Made in Mainland China.
Key Features
- Tool-Free Quick-Connect: Push-in mechanism accepts 4–12mm OD tubing instantly — no wrenches, no clamps, no hassle.
- Space-Saving 90° L-Shape: The right-angle body redirects airflow in tight corners, eliminating extra pipe bends and keeping your setup neat and organized.
- Precise Quarter-Turn Control: A 90-degree handle rotation switches between fully open and fully closed — fast, accurate, and leak-free every time.
- Durable Construction: High-strength engineering plastic body reinforced with nickel-copper alloy claws at connection points resists high pressure, oil, and aging for long service life.
- Wide Compatibility: Works with 4mm, 6mm, 8mm, 10mm, and 12mm pneumatic hose outer diameters — ideal for industrial automation, laboratory equipment, and DIY projects.
Specifications
| Material | High-strength engineering plastic with nickel-copper alloy claws |
| Color | Black |
| Overall Size | Approx. 65 mm (including handle) |
| Compatible Tube OD | 4 mm, 6 mm, 8 mm, 10 mm, 12 mm |
| Bend Angle | 90° |
| Handle Rotation | 90° (fully open / fully closed) |
| Working Pressure | 0.1 – 1.0 MPa |
| Working Temperature | -10°C to +60°C |
| Quantity | 1 pc |
Package Contents
- 1 × Pneumatic L-Type Manual Ball Valve (Quick-Connect Fitting)
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- 360° Bicycle Chain Cleaner Tool | Bike Gear Cleaning Kit
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
Note: Screen color calibration and lighting conditions may cause slight color variation from product images. Allow ±1–2 mm measurement tolerance.
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What tube sizes are compatible with this pneumatic L-type ball valve?
A: This quick-connect ball valve is compatible with standard pneumatic tubing outer diameters of 4 mm, 6 mm, 8 mm, 10 mm, and 12 mm, making it versatile for a wide range of pneumatic hose sizes used in air compressor systems and industrial automation setups.
Q: Do I need any special tools to install this ball valve fitting?
A: No tools are required. The quick-connect push-in mechanism allows you to insert or remove tubing by hand in seconds. Simply push the tube into the fitting to connect, and press the release collar to disconnect — making installation fast and straightforward for both professionals and DIY enthusiasts.
Q: What is the maximum working pressure this valve can handle?
A: This pneumatic L-type ball valve is rated for a working pressure range of 0.1 to 1.0 MPa, which covers standard industrial air pressure requirements. It is engineered with high-strength plastic and nickel-copper alloy reinforcement to maintain reliable, leak-free performance within this range.
Q: Is this valve suitable for outdoor or high-temperature environments?
A: This valve is designed for working temperatures between -10°C and +60°C. It performs well in a variety of indoor industrial and workshop environments. For extreme outdoor temperature conditions outside this range, an alternative fitting rated for those conditions is recommended.
