PIR Solar Street Light Sensor Circuit Board & Remote Control
PIR Solar Street Light Sensor Circuit Board & Remote Control
PIR Solar Street Light Sensor Circuit Board with Remote Control

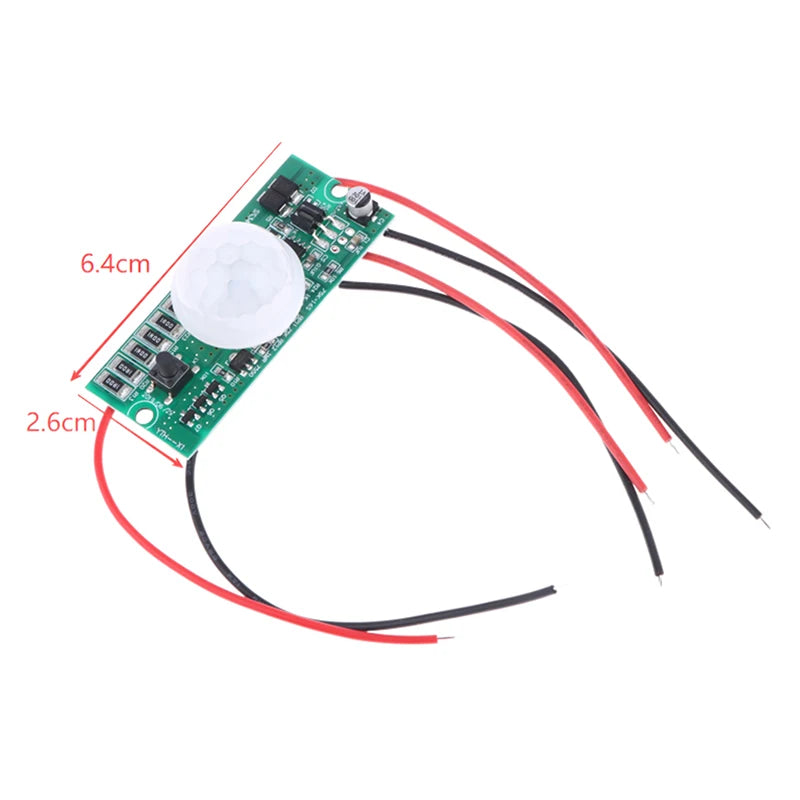

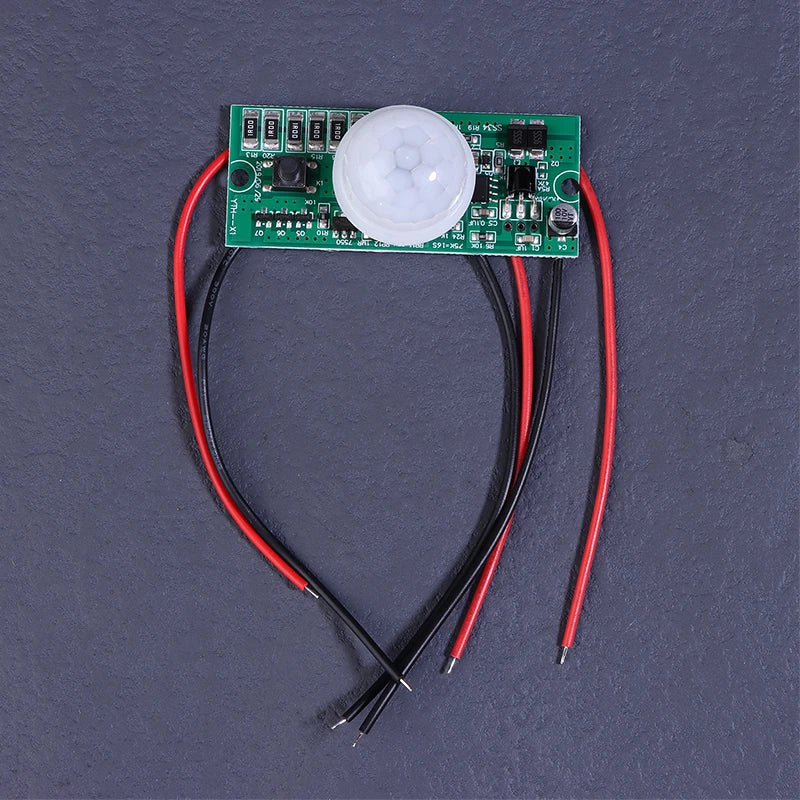

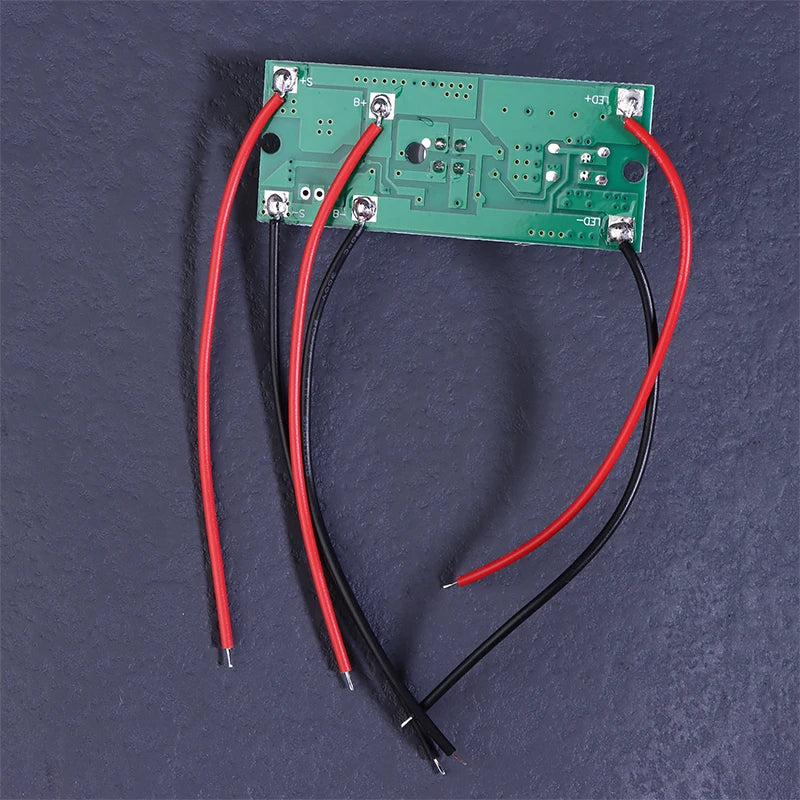

Upgrade or repair your solar integrated street lamp with this compact, high-quality PIR sensor circuit board and controller. Compatible with both 3.2V lithium iron phosphate and 3.7V ternary lithium batteries, this all-in-one control board delivers smart motion sensing, remote-controlled dimming, and flexible lighting modes — all in a space-saving 6.4 × 2.6 cm form factor. Made in Mainland China.
Key Features
- Wide Battery Compatibility: Works with 3.2V LiFePO₄ and 3.7V lithium batteries (battery must include a built-in protection board). Note: this control panel does not include overcharge/overdischarge protection — a separate battery protection board is required.
- Dual Sensing Mode: Induction high-brightness + low-light long-light dual mode for energy-efficient operation. Sensing time is approximately 10 seconds with a detection range of 5–10 metres.
- Remote Control Function: Included remote control allows easy brightness adjustment and lighting mode switching. (Remote requires one AAA/No. 7 battery — not included; purchase locally.)
- Three-Gear Switch: Freely switch between Induction Mode, Constant-On Mode, and Light-Off to suit any outdoor setting or time-of-day requirement.
- Compact & Easy to Install: Slim PCB design fits neatly into solar street lamp housings, making DIY modification or maintenance straightforward.
Technical Specifications
| Rated Battery Voltage | 3.2V LiFePO₄ / 3.7V Ternary Lithium (with protection board) |
| Solar Panel Input | 5V–6V, <20W |
| Lamp Output Power | 3V, <9W |
| Induction Mode | High-light on motion + low-light standby |
| Induction Time | ~10 seconds |
| Sensing Distance | 5–10 metres |
| Switch Modes | Induction / Constant On / Off |
| Remote Function | Dimming & mode selection |
| Board Size | 6.4 × 2.6 cm |
| Package Contents | 1 × Sensor circuit board, 1 × Remote control (battery not included) |
| Country of Origin | Mainland China |
Ideal For
- Repairing or upgrading solar integrated street lamps
- DIY solar lighting projects and garden path lights
- Outdoor security and area lighting modifications
Looking for more useful tools and gadgets? Check out our Air Compressor Pressure Gauge – DIY Tool and the Electromagnetic Induction Tester – Circuit Fault Detector for your workshop needs.
Note: Dimensions are measured manually; please allow a 2–3% tolerance. Product colour may vary slightly from images due to different monitor display settings.
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: Is this PIR solar sensor circuit board compatible with my existing solar street lamp battery?
A: Yes — this solar street light controller circuit board supports both 3.2V lithium iron phosphate (LiFePO₄) and 3.7V ternary lithium batteries. Your battery must have its own built-in protection board, as this control panel does not include overcharge or overdischarge protection.
Q: Does the remote control come with batteries included?
A: The remote control is included in the package, but the required No. 7 (AAA) battery is not included for transport safety reasons. You will need to purchase one AAA battery locally before using the remote.
Q: What lighting modes does this solar street lamp controller support?
A: The board offers three selectable switch modes: Induction Mode (PIR motion-triggered high light + low-light standby), Constant-On Mode (always illuminated), and Light-Off. The included remote control also allows you to adjust brightness and switch between dimming modes for maximum flexibility.
