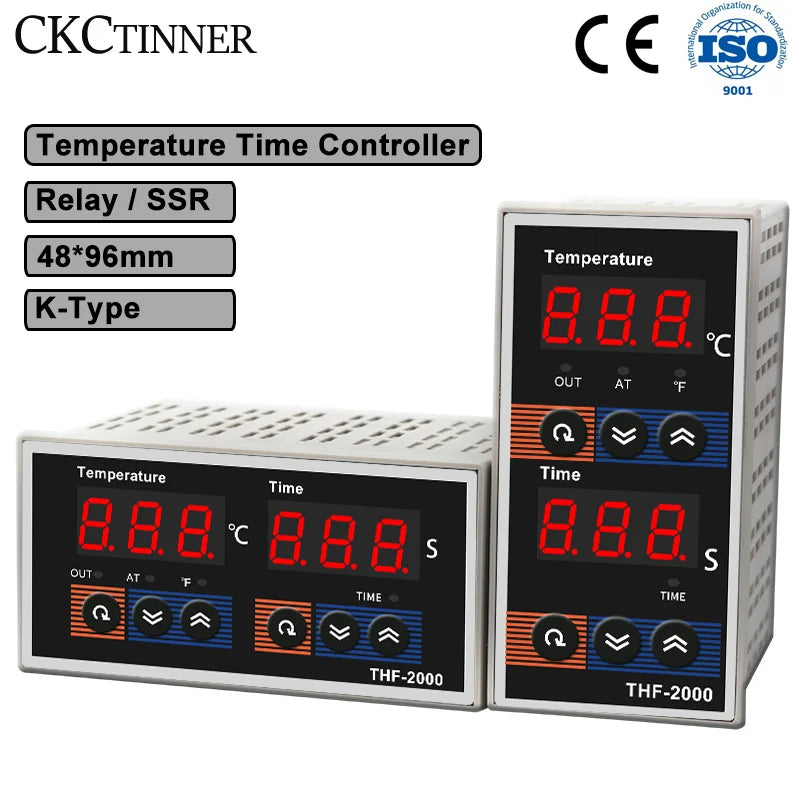

CKCTINNER THF-2000 Digital PID Temperature & Time Integration Controller
Take precise command of your industrial heating and temperature processes with the CKCTINNER THF-2000 PID Temperature & Time Integration Controller. This CE-certified digital instrument combines fuzzy PID control with time integration logic, delivering stable, accurate temperature regulation for industrial embedded applications. Its wide input voltage range (85–265V AC, 50/60 Hz) makes it compatible with a broad range of global electrical environments.
Key Features
- Dual Control Modes: Supports both Fuzzy PID and Position Control methods for flexible process management.
- High Accuracy: ±0.5% full-scale accuracy ensures reliable, repeatable temperature readings.
- K-Type Thermocouple Input: Compatible with standard K-type sensors for wide-range temperature measurement (120°C and above).
- Dual Output Options: Choose between relay output or solid-state relay (SSR) output to match your system requirements.
- Digital Display: Clear, easy-to-read digital display for real-time monitoring of set and measured temperatures.

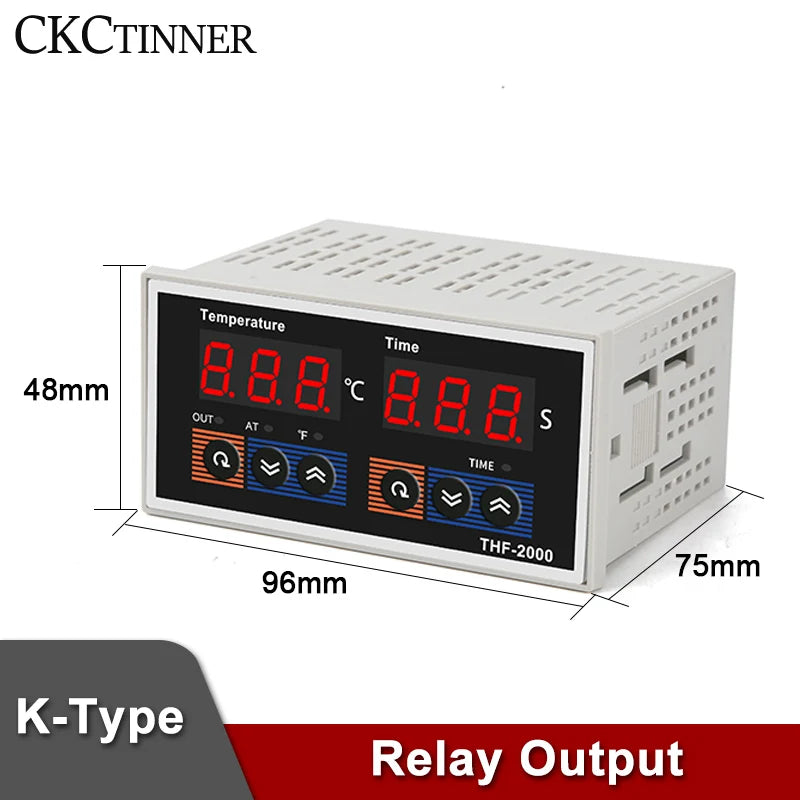

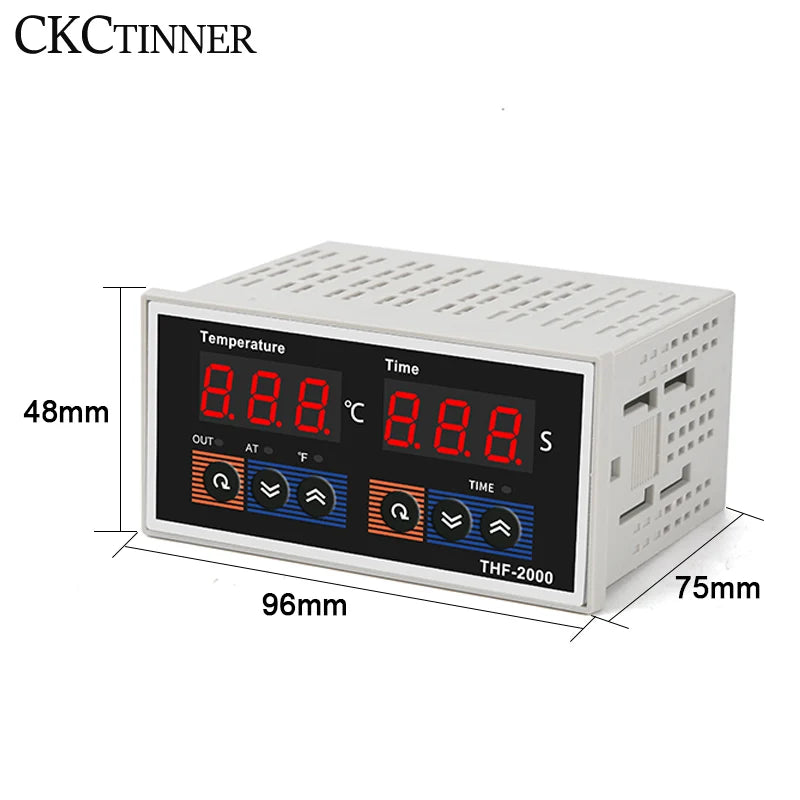

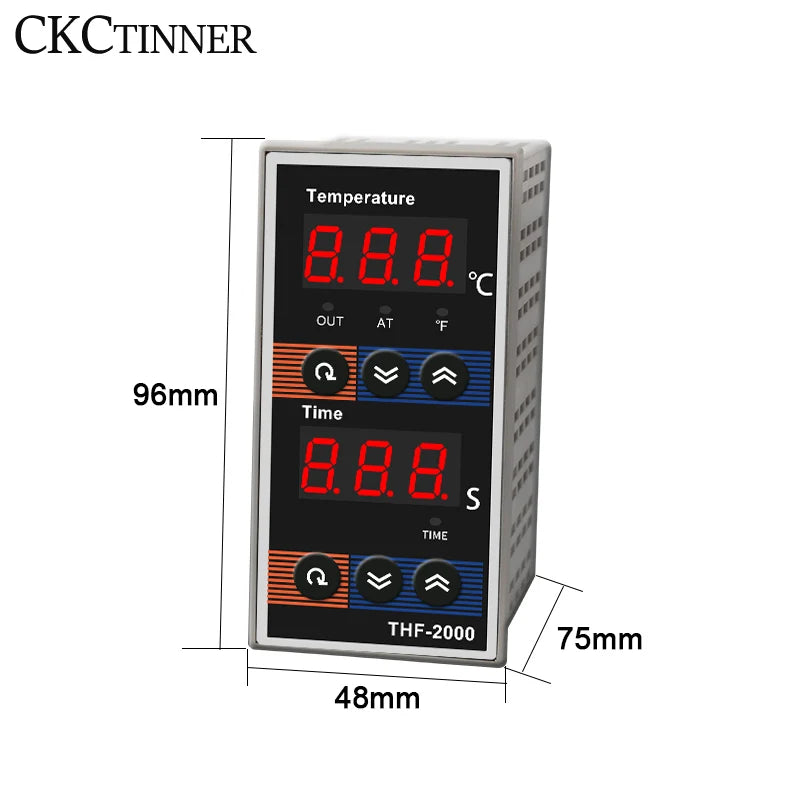

- Embedded Panel Mount Design: Compact 96 × 48 × 75 mm body fits standard 92 × 45 mm panel cutouts for seamless installation.
- Wide Voltage Compatibility: Operates on 85–265V AC at 50/60 Hz — suitable for a variety of industrial environments worldwide.
- CE Certified: Meets European safety and performance standards.
Specifications
| Model | THF-2000 (THF-2611) |
| Control Method | Fuzzy PID / Position Control |
| Power Supply | 85–265V AC, 50/60 Hz |
| Accuracy | ±0.5% FS |
| Input Type | K-Type Thermocouple |
| Output Type | Relay / SSR (Solid State Relay) |
| Display | Digital |
| Product Size | 96 × 48 × 75 mm |
| Panel Cutout | 92 × 45 mm |
| Max Measuring Temp | 120°C & Above |
| Certification | CE |
| Use | Industrial |
Package Includes
- 1 × THF-2000 PID Temperature & Time Controller
Note: Temperature sensor (K-type thermocouple) and AC contactor must be purchased separately.
Made in Mainland China.
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What type of temperature sensor is compatible with the THF-2000 PID controller?
A: The THF-2000 is designed for use with K-type thermocouples, which are among the most widely used industrial temperature sensors. The thermocouple must be purchased separately — it is not included in the package.
Q: What is the difference between Fuzzy PID control and Position Control on this unit?
A: Fuzzy PID control uses an adaptive algorithm to maintain stable temperature by continuously adjusting the output based on the difference between the set point and measured temperature. Position Control is a simpler on/off switching method that activates or deactivates output at fixed setpoints. You can select the mode that best suits your industrial process.
Q: Can the THF-2000 controller be used with both relay and solid-state relay (SSR) output?
A: Yes. The controller supports both relay output and solid-state relay (SSR) output. The SSR output option provides faster switching and longer service life for high-cycle applications, while standard relay output is suitable for general-purpose industrial control.
Q: What voltage does the THF-2000 PID controller operate on?
A: The THF-2000 operates on a wide input voltage range of 85–265V AC at 50/60 Hz, making it compatible with standard electrical supplies across many countries and industrial settings.
