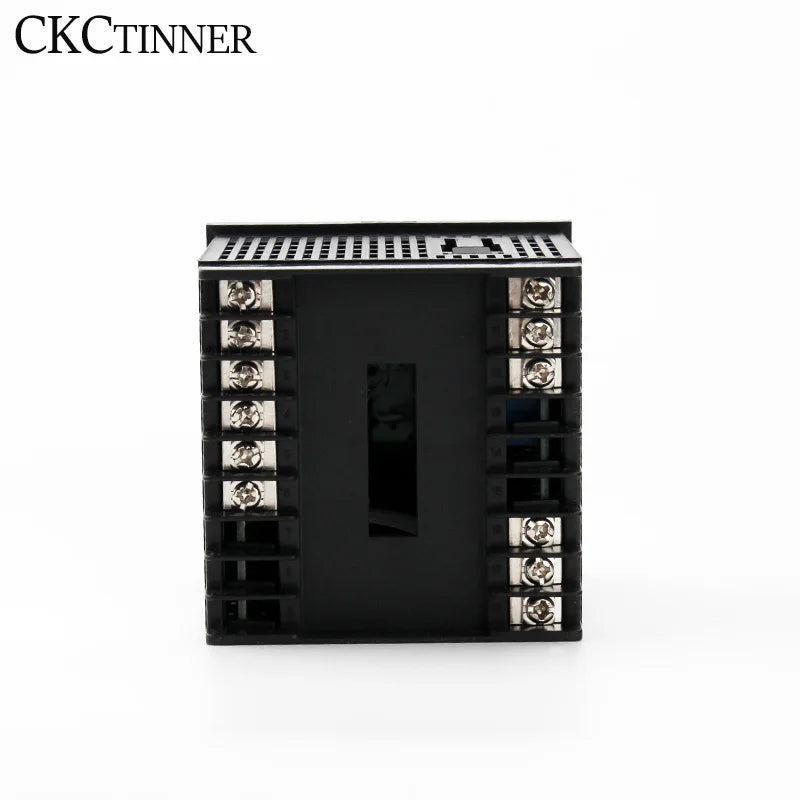

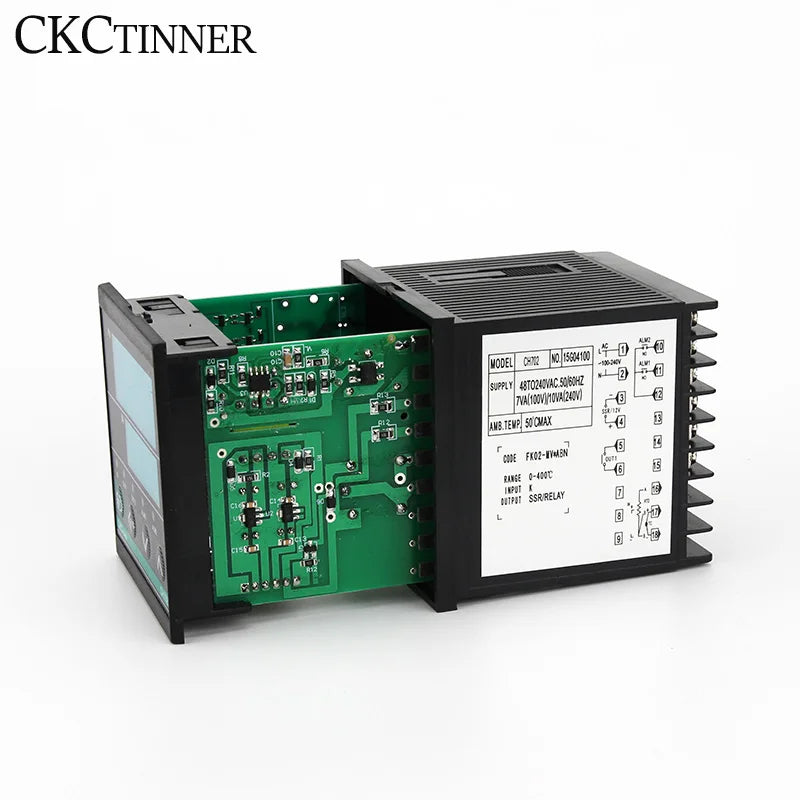

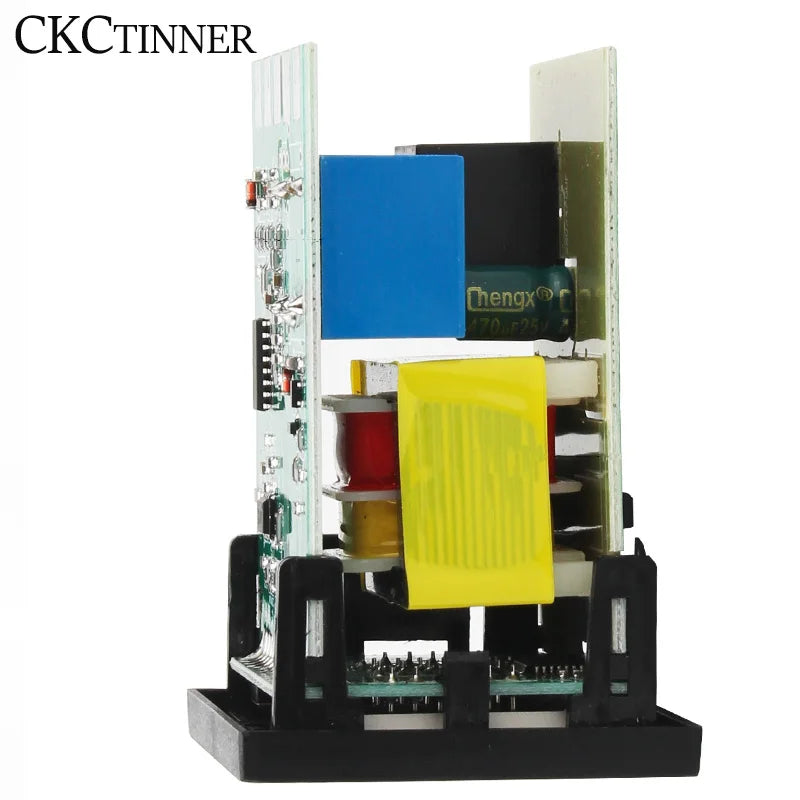

CKCTINNER REX-CH Series Dual Output PID Intelligent Temperature Controller

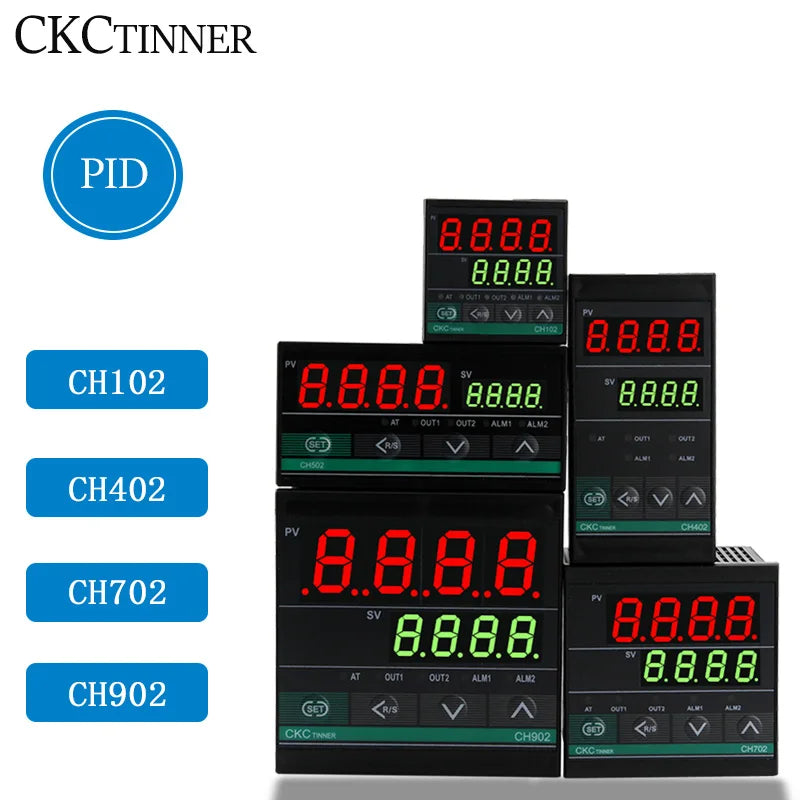

Take precise control of your industrial or laboratory heating and cooling processes with the CKCTINNER REX-CH Series PID Temperature Controller. Available in multiple panel sizes (CH102, CH402, CH502, CH702, CH902), this embedded digital controller combines a solid-state relay (SSR) output with an electromagnetic relay output, giving you ultimate flexibility for dual-zone or dual-mode temperature management.
Made in Mainland China.
Key Features

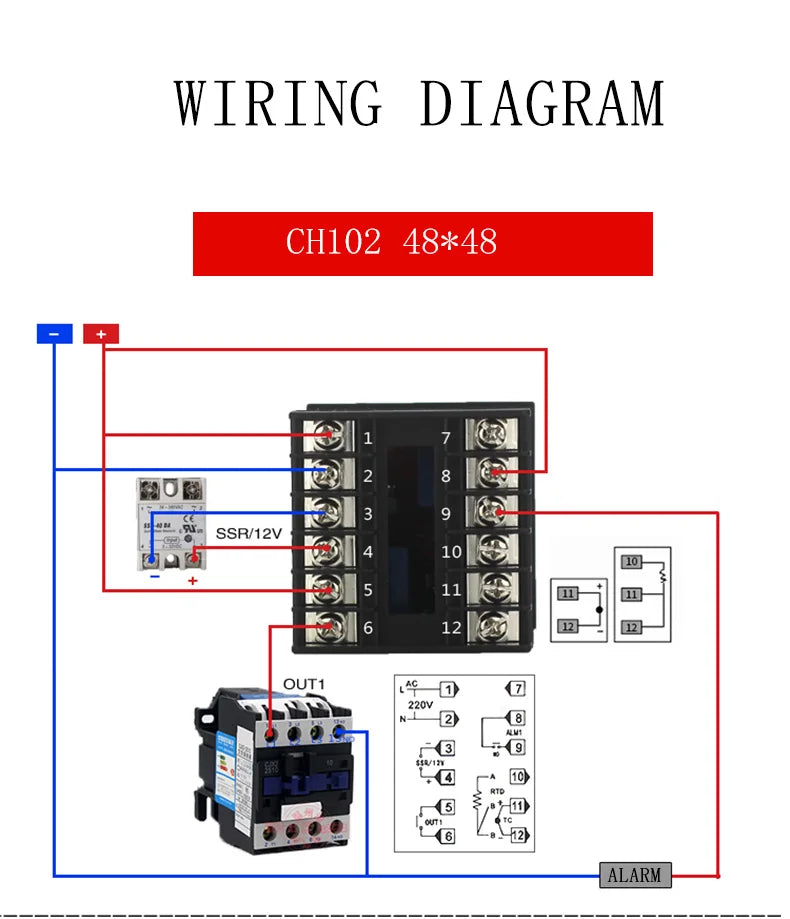

- Dual Output: Electromagnetic relay + SSR output for versatile control applications
- Wide Voltage Range: Operates on 48–240V AC, suitable for most industrial power supplies
- High Accuracy: ±0.5% FS ±1°C for reliable and repeatable temperature regulation
- Multiple Input Types: Supports thermocouples (K, J, R, S, B, E, N, T, W5Re/W26Re, PLII), RTD (Pt100, JPt100), voltage (0–5V, 1–5V), and current (0–20mA, 4–20mA)
- PID or ON/OFF Control: Choose the control method that best suits your process

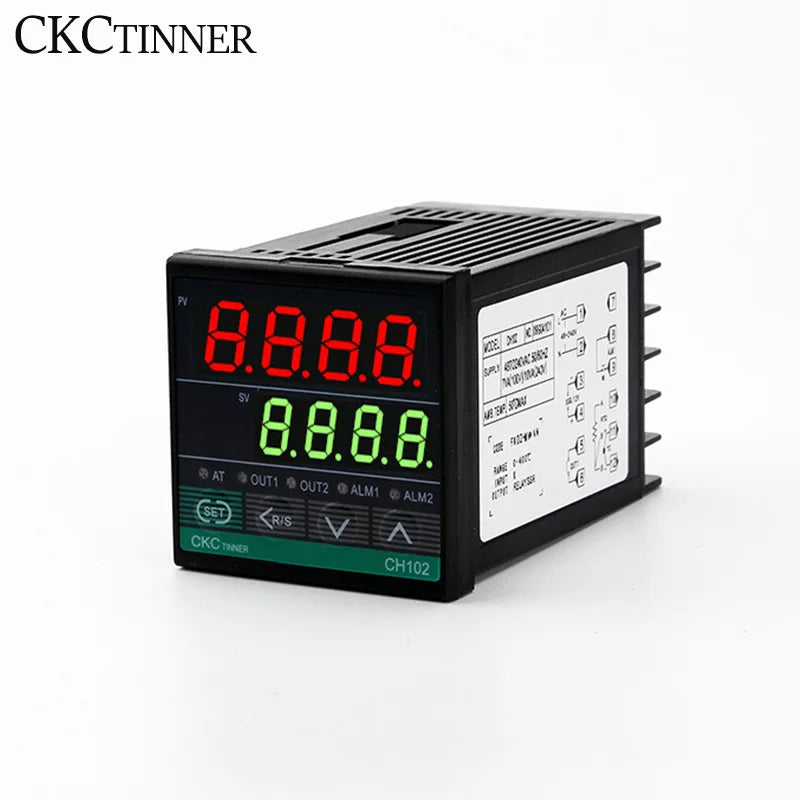

- Clear LCD Display: 8-segment, 4-digit display with LED indication for easy reading
- Touch Switch Setting: Simple, intuitive parameter entry at your fingertips
- Comprehensive Alarm System: Multiple alarm modes including deviation high/low, band, process high/low, and hold-action variants
- Embedded Panel Mount Design: Seamlessly integrates into control panels and enclosures
- Low Power Consumption: Under 10VA at AC 100–240V
Model Numbers & Dimensions
| Model | External Dimensions | Perforation Dimensions |
|---|---|---|
| REX-CH102 | 48 × 48 × 75 mm | 45 ±0.5 × 45 ±0.5 mm |
| REX-CH402 | 48 × 96 × 75 mm | 45 ±0.5 × 92 ±0.5 mm |
| REX-CH502 | 96 × 48 × 75 mm | 92 ±0.5 × 45 ±0.5 mm |
| REX-CH702 | 72 × 72 × 75 mm | 68 ±0.5 × 68 ±0.5 mm |

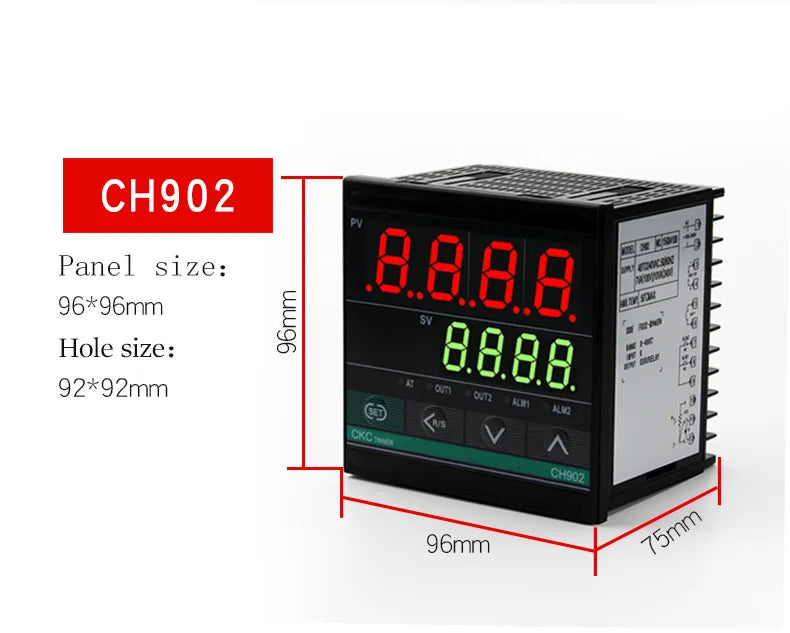

| REX-CH902 | 96 × 96 × 75 mm | 92 ±0.5 × 92 ±0.5 mm |
Full Specifications
| Accuracy | ±0.5% FS ±1°C |
| Supply Voltage | 48–240V AC |
| Input Types | Thermocouple: K, J, R, S, B, E, N, T, W5Re/W26Re, PLII; RTD: Pt100, JPt100; Voltage: 0–5V, 1–5V; Current: 0–20mA, 4–20mA |
| Output Types | Electromagnetic Relay + SSR |
| Control Method | PID or ON/OFF |
| Power Consumption | AC 100–240V: <10VA; AC 24V: <5VA; DC 24V: <160mA |
| Setting Method | Touch Switch |
| Display | 8-segment, 4-digit LCD + LED indicators |
| Operating Temperature | 0–50°C (32–122°F) |
| Operating Humidity | 30–85% RH, non-condensing |
| Style | Embedded panel mount |
| Max Measuring Temperature | 120°C and above |
Related Products You May Find Useful
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What input sensor types does the REX-CH PID temperature controller support?
A: The REX-CH series supports a wide range of input types, including thermocouples (K, J, R, S, B, E, N, T, W5Re/W26Re, PLII), RTD sensors (Pt100, JPt100), voltage inputs (0–5V, 1–5V), and current inputs (0–20mA, 4–20mA), making it suitable for a broad variety of industrial temperature measurement applications.
Q: What is the difference between the CH102, CH402, CH702, and CH902 models?
A: The model numbers refer to the physical panel size. The CH102 is 48×48mm, CH402 is 48×96mm, CH702 is 72×72mm, and CH902 is 96×96mm. All models share the same core PID control features, dual SSR and relay output, and 48–240V AC supply voltage — only the form factor differs to suit your panel cutout size.
Q: Can this controller be used with both PID and ON/OFF control modes?
A: Yes. The REX-CH series PID temperature controller supports both PID (Proportional-Integral-Derivative) and simple ON/OFF control methods. You can select the appropriate mode for your process via the touch switch interface, making it flexible for both precise industrial processes and simpler heating or cooling applications.
Q: What voltage supply does the REX-CH temperature controller require?
A: This controller operates on a wide supply voltage range of 48–240V AC, with power consumption under 10VA at AC 100–240V. It is compatible with most standard industrial power supplies worldwide.
