CKCTINNER REX-C Series PID Digital Temperature Controller
Take precise command of your industrial heating and cooling processes with the CKCTINNER REX-C Series PID Digital Temperature Controller. Available in five panel sizes (REX-C100, C400, C410, C700, C900), this CE-certified unit supports both Relay (MAN) and SSR (VAN) output modes, giving you the flexibility to match your exact application requirements. With intelligent PID auto-tuning or simple ON/OFF control, it delivers stable, accurate temperature regulation for kilns, ovens, incubators, plastic molding machines, and a wide range of industrial automation systems.
Made in Mainland China.
⚠️ OUTPUT NOTE: This controller is available with RELAY output (MAN) or SSR output (VAN). The default is SSR output (VAN). Please specify your preferred output method in your order notes.
Key Features
- Intelligent PID Control: Auto-tuning PID algorithm or ON/OFF mode for fast, accurate temperature regulation with minimal overshoot
- Dual Output Options: Electromagnetic relay output (MAN) or SSR voltage output (VAN) — specify at checkout
- Wide Sensor Compatibility: Accepts thermocouples (K, J, R, S, B, E, N, T, W5Re/W26Re, PLII) and RTDs (Pt100, JPt100)
- High Accuracy: ±0.5% FS ± 1°C measurement precision for dependable process control
- Clear Digital Display: 8-segment, 4-digit LED display with LED status indicators for at-a-glance monitoring
- Touch-Button Setting: Simple front-panel touch switches for easy parameter adjustment
- Comprehensive Alarm System: 12 configurable alarm types including deviation high/low, band, process high/low, and hold-action variants
- CE Certified: Meets international safety and performance standards for industrial environments
- Panel-Mount Embedded Design: Flush-mount installation for clean integration into control panels and enclosures
Technical Specifications
| Model Series | REX-C100 / C400 / C410 / C700 / C900 |
| Supply Voltage | 220 VAC, 50/60 Hz (other models: 100–240 VAC, 50/60 Hz) |
| Accuracy | ±0.5% FS ± 1°C |
| Control Method | PID or ON/OFF |
| Input Types | Thermocouple: K, J, R, S, B, E, N, T, W5Re/W26Re, PLII; RTD: Pt100, JPt100 |
| Output Types | Electromagnetic Relay (MAN) + SSR Voltage (VAN) |
| Power Consumption | AC 100–240V: <10 VA; AC 24V: <5 VA; DC 24V: <160 mA |
| Display | 8-segment 4-digit LED + LED indicators |
| Setting Method | Touch switch (front panel) |
| Operating Temperature | 0–50°C (32–122°F) |
| Operating Humidity | 30–85% RH, non-condensing |
| Certification | CE |
Model Dimensions
| Model | External Dimensions | Panel Cutout |
|---|---|---|

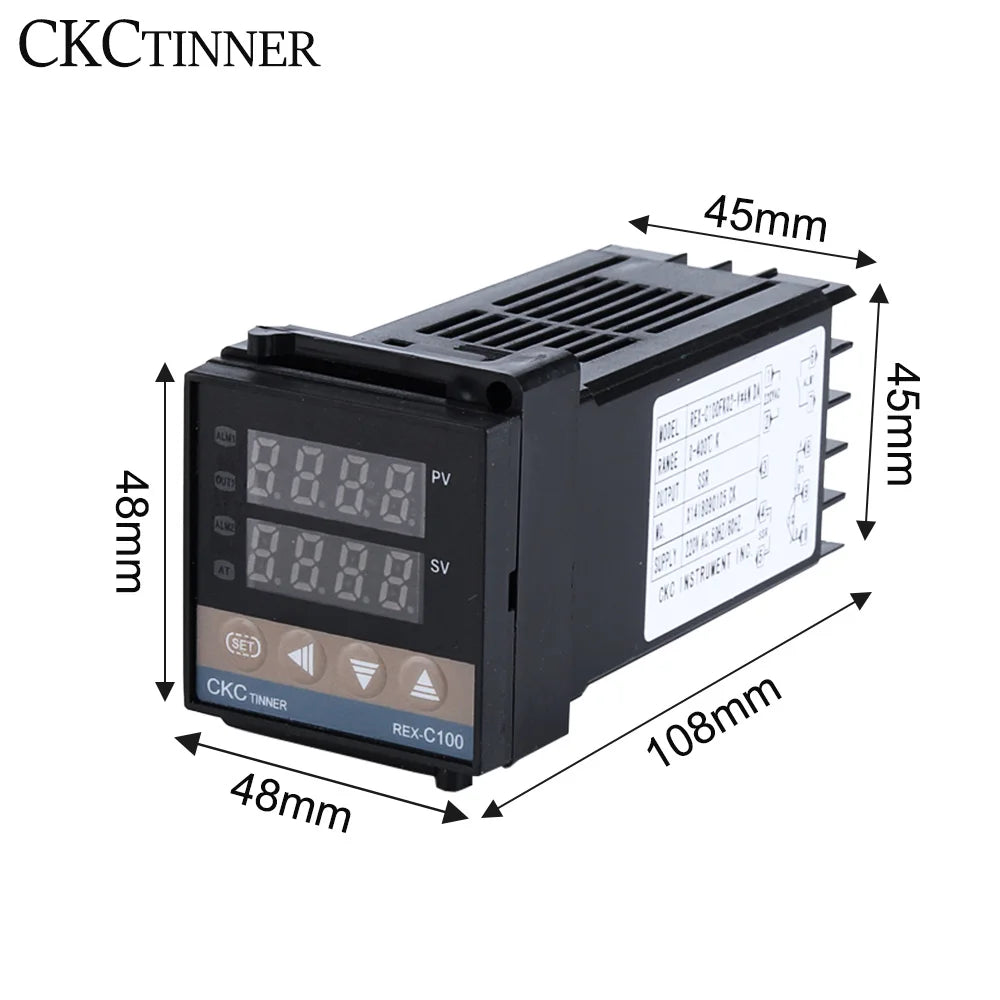

| REX-C100 | 48 × 48 × 110 mm | 45 × 45 mm |
| REX-C410 | 48 × 96 × 110 mm | 45 × 92 mm |

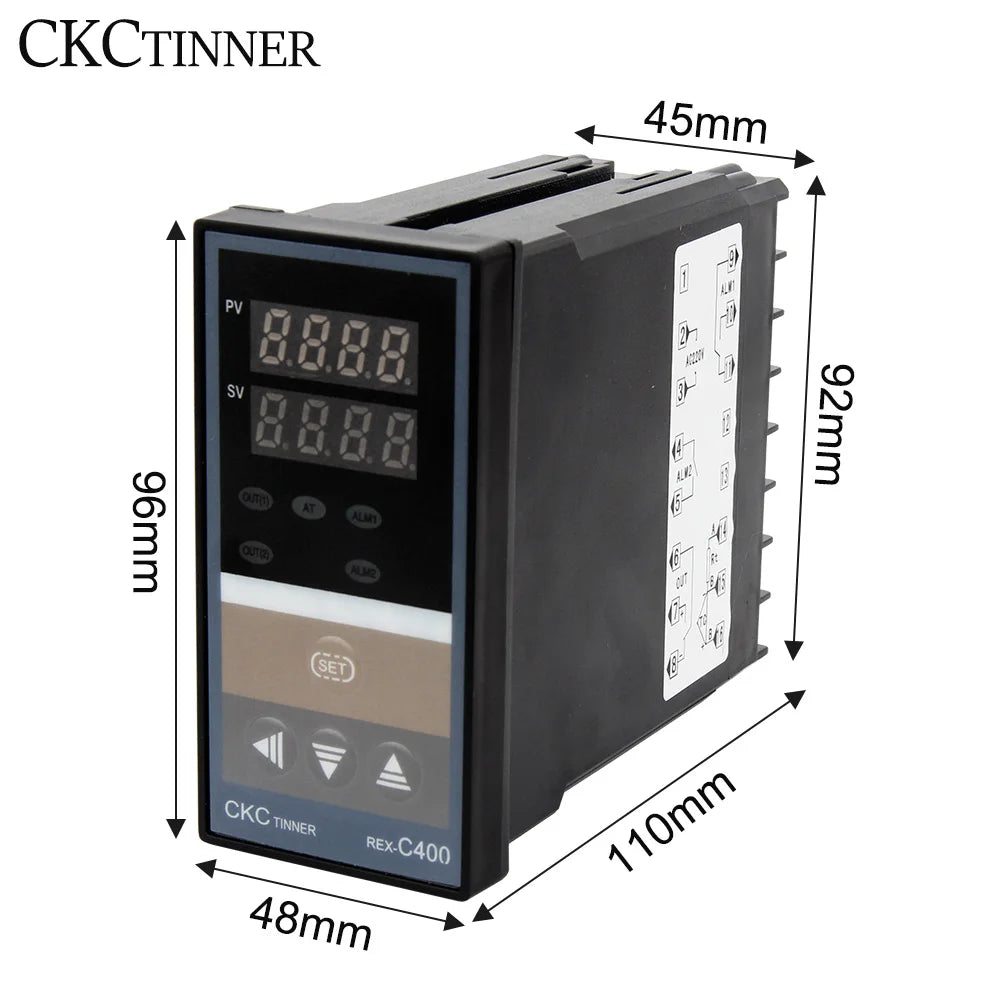

| REX-C400 | 96 × 48 × 110 mm | 92 × 45 mm |

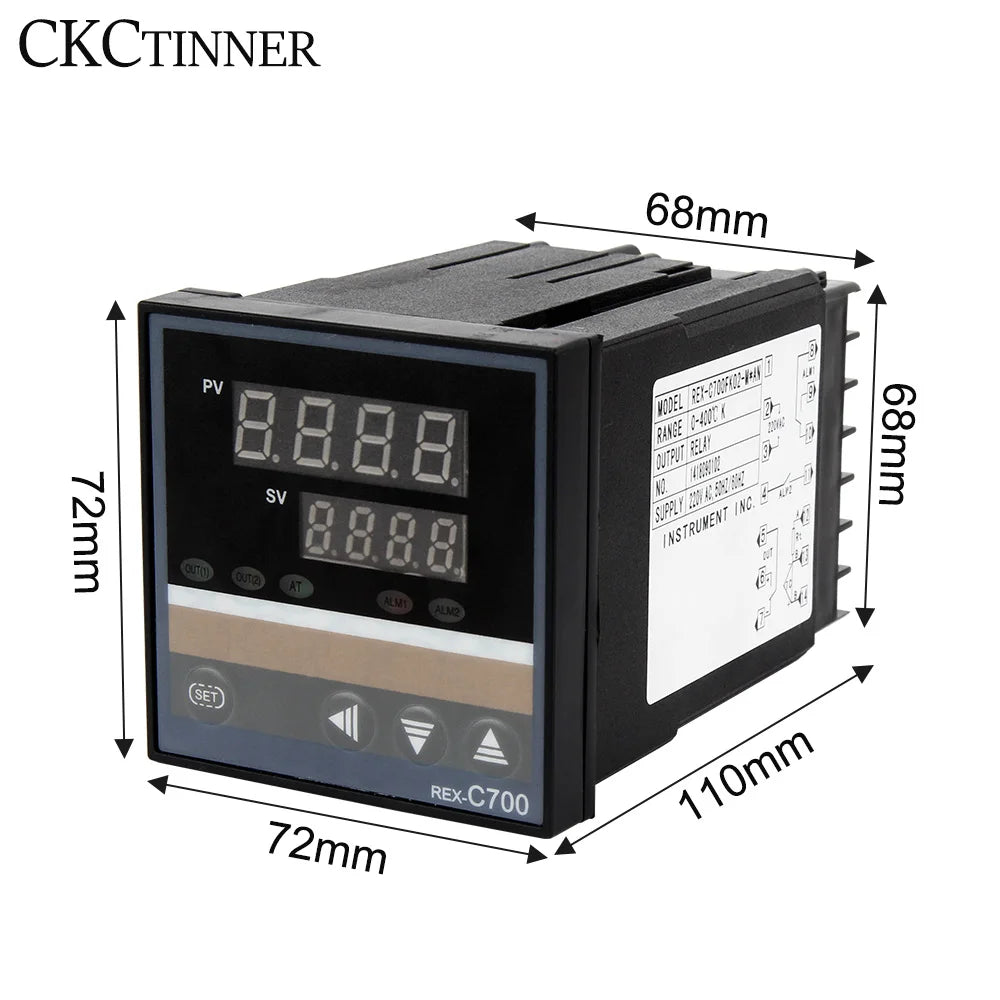

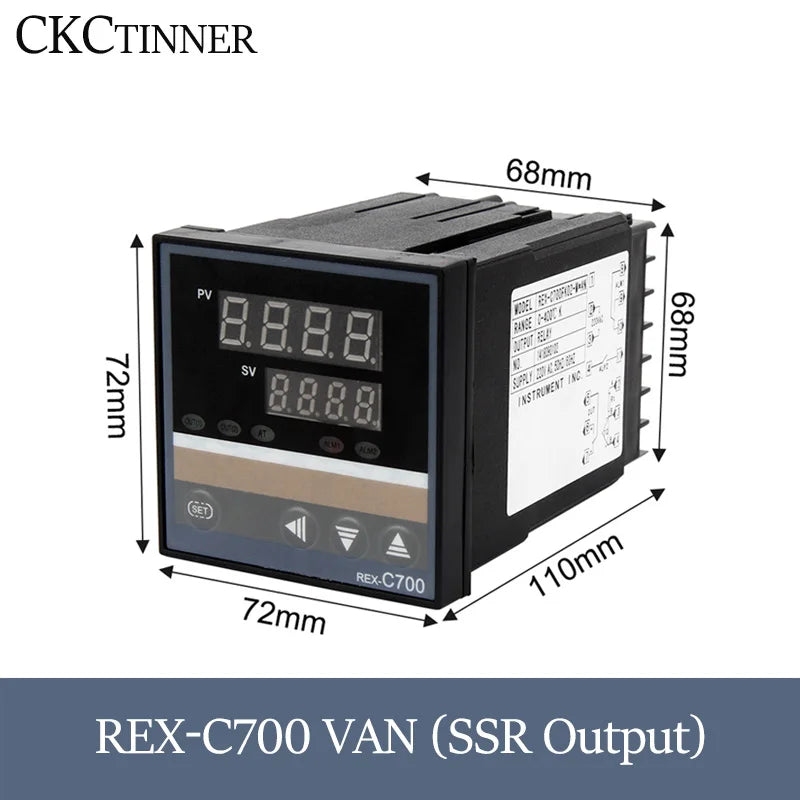

| REX-C700 | 72 × 72 × 110 mm | 68 × 68 mm |

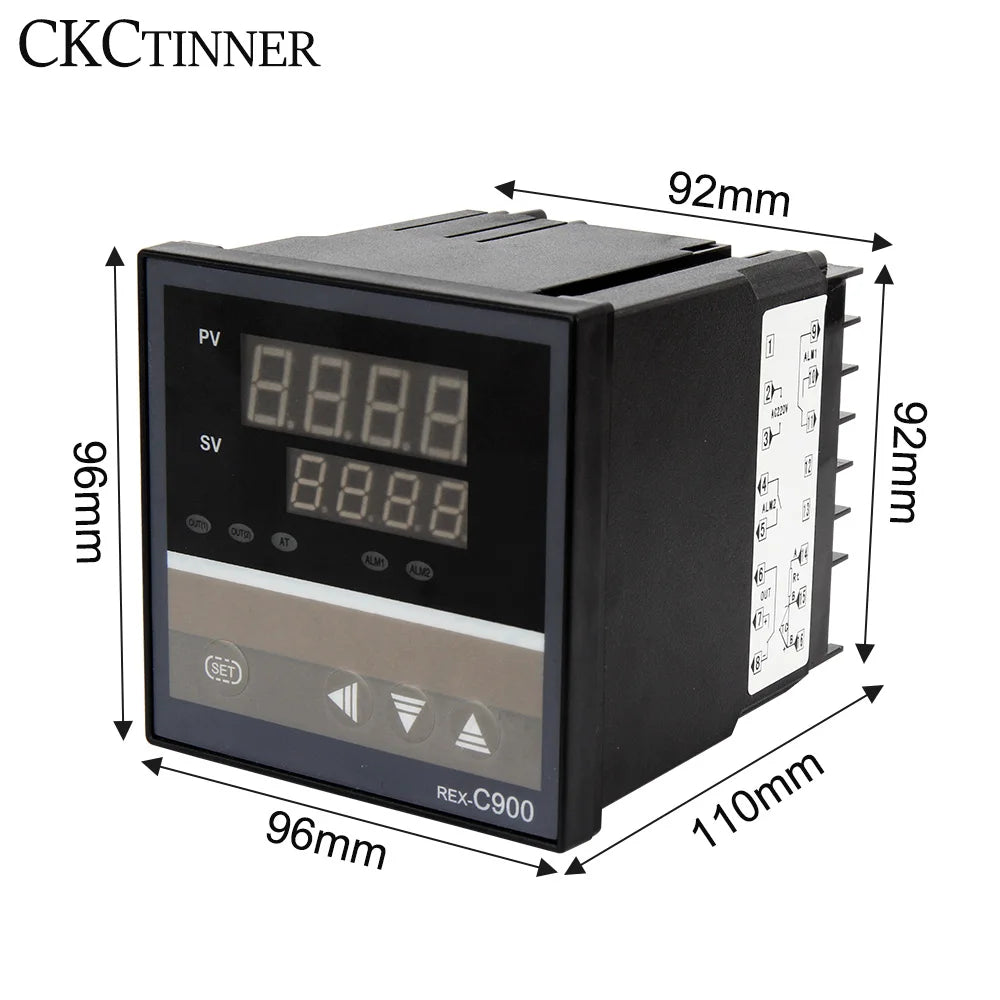

| REX-C900 | 96 × 96 × 110 mm | 92 × 92 mm |
What's in the Box
- 1 × REX-C Series PID Temperature Controller (your selected model)
- No batteries required — mains powered
Related Products You May Like
If you enjoy precision tools and DIY automation, you may also be interested in:
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions

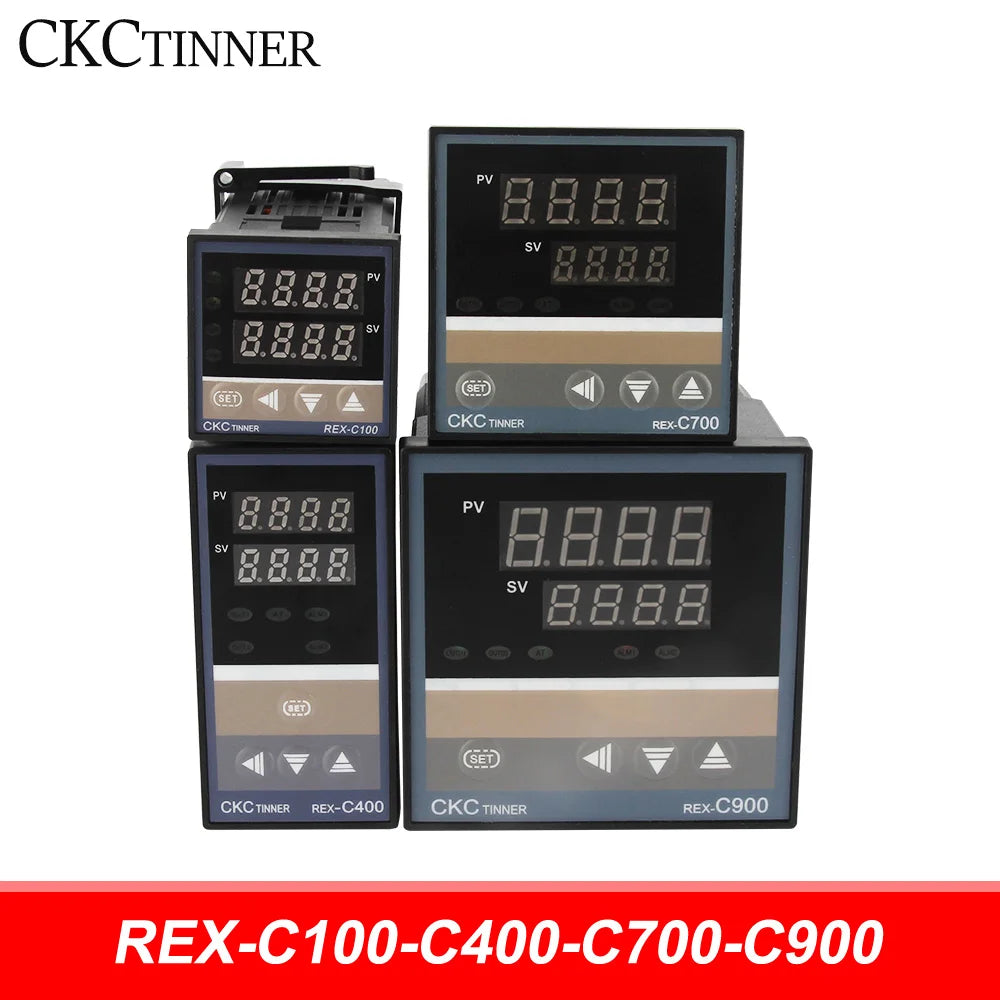

Q: What is the difference between the REX-C100, C400, C700, and C900 models?
A: The primary difference between the REX-C series models is their physical panel size and cutout dimensions. The REX-C100 is the most compact at 48×48 mm (45×45 mm cutout), while the REX-C900 is the largest at 96×96 mm (92×92 mm cutout). All models share the same core PID control functionality, sensor compatibility, and output options — choose based on your panel space and mounting requirements.

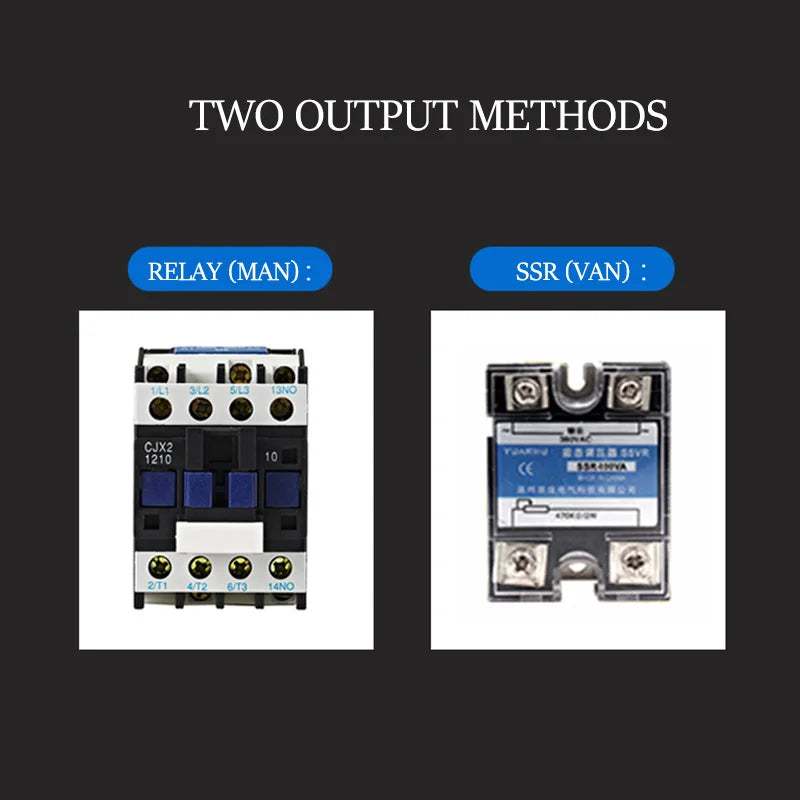

Q: How do I choose between Relay (MAN) and SSR (VAN) output?
A: Relay output (MAN) is ideal for directly switching resistive loads such as heating elements using a mechanical relay. SSR output (VAN) provides a low-voltage DC signal (typically 12V DC) to drive an external Solid State Relay (SSR), offering faster switching, longer service life, and reduced electrical noise. If you are unsure, SSR output (VAN) is the default and is recommended for most modern industrial applications. Please specify your choice in your order notes.
Q: Which thermocouple types are compatible with the REX-C series controller?
A: The REX-C series supports a wide range of input sensor types, including thermocouples K, J, R, S, B, E, N, T, W5Re/W26Re, and PLII, as well as RTD sensors Pt100 and JPt100. The most commonly used is the Type-K thermocouple, which covers a broad temperature range suitable for most industrial heating applications.
Q: What is PID control and why is it better than simple ON/OFF control?
A: PID (Proportional-Integral-Derivative) control is an advanced algorithm that continuously calculates and adjusts the output to minimize the difference between the measured temperature and the target setpoint. Unlike basic ON/OFF control — which simply switches the heater fully on or off — PID control reduces temperature overshoot, oscillation, and instability, resulting in much more precise and stable temperature regulation. This makes it the preferred choice for sensitive industrial processes.
