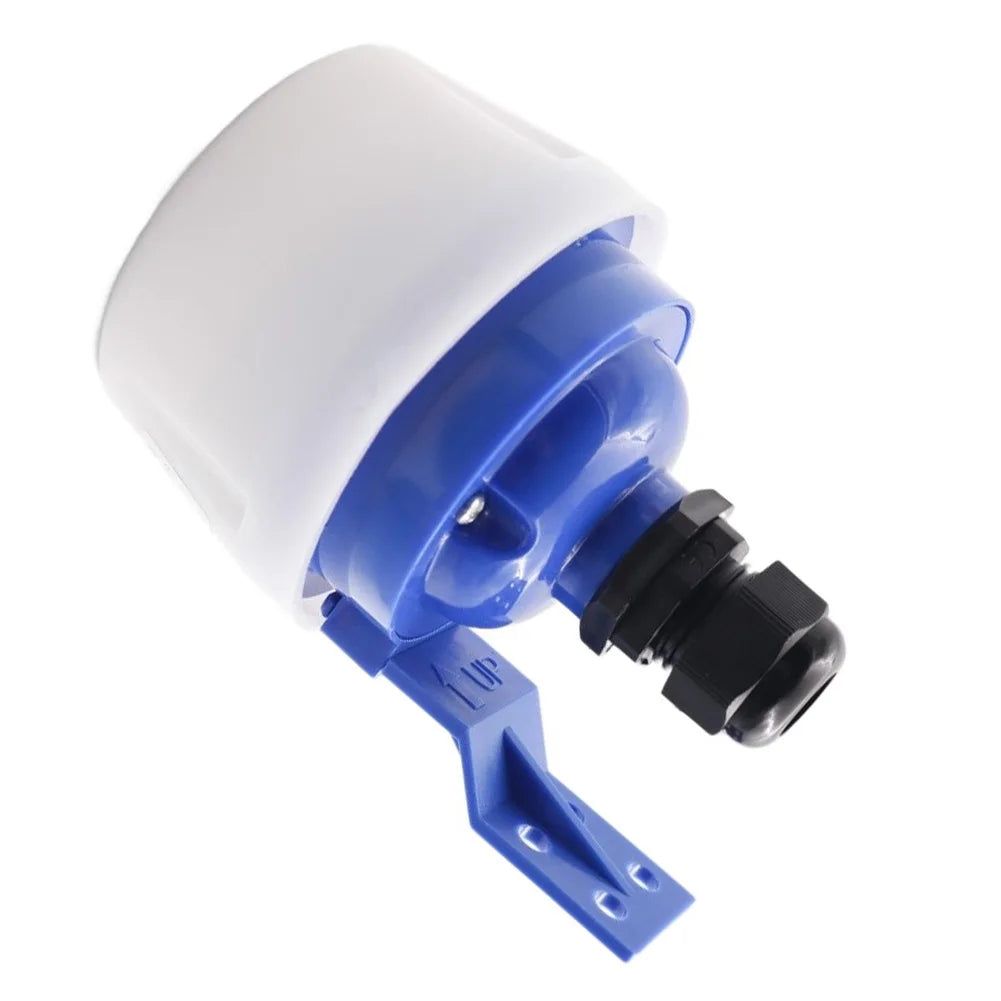

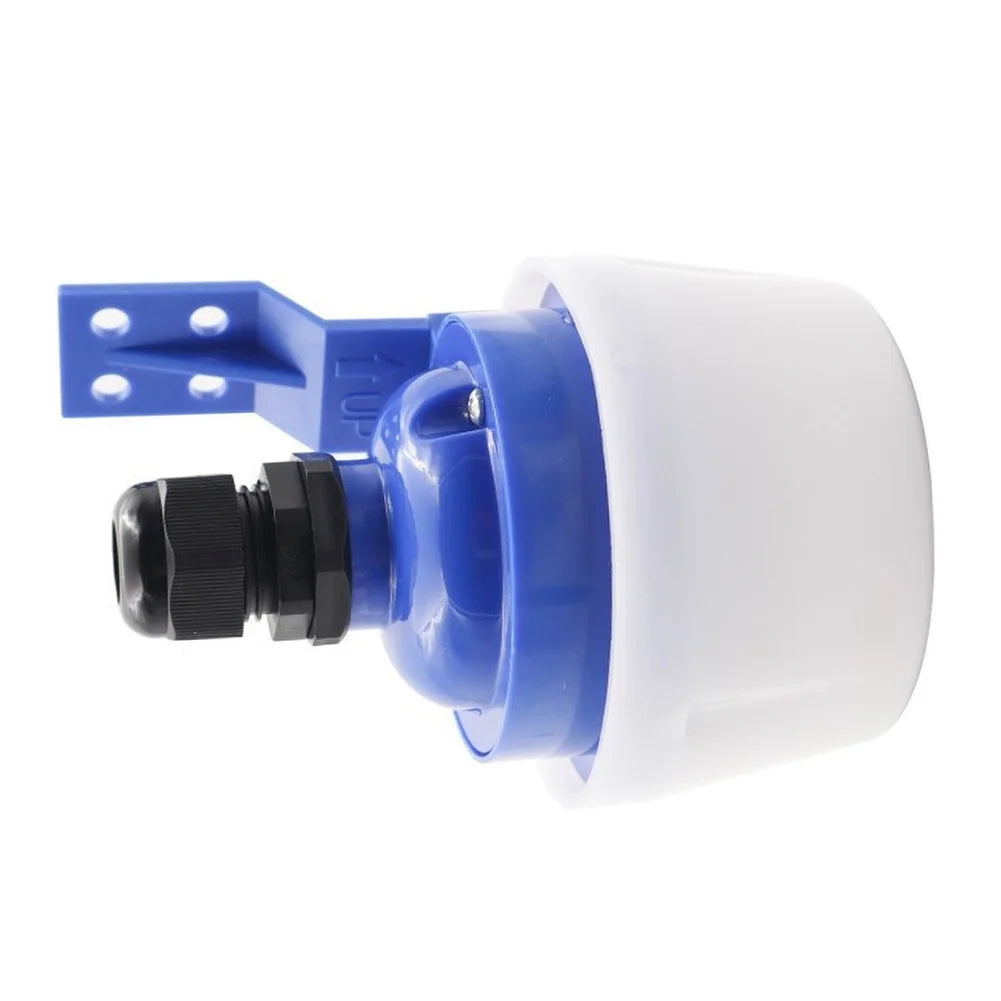

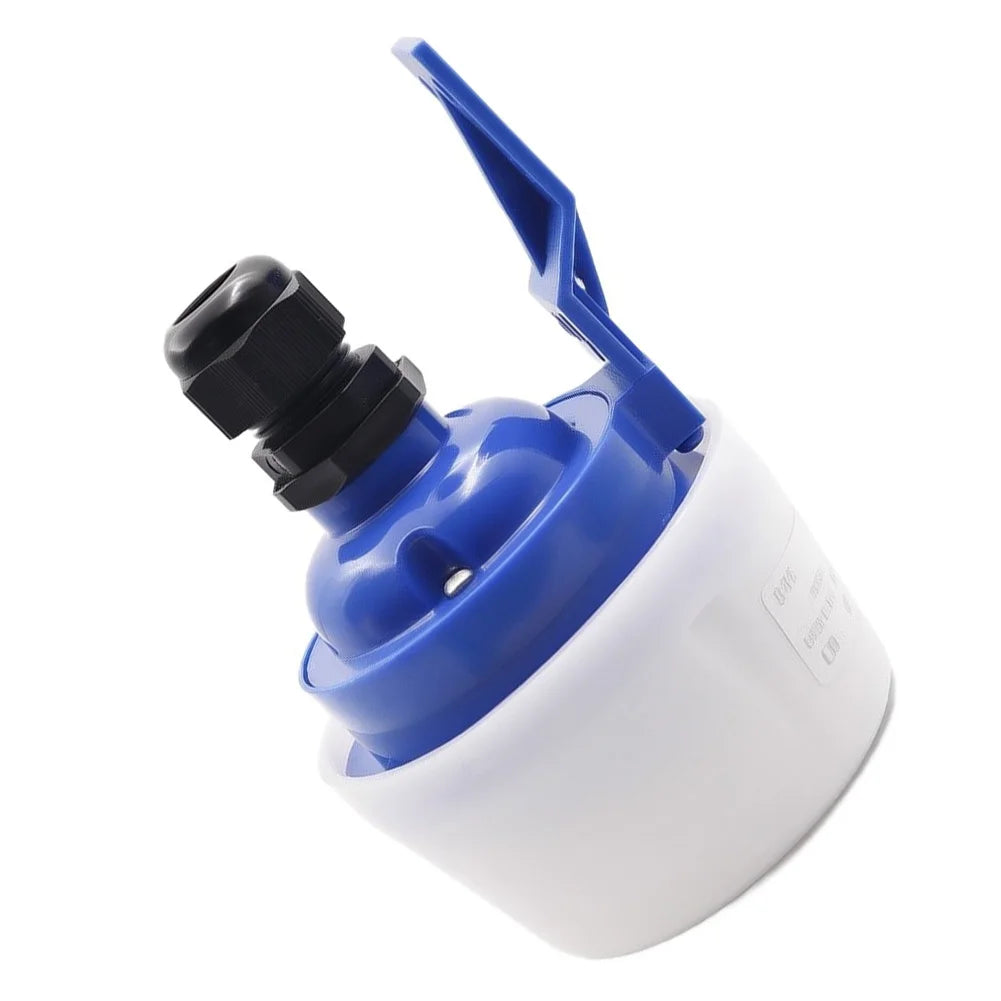

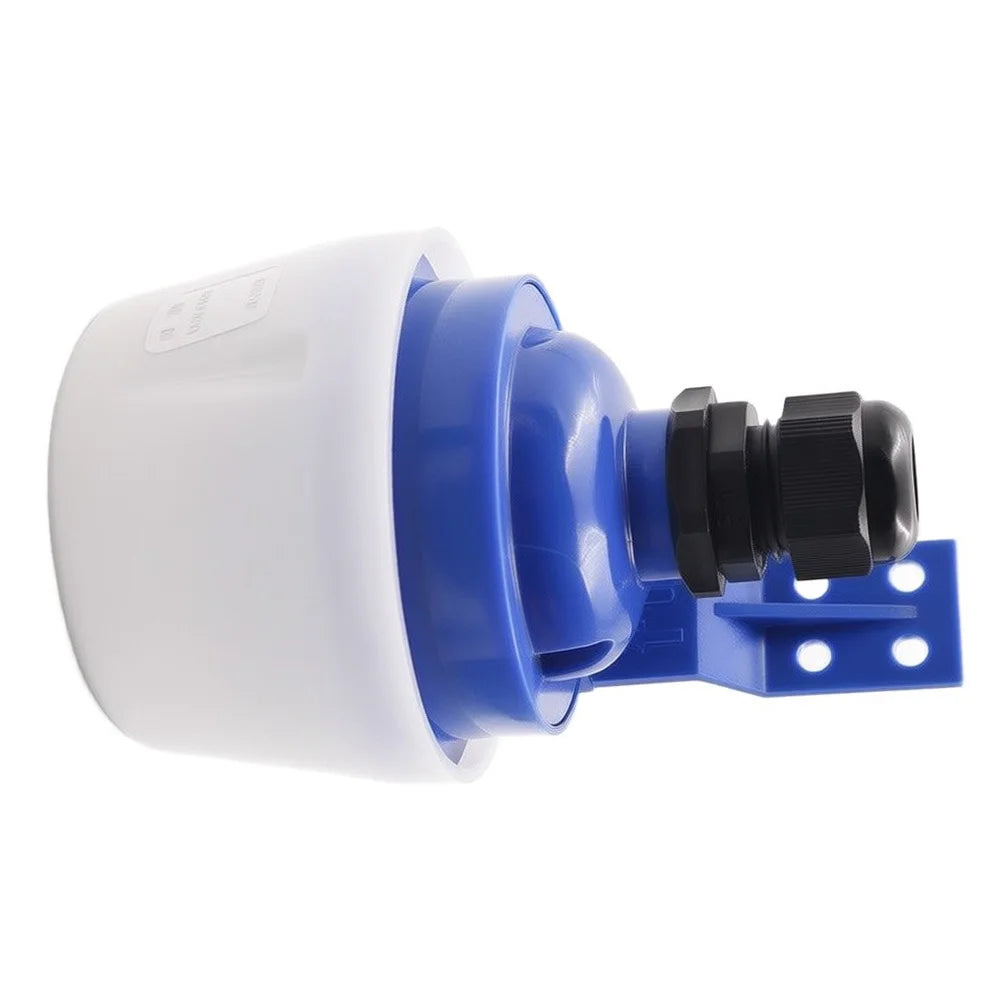

220V–240V Photocell Switch 10A Auto Dusk-to-Dawn Light Control
220V–240V Photocell Switch 10A Auto Dusk-to-Dawn Light Control
220V–240V Photocell Switch – Automatic Dusk-to-Dawn Light Controller
Take the guesswork out of outdoor lighting with this intelligent photocell switch. Designed for street lamps, garden lights, and commercial fixtures, it automatically activates your lights at dusk and switches them off at dawn — no timers, no manual intervention needed. Rated at 10A / 3000W and compatible with 220V–240V AC mains, it handles everything from small wall lanterns to heavy-duty street lighting loads.
Made in Mainland China.
Key Features
- Automatic Dusk-to-Dawn Activation: Triggers your lights when ambient illumination drops to 10–35 LUX — reliable, hands-free operation every day.
- High Load Capacity: Rated at 10A with a maximum load of 3000W, making it suitable for both residential and commercial lighting applications.
- Wide Voltage Compatibility: Works on 110V–240V AC at 50/60 Hz, adaptable to most global electrical standards.
- Weather-Resistant Design: Operates in temperatures from -20°C to +40°C and withstands humidity up to 93% RH — built for year-round outdoor use.
- Surface Mounted Installation: Easy to fit with a 41.5mm hole spacing; no specialist tools required.
- Durable Plastic Housing: Lightweight yet robust construction available in multiple colour options to suit any installation aesthetic.
Technical Specifications
| Rated Voltage | 110V–240V AC |
| Rated Current | 10A |
| Max Load Power | 3000W |
| Frequency | 50/60 Hz |
| Activation Threshold | 10–35 LUX |
| Sensing Distance | 0–10 cm |
| Hole Spacing | 41.5mm |
| Dimensions | 65 × 56 × 42 mm |
| Material | Plastic |
| Operating Temperature | -20°C to +40°C |
| Working Humidity | <93% RH |
| Installation Type | Surface Mounted |
| Origin | Mainland China |
Package Contents
- 1 × Photocell Light Control Switch (Photo Detector)
Notes
- Actual colour may vary slightly from images due to monitor brightness and lighting conditions.
- Please allow a slight manual measurement deviation for all listed dimensions.
You May Also Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What voltage is this photocell switch compatible with?
A: This photocell switch is compatible with 110V–240V AC at 50/60 Hz, making it suitable for use in most countries including those running on 220V–240V mains supplies.
Q: At what light level does the photocell switch activate?
A: The switch activates automatically when ambient light falls to between 10 and 35 LUX — typically at dusk — and turns off once daylight returns. No manual adjustment is needed.
Q: Is this photocell switch suitable for outdoor use?
A: Yes. It is designed to handle outdoor conditions, operating reliably in temperatures from -20°C to +40°C and humidity levels up to 93% RH, making it well suited for street lamps, garden lights, and other exterior fixtures.
Q: What is the maximum load this switch can handle?
A: The switch is rated at 10A with a maximum load capacity of 3000W, accommodating a wide range of lighting setups from single bulbs to multiple high-wattage street lamp fixtures.
Q: How is the photocell switch installed?
A: It uses a surface-mounted installation method with a 41.5mm hole spacing. The compact 65 × 56 × 42mm body fits standard lamp posts and outdoor fixture housings with minimal effort.
