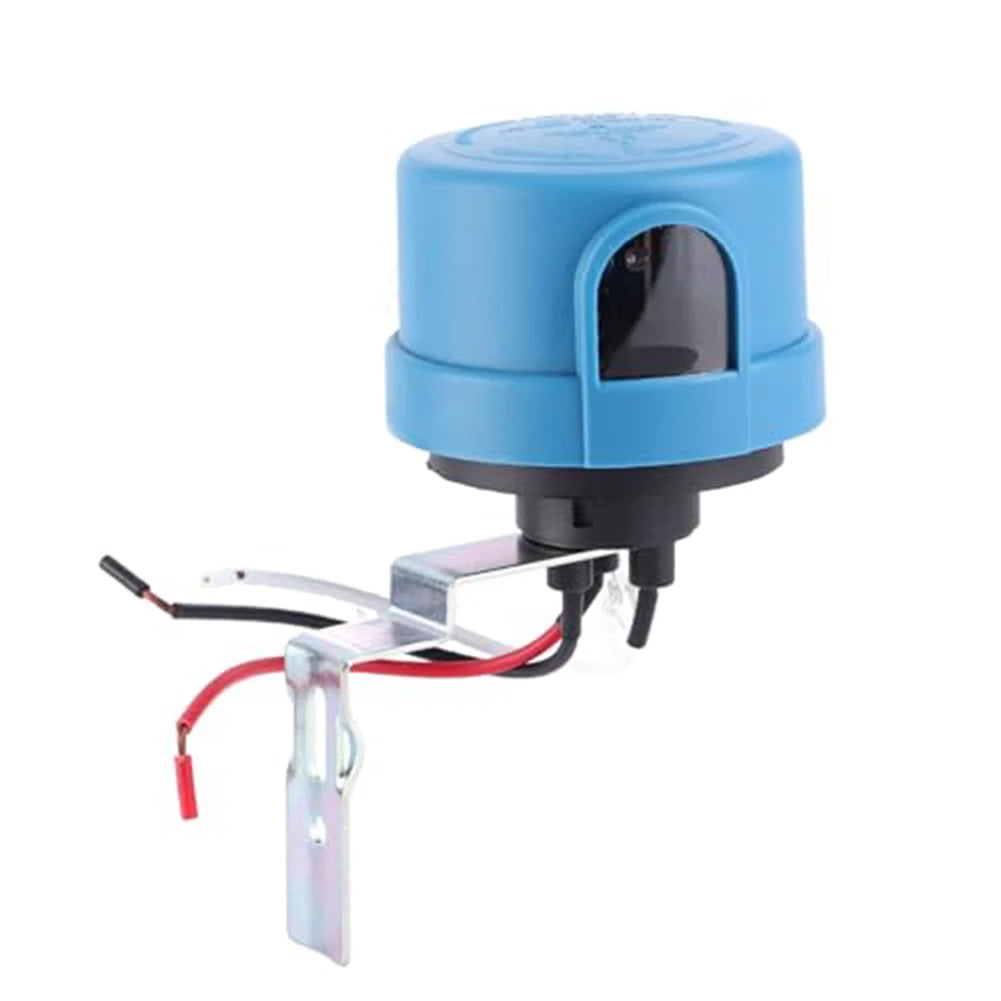

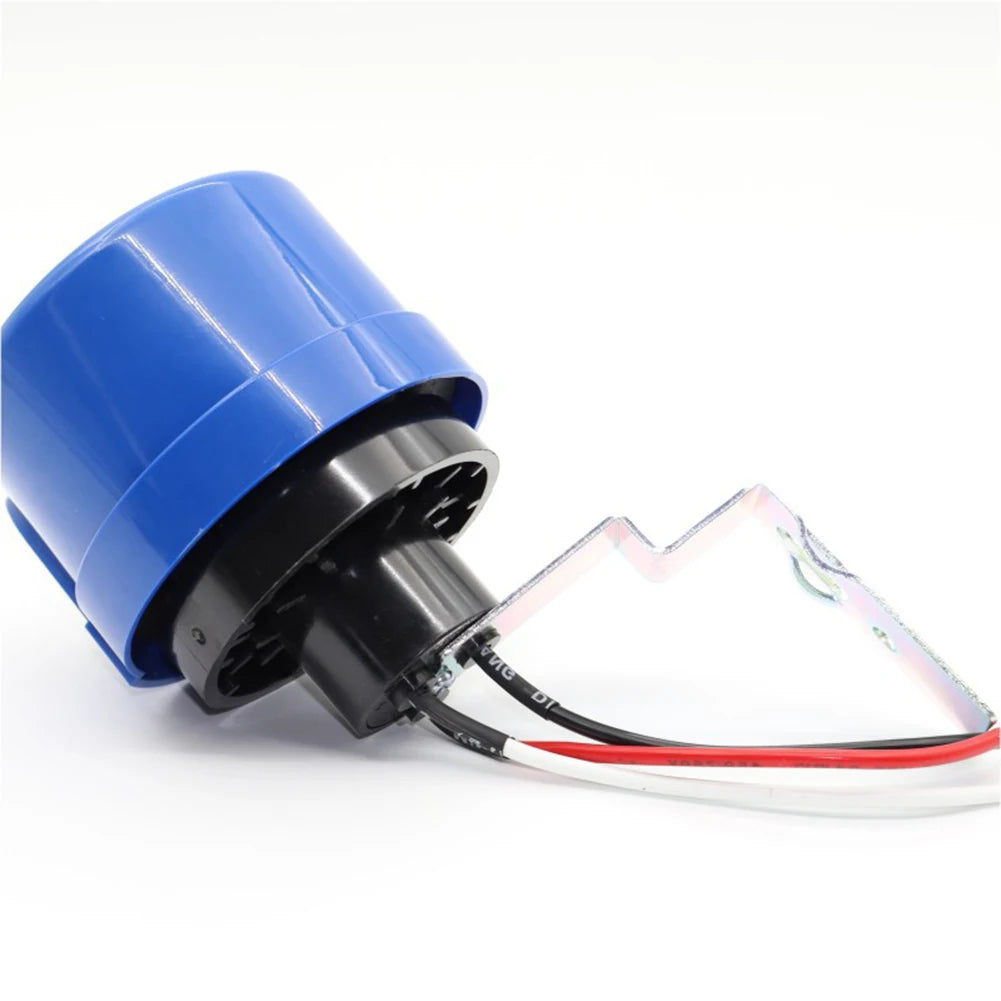

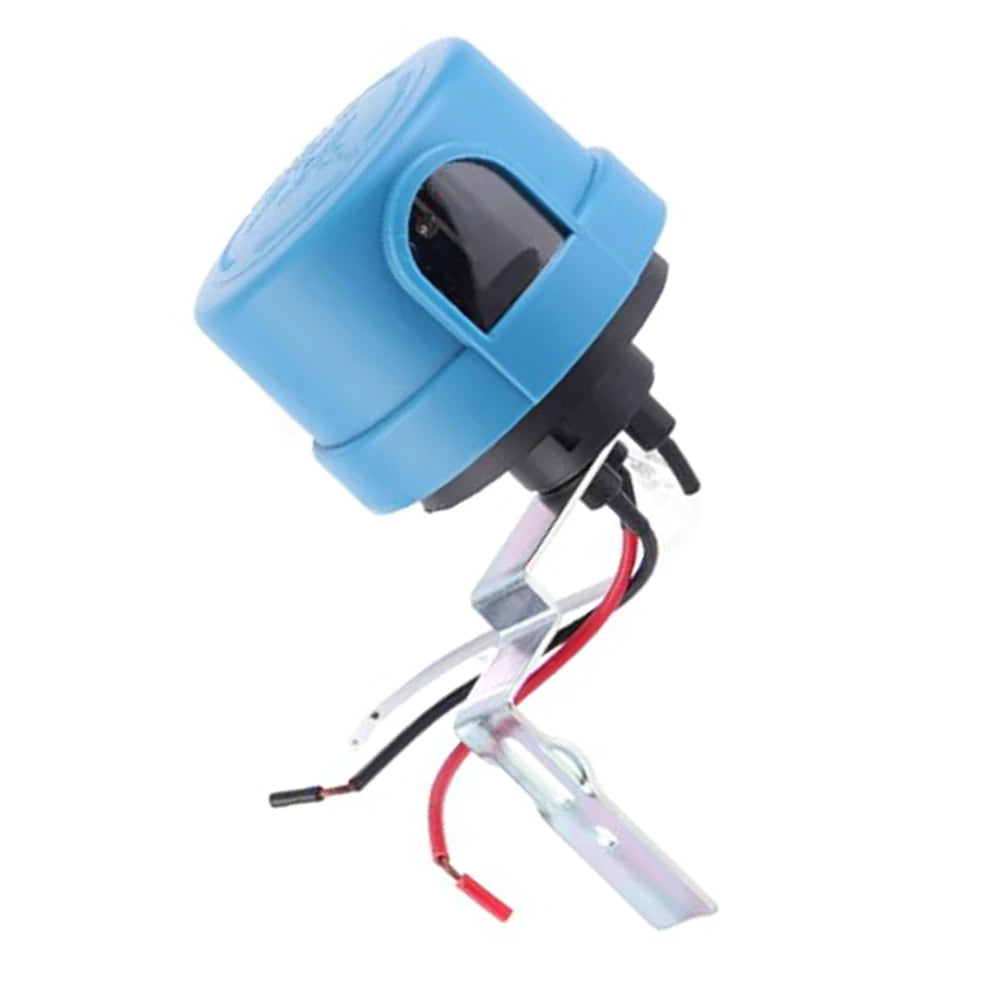

Photocell Automatic Light Control Switch – 105–305V, 10A, IP65
Take the guesswork out of outdoor lighting with this Photocell Automatic Light Control Switch. Engineered for streetlights, garden lighting, highways, and general outdoor installations, it automatically turns lights on at dusk and off at dawn — saving energy and eliminating the need for manual switching.
Key Features
- Wide Voltage Compatibility: Operates across a broad input range of 105–305V AC, 50/60Hz, making it suitable for a variety of global electrical systems.
- High Current & Load Capacity: Rated at 10A with a maximum load power of 1000W — handles heavy-duty outdoor lighting loads with ease.
- IP65 Weather Protection: The robust plastic shell provides an IP65 rating, sealing internal components against dust and water jets — built to withstand harsh outdoor environments.
- High-Sensitivity Photocell Sensor: Automatically detects ambient light levels and switches accordingly, with a 30-second delay closing time to prevent nuisance tripping from brief light fluctuations.
- Extreme Temperature Range: Performs reliably from -40°C to +70°C, ensuring dependable operation through every season.
- Easy Twist-Lock Installation: The compact, lightweight design (80 × 54 mm, blue) features a twist-lock mechanism for quick, secure mounting and simple disassembly when needed.
- Switching Output: Clean on/off switching output for straightforward integration with your existing lighting systems.
Specifications
| Part Name | Photocell Automatic Switch |
| Material | Plastic |
| Dimensions | 80 × 54 mm |
| Color | Blue |
| Input Voltage | 105–305V AC, 50/60Hz |
| Rated Current | 10A |
| Load Power | 1000W |
| Protection Class | IP65 |
| Operating Temperature | -40°C to +70°C |
| Output | Switching Output |
| Delay Closing Time | 30 Seconds |
| Country of Origin | Made in Mainland China |
Applications
Ideal for streetlights, highway lighting, garden and landscape lighting, parking lots, and other outdoor installations where automatic dusk-to-dawn control is required.
Package Contents
- 1 × Photocell Automatic Light Control Switch
Note: Please review the specifications carefully before purchase to confirm compatibility with your lighting system. Slight color variation may occur due to monitor settings. Allow ±1–2 mm manual measurement deviation.
You May Also Like
- Air Compressor Pressure Gauge 0–10/0–12/0–25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- BALASHOV 2500W Handheld Steam Cleaner – Kitchen, Car & Home
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What voltage range does this photocell automatic light switch support?
A: This photocell switch supports a wide input voltage range of 105–305V AC at 50/60Hz, making it compatible with most residential, commercial, and industrial outdoor lighting systems worldwide.
Q: Is this photocell switch waterproof and suitable for outdoor use?
A: Yes. The switch carries an IP65 protection rating, meaning it is fully protected against dust ingress and water jets. Its sealed plastic housing makes it well-suited for permanent outdoor installation in all weather conditions, from -40°C to +70°C.
Q: How does the automatic dusk-to-dawn function work?
A: The built-in high-sensitivity photocell sensor continuously monitors ambient light levels. When light drops below a set threshold at dusk, the switch activates your connected lighting. At dawn, when light levels rise, it switches the lighting off — with a 30-second delay to avoid false triggering from brief light changes such as passing headlights.
Q: What is the maximum load this switch can handle?
A: The switch is rated at 10A and up to 1000W of load power, making it suitable for a wide range of outdoor lighting setups including streetlights, garden lights, and highway luminaires.
