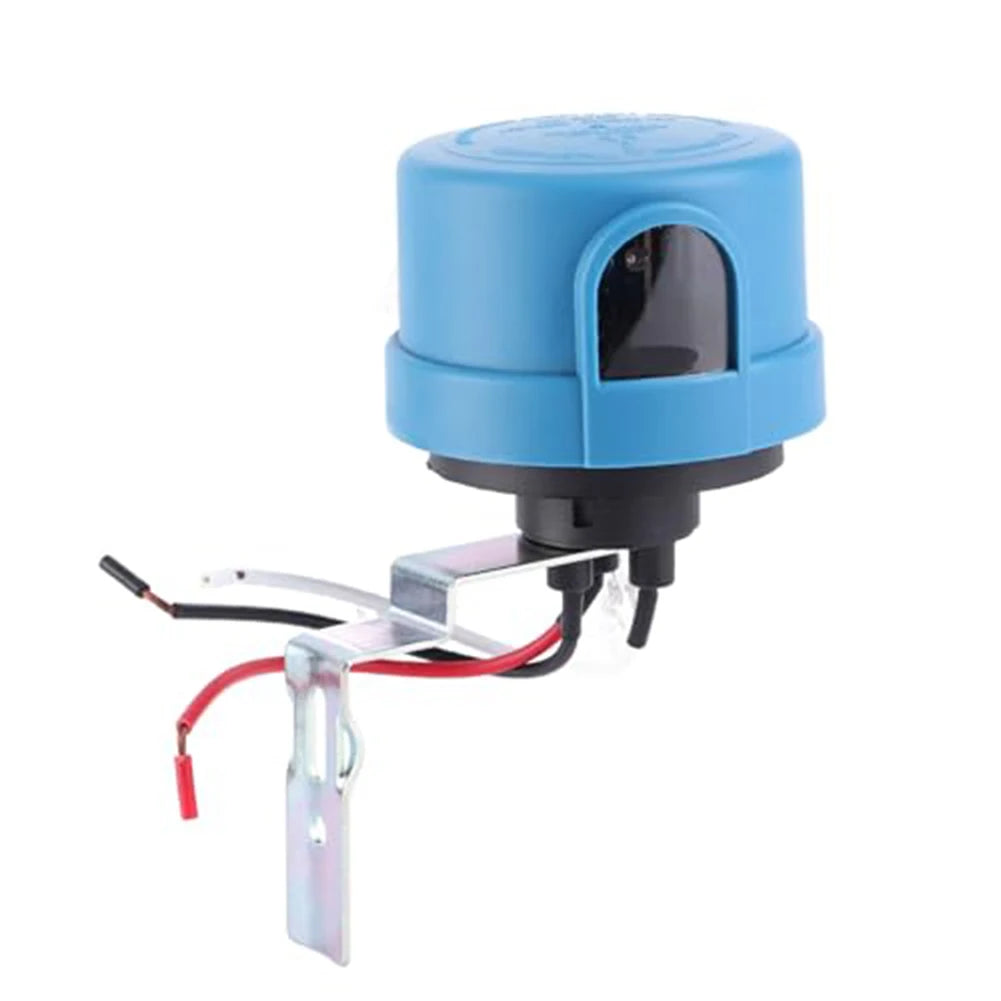

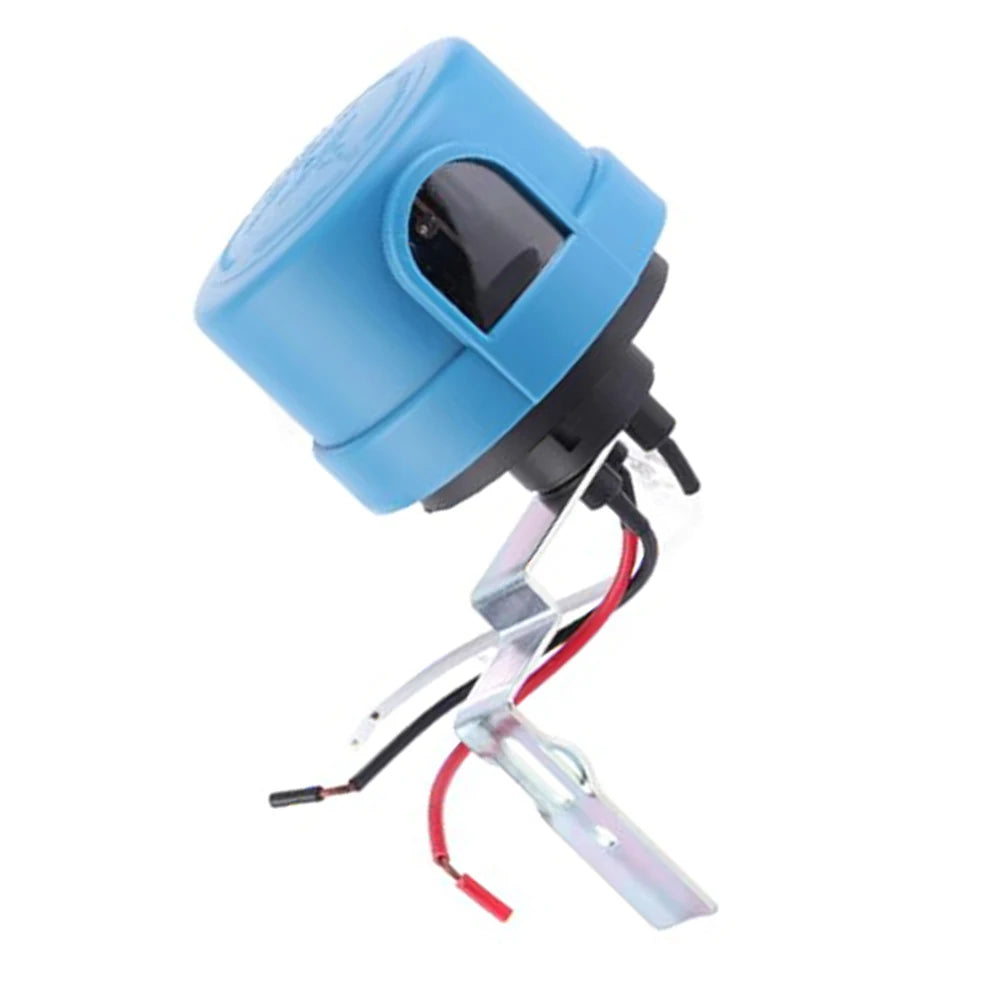

Photocell Automatic Light Control Switch – IP65 Outdoor Rated
Take the guesswork out of outdoor lighting management with this high-sensitivity Photocell Automatic Light Control Switch. Designed for street lights, garden lighting, highways, and other outdoor installations, it automatically activates lights at dusk and deactivates them at dawn — saving energy and eliminating manual switching entirely.
Key Features
- Automatic Dusk-to-Dawn Control: High-sensitivity photocell detects ambient light levels and switches your outdoor lights on at dusk and off at dawn automatically.
- Wide Voltage Compatibility: Operates across a broad input power range of 105–305V AC (50/60Hz), making it suitable for diverse electrical systems worldwide.
- IP65 Weather Protection: Robust plastic shell with IP65 ingress protection keeps internal components safe from dust, rain, and harsh outdoor conditions.
- High Load Capacity: Rated at 10A and handles up to 1000W of load power — ideal for heavy-duty street lighting and commercial outdoor applications.
- Twist-Lock Installation: Compact, lightweight design (80×54mm) with a twist-lock mechanism for quick, tool-free installation and easy disassembly during maintenance.
- 30-Second Delay Closing: Built-in 30-second delay prevents nuisance switching caused by brief light fluctuations such as passing car headlights.
- Wide Operating Temperature: Functions reliably from -40°C to +70°C, ensuring year-round performance in extreme climates.
Technical Specifications
| Part Name | Photocell Automatic Switch |
| Material | Plastic |
| Color | Blue |
| Size | 80 × 54 mm |
| Input Voltage | 105–305V AC, 50/60Hz |
| Rated Current | 10A |
| Load Power | Up to 1000W |
| Output Type | Switching Output |
| Protection Class | IP65 |
| Operating Temperature | -40°C to +70°C |
| Delay Closing Time | 30 seconds |
Applications
Ideal for street lights, highway lighting, garden and pathway lights, car parks, security floodlights, and any outdoor lighting installation requiring automated control.
What's in the Box
- 1 × Photocell Automatic Light Control Switch
Made in Mainland China.
Note: Screen color calibration may cause slight variations from the actual product color. Allow minor measurement tolerances of ±1–2mm. Always verify voltage and current compatibility with your lighting system before installation.
You May Also Like
- Air Compressor Pressure Gauge 0–10/0–12/0–25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What voltage range does this photocell switch support?
A: This photocell automatic light control switch supports a wide input voltage range of 105V to 305V AC at 50/60Hz, making it compatible with most standard residential and commercial electrical systems around the world.
Q: Is this photocell switch suitable for outdoor use in all weather conditions?
A: Yes. The switch carries an IP65 protection rating, meaning it is fully dust-tight and protected against water jets from any direction. Its operating temperature range of -40°C to +70°C ensures reliable performance in extreme heat, cold, rain, and humidity.
Q: How does the 30-second delay work?
A: The built-in 30-second delay prevents false triggering from brief, temporary light sources such as vehicle headlights or momentary flashes. The switch will only change state after the ambient light condition persists for at least 30 seconds, ensuring stable and reliable automatic operation.
Q: How do I install this photocell switch?
A: The switch features a convenient twist-lock design. Simply align it with the compatible socket on your lighting fixture and twist to lock it into place — no special tools required. It is equally easy to remove for maintenance or replacement.
