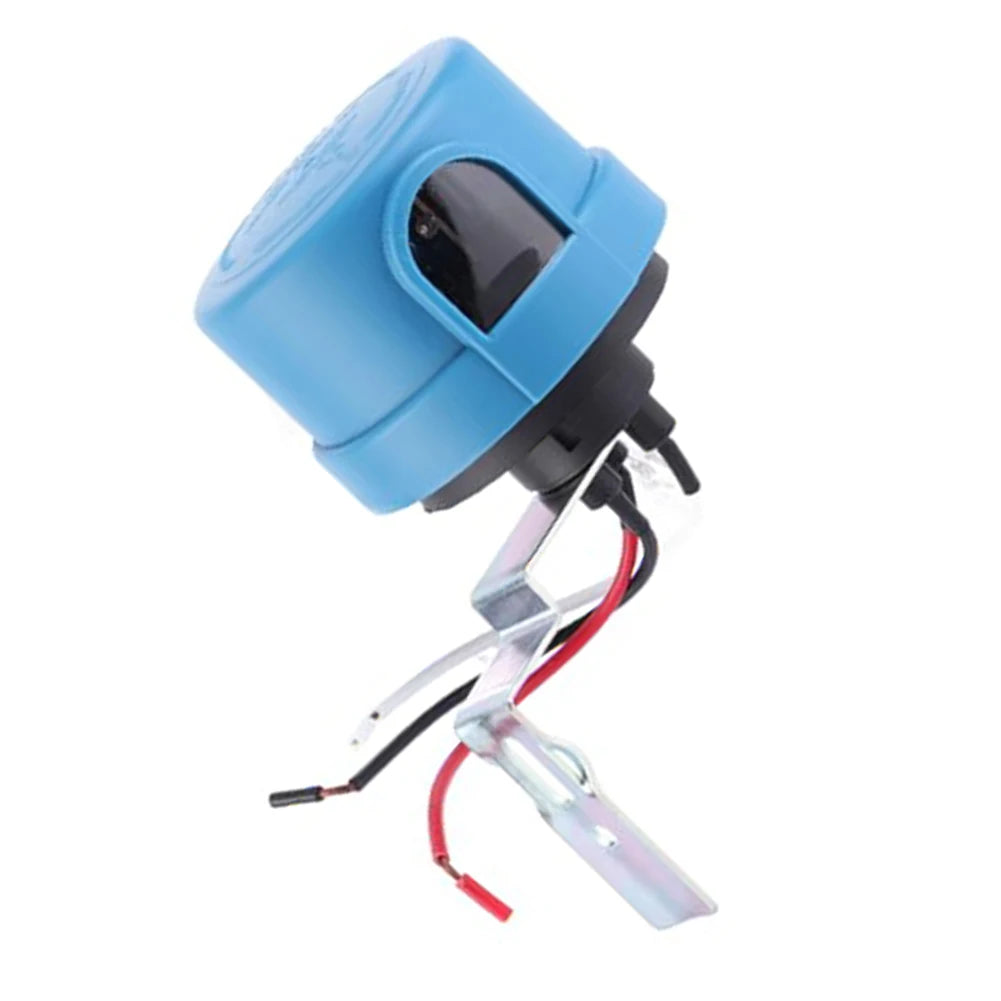

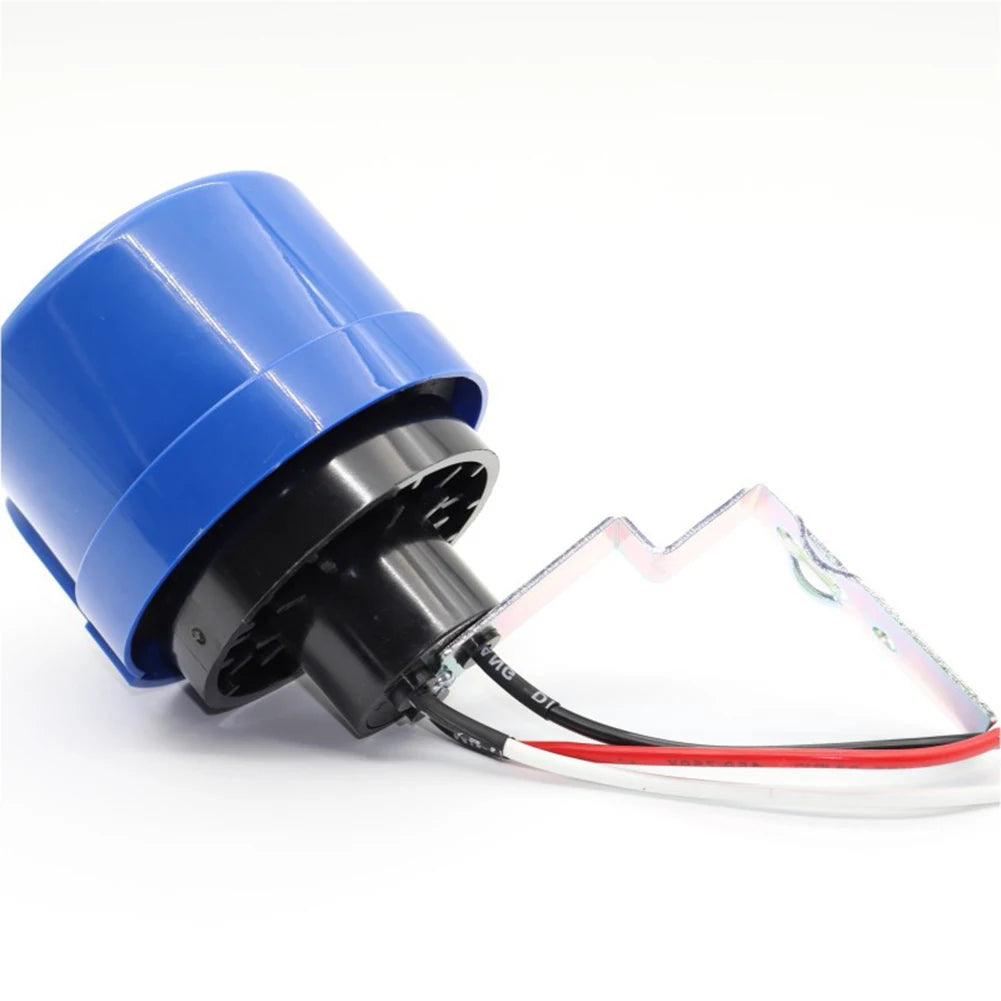

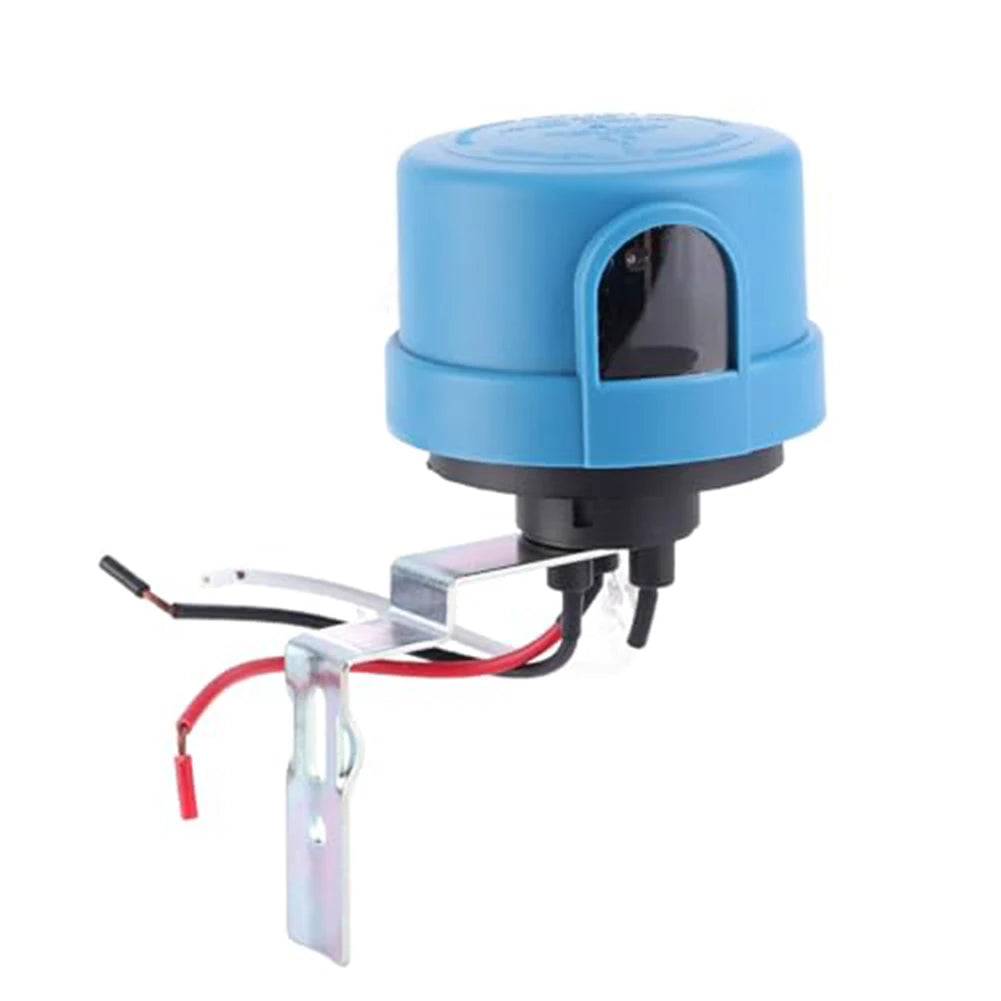

Photocell Automatic Light Switch 105–305V 10A IP65 Outdoor
Photocell Automatic Light Switch 105–305V 10A IP65 Outdoor
Photocell Automatic Light Control Switch – IP65 Weatherproof, 105–305V, 10A
Take the guesswork out of outdoor lighting with this high-sensitivity Photocell Automatic Light Control Switch. Designed for street lights, garden lighting, highways, and commercial outdoor installations, this dusk-to-dawn switch automatically activates your lights when natural light fades and turns them off at sunrise — saving energy and eliminating manual operation.
Key Features
- Automatic Dusk-to-Dawn Control: High-sensitivity photocell detects ambient light levels and switches your outdoor lights on at dusk and off at dawn — fully hands-free operation.
- Wide Voltage Compatibility: Operates across a broad input range of 105V to 305V (50/60Hz), making it compatible with both standard residential and commercial power supplies worldwide.
- IP65 Weatherproof Rating: The durable plastic housing is rated IP65, providing robust protection against dust ingress and water jets — ideal for exposed outdoor environments.
- High Load Capacity: Handles a rated current of 10A and up to 1000W of load power, suitable for driving street lights, floodlights, and garden luminaires.
- Twist-Lock Installation: Compact and lightweight design (80 × 54 mm) with a convenient twist-lock mechanism for quick, tool-free installation and easy replacement.
- 30-Second Delay Closing: Built-in 30-second delay prevents nuisance tripping from brief light fluctuations, ensuring stable and reliable switching.
- Wide Operating Temperature Range: Performs reliably from -40°C to +70°C, suitable for use in extreme climates.
Specifications
| Operating Input Voltage | 105–305V AC, 50/60Hz |
| Rated Current | 10A |
| Load Power | 1000W max |
| Protection Class | IP65 |
| Output Type | Switching output |
| Delay Closing Time | 30 seconds |
| Operating Temperature | -40°C to +70°C |
| Material | Plastic |
| Dimensions | 80 × 54 mm |
| Color | Blue |
| Country of Origin | Made in Mainland China |
Applications
- Street lights & highway lighting
- Garden and landscape lighting
- Commercial outdoor floodlights
- Parking lot and pathway lighting
Package Contents
- 1 × Photocell Automatic Light Control Switch
Note: Please verify input voltage and load requirements before purchase to ensure compatibility with your lighting installation. Color may vary slightly from images due to monitor calibration differences. Allow ±1–2 mm manual measurement tolerance.
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- 100 PCS Plant Support Clips for Orchid, Flower & Vine Stems
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What voltage range does this photocell automatic light switch support?
A: This photocell switch supports a wide input voltage range of 105V to 305V AC at 50/60Hz, making it compatible with most residential, commercial, and industrial outdoor lighting systems around the world.
Q: Is this photocell switch suitable for use in rain or harsh outdoor weather?
A: Yes. The switch carries an IP65 weatherproof rating, meaning it is fully protected against dust and water jets. It also operates reliably in temperatures from -40°C to +70°C, making it well-suited for exposed outdoor installations in virtually any climate.
Q: How does the twist-lock installation work?
A: The twist-lock design allows you to insert the switch into a compatible socket and rotate it to lock securely in place — no additional tools required. Removal and replacement are equally straightforward, minimizing downtime during maintenance.
Q: What is the maximum load this switch can handle?
A: The switch is rated for a maximum current of 10A and a load power of up to 1000W, making it suitable for driving standard street lights, garden floodlights, and similar outdoor luminaires.
