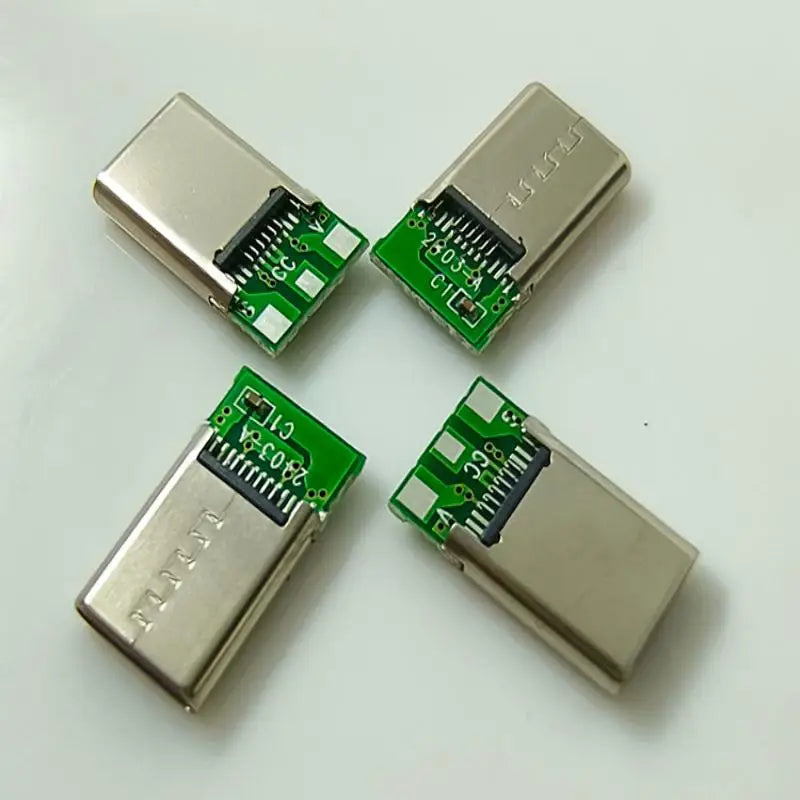

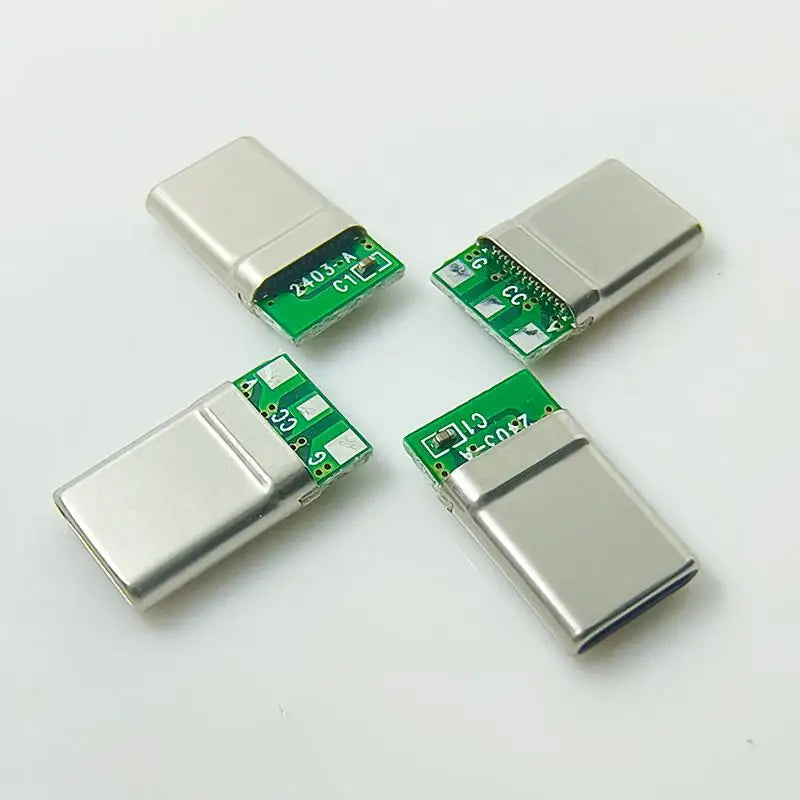

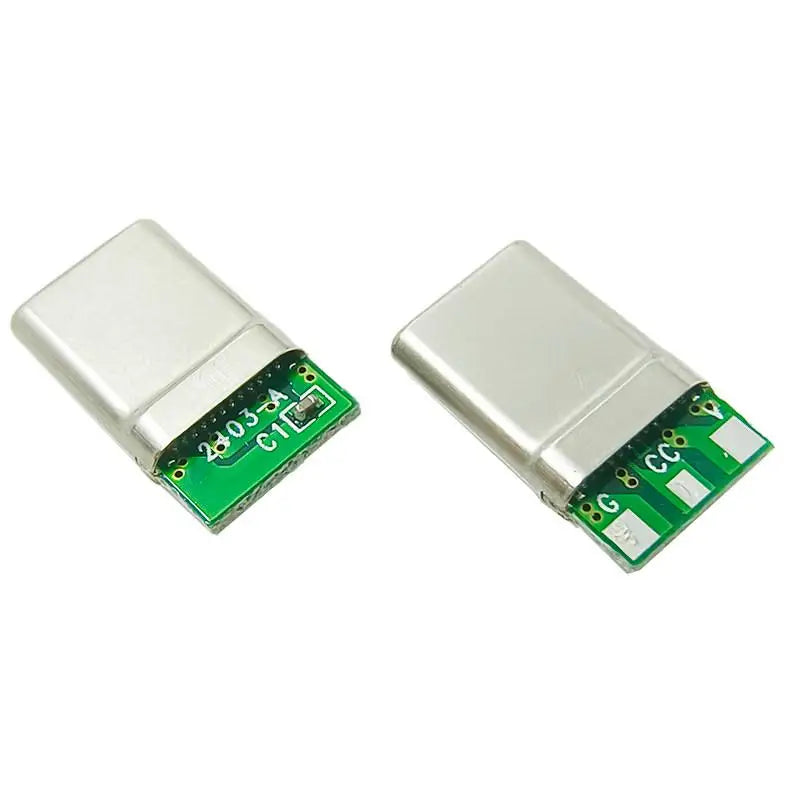

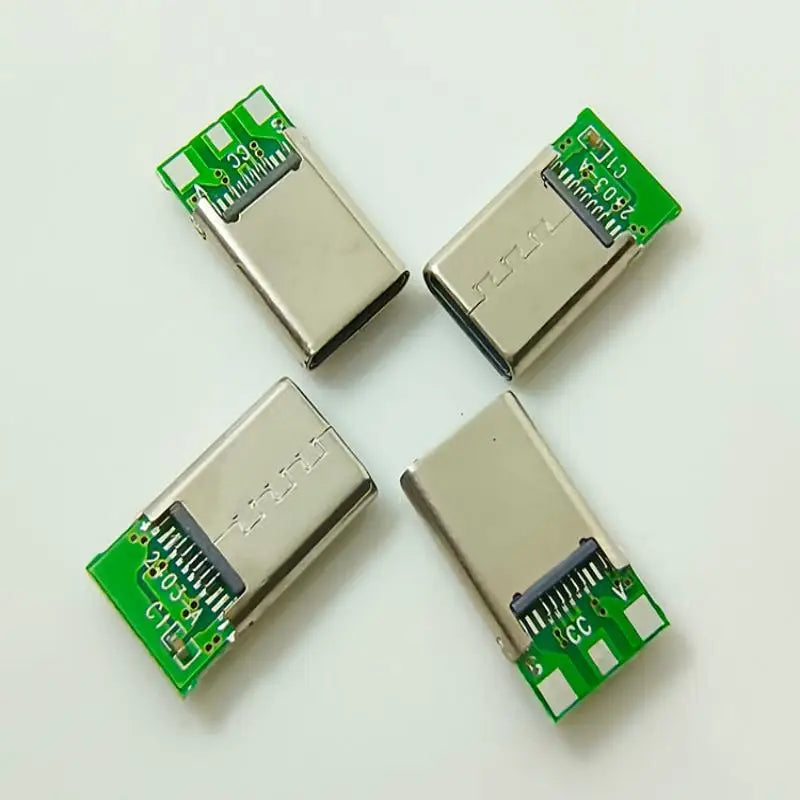

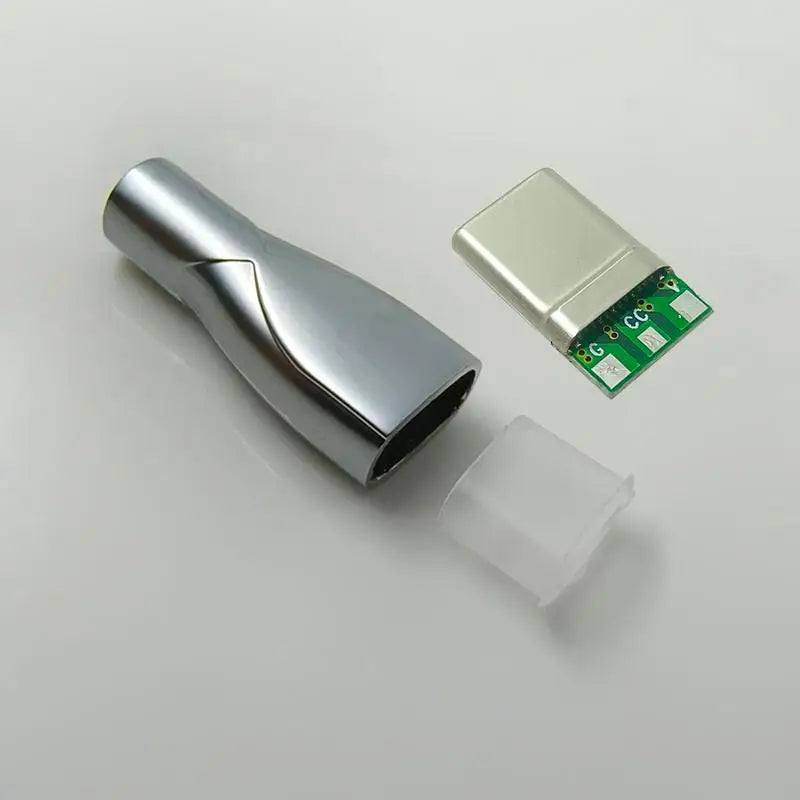

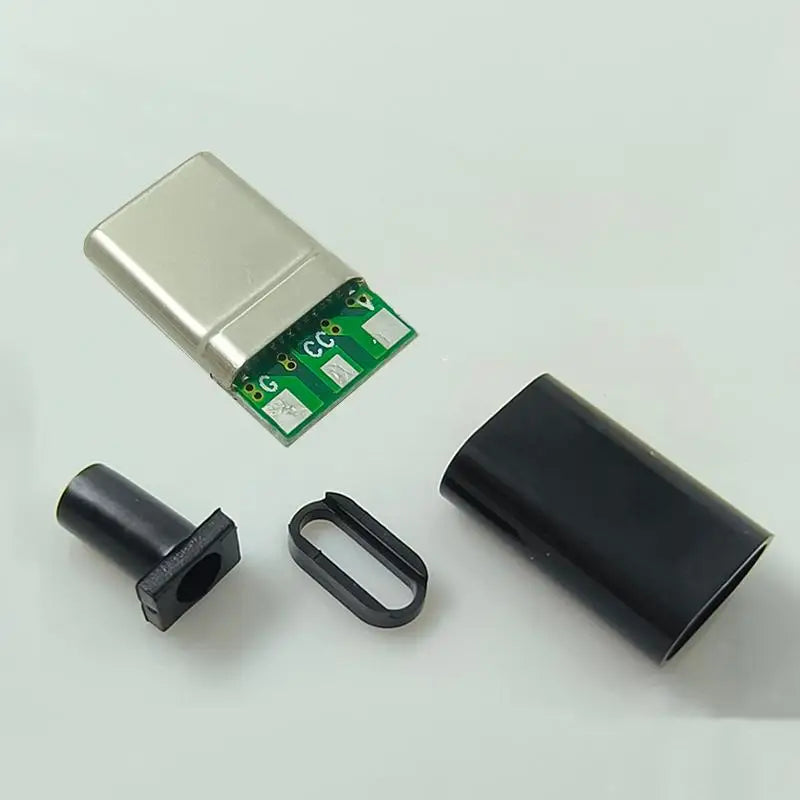

PD 3-Wire Type-C Laptop Connector 3-Pin with Capacitor

$15.29 $18.41

Color A7 A8 A1 A2 A5 A6 A3 A4

PD 3-Wire Type-C Laptop Charging Connector with Capacitor

This PD 3-Wire Male Type-C Laptop Charging Connector is an essential repair and replacement component for technicians and DIY electronics enthusiasts. Featuring a 3-pin male Type-C design with 3 solder joints, CC pin (CTOC5), and a built-in capacitor, this notebook adapter charging head delivers stable Power Delivery (PD) charging performance for compatible laptops and devices.

Whether you're repairing a damaged charging port, building a custom charging solution, or replacing a faulty connector, this component provides a reliable, low-voltage, solder-ready solution. Made in Mainland China.

Key Features

3-Pin Male Type-C Design — Compatible with PD (Power Delivery) charging standards for laptops and notebooks
3 Solder Joints — Easy to solder onto PCBs or repair boards for a secure, lasting connection
CC Pin (CTOC5) — Ensures proper USB-C power negotiation and device recognition
Built-in Capacitor — Helps regulate voltage and protect connected circuitry during charging
Low Voltage Rated — Below 50V AC or 75V DC (EU LVD compliant)
Durable Materials — Constructed from quality plastic and metal for long-lasting reliability

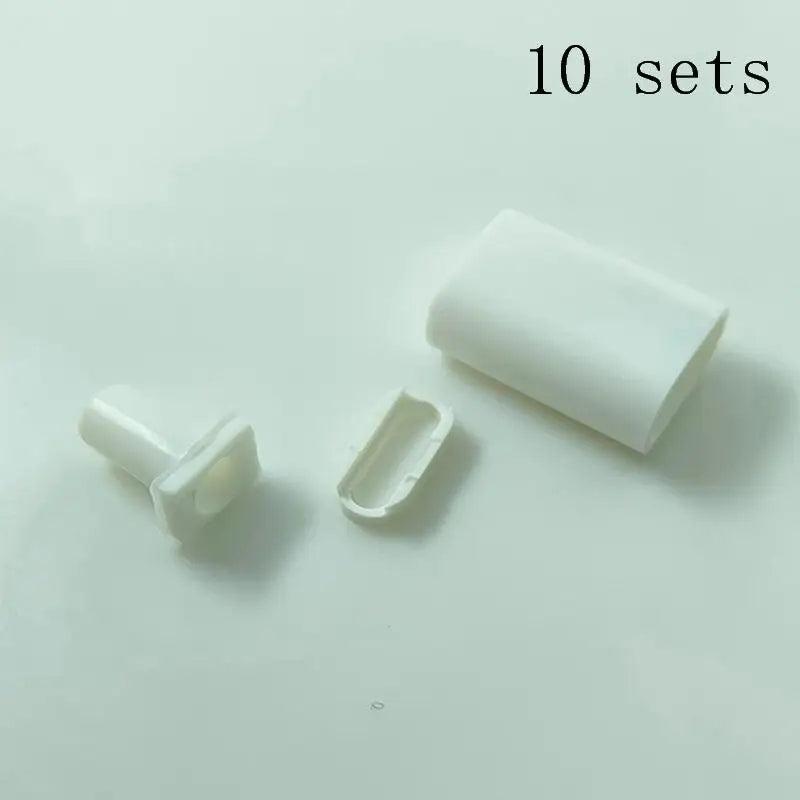

Flexible Pack Options — Available in 2-set or 10-set packs to suit individual repairs or bulk work

Specifications

Type: 3-Wire PD Male Type-C Charging Head Connector
Pin Configuration: 3-Pin with CC Pin (CTOC5)
Solder Joints: 3
Capacitor: Included
Battery Included: No
Wireless Function: No
Voltage: Low voltage — below 50V AC or 75V DC
Materials: Plastic, Metal
Packing: 2 or 10 sets
Country of Origin: Made in Mainland China

What's in the Box

PD 3-Wire Type-C Charging Head Connector(s) (2 or 10 sets depending on selection)

Note: Product color may vary slightly from images shown due to monitor brightness and lighting conditions. Please refer to the actual item received.

Learn more: ENERGY STAR product efficiency guidance

Frequently Asked Questions

Q: What devices is this PD Type-C charging connector compatible with?

A: This 3-pin male Type-C connector with CC pin (CTOC5) is designed for use with laptops and notebooks that support USB-C Power Delivery (PD) charging. It is ideal for PCB-level repairs, custom charging cable builds, or replacing damaged connectors on compatible devices.

Q: Do I need soldering skills to use this connector?

A: Yes. This is a solder-type component with 3 solder joints intended for use by electronics technicians or experienced DIY repairers. You will need a soldering iron and basic electronics repair knowledge to install it correctly.

Q: Why is a capacitor included with this connector?

A: The built-in capacitor helps smooth and regulate the voltage during Power Delivery charging, reducing electrical noise and protecting the connected circuitry for more stable and reliable performance.

Q: How many connectors are included per order?

A: This product is available in 2-set or 10-set packs. Please select your preferred quantity option before adding to cart — the 10-set pack offers great value for repair shops or bulk projects.
