PD 3-Wire Type-C Laptop Connector 3-Pin with CC Pin & Capacitor
PD 3-Wire Type-C Laptop Connector 3-Pin with CC Pin & Capacitor
PD 3-Wire Type-C Laptop Charging Connector — 3-Pin Male with CC Pin & Capacitor

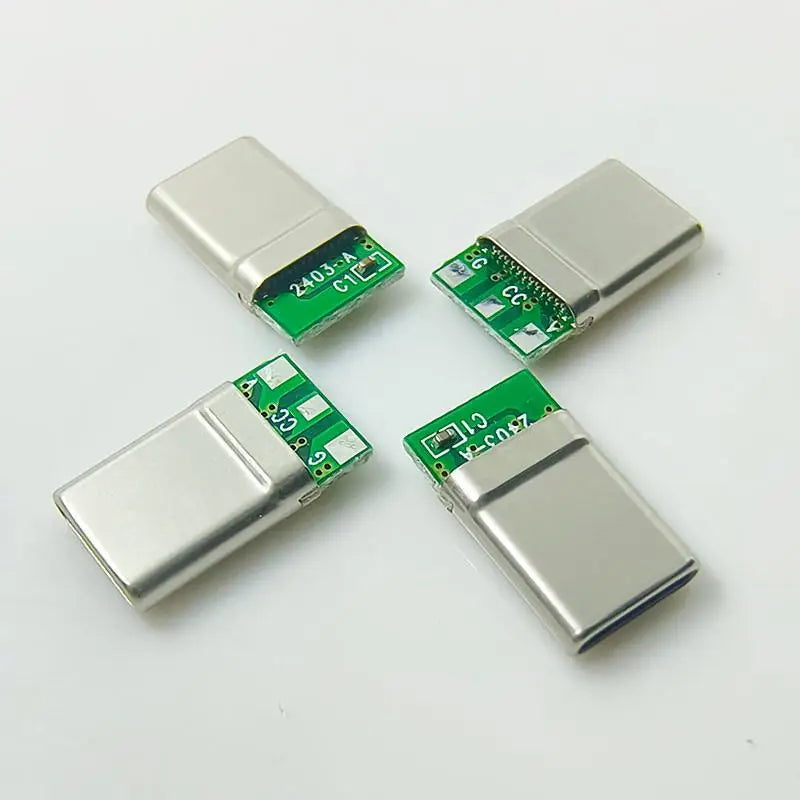

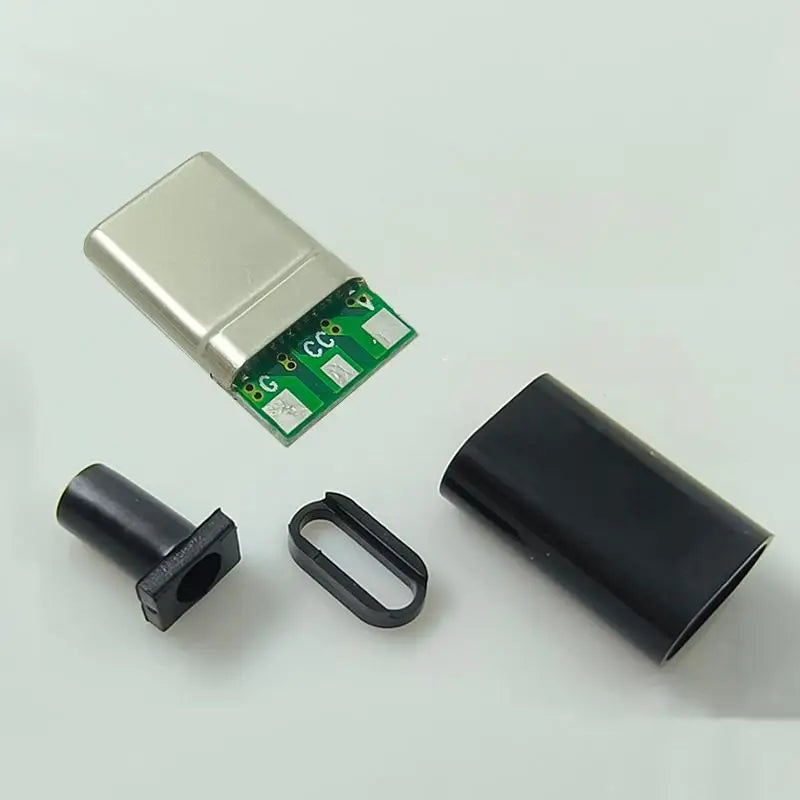

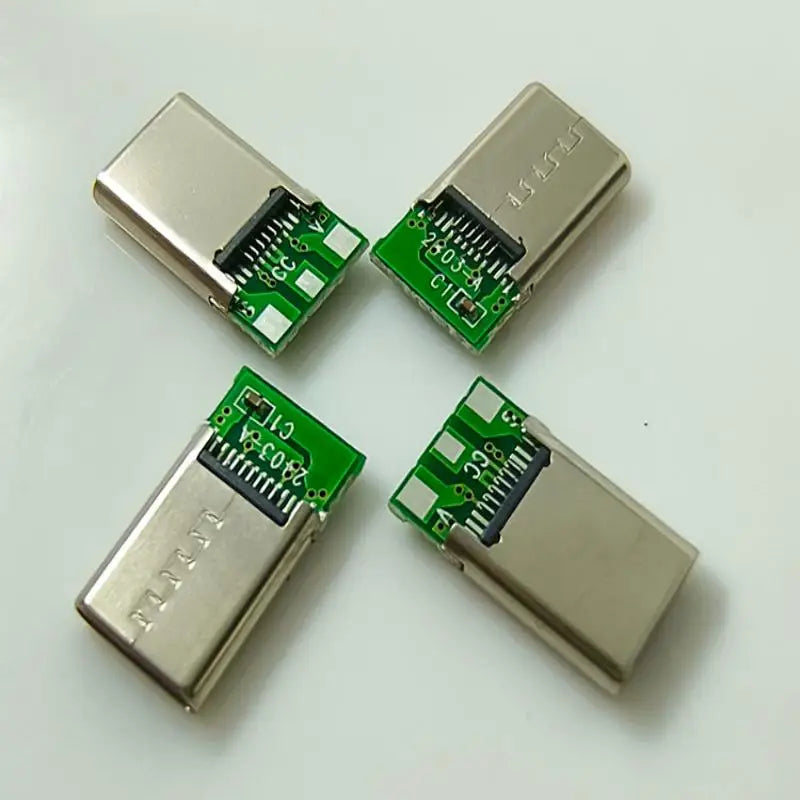

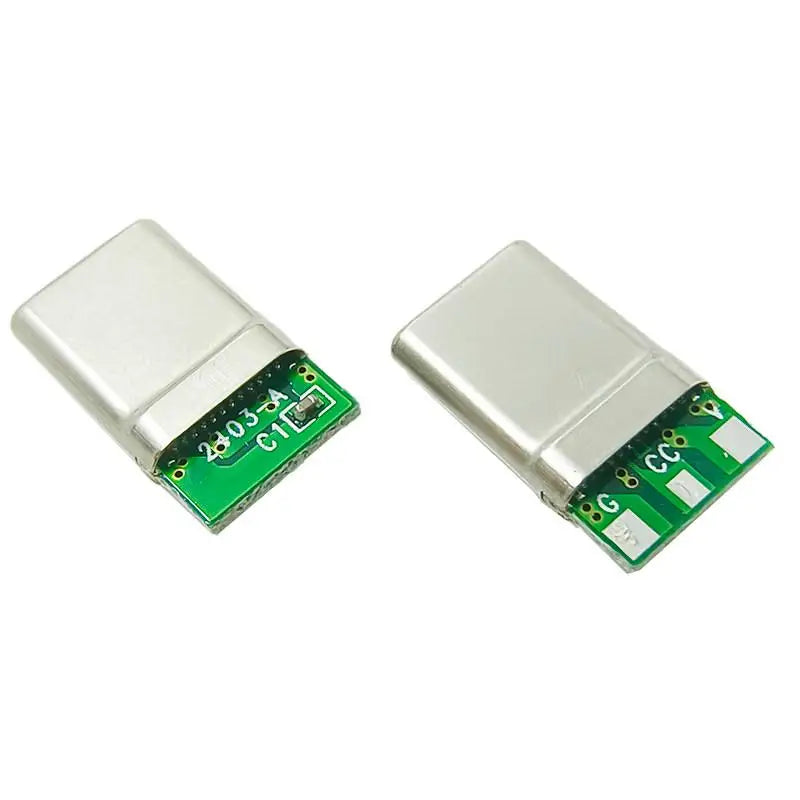

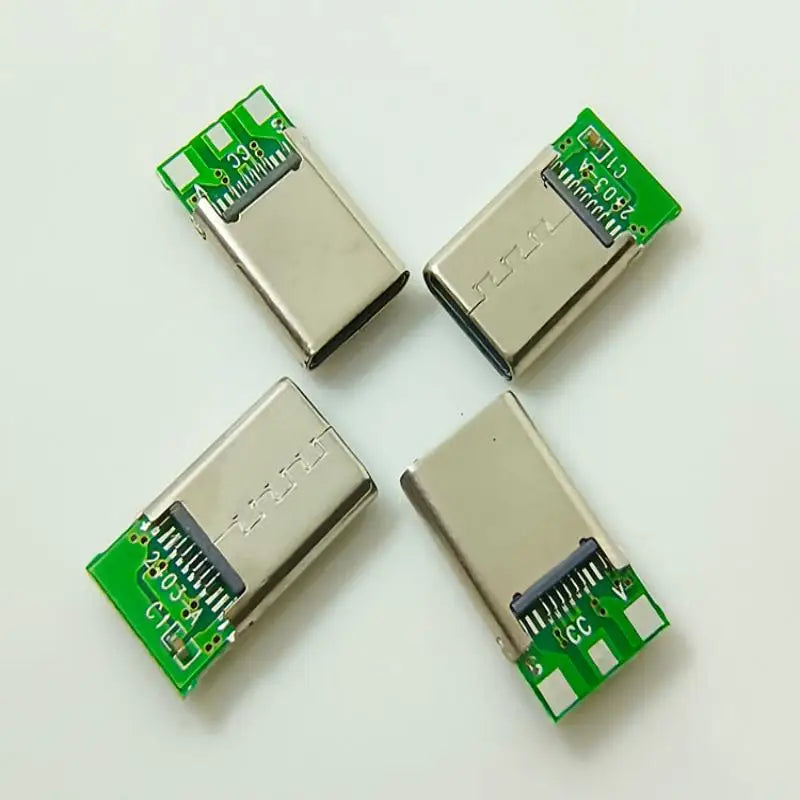

Keep your laptop charging setup running smoothly with this PD 3-Wire Type-C Charging Head. Designed for DIY repair enthusiasts and electronics professionals, this compact connector features a 3-pin male Type-C interface with three solder joints, a dedicated CC pin (CTOC5 standard), and a built-in capacitor for stable, reliable power delivery. Whether you're repairing a damaged charging port or building a custom notebook power adapter, this connector delivers the precision you need.
Made in Mainland China.
Key Features
- PD Power Delivery Compatible: Supports USB Power Delivery protocols for efficient laptop and notebook charging.
- 3-Pin Male Type-C Design: Three solder joints make installation straightforward for PCB repairs and DIY builds.
- CC Pin (CTOC5): Dedicated CC pin ensures correct cable orientation detection and power negotiation.
- Built-In Capacitor: Integrated capacitor helps smooth voltage fluctuations for more stable charging performance.
- Durable Construction: Crafted from quality plastic and metal materials for long-lasting use.
- Low Voltage Rated: Operates below 50Vac or 75Vdc (EU LVD compliant).
- Versatile Pack Options: Available in 2-set or 10-set packs — stock up for multiple repairs or projects.
Specifications
| Connector Type | 3-Pin Male Type-C (USB-C) |
| Standard | CTOC5 / PD 3-Wire |
| Solder Joints | 3 |
| Includes Capacitor | Yes |
| Materials | Plastic, Metal |
| Voltage Rating | Below 50Vac / 75Vdc |
| Packing Options | 2 sets or 10 sets |
| Country of Origin | Mainland China |
Note: Due to monitor brightness and lighting conditions, product color may vary slightly from images shown. Please refer to the actual product received.
