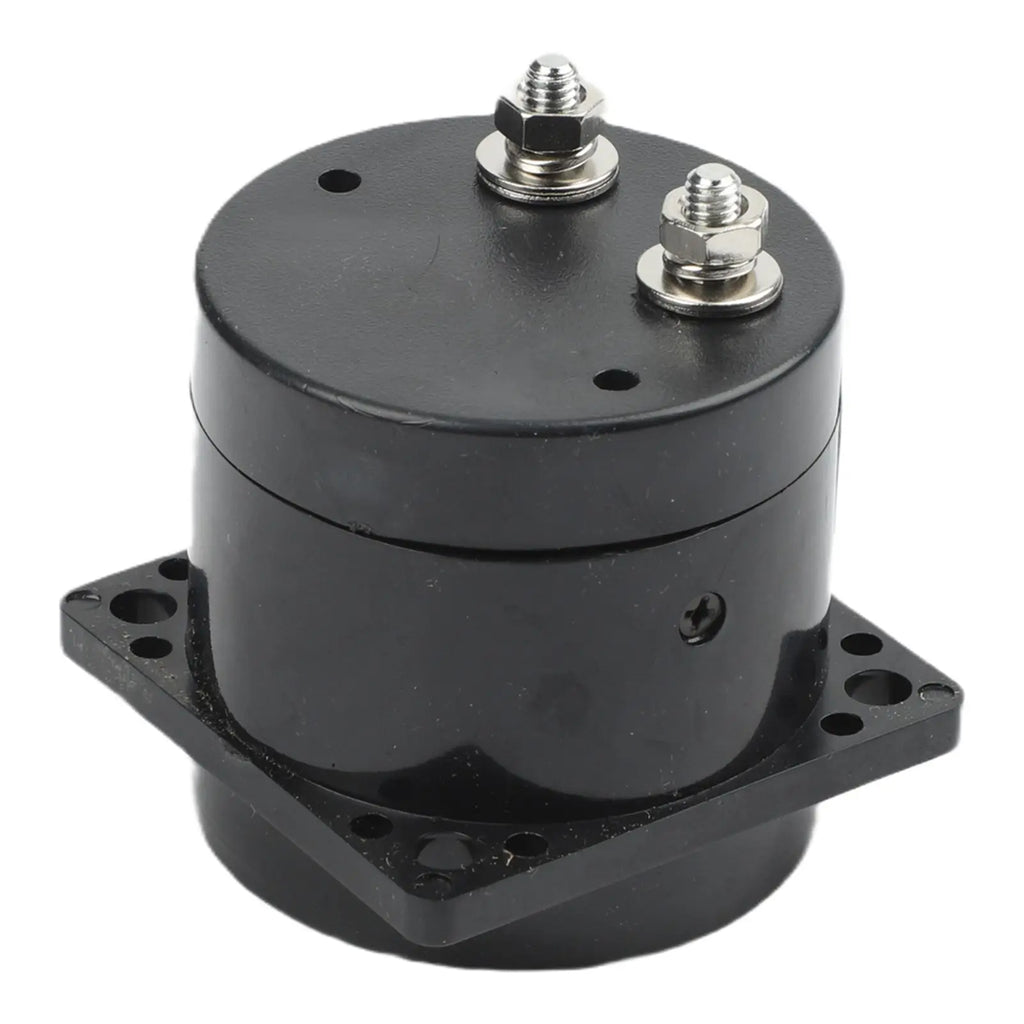

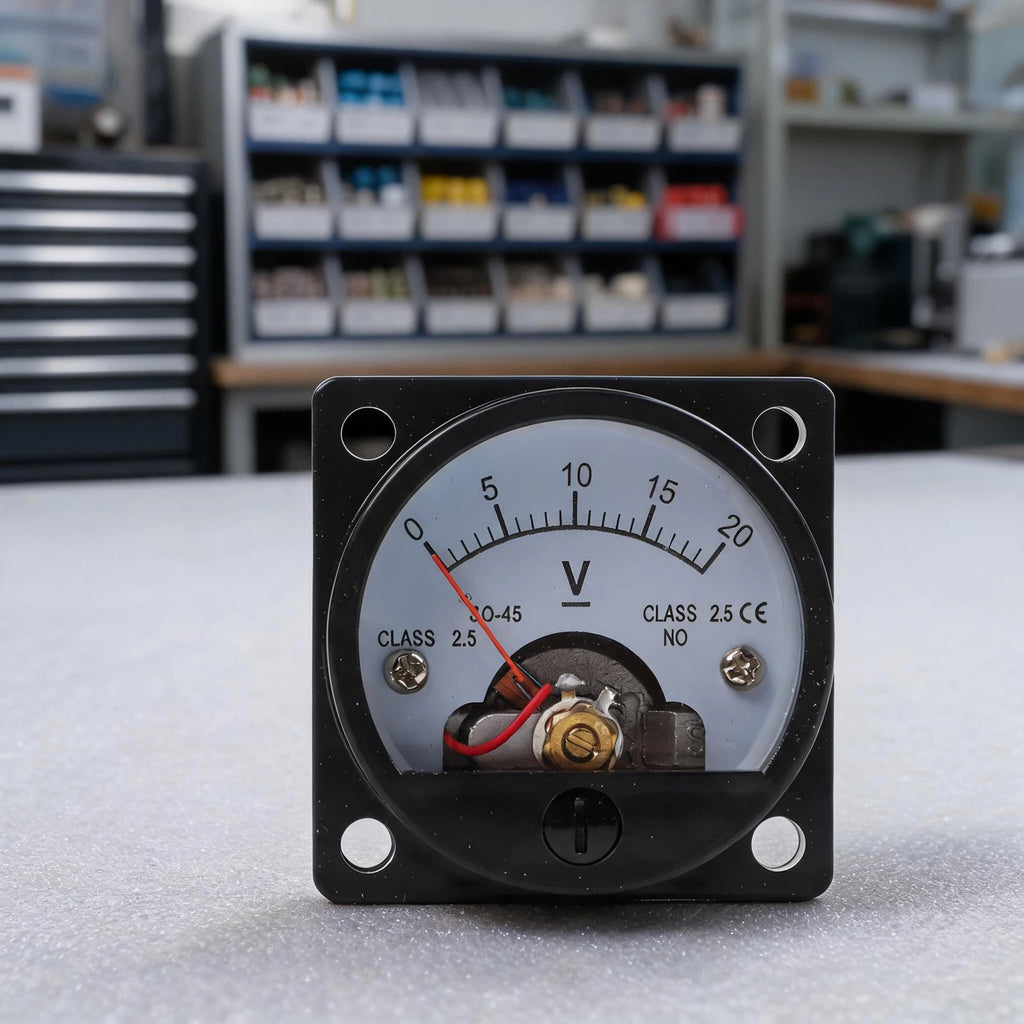

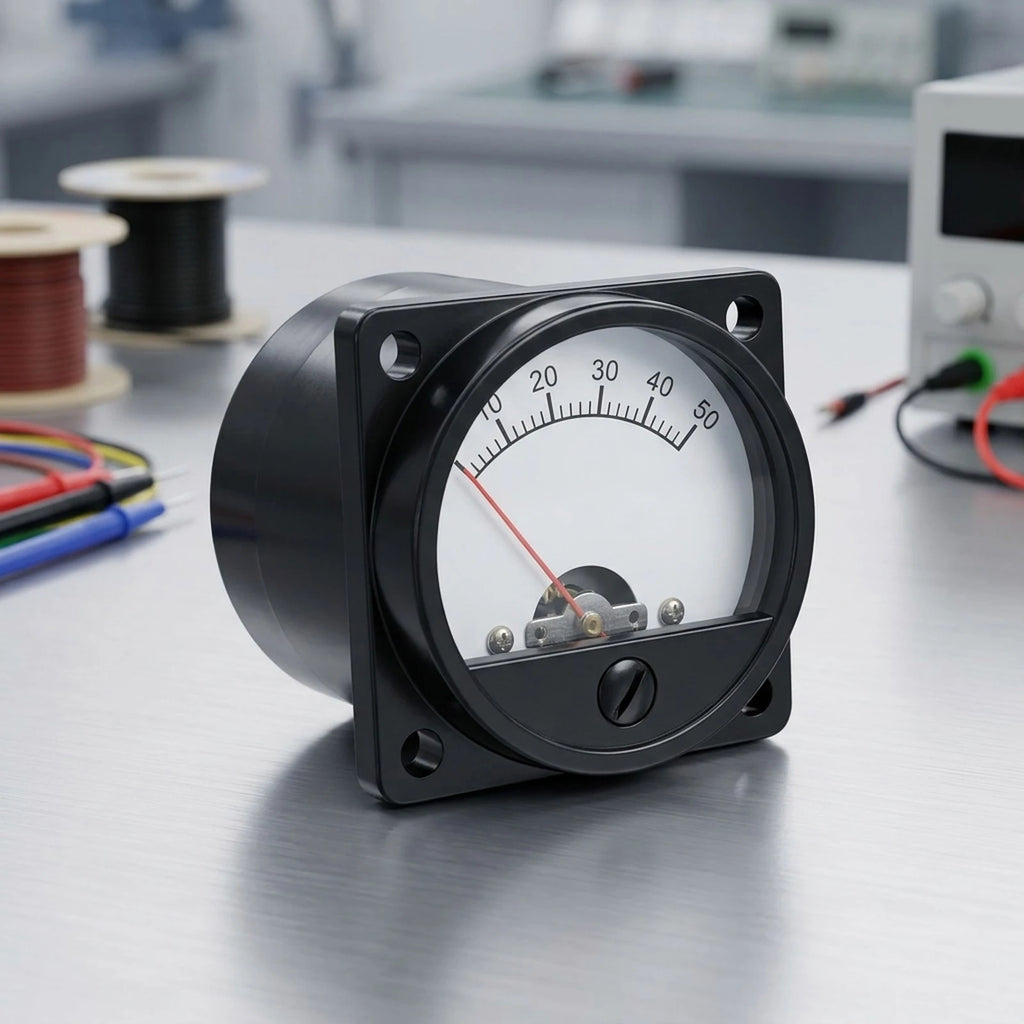

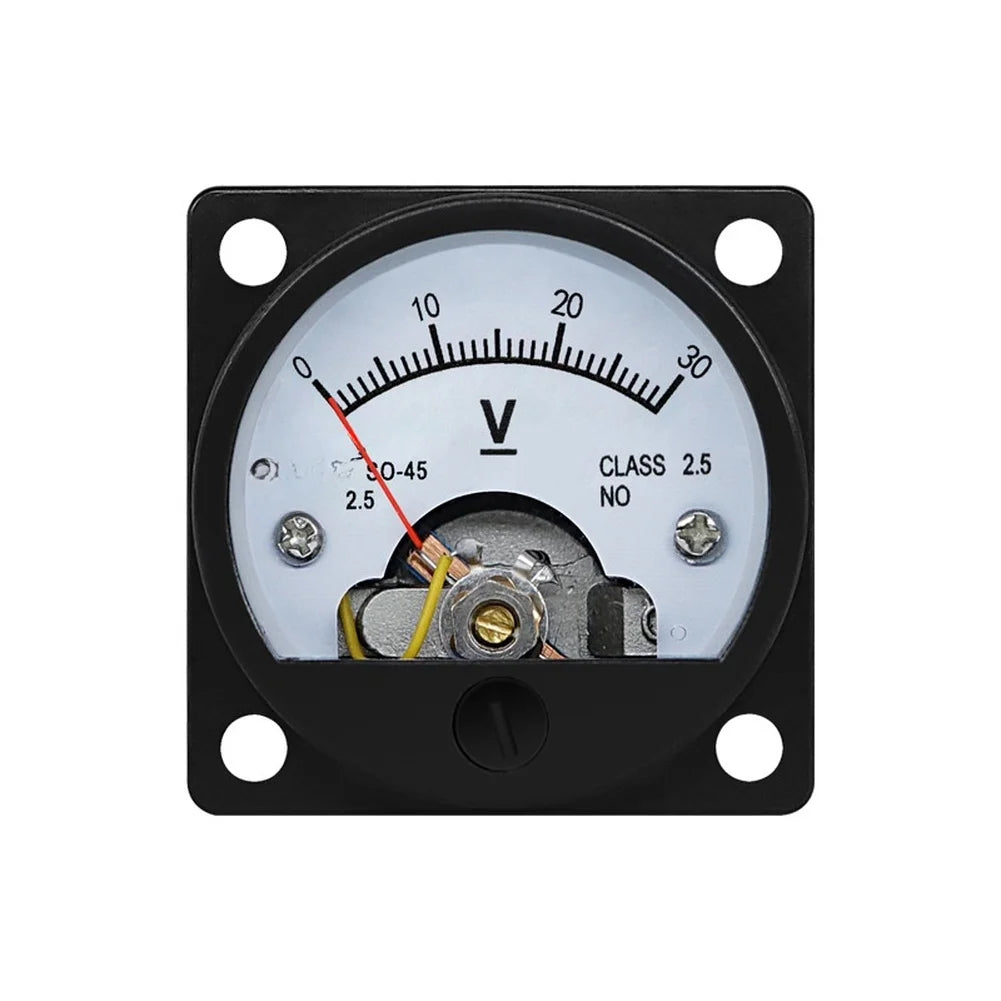

Panel Mount DC Voltmeter – Precise Voltage Measurement for Electrical Systems
This compact panel-mount DC voltmeter delivers dependable, accurate voltage readings across a wide 1V–800V range, making it an essential instrument for electrical panels, DIY projects, and professional installations. Rated at Level 2.5 accuracy and built with flame-retardant ABS housing, it is designed to perform reliably even in demanding environments.
Key Features
- Wide Measurement Range: Reads DC voltages from 1V to 800V, suitable for a broad range of electrical testing applications.
- Level 2.5 Accuracy: Precision-grade error rating ensures consistent and trustworthy voltage readings.
- Flame-Retardant ABS Housing: Durable, heat-resistant casing built for reliable performance in harsh or high-temperature environments.
- Compact 47×47mm Design: Easy panel installation via a 46mm mounting hole — no special tools required for quick setup.

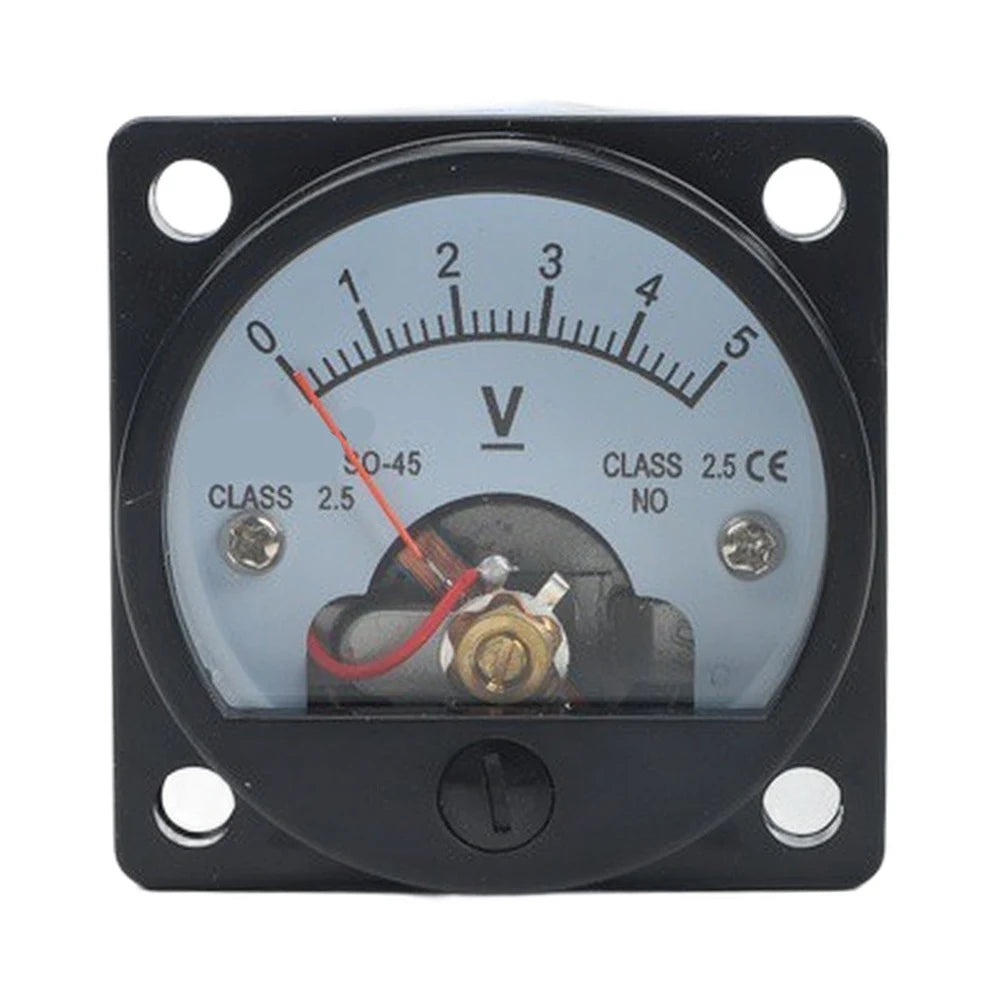

- Computer-Printed Dial: Clear, legible scale markings for accurate visual readings at a glance.
- Zero-Position Adjustment: Built-in zero regulator allows accurate calibration before each use for maximum measurement precision.
- No Battery Required: Powered directly through the circuit being measured — no external power source needed.
Specifications
| Product Type | Panel Mount DC Voltmeter |
| Measurement Range | 1V – 800V DC |
| Accuracy Class | Level 2.5 |
| Operating Voltage | 6–24V DC |
| Housing Material | ABS Flame-Retardant Plastic |
| Dimensions | 47 × 47mm (Panel Cutout: 46mm) |
| Battery | Not Required |
| Country of Origin | Made in Mainland China |
Package Contents
- 1 × Panel Mount DC Voltmeter
Notes
Screen colors may vary slightly from the actual product depending on your monitor's brightness settings. Please allow for minor manual measurement deviations in the listed dimensions.
You May Also Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What is the voltage measurement range of this panel mount DC voltmeter?
A: This DC voltmeter measures voltages from 1V up to 800V DC, making it versatile enough for a wide variety of electrical panel installations and testing applications.
Q: Does this voltmeter require a battery or external power supply?
A: No battery is required. The voltmeter operates on 6–24V DC drawn directly from the circuit being measured, simplifying installation and eliminating ongoing battery maintenance.
Q: What size panel cutout is needed to mount this voltmeter?
A: The voltmeter has a compact 47×47mm body and requires a 46mm mounting hole in your panel, making installation quick and straightforward with standard tools.
Q: Is the ABS housing safe for use in high-temperature or harsh environments?
A: Yes. The housing is constructed from flame-retardant ABS material, which is designed to withstand elevated temperatures and provide reliable performance in demanding electrical environments.
