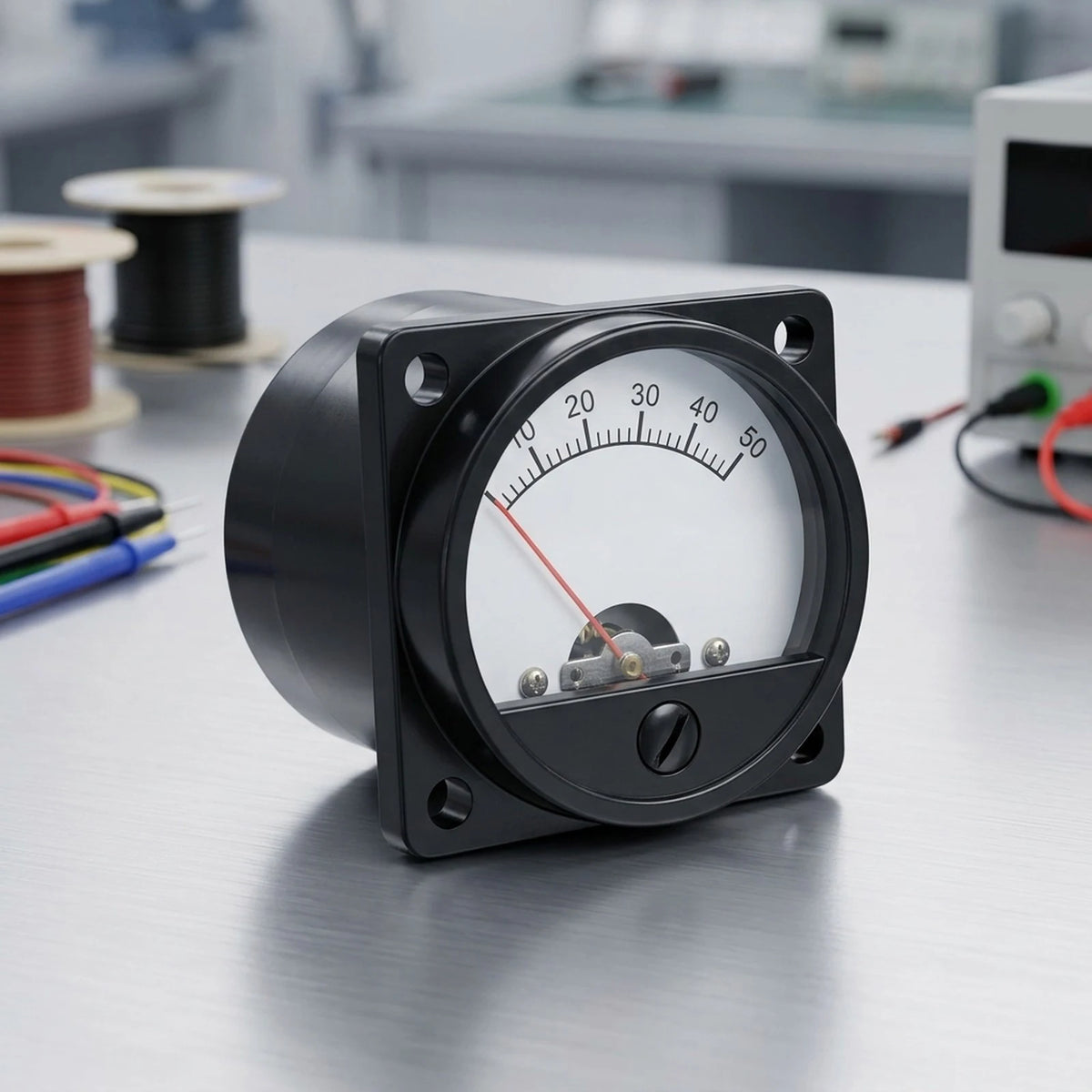

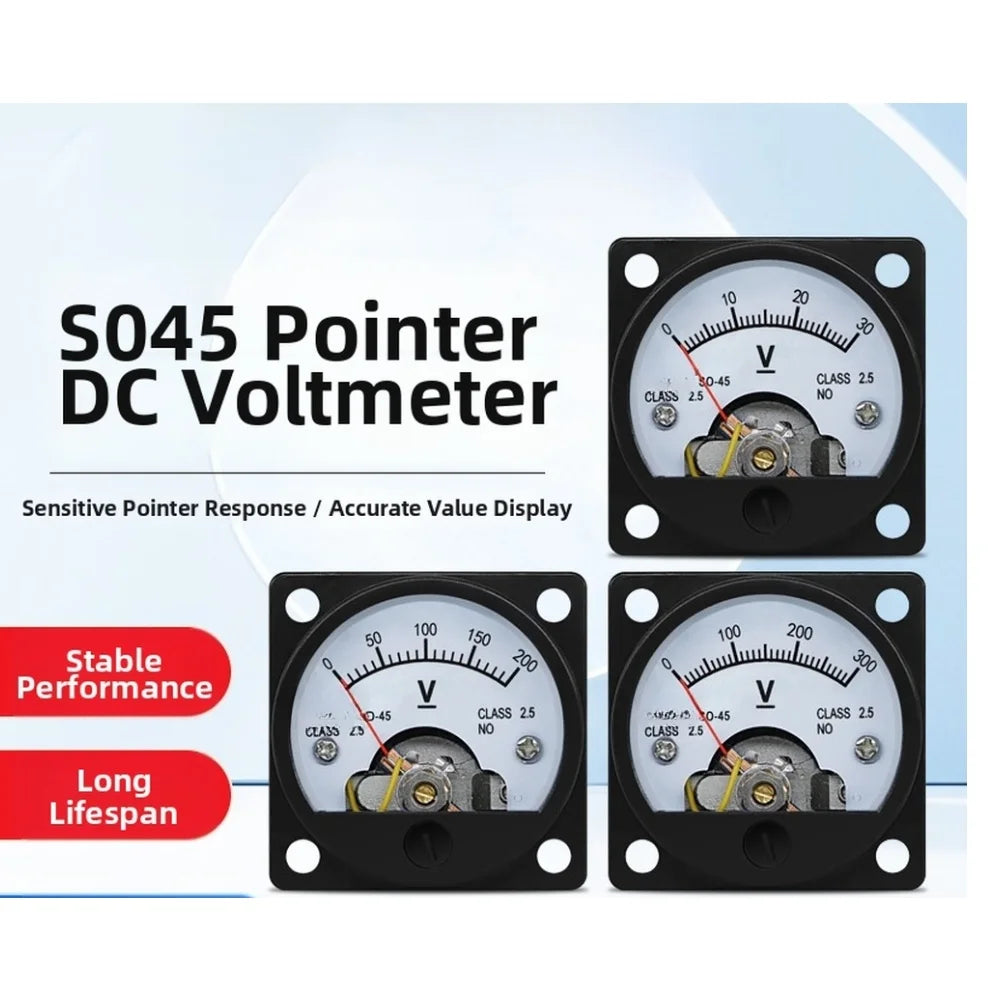

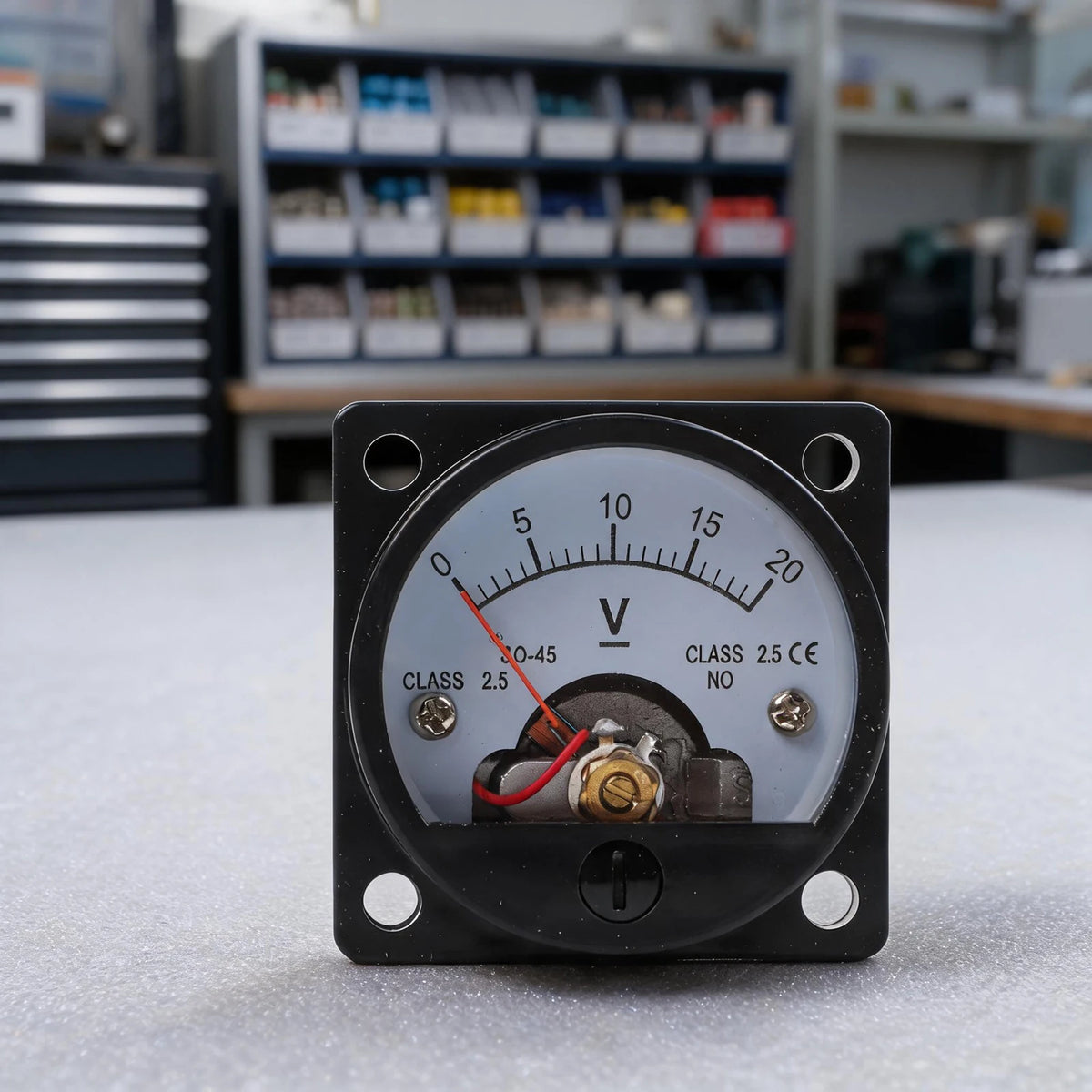

Panel Mount DC Voltmeter – Precision Voltage Measurement for Electrical Testing
This compact panel-mount DC voltmeter delivers reliable, accurate voltage readings across a wide 1V to 800V measurement range, making it an ideal instrument for electrical control panels, DIY electrical projects, and professional testing setups. With a Level 2.5 accuracy rating and a rugged ABS flame-retardant housing, it is built to perform consistently even in demanding environments. Made in Mainland China.
Key Features
- Wide Voltage Range: Accurately measures DC voltage from 1V to 800V, covering a broad spectrum of electrical testing needs.
- Level 2.5 Accuracy: Ensures precise, repeatable readings with a controlled error margin for dependable results.
- ABS Flame-Retardant Housing: The durable, heat-resistant plastic casing provides added safety and longevity in harsh or high-temperature electrical environments.

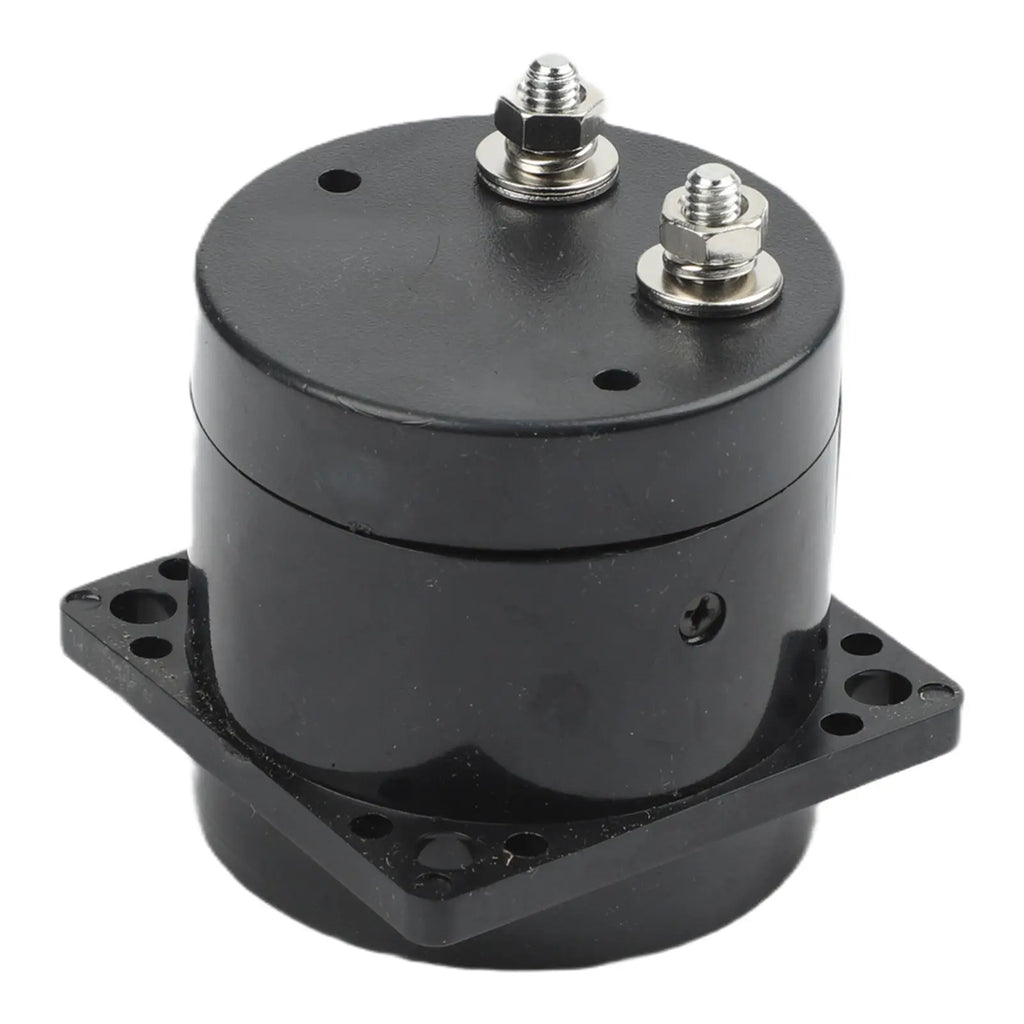

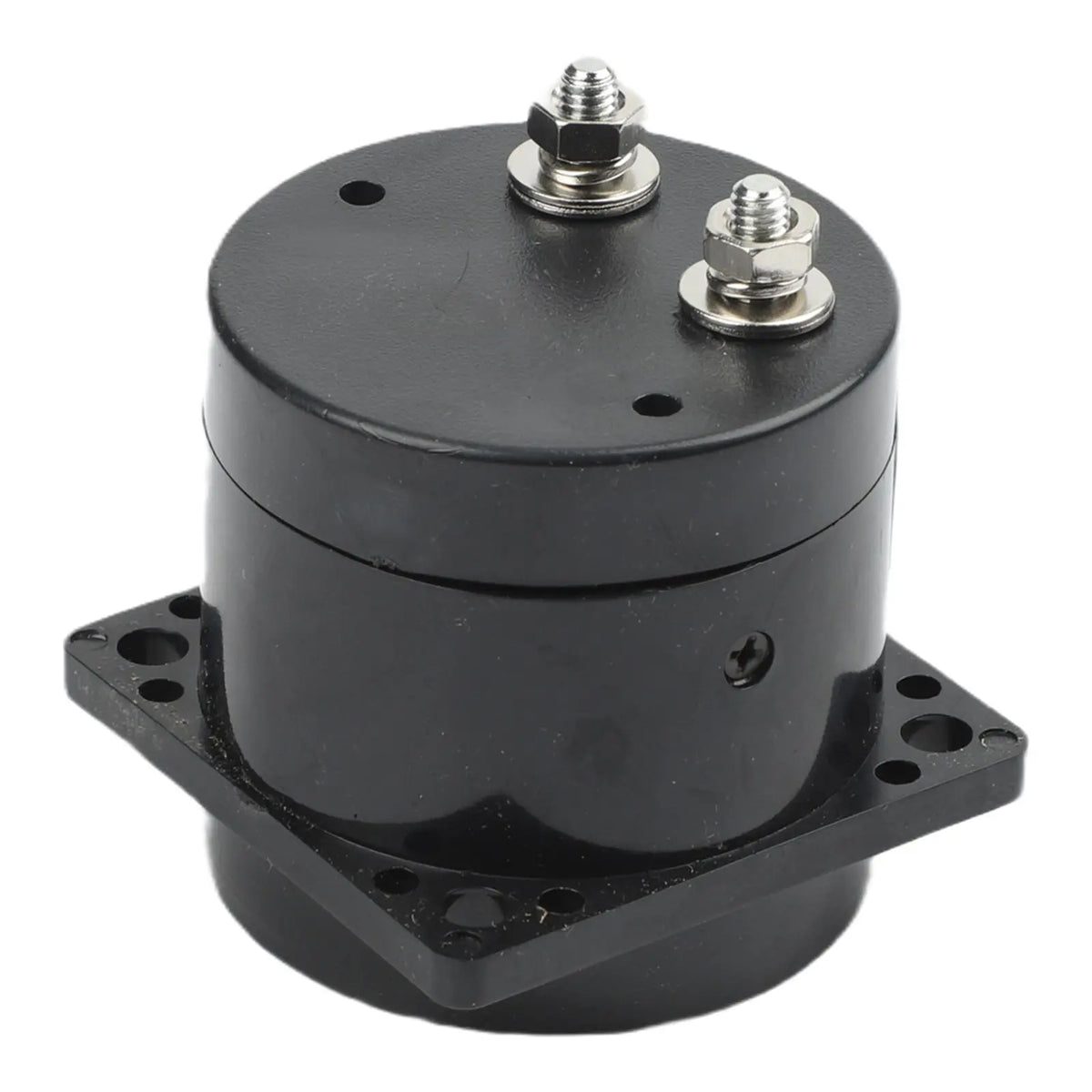

- Easy Panel Installation: Compact 47 × 47 mm body with a 46 mm mounting hole cutout for quick, straightforward installation into any standard electrical panel.

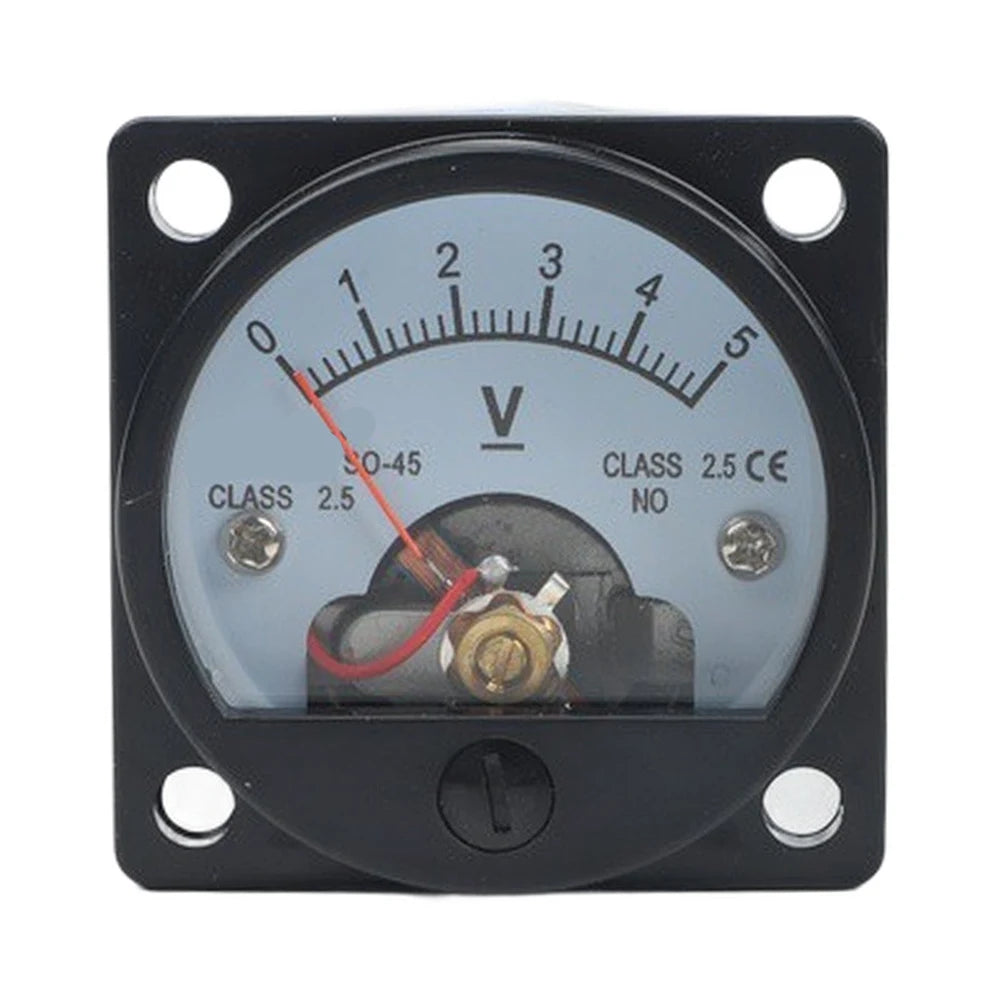

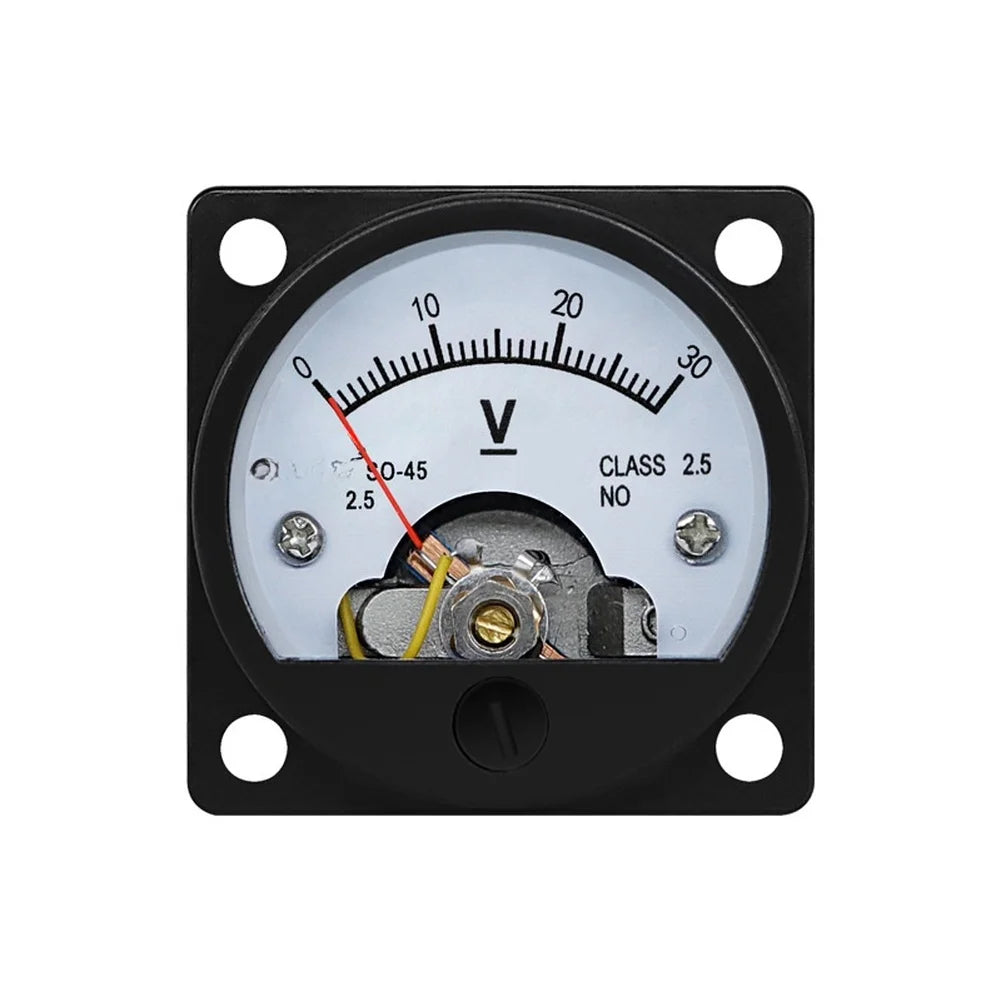

- Clear Computer-Printed Dial: High-contrast, legible scale markings make readings easy to interpret at a glance.
- Zero-Position Adjustment: Built-in zero regulator allows calibration before use, ensuring your readings start from an accurate baseline.
- No Battery Required: Draws power directly from the measured circuit — no external power source needed.
- Operating Voltage: 6–24V DC supply voltage range.
Specifications
| Product Type | Panel Mount DC Voltmeter |
| Measurement Range | 1V – 800V DC |
| Accuracy Class | Level 2.5 |
| Housing Material | ABS Flame-Retardant Plastic |
| Dimensions | 47 × 47 mm (4.7 × 4.7 cm) |
| Mounting Hole | 46 mm |
| Supply Voltage | 6–24V DC |
| Battery | Not required |
| Country of Origin | Mainland China |
Package Contents
- 1× Panel Mount DC Voltmeter
Related Products You May Like
- Air Compressor Pressure Gauge 0–10/0–12/0–25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
Note: Actual color may vary slightly from images due to monitor brightness and lighting conditions. Please allow a minor tolerance for manual measurements.
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What is the DC voltage measurement range of this panel mount voltmeter?
A: This panel mount DC voltmeter measures voltages from 1V up to 800V DC, making it suitable for a wide variety of electrical panels, battery systems, and testing applications requiring a broad measurement span.
Q: Does this voltmeter need a battery or external power supply?
A: No battery is required. The voltmeter operates on a 6–24V DC supply voltage drawn directly from the circuit being monitored, keeping installation simple and hassle-free.
Q: What size mounting hole is needed for panel installation?
A: The voltmeter requires a 46 mm mounting hole and fits into a standard 47 × 47 mm panel cutout, allowing for quick and easy installation in most electrical enclosures and control panels.
Q: Is the housing safe for use in environments with heat or electrical hazards?
A: Yes. The housing is constructed from ABS flame-retardant material, which provides resistance to heat and reduces fire risk, making it suitable for use in demanding electrical testing and control panel environments.
